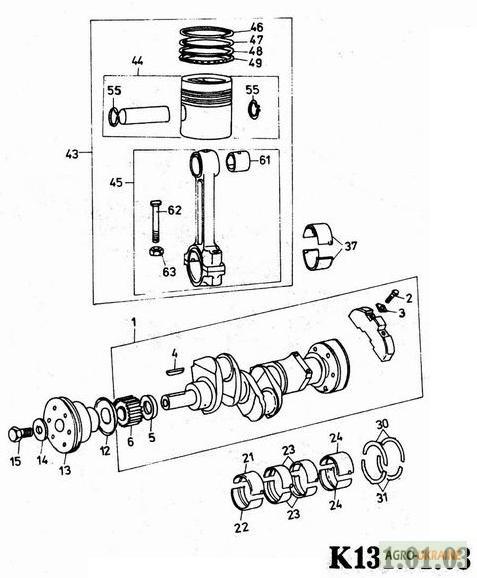

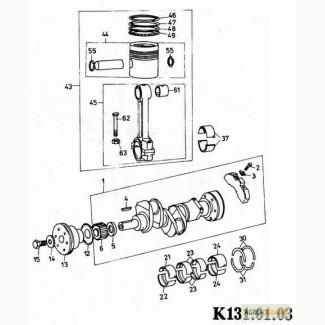

Crankshaft for a D2500k engine for a Balkankar loader, Kharkiv region.

Position no.
Catalog No.
positional number
Name
1
8 476410 4566693381
В41243292
Crank shaft with gears
1
8476431
C41243291
Crank shaft with gears
2
6 476502 4566693375
В32162431
Bolt
3
6 446458 4566693091
В31731515
Locking washer, right.
4
6 441026 4566693194
36271704
Key
5
6 428787 4566693596
33125106
Spacer bushing
6
6 421722 4566693582
31163109
Gear
12
6 431198 4566692469
33176308
Oil reflector
13
6 428528 4566693125
В31142646
Belt pulley
13
8 464394 45666942255
В41315181
Belt pulley
13
6 481018 4566694226
В31142647
Belt pulley
14
6 433041 4566693083
33125112
Washer
15
6 429245
C32162312
Bolt
21
6 422686 4566693065
URB31122321ST
Insert of the front main bearing, upper
21
6 464557
URB31122323R2
Insert of the front main bearing, upper
21
6 464563
URB31122324R3
Insert of the front main bearing, upper
21
6 464542
URB31122322R1
Insert of the front bearing, upper
22
6 416167 4566693069
URB31122311ST
Insert of the front main bearing, lower
22
6 464613
URB31122313R2
Insert of the front main bearing, lower
22
6 464628
URB31122314R3
Insert of the front main bearing, lower
22
6 464607
URB31122312R1
Insert of the front bearing, lower
23
6 416152 4566693040
URB31121221ST
Insert of the intermediate main bearing
23
6 464578
URB31121222R1
Insert of the intermediate root bearing(//tractor-service.com)
23
6 464584
URB31121223R2
Intermediate main bearing liner
23
6 464590
URB31121224R3
Intermediate main bearing liner
24
6 422692 4566693036
URB31123271ST
Insert of the rear main bearing
24
6 464634
URB31123272R1
Insert of the rear main bearing
24
6 464640
URB31123273R2
Insert of the rear main bearing
24
6 464655
URB31123274R3
Insert of the rear main bearing
30
6 420554 4566693674
URB31137191
Thrust washer, upper
31
6 420560 4566693675
URB31137201
Thrust washer, lower
37
6 416194 4566693029
URB31131171ST
Connecting rod bearing liner
37
6 464661
URB31131172R1
Connecting rod bearing liner
37
6 464676
URB31131173R2
Connecting rod bearing liner
37
6 464682
URB31131174R3
Connecting rod bearing insert
43
8 494791 4566693376
В41732133
Piston - connecting rod
44
7 480952 4566693377
В41731041
Piston
44
7 480952 4566693377
В41731041
Piston
45
7 445254 4566693774
В41152911
Connecting rod
45
7 445254 4566693774
41152911
Connecting rod
46
6 493496
В2725097
Compression piston ring
47
6 493304
В2725095
Compression piston ring
49
6 493510 4566692656
В2725091
Oil-removal piston ring
55
6 235641

Ring A32x1.2 BDS 2170-77
61
6 420738 4566692187
URB31134151
Connecting rod bushing
62
6 445120 4566692078
В32762102
Connecting rod bolt
63
6 402244 4566692209
В33221321
Connecting rod bolt nut
