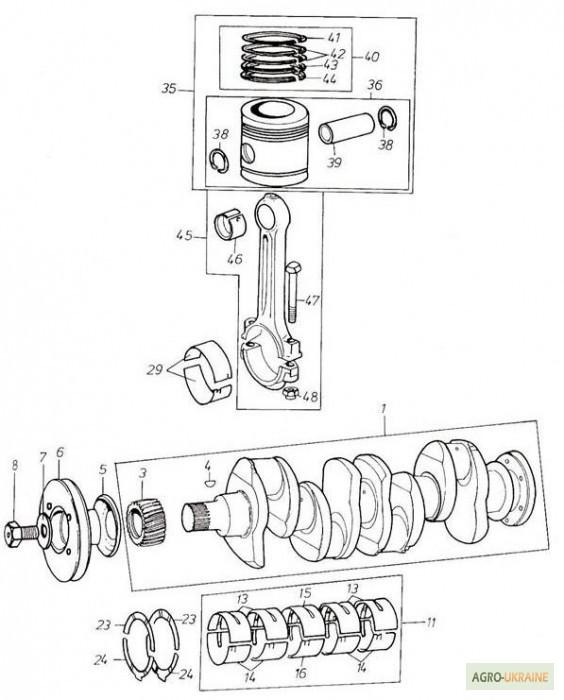

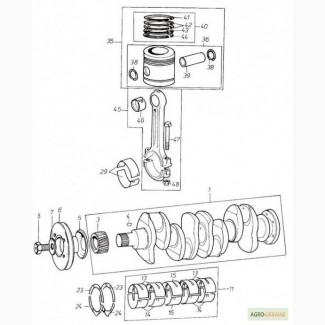

Crankshaft for Engine D 3900k, Kharkiv region.

Position no.
Catalog No.
positional number
Name
1
В41243421
8 496 516
Crank shaft (assembled)
1
В41243422
8 496 522
Crank shaft (assembled)
3
С31171681
6 475 587
Gear
4
С32417613
6 433 338
The key is segmented.
5
33415311
6 431 254
Oil reflector
6
В31147461
6 422 784
Belt pulley
7
33125124
6 433 920
Pad washer
8
В32162319
6 418 242
Болт
9
В32142206
6 449 862
Болт
9
В32162203
6 418 756
Болт
10
В31734102
6 431 557
Safety plate
13
URB 31126391 ST
6 416 202
Main bearing insert (front, intermediate and rear-upper)
13
URB 31126392 R1
6 465 491
Main bearing insert (front, intermediate and rear-upper)
13
URB 31126393 R2
6 465 508
Main bearing insert (front, intermediate and rear-upper)
13
URB 31126394 R3
6 465 514
Main bearing insert (front, intermediate and rear-upper)
14
URB 31126381 ST
6 416 217
Main bearing insert (front, intermediate and rear-lower)
14
URB 31126382 R1
6 465 520
Main bearing insert (front, intermediate and rear-lower)
14
URB 31126383 R2
6 465 535
Main bearing insert (front, intermediate and rear-lower)
14
URB 31126384 R3
6 465 541
Main bearing insert (front, intermediate and rear-lower)
15
URB 31126371
6 435 743
Main bearing insert (upper middle)
15
URB 31126372 R1
6 465 464
Main bearing insert (upper middle)
15
URB 31126373 R2
6 465 470
Main bearing insert (middle upper)(//tractor-service.com)
15
URB 31126374 R3
6 465 485
Main bearing insert (upper middle)
16
URB 31126361
6 429 055
Main bearing insert (middle lower)
16
URB 31126362 R1
6 465 347
Main bearing insert (middle lower)
16
URB 31126363 R2
6 465 443
Main bearing insert (middle lower)
16
URB 31126364 R3
6 465 458
Main bearing insert (middle lower)
23
URB 31137311
6 415 934
Upper thrust washer
24
URB 31137321
6 415 940
Lower thrust washer
29
URB 31126311 ST
6 416 244
Connecting rod bearing liner
29
URB 31126312 R1
6 465 401
Connecting rod bearing liner
29
URB 31126313 R2
6 465 416
Connecting rod bearing liner
29
URB 31126314 R3
6 465 422
Connecting rod bearing liner
35
В41731061
7 519 320
Piston (assembled)
36
В41731071
7 519 335
Piston (assembled)
37
41152912
7 452 041
Connecting rod (assembled)
38
В31362181
6 517 337
Piston compression ring
39
В31362261
6 517 293
Piston compression ring for II and III channels
40
В31372351
6 517 316
Oil removal ring for the IV channel
41
В31372161
6 517 301
Oil drain ring for V channel
46
OO170002
6 416 764
Ring A35 BDS 2170-71
47
В33266125
6 490 703
Piston bolt
52
URB 31134113
6 438 755
Connecting rod sleeve
53
В32762116
6 402 027
Connecting rod bolt
54
В33221321
6 402 244
Connecting rod bearing nut
