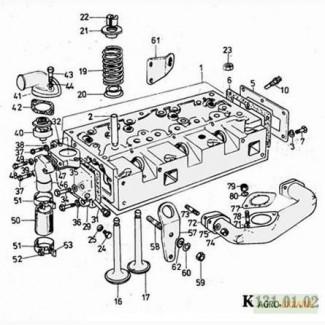

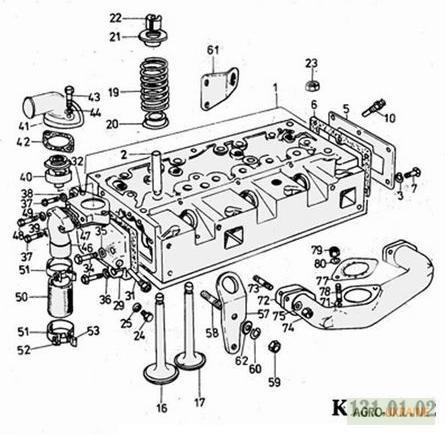

Cylinder head for a D2500k engine on a Balkankar loader, Kharkiv region.

Position no.
Catalog No.
positional number
Name
1
7 448168 4566693388
В41171221
Cylinder block head (assembled)
2
6 438987 4566692148
В33261727
Guide valve sleeve
5
6 446470 4566692279
37553102
Back cover
5
7 470491 4566693395
В37553104
Back cover
6
6 446633 4566692991
36851408
Sealing between the rear cover and the cylinder head
7
6 235100

Bolt A1 M8x16-8.8 BDS 1232-86/fos.
8
6 205035

Washer 2-81 BDS 833-82/Zn
10
6 451113
В2666131
TM104 thermometer sensor
16
6 421152 4566692364
31431681
Suction valve
17
6 421167 4566692369
31431761
Outlet valve
19
6 402835 4566692641
31745104
Valve spring
20
6 433062 4566693149
33415133
Valve spring installation washer
21
6 532113 4566692747
33423104
Plate
22
6 430234 4566692171
33173104
Conical bushing
23
6 418094 4566692210
33221317
Cylinder block head nut
29
6 421217 4566692384
В32944122
Thermostat casing
29
6 468933 4566693396
В37766382
Thermostat casing
31
6 473511 4566694067
В2666092
Thermometer sensor 38.0047.36.001
31
6 465155 4566693392
В2666100
Thermometer sensor DTV-1
32
6 432330 4566692989
36851401
Sealing between the cylinder head and the thermostat casing
34
6 236536

Bolt A1 M10x40-8.8 BDS 1232-86/fos.
35
6 231342

Ring I A10x14 Al 99.5 BDS 3609-73
36
6 205041

Washer 2-10L BDS 833-82/Zn
37
6 236521

Bolt A1 M8x25-8.8 BDS 1232-86/fos.
38
6 240403

Ring I A8x12 Al 99.5 BDS 3609-73
39
6 205035

Washer 2-8L BDS 833-82/Zn
40
6 403644 4566692758
В2486678
Thermostat TD IB 54
41
6 463888 4566693743
В37464371
Drain pipe(//tractor-service.com)
41
6 479675 4566693389
В37736081
Drain pipe
42
6 432351 4566692928
36835104
Sealing
43
6 238484

Bolt A1 M10x35-8.8 BDS 1232-86/Zn
43
6 231835

Bolt A1 M10x5-8.8 BDS 1232-86/fos.
44
6 205041

Washer 2-10L BDS 833-82/Zn
46
6 422406 4566692769
37736431
Drain pipe for water - thermostat casing - waterpump
47
6 432345 4566692995
36862101
Sealing of the drain pipe for water
48
6 231927

Bolt A1 M8x40-8.8 BDS 1232-86/fos.
49
6 240403

Ring I A8x12 Al 99.5 BDS 3609-73
50
6 403412 4566692726
В33852355
Rubber connection
51
8 440461 4566693788
2481814
Bracket ZN-VK 222
52
6 238772

Screw 1A M5x35/35-5.6 BDS 832-83/Zn
53
6 234098

Nut M5-6 BDS 744-83/fos.
54
6 230512

Plug II KOH 1/2 BDS 2527-71/6.8 Zn
57
6 473336 4566693916
В36476511
Engine lug, front
58
6 237612

Bolt A1 M1x35-8.8 BDS 1232-86/Zn
60
6 205041

Washer 2-1L BDS 833-82/Zn
61
6 432366 4566693004
26476523
Engine lug, rear
62
6 204984

Washer AM10 BDS 206-78/Cd
71
6 430706 4566692392
В37781421
Graduation collector
71
6 479654 4566693397
В37781191
Graduation collector
72
6 426500 456669226
36862143
Sealing
73
6 437587 4566693179
В32513033
Pin
74
6 235781

Nut M8-8 BDS 744-83/Zn
75
6 231764

Washer AM8 BDS 206-78/fos.
77
8 434548 456669226
36837404
Sealing
78
6 441882 4566693173
В32515128
Pin
79
6 234684

Nut M10-8 BDS 744-83/fos.
80
6 204984

Washer AM10 BDS 206-78/Zn
