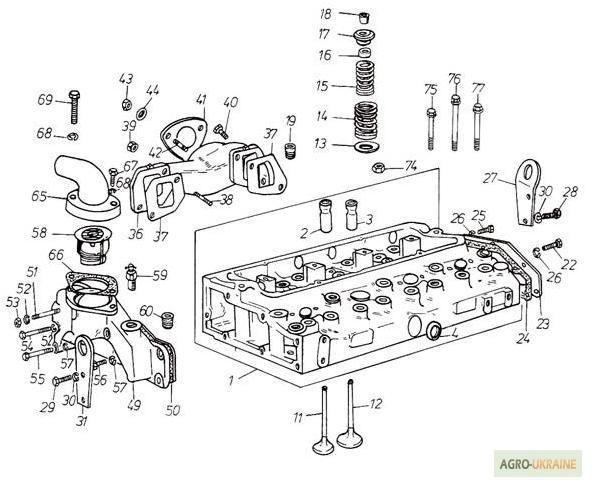

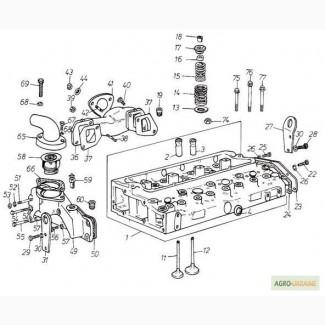

Cylinder head for Dvigatel D 3900k, Kharkiv region.

Position no.
Catalog No.
positional number
Name
1
В41171121
7 441 861
Cylinder block head (assembled)
2
В33361771
6 476 072
Suction valve guide sleeve
3
В33261761
6 476 066
Exhaust valve guide sleeve
4
В32418101
6 445 536
Plug 32 3H-VK 031
11
31431641
6 417 588
Suction valve
12
31431109
6 421 286
Exhaust valve
13
33123117
6 433 436
Pad washer
14
31745121
6 422 053
Valve spring
16
33817117
6 504 841
Oil reflector
17
33423122
6 432 182
Plate
18
33173108
6 430 395
Conical bushing
19

6 230 132
Plug II 3/8" BDS 2527-71/5.8Zn
22

6 237 598
Bolt A1 M8x20-8.8 BDS 1232-86/Zn
23
37553121
6 443 761
Back cover
24
36851409
6 448 560
Sealing
24
36851411
6 518 666
Sealing
25

6 238 288
Bolt A1 M8x16-8.8 BDS 1232-86/Zn
26

6 205 035
Washer 2-8L BDS 833-82/Fof.
27
36177111
6 432 681
Prushina
28

6 237 612
Bolt A1 M10x20-8.8 BDS 1232-86/Zn
29

6 238 484
Bolt A1 M10x35-8.8 BDS 1232-86/Zn
30

6 205 041
Washer 2-10L BDS 833-82/Zn
36
В37781321
6 433 801
Graduation collector
37
36862134
7 434 596
Gasket
37
36862136
7 518 898
Gasket
38
В32515128
6 441 882
Pin
39
В33221327
6 498 660
Nut
40
(//tractor-service.com)
6 238 252
Bolt A1 M10x25-8.8 BDS 1232-86/Zn
41
36822111
6 432 710
Sealing
41
36822112
6 518 743
Sealing
42
В32515128
6 441 882
Pin
43

6 237 535
Nut M10-8 BDS 744-83/Zn
44
В33114011
6 468 194
Pad washer
49
В37766474
6 443 797
Thermostat casing
49
В37766461
6 513 825
Thermostat casing
50
36853514
6 432 696
Sealing
50
36853516
6 518 808
Sealing
51

6 238 225
Pin I M10x55-8.8 BDS 1238-75/Zn
52

6 205 041
Washer 2-10L BDS 833-82/Zn
53

6 237 535
Nut M10-8 BDS 744-83/Zn
54

6 236 640
Bolt A1 M10x70-8.8 BDS 1232-86/Zn
55

6 238 231
Bolt A1 M8x55-8.8 BDS 1232-86/Zn
56

6 237 598
Bolt A1 M8x20-8.8 BDS 1232-86/Zn
57

6 205 035
Washer 2-8L BDS 833-82/Zn
58
В2485671
6 517 168
Thermostat
58
В2485692
6 403 638
Thermostat TD II B-70
59
В2666092
6 473 511
Thermometer sensor 38.0047.36.001
65
В37464231
6 473 630
Outlet neck
66
36835408
6 432 704
Sealing
66
36835411
6 518 672
Sealing
67

6 238 252
Bolt A1 M10x25-8.8 BDS 1232-86/Zn
68

6 205 041
Washer 2-10L BDS 833-82/Zn
74
33221316
6 418 123
Cylinder block head nut
75
32181424
6 445 114
Bolt
76
32181425
6 418 530
Bolt
77
32181426
6 429 061
Bolt
