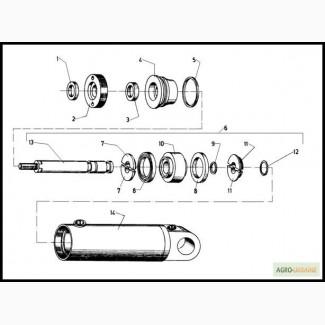

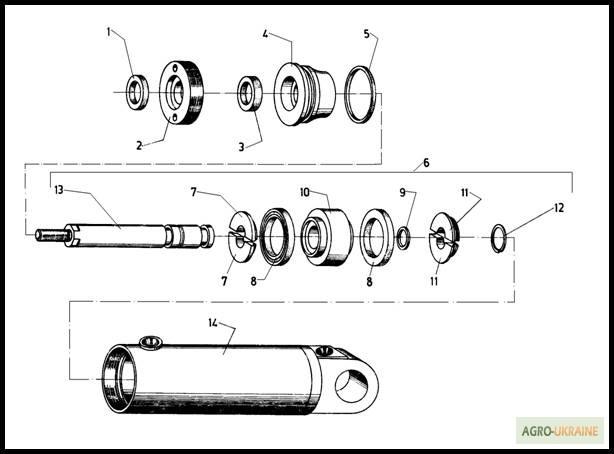

Hydraulic system for H4500 tilt cylinder for Balkankar EB 687 loader, Kharkiv region.

Position no.
Catalog No.
Name
Pieces
HYDRAULIC SYSTEM Tilt cylinder

123977 17006 00.00.00
Hydraulic piston cylinder CBS 211A1/90х75/70
1
1
365922 ON-04 58952-73
Oil drain E40
1
2
232008 17003 00.00.04
Nut
1
3
222338 BDS 12420-74
Sealing "K2V" 40x55
1
4
253198 17003 00.00.10
Shutter
1
5
501050 ОН-02 52658-71
"O" ring 85x3
1
6
253199 17006 02.00.00
Piston rod (general view)(//tractor-service.com)
1
7
252023 17003 02.00.02
Detachable washer
2
8
405801 ON-04 60326-72
Cuff "K" 70x90
2
9
365772 ON-02 52658-71
"O" ring 34x3
1
10
252019 17003 02.00.04
Piston
1
11
252009 17002 02.00.06
Detachable washer
2
12
_ BDS 530-64
Ring I 55
1
13
253200 17006 02.00.01
Piston rod
1
14
253201 17006 01.00.00
Cylinder (assembled)
1
