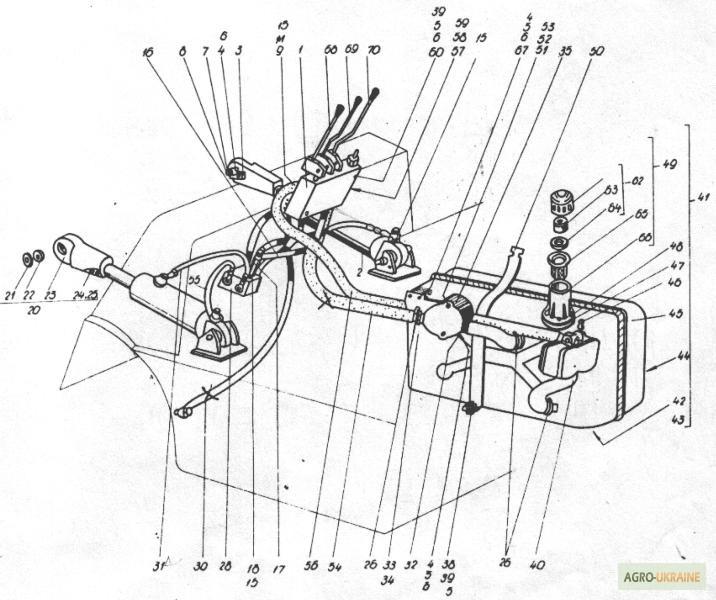

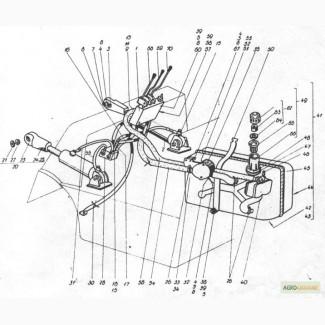

Hydraulic system for loaders DV 1784, DV 1786, DV 1788, DV 1792, Kharkiv region.

Position number
Catalog No.
Name
-
1784 33 19.00.00-04
Hydraulic system
1
7023.1 2900.00
Command device with a hydraulic distributor.
2
ON-04 66147-75
Hydraulic piston cylinder CBH 211 A1/90х1 45/70
3
BDS 2348-85
Fixing bar 35
4
BDS 1230-85
Bolt M10x25-5.6
5
BDS 744-83
Nut M10-5
6
BDS 833-82
Washer 2-10H
7
1784.33 03.00.13
Here is
8
BDS 1640-81
Press-oil pan
9
1784.33 19.01.00.00
Flexible connection 10Хх18-Хх18-310-(19.90°)
9
ON-04 51484-83
Flexible connection 10Х18-Х18-310/19.9
11
2733.33.6.09 00.01.01
Fitting
15
BDS 3609-73 Sp 99.7
Ring I A18x22
16
ON-04 51484-83
Flexible connection 10Хх18-Хх18-160-(19.90°)
17
57 910 000
Throttle adjustable with reverse valve DROK12
18
7005 00.00.62
Fitting
20
7026 01.00.00
Connecting eye type 35-2/36x2
21
BDS 2170-77
Ring A55
22
TGL 12398
Spherical bearing ZPS-35
23
7026 01.00.01
Prushina
24
BDS 1232-86
Bolt I M2x40
25
BDS 833-82
Washer 2-12H
26
BDS 8648-85
Bracket A47-49
28
1784.33 03.00.22
Special pipe
30
ON-04 51484-83
Flexible connection 16-Гх22-Гх22-860/19
30
1784.33.19 02.00.00
Flexible connection 16-Гх22-Гх22-860/19
30
1784.33 19.02.00.UO-01
Flexible joint 16Gx22-Gx22-620/19
30
ON-04 51484-83
Flexible connection 16-Хх22-Хх22-860/19
31
ON-04 51484-83
Flexible connection 10-Хх18-Хх18-410/19
32
BDS 8648-85
Bracket 50.5-57
33
1784.33 03.00.11
Special fitting
34
KtM 370
"O''-ring
35
KtM 1057.01
Filter hydraulic type o 1-25/63T
37
1784.33 03.00.20 at
Hose(//tractor-service.com)
38
BDS 1230-85
Bolt I MUhbO-5.6
39
BDS 14494-78
Washer M10
40
1784.33 03.00.25
Angle
41
6768 00.00.00
Oil tank
42
6747.1 03.00.00
Stopper with a magnet
43
BDS 7947-85
"O" ring 2-23x3-2
44
.6567 00.00.01
Shock absorber
45
6768 01.00.00
Oil tank
46
6768 00.91.00
Oil dipstick
47
6787.1 00.00.01
Sealing
46
BDS 832-85
Screw 2B M5x16-5.6
49
6747.1 02.00.00
Neck (assembled)
50
1784.33 03.14.00
Tightening tape
51
BDS 1230-85
Bolt I M8x25-5.6g
52
BDS 744-83
Nut M8-5
53
BDS 833-82
Washer 2-8H
54
BDS 6735-79
Hose L 500-6-063-32.0
55
ON-04 51-484-83
Flexible connection 10-Гх18-Гх18-560/19
56
1784.33 19.03.00.00
Flexible joint 16-Gh22-Gh22-1600/19.90
56
ON-04 51484-83
Flexible joint 16-Gh22-Gh22-1600/19.9
57
1784.33 19.00.02
Cap nut
57
1784.33 03.00.12
Cap nut
58
1784.33: 19.00.03
Cap nut bolt
59
BDS 3609.73
0" ring 1 A27x33
60
BDS 1230-85
Bolt 1 M10x110-5.6
61
2733:6 03.00.02
Plug M18x1.5-6
62
6747.1 02.01.00
Cover
63
6747.1 02.01.01.00
Filter element
64
6747.1 02.01.04
Cork
65
6747.1 02.02.00
Filter
66
6747.1 02.00.01
Neck
67
1784.33 03.00.23
Bracket
68
7023.1 29.00.02-01
Lever I
69
7023.1 29.00.03-01
Lever II
70
7023.1 29.00.04-01
Lever III
