General view of loader EV 687, Kharkiv region.

Position No.
Catalog No.
Name
Pieces

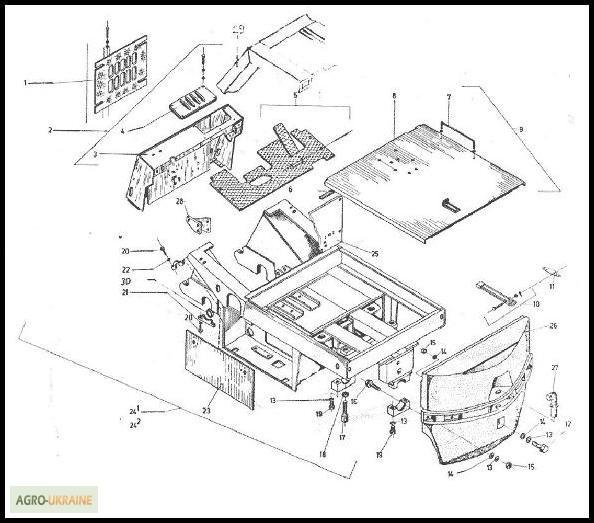

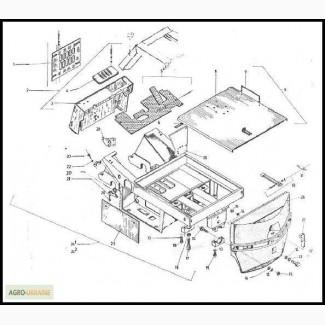

GENERAL VIEW
Chassis, top cover, control panel

1
_
General view, chassis, top cover, control panel

1
120052/120053/ 687.33 01.00.08
Safety grid
1
2
131101 687.33 16.00.00
Control panel
1
2 3
131101 687.33 16.00.00
Control panel, option 03
1
3
121204/121204/ 687.33 16.02.00
Body (assembled)
1
4
118391/118392/ 717.33 16.00.01
The cover is small.
1
4 3
179148 687.33 16.03.03
Cover
1
5
121026/121027/ 687.33 01.01.00
Decking sheet (assembled)
1
6
120215/120216/ 687.33 19.00.01
Tire
1
7
261801/108024/ 7000 00.00.113
Handle
1
8
121075/121076/ 687.33 19.01.00
Cover (assembled)
1
9
121018/121783/ 687.33 19.00.00
Top cover
1
10
119510 717.33 01.03.00
Limiter (assembled)
1
11
128172 717.33 01.07.00
Hinge (assembled)
2
12
120157/120158/ 687.33 01.00.17
Bolt
1
13
103221/103222/ BDS 833-71
Spring washer 16H
7
14
120025/120026/ 687.33 01.00.11(//tractor-service.com)
Washer
2
15
108873/108874/ BDS 744-72/5
Nut M16
3
16
128493/128494/ BDS 1232-72/5,6
Bolt I M16x70
2
17
122341/122342/ 687.33 02.04.08
Adjusting bolt
2
18
122356/122357/ BDS 1269-73/5
Nut M24
2
19
111851/818152/ BDS 1232-72/8,8
Bolt M16x90
4
20
118149/118150/ BDS 1232-72/8,9
Bolt I M12x50
8
21
103219/103220/ BDS 833-71
Spring washer 12N
4
22
120110/120111/ BDS 1975-68
Safety washer 12
4
23
129184/129185/ 687.33 02.20.00
Cover (assembled)
2
24 1
131102 687.33 02.00.00
Chassis
1
24 2
131103 687.33 02.00.00
Chassis with mud shields
1
24 3
179161 687.33 02.00.00
Chassis, option 03
1
25
121035/121036/ 687.33 01.03.00
Front wall (assembled)
1
26
120032/120033/ 687.33 01.00.01
Counterweight

27
128061/128062/ 717.33 01.15.00
Weight (as a whole)
1
28
121047/121048/ 687.33 02.11.00
Bracket (assembled)
1
29
286267/286268/ 9432.2 00.00
Protective cover
1
30
118081/118081/ 717.33 02.01.05
Bushing
2
