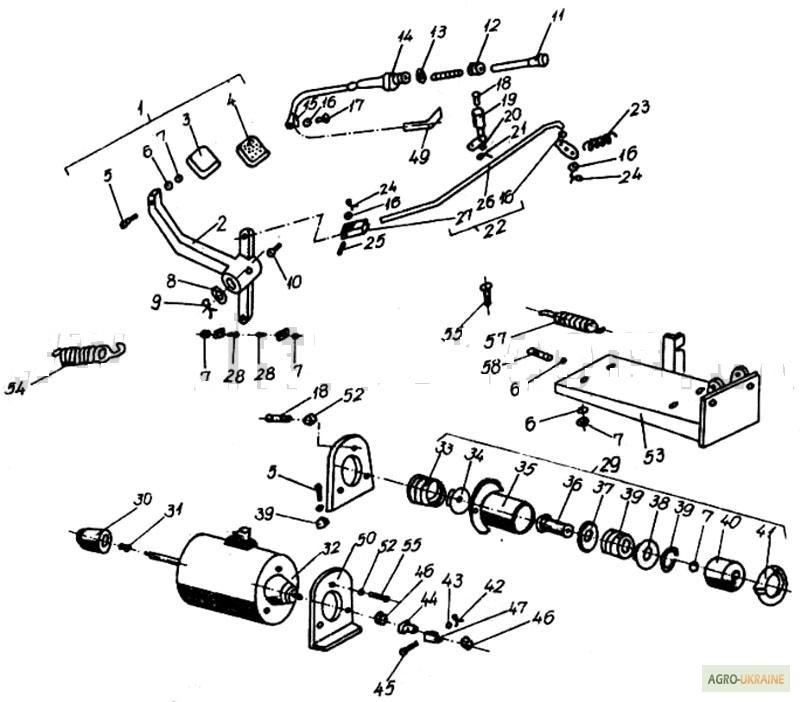

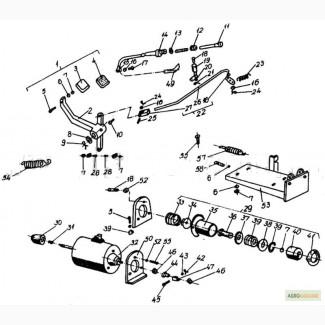

Command system for loaders DV 1784, DV 1786, DV 1788, DV 1792, Kharkiv region.

Position No.
Catalog No.
Name
-
1784.33.20 0200.00-02
Command system
-
1784.33.20 02.00.00-03
Command system
1
. 1784.28.20 01.04.00.00-01
Accelerator pedal (assembled)
2
1784.28.20 01.04.01.00
Accelerator pedal
3
1733 04.00.02
Footboard
4
1733.04
Rubber footrest
5
BDS 1232-66
Bolt 1M10x25-6
6
BDS 833-82
Washer 2-10H
7
BDS 744-83
Nut M10-5
1
BDS 14494-78
Washer M24
4
BDS: S5-77
Cotter pin 4x32
10
BDS 1640-83
Pressmaslenka 1.3
11
1784.33.20 02.02.00
Handle (assembled)
12
1733.33.22 05.00.02
Nut
13
1790.1".20 OS.00.01
Washer
14
1733.33.22 05.03.00
Tip (assembled)
15
1784.33 04.00.12
Bracket
16
BDS 14494-78
Mb washer
17
BDS 1358-85
Screw 1M6x1;-5L
18
BDS 1230-85
Bolt 1 M6x12-8.8
19
2733 09/04/00
Special tip
20
BDS 14494-78
Washer M5
21
BDS LS-/7
Pin 220
22
1790.33.20 05.01.00
Rod (assembled)
23
1737.01
Spring
24
BDS 55-77
Cotter pin 1.6x16
25
BDS L282-/3
Eye B6x25/20
26
1790.33.20 05.01.01
Barbell
27
1784.33 04.05.03
Fork
28
BDS 1232-86
Bolt 1 M10x3S-S.6
29(//tractor-service.com)
7006 05.00.00
Switching magnet
30
462048
Fuse
31
7006 03.00.09
Nut
32
462048
Electromagnet
33
7006 03.00.06
Spring
34
7006.05
Cover
35
7006.05
Bushing
36
7006.05
Bushing
37
7006 05.00.03
Cover
38
7006 05.00.02
Cover
39
BDS 2170-77
Ring A50
40
7006 05.00.06
Cover
41
BDS 8648-85
Bracket A58.S-61
42
BDS 55-77
Cotter pin 2x12
43
BDS 14494-78
Washer M8
44
1784.33.20 02.00.02
Plug
44
1784.33.20 02.00.02-01
Fork
45
BDS 5282-73
Eye B8x30/25
46
BDS 744-83
Nut M8-5
47
1784.33.20 02.00.01
Fork
49
1737 01.04.00
Support (assembled)
50
1784.33.20 02.00.09
Bracket
52
BDS 833-82
Washer 2-6H
53
1784.33.20 02.01.00
Bracket (assembled)
53
1784.33.20 02.04.00
Bracket (assembled)
54
1784.33 04.04.00
Spring (assembled)
55
BDS 1230-85
Bolt 1 M6x18-8.8
55
178-4.33.20 02.00.07
Bolt
56
BDS 1358-85
Screw M5x16-5.6
57
1784.33.20 02.00.08
Spring
58
BDS 1238-87
Pin 1 M10x25-5.6
59
BDS 14494-78
Washer M10
