Chain conveyors, Dnipropetrovsk region.

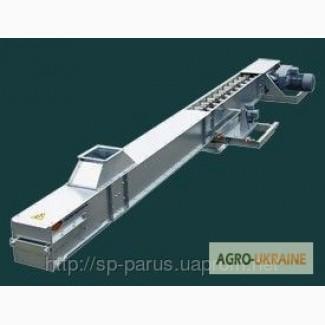

Chain conveyors for grain Verkhnye tsepnye skrebkovy conveyors KTF, KTF/R (series L), KTIF, KTIF/FR (series I), KTH (series H) KTF, KTIF, KTH — fully galvanized upper chain conveyors are intended for horizontal movement of grain, groats, granulated materials from pits tosilos, hangar-type warehouses, etc. It is allowed to install conveyors at an angle of up to 10°, while their productivity drops by 5%. In order to avoid overloading the conveyor, its performance is consistent with the performance of the corresponding SE burrows and slightly exceeds it. KTF/R, KTIF/FR — fully galvanized upper chain conveyors with reverse flow. Their difference is that they have a two-tier structure. The grain fed into theconveyor first falls on the upper tier and moves in the opposite direction - from the drive section to the tail section, where it is poured onto the lower tier, and if the valve in the tail section is closed, then it goes along the lower tier in the forward direction - from the tail section to the drive section. Basically, such conveyors are used to ensure continuous operation of the dryer and filling of the raw grain hopper. Curved upper chain scraper conveyors KTB (series L), KTIB (series I) KTB, KTIB - fully galvanized upper curved chain conveyors are intended for moving grain, groats, granulated materials from pits to silos, hangar-type warehouses, etc. at an angle and then in a horizontal plane. Angles of inclination of the curved part KTB — 15°, 30°, 45°, KTIB — 30°. Inclined chain scraper conveyors KTA, KTAb (series L), KTIA (series I) KTA, KTAb, KTIA — inclined chain scraper conveyors are intended for installation at an angle of 15°, 30°, 45°. The productivity of the KTA and KTIA conveyors is regulated according to the second conveyors and norias, so that there is no overload and further stoppage. If the task is to request the conveyor with an unregulated flow (for example, silo unloading), it is necessary to use the KTAb conveyor, the performance of which is reduced by 10% compared to the KTA, in order not to overload the transport equipment behind it. Lower chain scraper conveyors KTFb (series L), KTIFb (series I), KTHb (series H) KTFb, KTIFb, KTHb are fully galvanized lower unloading chain conveyors designed for horizontal movement of grain, groats, granulated materials from silos,skladov hangar-type, etc. to norias. It is allowed to install conveyors at an angle of up to 10°, while their productivity drops by 5%. When using a conventional chain conveyor for unloading silos, there is a problem of regulating the input flow. It is impossible to accurately adjust the amount of product entering the conveyor to the maximum capacity of the conveyor. If the silo valves are wide open, this will lead to an overload of the conveyor and its subsequent stoppage. As a result, after several such stops, the user closes the valves so that the conveyor does not stop, thus "clamping" not only the input flow, but also the maximum possible productivity of the conveyor. As a result, the productivity of the conveyor is not fully used. Conveyors of the KTFb, KTIFb, KTHb series are designed for work with an unregulated flow - these conveyors are powered through special sections (with upper or side entrances) that have the property of "self-regulation", which makes it possible to fully open the silo valves without the risk of overloading the conveyor. At the same time, the conveyor itself works with maximum productivity. Lower chain scraper conveyors KTBU (series L), KTIBU (series I) KTBU, KTIBU — fully galvanized lower chain unloading conveyors are intended for horizontal and then inclined movement of grain, groats, granulated materials from silos, hangar-type warehouses, etc. to hoppers. Angles of inclination of the curved part — 15°, 30°, 45°. Receiving chain scraper conveyors KTG (series L), KTIG (series I), KTHg (series H) KTG, KTIG, KTHg — fully galvanized trench receiving chain conveyors are intended for use in landfill pits for receiving and further transportation of grain, groats, granulated materials. The entrance sections of these conveyors are designed in such a way that an additional intermediate floor prevents overloading of the conveyor. To prevent burrow overload, the performance of these conveyors is matched to the performance of the corresponding SE burrows. The angles of inclination of the curved part of the KTG and KTIG conveyors are 15°, 30°, 45°. KTHg — only in direct performance. For places with a high level of groundwater, you can use a receiving trench conveyor with a galvanized receiving hopper, placing it on the surface of the ground or with a slight deepening. More detailed information on the site: http://agroproekt.com.ua/
