SAD-30 grain separator, Luhansk region.

The SAD-30 separator is most often installed on a ZAV or built into a line for primarycleaning of grain and obtaining seed material in the calibration mode.

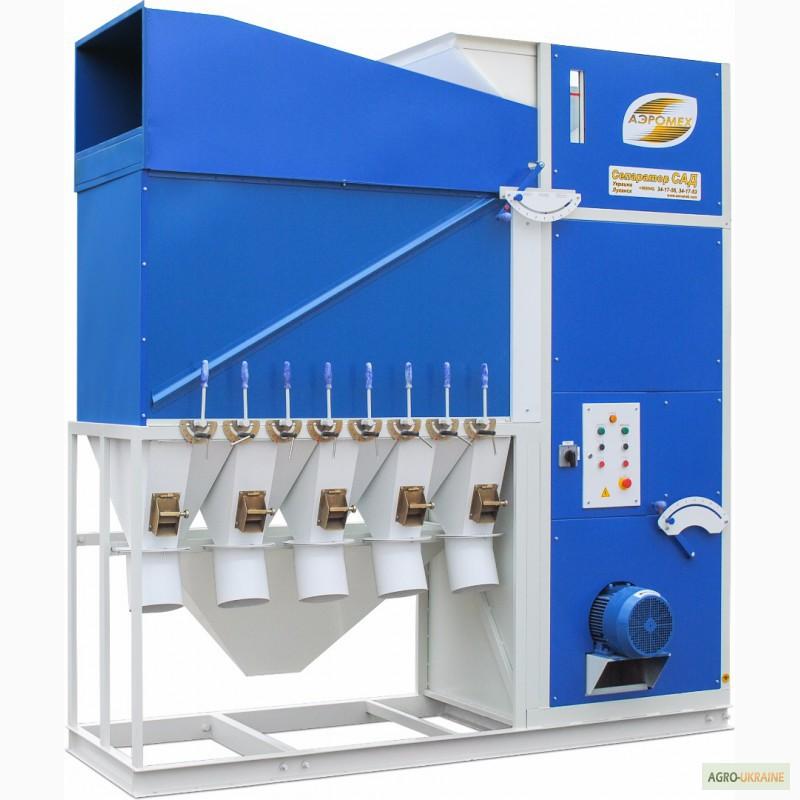

Separator SAD-30

Productivity:
on preliminary cleaning - up to 40 t/h
on primary cleaning - up to 30 t/h
for calibration (sorting) - up to 10 t/h
Power consumption:
11.5 kW
Dimensions:
Length - 2750 mm.
Width - 1010 mm.(//tractor-service.com)
Height - 3000 mm.
Mass.
844 kg.

"Aeromekh" LLC since 2001. successfully manufactures and sells in 50 countriesworld grain aerodynamic separators SAD.
The new method of separation of seeds by specific weight, developed by us, allows to clean and calibrate any seeds of agricultural crops. Thanks to high-precision calibration, farmers receive high-quality seed material, which increases the yield by up to 40%. In the world, the SAD separator has established itself as a technology for obtaining high-yielding seeds.
Universality, durability, ease of adjustment, quick transition from culture to culture, a wide model range (from 4 to 150 tons per hour) allow to meet the needs of both small farms and large seed plants,elevatorov.
The SAD separator provides:
-separation of all types of agricultural crops, starting with small-seeded grasses and ending with beans and pumpkin seeds, separation of hard-to-separate impurities and seeds;
-separation of grain without strict restrictions on humidity and contamination of the source material;
- selection of seeds with increased sowing qualities, grains with increased gluten content;
-cleaning and calibration of all types of cereals and products of their production;
-calibration of any bulk materials by specific gravity (sand, sawdust, crushed plastic, granite chips, etc.)
