Grain cleaning machine ISM-50 (separator for grain), Rivne region.

The production company NPK AGRO-VIGS offers to your attention separators for grain of high quality and at affordable prices with productivity from 3 to 150 t/h. with free delivery across Ukraine.

I will sell a new aerodynamic separator ISM-50.

The separator is designed for calibrating and cleaning seed and commercial material:cereals,legumes, vegetables, fodder crops, as well as various bulk mixtures (gravel, sand,coal, ore..)

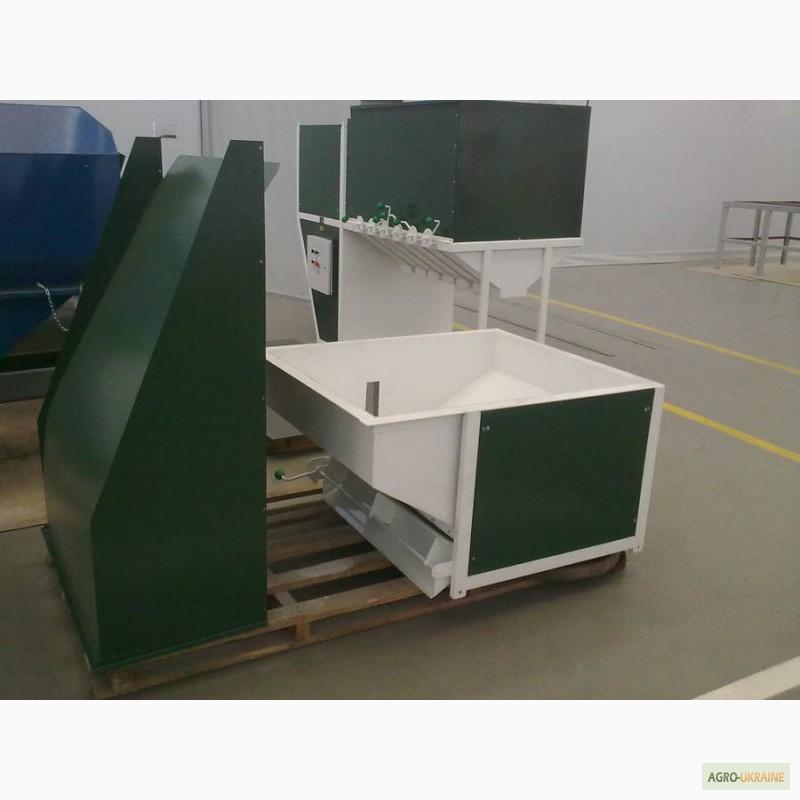

Loading into the machine is carried out by a noria, and the processed grain is taken from the trays to receiving hoppers or to conveyor belts. The exhaust air, containing dust and light impurities of garbage, can be taken out of the machine with the help of an air duct or sent for cleaning to a cyclone or an aspiration chamber.

The ISM-50 separator does not have any sieves, brushes, lubrication points or other replaceable consumable parts.

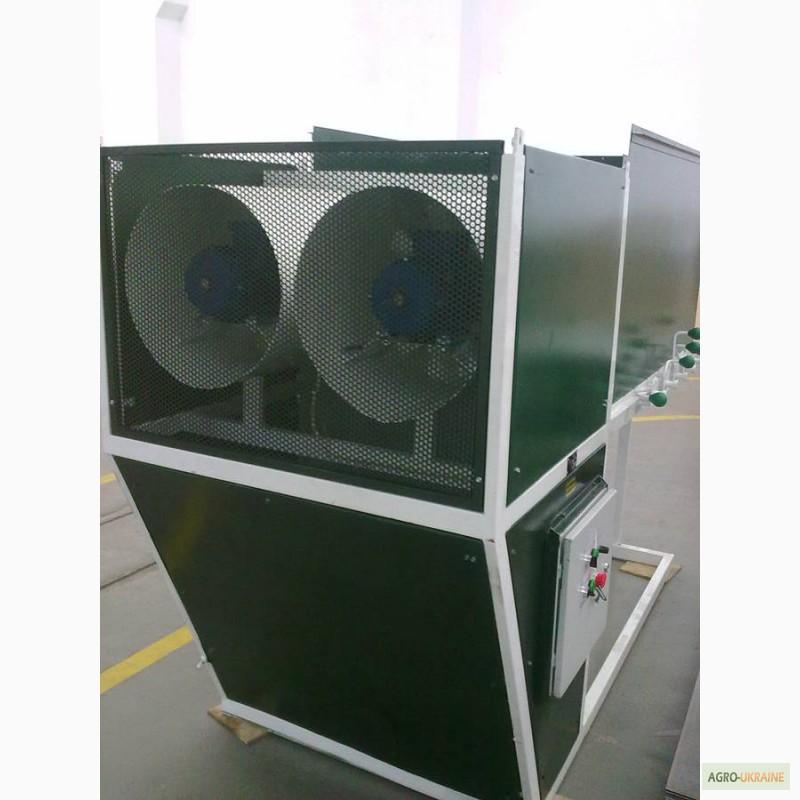

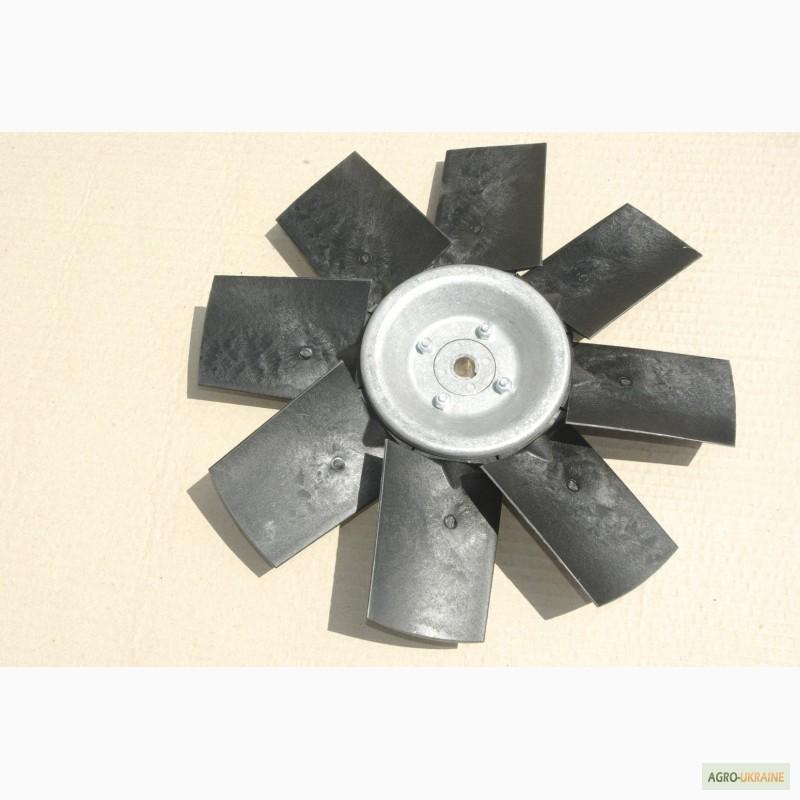

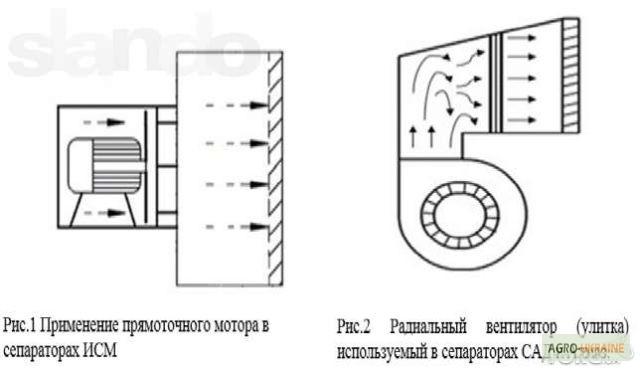

The location of the block-impeller directly in front of the separation chamber provides energy savings several times higher than the consumption of similar models, reducing the loss of air flow power.

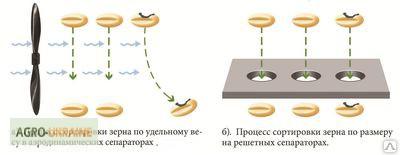

In just one pass, the separator cleans grains with high accuracy (+/- 3%) and separates them into separate fractions by weight. Stones fall into the first tray, grain with the maximum specific gravity falls into the second and third, commercial grain into the fourth and fifth, and the last trays are used to collect fodder.

VIDEO on the operation of the machine - https://www.youtube.com/watch?v=576WKERK4L0

Advantages of the separator ISM-50
1. Does not violate grain integrity, excluding seed microtrauma.
2. Has a low level of energy consumption (Max. energy consumption 2 x 3.0 kW)
3. The simplicity of the design guarantees its long operation and reliability.
4. Highly economical in use, as it does not require expensive service, long cleaning after each type of seed, selection of sieves for a certain culture and time for their replacement.
5. Works with raw material of any degree of contamination and humidity.(//tractor-service.com)
6. The cost of the machine is repaid during the period of seasonal work.

Operating modes of the separator:
- Preliminary cleaning;
- Primary cleaning; calibration;
- Calibration of seeds for sowing;
- Mixed mode (simultaneous calibration and cleaning).

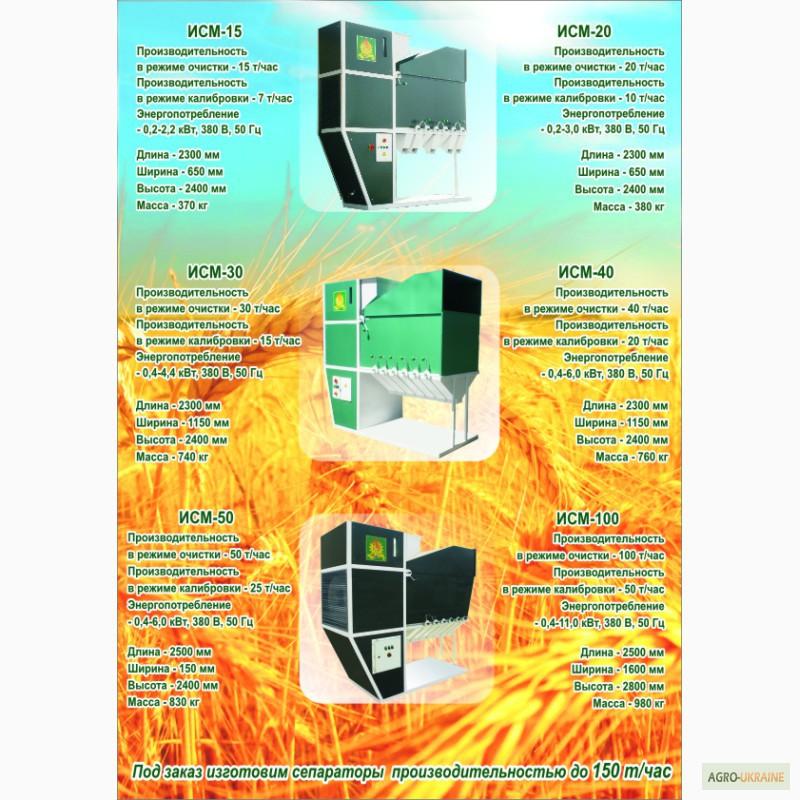

Technical characteristics:
Productivity during primary cleaning - 50 t / h;
Productivity when calibrating seed material - 25 t/h;
Power consumption - 0.4 - 6 kW / h., 380 V, 50 Hz;
Dimensions: 2500x1150x2400 mm.;
Weight - 830 kg.

It is possible to supply a separator with a cyclone-sediment chamber (COC) for air purification.
If necessary, the machine can be pasted inside with porous rubber to completely avoid grain with metal elements.

Recommendations of consumers in your region.
The machines are in stock.
Warranty 24 months
Free delivery to the farm.
