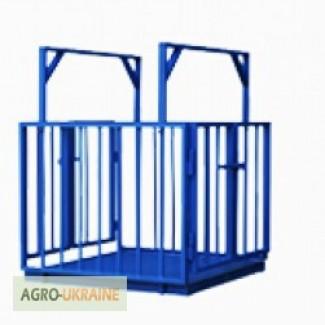

Cattle weighing scales, Kharkiv region.

Description:

the scales are equipped with a fence with two passages;
steel weighing platform, powder coating, on 4 strain gauges, dust and moisture protection class - IP-65 with adjustable supports and fixation.
weight indicator with the functions of weighing unstable loads (weighing animals), tare and gross/net, kilogram/pound mode, RS-232 computer interface, dust and moisture protection class - IP-52, mains power via adapter and built-in battery.

Model
NPV/d, kg
Platform size, mm
0.5HFS
500kg/0.2
100х1200х600
1200х1500х1000
1HFS
1000kg/0.5
1200х2000х1000(//tractor-service.com)
1500x2000xh1500
2000x3500x1000
2HFS
2000kg/1
1200х2000х1000
1500x2000xh1500
2000x3500x1000
Scales are widely used in agriculture. Basically, such scales are needed at agricultural companies, animal breedingfarms, pig farms, cowsheds, etc. The specifics of measuring the weight of animals require the use ofspecial scales - scales for weighing animals.

Scales for animals can be very diverse. Usually they have the form of latticedcells with two wickets on bolts. An animal is driven inside and its weight changes. Thanks to the corrugated shape, the animal will not slide inside the space of the scales. In the same way as for measuring the weight of one animal, group scales are also used for their use at meat processing plants and slaughterhouses. Similar scales allow you to quickly measure batches of animals. It is also convenient to measure the weight of animals if you need to determine the average value, so you can weigh several times, and then display the average value on the indicator.

All scales are waterproof and have a coating that prevents dust from getting inside. Therefore, it will be possible to measure directly in the field, as it is often necessary, and in the same way, for the convenience of customers, it is possible to disassemble and assemble scales of this type on their own.

The principle of operation of the scales is quite simple - the pressure on the platform is converted into an electrical signal by strain gauge sensors and then processed.

It is possible to manufacture any non-standard execution at the request of the Customer (stainless steel; type of coating - corrugated, smooth; overall dimensions; electronic equipment; electronic equipment)
