Wagon scales (scales for railway cars), Dnipropetrovsk region.

Vesy vagonnye besfundamentnye

For weighing four-axle railway wagons in the coupled and uncoupled static state.

Advantages and features of scales

Foundation

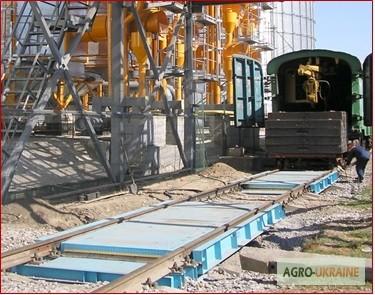

Baseless scales are installed on standard steel sleepers.

Measurement accuracy

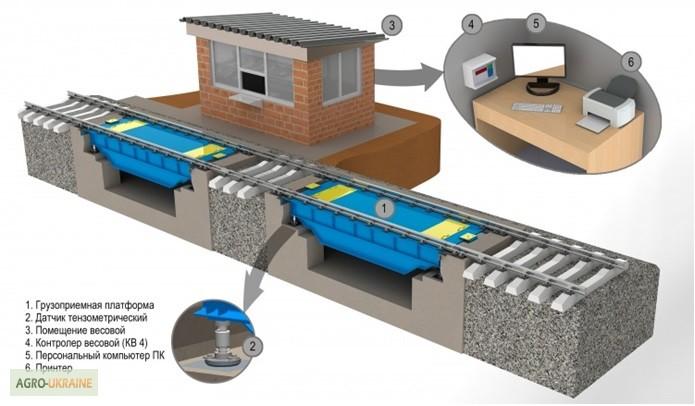

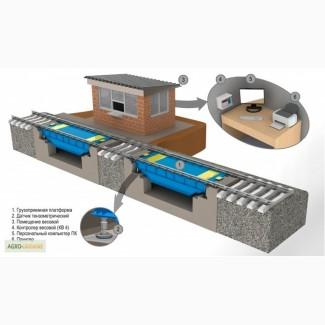

The load-receiving device of the scales, consisting of two platforms, ensures the weighing of wagons with a base of 6.5 to 11.5 m. The self-orienting supports of the sensors ensure the stability of the displayed scales and high accuracy of measurements.

Ease of installation

Installation ofweights is performed in 1 - 2 working shifts. If it is necessary to transfer the scales to the second place, no capital costs are required.

Scale settings

The scales are adjusted in kilogram mode (d=1 kg). Calibration of scales can be performed by the Customer independently if there are weight verification tools and in the presence of the State Verifier.

The scales determine the difference in the masses of the carriages and the lateral displacement of the center of gravity of the carriages.

Software

Scales provide the possibility of computer accounting of weighing results, as well as output of information to the computer display and/or to the printer.

Scale software integrates with the Customer's software (1C Accounting) and allows accounting for weighed cargo both locally and as part of the company's information system, while ensuring the necessary document flow related to cargo weighing, including and the possibility of working with various types of fiscal printers, etc.

The process of weighing can be accompanied by video recording with the entry of video information into the database of weighed goods.

The software of scales allows you to control and manage the flow of cargo through the load-receiving device of the scales with the help of barriers, traffic lights, remote boards and other light signaling equipment.(//tractor-service.com)

In addition, support for the system of remote identification of vehicles (cars, wagons) can be built into the weighing software.

Functions of electronic equipment:

- Displaying the results of weighing on the display;

- Diagnosis of each sensor separately using a multi-channel system;

- Control of the correctness of the main components of the equipment;

- Display of control results and the necessary prompts for setting the weighing mode and reporting the weighing results;

- Determination of the longitudinal and transverse displacement of the center of gravity of the wagon;

- Output of weighing results on PC;

- Ability to work in dosing mode;

- The distance of the scales from the weighing processor is up to 1200 m;

- Correction of the temperature error of the strain gauges of the platform;

- Self-diagnosis of the electronics of scales, with the display of information about malfunctions on the display of the scale processor;

- The possibility of simultaneously connecting two devices to the weight processor: a computer and a remote duplicating panel;

- The possibility of calibration using the vesoprocessor keyboard (individual adjustment of each platform, edge of the platform and sensor);

- Possibility of electric power supply of the weighing processor from the battery with a voltage of 12÷24 V;

- Sensors RS3 (Flintec, Germany) pass the entrance inspection at the company's stands;

the material of the strain gauge body is stainless steel.
