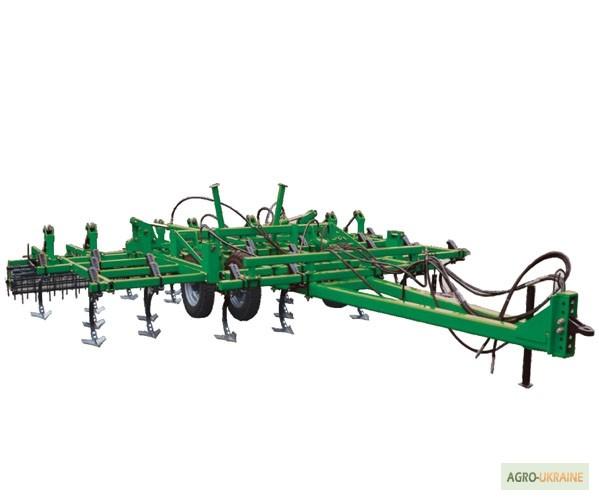

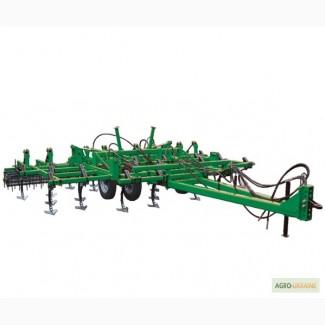

Kpg-6 trailed cultivator (with combs and rollers), Dnipropetrovsk region.

Depth of processing4 -14

Width of capture (m) 6

Number of working bodies (pieces) 26

Paw grip width (mm) 260-330

Tractor power (HP) 120

Transport width (m)3
(//tractor-service.com)
Transport height (m) 2.8

Mass (kg) 2700

Productivity (ha/h)6 -10

CultivatorKPG-6 is intended for continuouspre-sowing soil processing and steam processing with simultaneous harrowing, with a specific soil resistance of up to 0.5 kgf/cm² (0.05 MPa) and humidity up to 27%.
According to the customer's order, the cultivator can be supplied with various arrow legs from 180 to 330 mm, while the number of working parts of the unit varies. Due to the placement of the working bodies of the unit in 5 rows, uniform passage of even coarse-stalked harvest residues is ensured without clogging the unit.

To level the surface of the field, a spring comb with an adjustable angle of attack of the teeth is located behind the working bodies. The final crushing of earth blocks and leveling of the field surface is carried out with tubular rollers. If necessary, the specifiedCPG functions-6 can be easily dismantled completely or partially (comb or roller).

The processing depth is regulated by the limiters of the stroke of the hydraulic cylinder rod by simply repositioning the adjustment stop rings. The power required for cultivator operation depends on the type and humidity of the soil, the shape of the cultivator paw, the amount of harvest residues on the surface of the field, the depth of soil treatment, working speed and many other factors. A capacity of at least 20 — 27 liters may be required. with. per meter of cultivator grip width.
