Irrigation systems Ocmis, Kharkiv region.

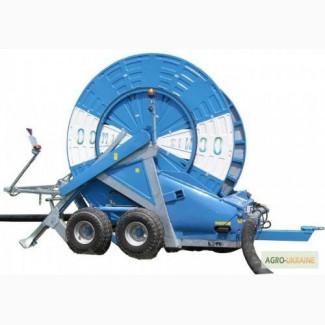

Irrigation systems VIR 5-6-7 M Variorain Ocmis
(Irrigation systems of drum type - Coil type)
Hose sprinklers of the VIR series with a built-in diesel pumping station for taking water from the canal or small booster pumps. These are the most functional, universal and economical machines on the market.
Hose sprinklers series Ocmis Irrigation VIR 5-6-7 M
Features
On request, all machines can be supplied with an autonomous pump with a diesel engine for taking water directly from the canal or with small booster pumps in case the machine is connected to pipes with low pressure. Machines can be supplied with a small diesel engine for hydraulic servo control and for hose unwinding.
Technical description
The VIR 7 frame is a new design, with new drum racks attached to the structure. Durable and compact new wheel lifting system due to central location, low traction load even for heavy machines.
The drum is supported by large sealed bearings, which guarantees thousands of hours of operation without maintenance.
Drum shaft — with a protective sleeve against wear, hardened steel.
The guiding system of the pipeline — with a grooved rod of a large diameter.(//tractor-service.com)
Frameguiding roller pipeline — with rollers on 4 sides to protect the polyethylene pipeline.
The support is a large telescopic support controlled by hydraulic cylinders, which ensures safe and effective fixing of the machine under any conditions.
Attachment of the trolley is automatic, connection to the support of the machine by means of a cable. The special design allows you to connect the trolley to the structure, which makes the machine shorter and more compact.
Wheels — standard large size 12.5/80, 15.3 (400/60x15.5 option).
The structure and turret support are cross-shaped steel pipes, welded automatically, galvanized, which ensures optimal quality and a long service life.
Hitch — exclusive design, simple height adjustment. The special configuration of the cart provides easy maneuvering in small areas, easy use in the field.
Water supply is standard on both sides of the machine.
The protective cover of the turbine is hinged, it can be opened to facilitate maintenance.
The turbine is an aluminum alloy, exclusive and original design, increased productivity and efficiency, the return speed of the hose is 6-20 m/hour with low pressure loss.
Turbo reducer — with 4 synchronized speeds, easy gear changes during operation, thanks to the exclusive design of the Vario Rain gearbox and automatic brake.
The frame is on 4wheels (option for VR 7), provides a small load on the tractor's towing device for smoother maneuvering of the tractor even on uneven ground.
