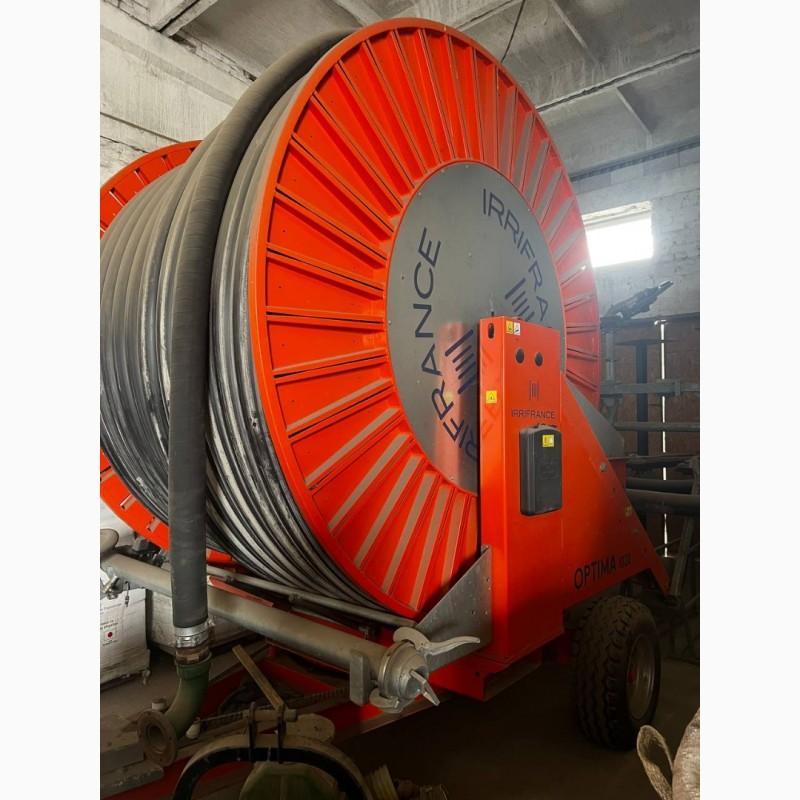

Irrifrance Optima 1020 100/410 sprinkler machine, Rivne region.

Technical specification

Irrifrance Optima 1020 100/410 – 2021 version (PACK ESSENTIEL TIC 8B)
Serial Number: 24IC2316

Characteristic Value
Series / Model: Optima 1020 Essential TIC 8B
Release year: 2021
Pipe diameter (PE): 100 mm
Pipe length: 410 m
Control type: Turbine with TIC unit (mechanical control Irridoseur)
Working pressure: 5.5–10 bar
Water consumption (approximate): 20–30 m³/h
Brake: Automatic
Rotating frame: 270–360° (depending on the configuration)
Dimensions (L × W × H): ~6.3 × 2.4 × 3.1 m
Mass (net): ~2900–3100 kg

Additional equipment / Options(//tractor-service.com)
✔ ELECTRICAL VALVE OPTION 1005/1020 VD
Electromagnetic valve for automatic control of water supply
✔ CONNECTION HOSE FOR VD (6m, HR 3")
Flexible sleeve for connection to the drain valve
✔ FRONT WHEEL KIT FOR TROLLEY OPTIMA
A set of front wheels to improve the stability of the cart
✔ ADJUSTABLE HIGH PROFILE TROLLEY
Elevated cart with adjustable height
✔ TROLLEY RISER KIT 250
250 mm cart lifting kit
✔ 2 IRON WEIGHTS
Additional loads for cart stability
✔ CANON KOMET TWIN 101 ULTRA Ø100 A 110
Powerful sprinkler turbine with replaceable nozzles, range up to 90 m

Advantages of the configuration
• Complete readiness for work with extended carriage and stabilization.
• Automated control of water supply through an electric valve.
• Komet Twin 101 Ultra quality turbine is one of the best in its class.
• Optimally suitable for large areas and stable pressure in the system.
