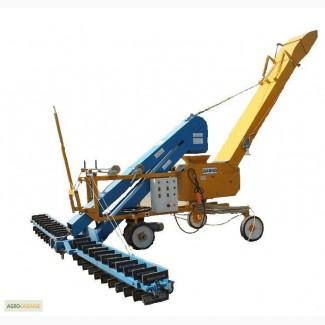

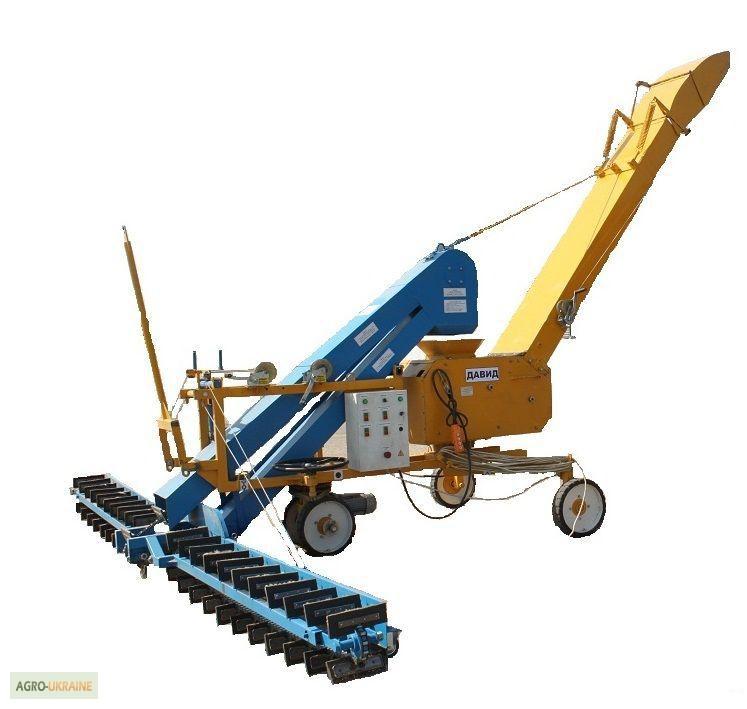

Grain thrower MZS-120 "DAVID" is designed for high-speed loading of heavy-duty machines!

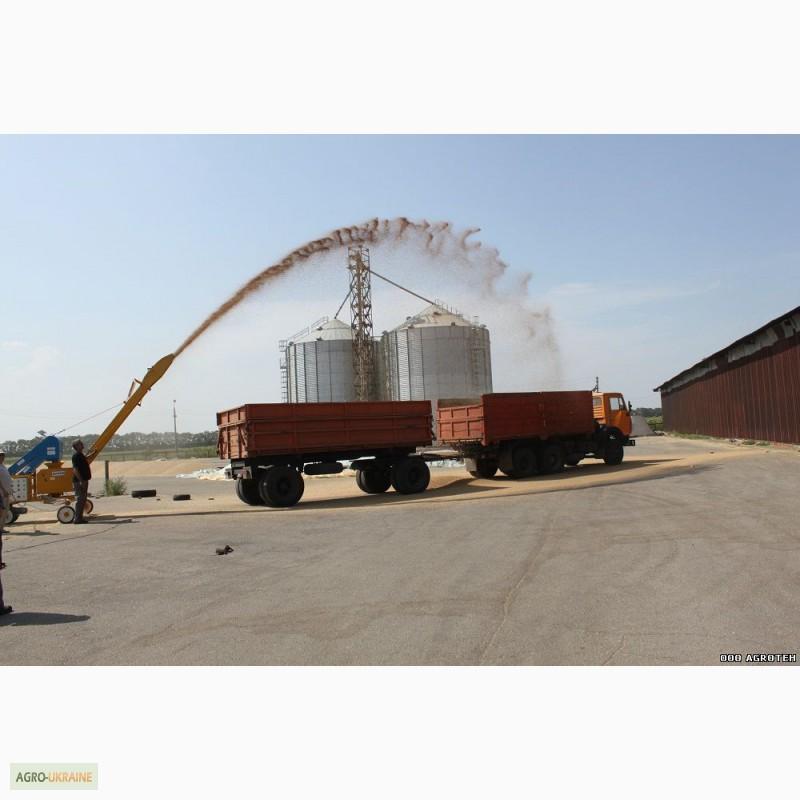

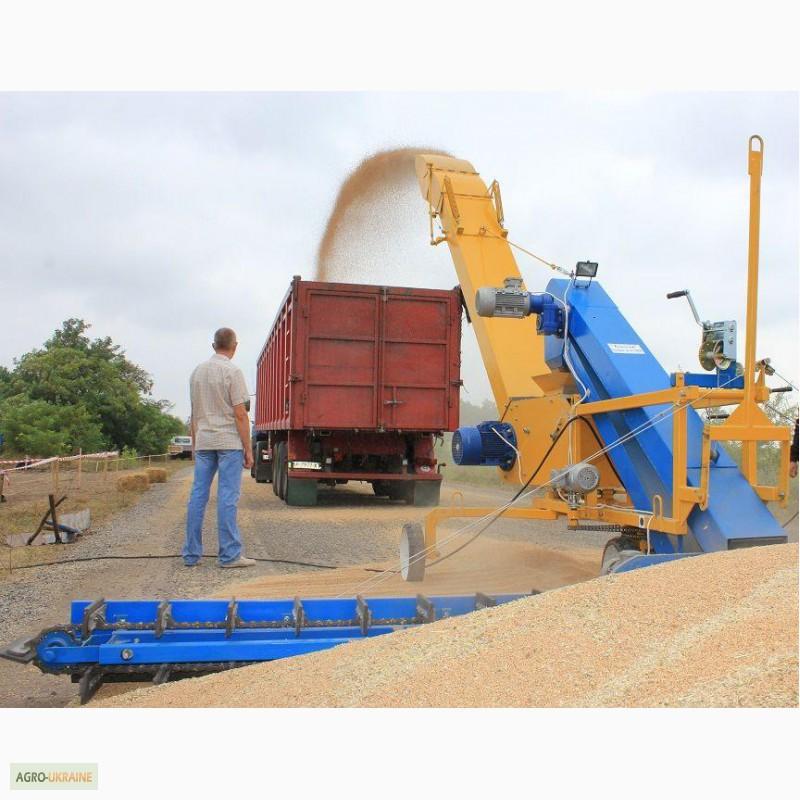

Modern Grain Throwers MZS-120 "DAVID" is intended for the mechanization of loading and unloading work on grain lines: loading and unloading
grain storage, loading
grain into vehicles, mechanical shoveling of grain on open platforms, formation of edges from grain, separation of grain with screening of light fractions.
Reliability and productivity, high efficiency
1. Type: self-propelled, electric
2. Productivity in one time, t, up to 120
3. Grain flight range, m, up to 30
4. Grain throwing height, m, up to 8
5. Overall dimensions, in working position, mm, :
length 5600
width 5560
(//tractor-service.com)
height 4100
6. Power consumption, kW, no more than 12.35
7. Mass, kg, no more than 1250
8. Number of service personnel 1 person.
9. Working width of capture, not less, m 5.2
10. Reliability indicators:
10.1 Term of service, not less than 7
10.2 Warranty period of operation 2 years
The main advantages of the MZS-120 "DAVID" seed thrower :
The working bodies have a direct drive - MOTOR-REDUKTOR - the absence of belts and the maximum reduction of chain gears. Absence of time spent on greasing the grain thrower - replacement of oils in motor-reducers after 4000 engine hours. Due to the change in the kinematics of the drive, the resource of the scraper conveyors has been increased by 2 times! . With the rejection of the block of conical gearboxes, the resource of the drive of the feeding conveyors has been increased by 40! Time. The level of noise and vibration is reduced by 2 times. Availability of remote control of movement of the grain thrower "left-right" and "forward-backward", illumination of the loading working area. Ease of rotation of the trimmer due to its installation on a block of conical bearings. The range and height of the grain throw, the smooth adjustment of the tip of the feeding chute with changing geometry allows you to load almost any means of transport without moving them.
