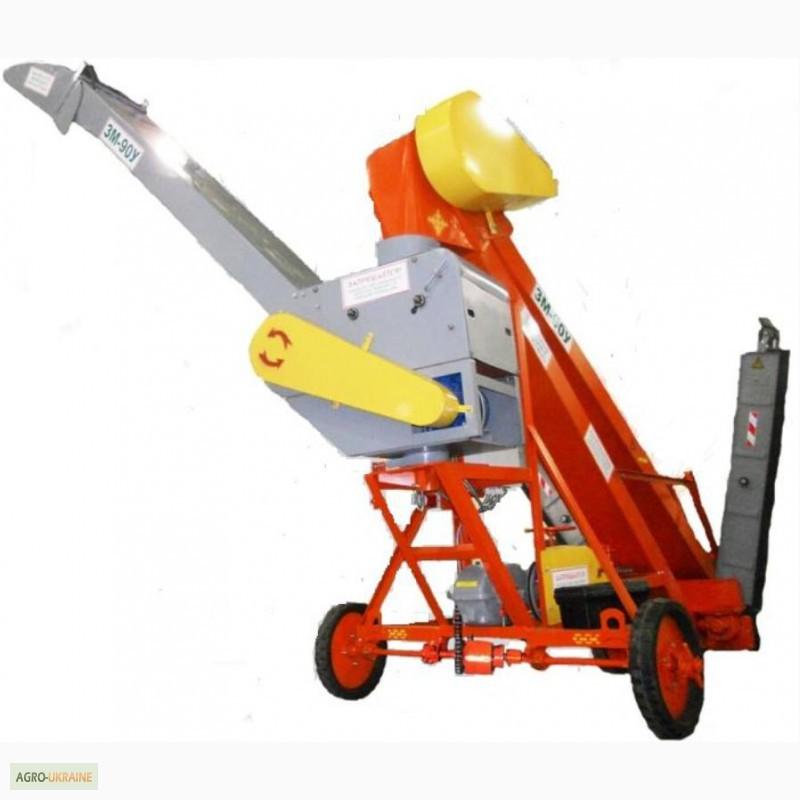

Zernometatel ZM-90U magnified, Dnipropetrovsk region.

Zernometatel ZM-90U magnified self-propelled is intended for the mechanization of loading and unloading operations on open tracks and in warehouses. The ZM-90U grain thrower is used for loading and unloading grain warehouses, shoveling grain, scattering grain bundles for drying and loading it into vehicles.
Self-propelled grain thrower ZM-90U has the following features:
- Turning thetrimmer 90° in both directions allows you to: continuously carry out the process of loading grain into vehicles, form a side with one ridge after two passes of the grain thrower, evenlydistribute the grain when loadingstacks, disperse the grain from the side for drying in a thin layer on the current platform and collect it after drying again in the side.

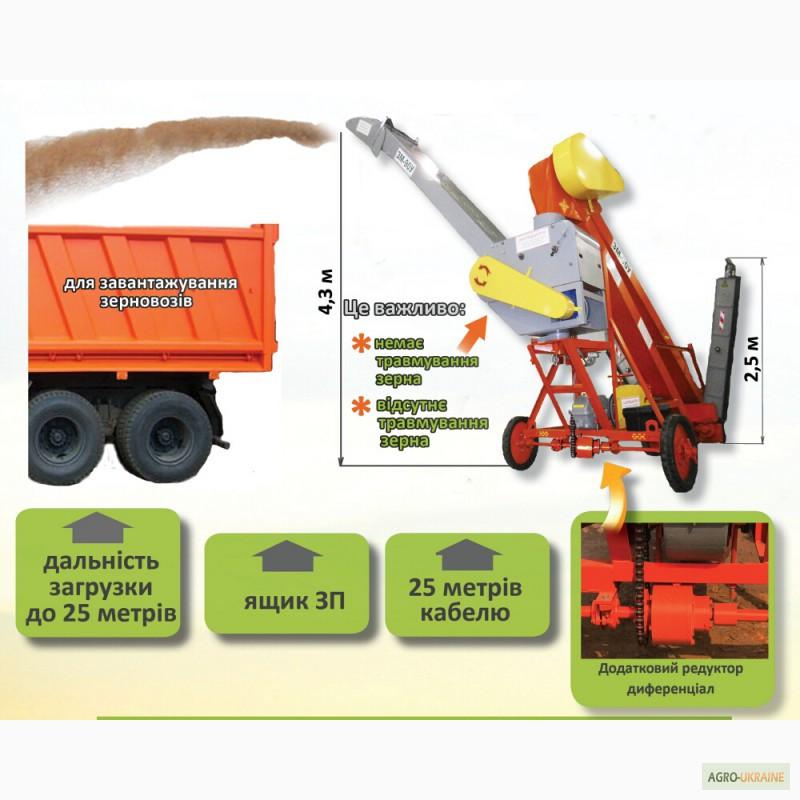

- The grain thrower can throw grain at a distance of up to 10 meters and provides a storage height of up to 4.5 meters or loading of grain into vehicles.

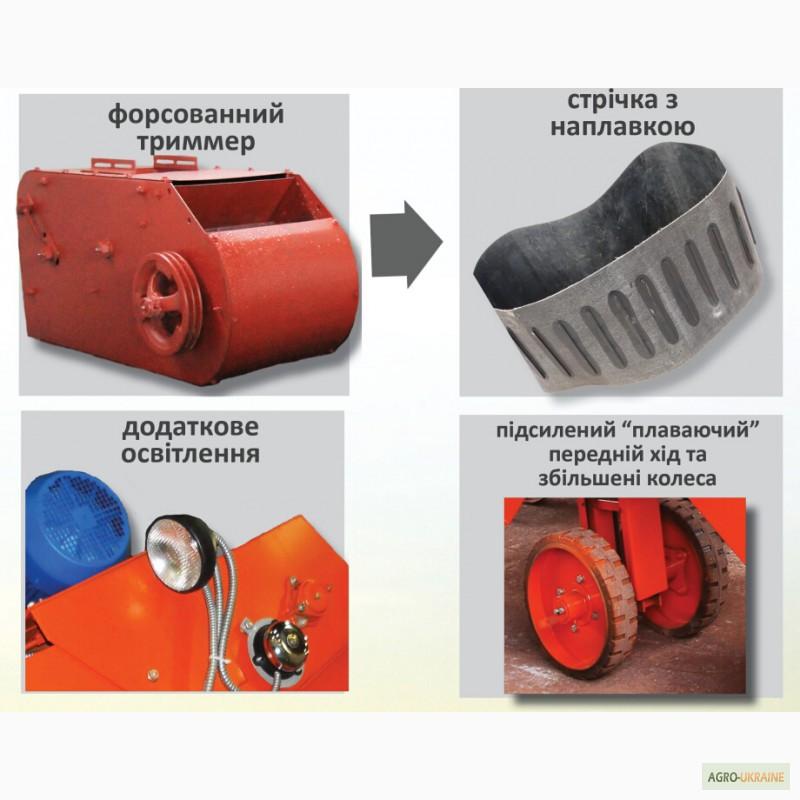

Basic assembly units of the ZM-90U grain thrower :

- frame with chassis;
- loading conveyor with two T-shaped feeders;
- trimmer (thrower);(//tractor-service.com)
- counter drive;
- lifting and self-moving mechanism;
- electric drive;
- illumination.

During operation, the scrapers of the grain thrower move the grain to the center of the lower head of the loading conveyor, the scrapers of which capture it and feed it into the guide nozzle of the trimmer. The trimmer plunges the grain into vehicles or perebuts it.

Grain thrower ZM-90U Self-propelled type. Electric drive. Installed capacity, kW 10.5 Maximum productivity, t/h 90. Grain loading height, m, not less than 4-4.5. Overall dimensions in the working position without turning the trimmer, mm 6650x4150x3290. Mass, kg 1200

The ZM-90U grain thrower uses a loading optimization system that allows the thrower to work fully automatically with any given productivity.
