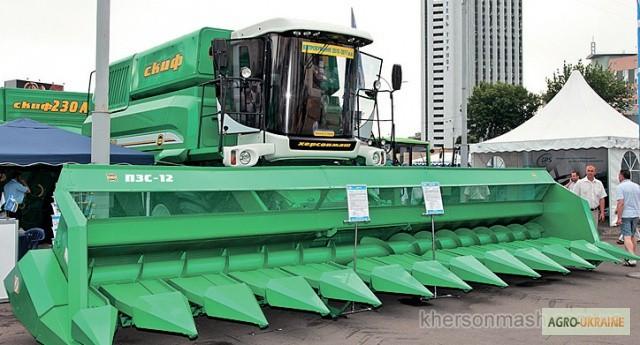

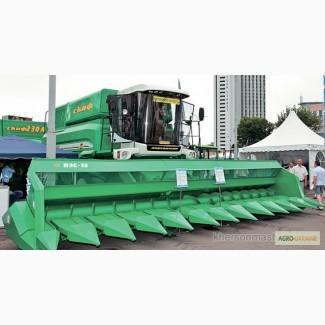

PZS-12 sunflower harvester, Dnipropetrovsk region.

Harvesterfor harvesting sunflowers CCD-12
Жатки для уборки подсолнечника CCD-12 has a number of advantages:

high productivity

Stems in the channels of the device are fed without tilting in the direction of the longitudinal axis. As a result, it becomes possible to operate the unit at higher speeds, which ensures an increase in its productivity.

high reliability of construction

The high reliability of the design is achieved by the absence of longitudinal conveyors for feeding cut sunflower baskets to the transverse auger.

minimization of losses

The original design of the cutting device provides a smooth and shock-free cut of stems, which significantly reduces grain losses. The disk knives also have special grips for smooth transfer of cut baskets to the auger of the harvester. There are special containers for collecting seeds in the hoods of the channels, and chain conveyors are installed in the working channels of the channels, the speed of which is commensurate with the working speed of the harvester. The design of copying dividers with stepless adjustment of the height of the selection of lying baskets also contributes to the reduction of seed losses. Reflective screens installed on the front shield prevent stems from hanging on the shield when harvesting high-stemmed sunflowers. CCZ-12 harvester is a new development of Kherson Machine Plant LLC. While maintaining the high technical and technological reliability of the eight-row CCD-8 header, the twelve-row CCD-12 header makes it possible to increase the productivity of combines by 1.5 times and use their energy saturation as much as possible.

Harvesters are aggregated with SKIF, SLAVUTYCH, Niva, Don-1500B, Vector, Akros, KZS-1218 Palesse combines, as well as John Deere combines. , Claas, Massey Ferguson, Topliner, New Holland (New Holland) and others.(//tractor-service.com)

Functions and technical characteristics

The number of removed lines is 12

Row width, cm - 70

Gripping width, m - 8.4

Productivity, ha/h - 8.4

Mass, kg - 2750

Working speed, km/h - 10

Overall dimensions, mm - 2600/8870/1480. ==feedback, info.
