Inter-row cultivator weed KRN5.6 Grand Max ROW CONTROL Fold Ferti KRN-5, 6 folding, Zaporizhzhia region.

Inter-row weeding cultivator KRN5.6 Grand Max ROW CONTROL Fold Ferti KRN-5,6 (folding frame, fertilizer application system in front of the tractor)
Cultivator inter-row weeding Grand Max ROW CONTROL Fold Ferti KRN-5,6 with a front system of introduction of KAS and LCD.

We offer a modern inter-row weeding cultivator Grand Max ROW CONTROL Fold Ferti КРН-5.6 with a folding frame and a front system for applying liquid fertilizers KAS and LCD. This is a high-performance inter-row cultivator for corn, sunflower, soybean, rapeseed and other row crops, which allows simultaneous inter-row cultivation, mechanical weeding, loosening of the soil and local application of fertilizers.

The KRN-5,6 Grand Max cultivator is designed for modern agricultural enterprises that seek to reduce the costs of growing crops, increase the efficiency of field work, and implement precision farming technologies.

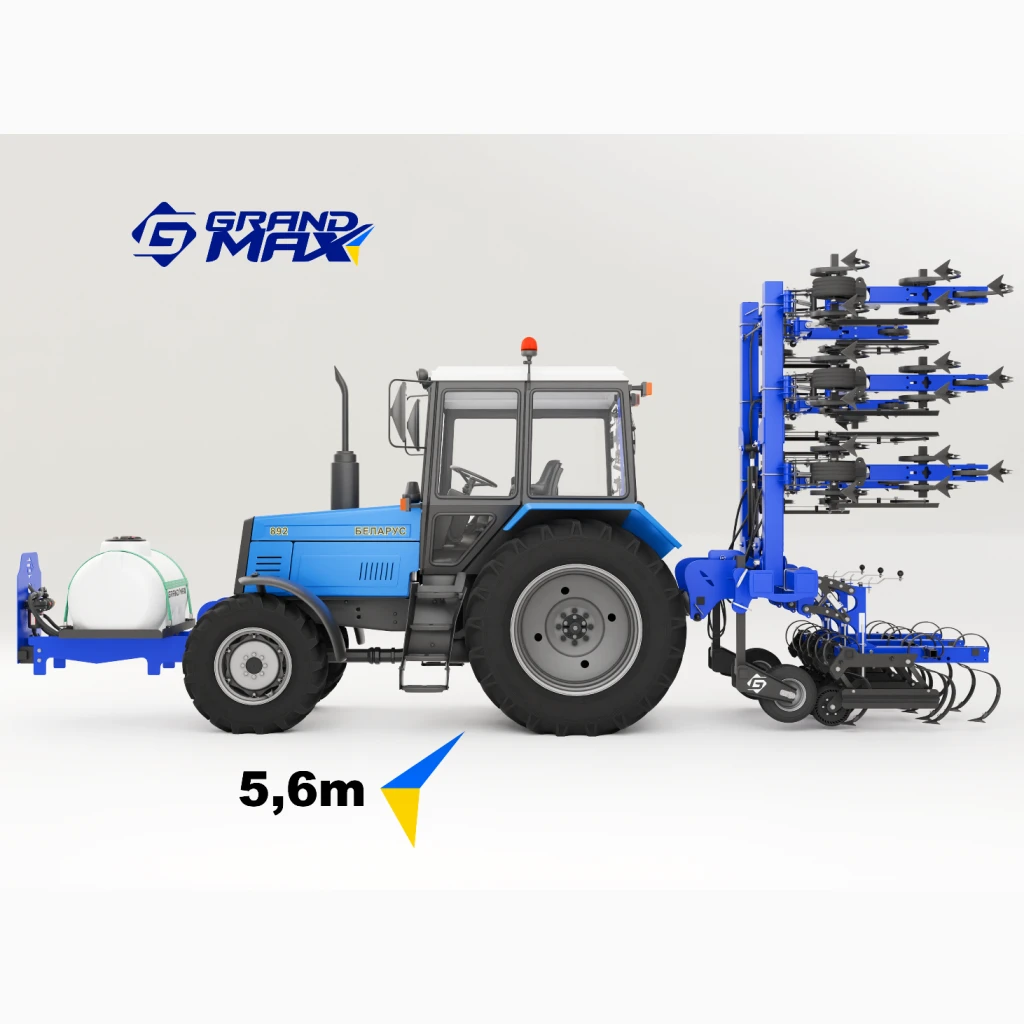

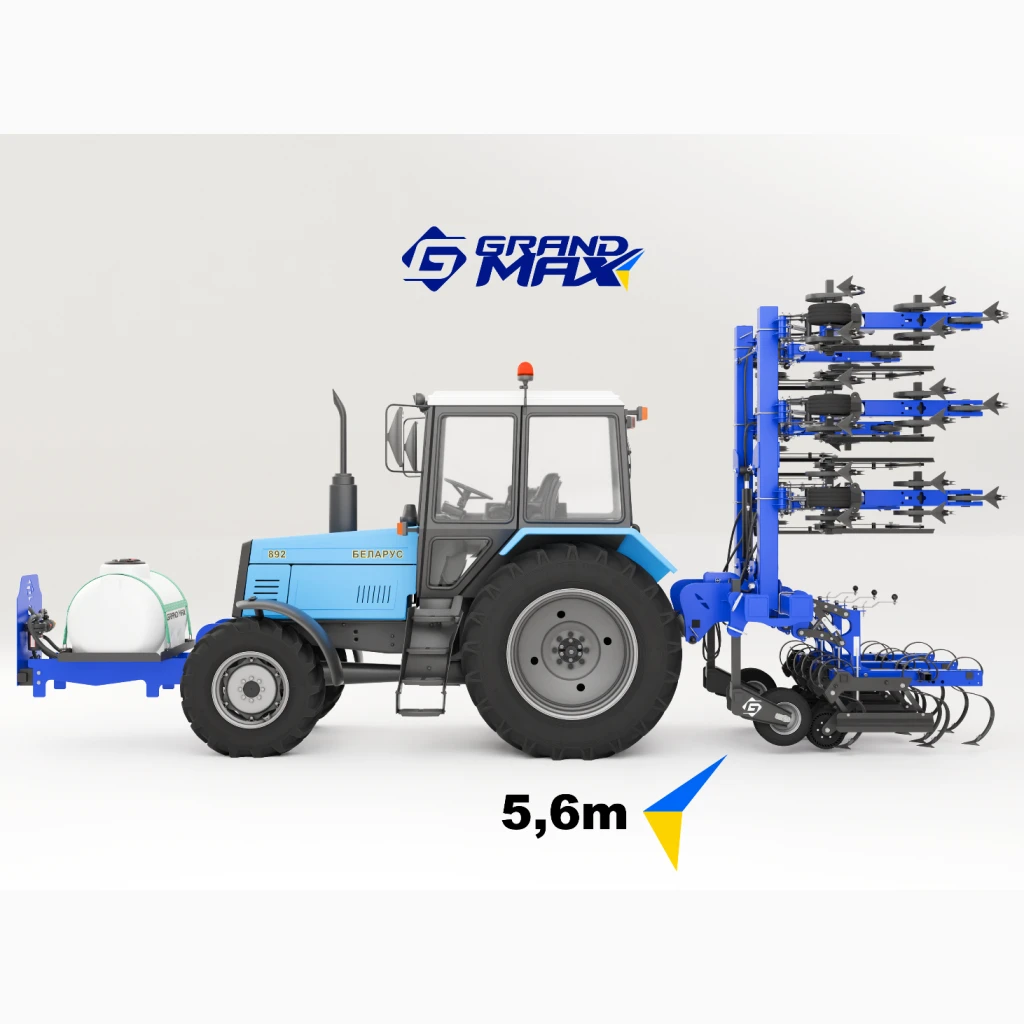

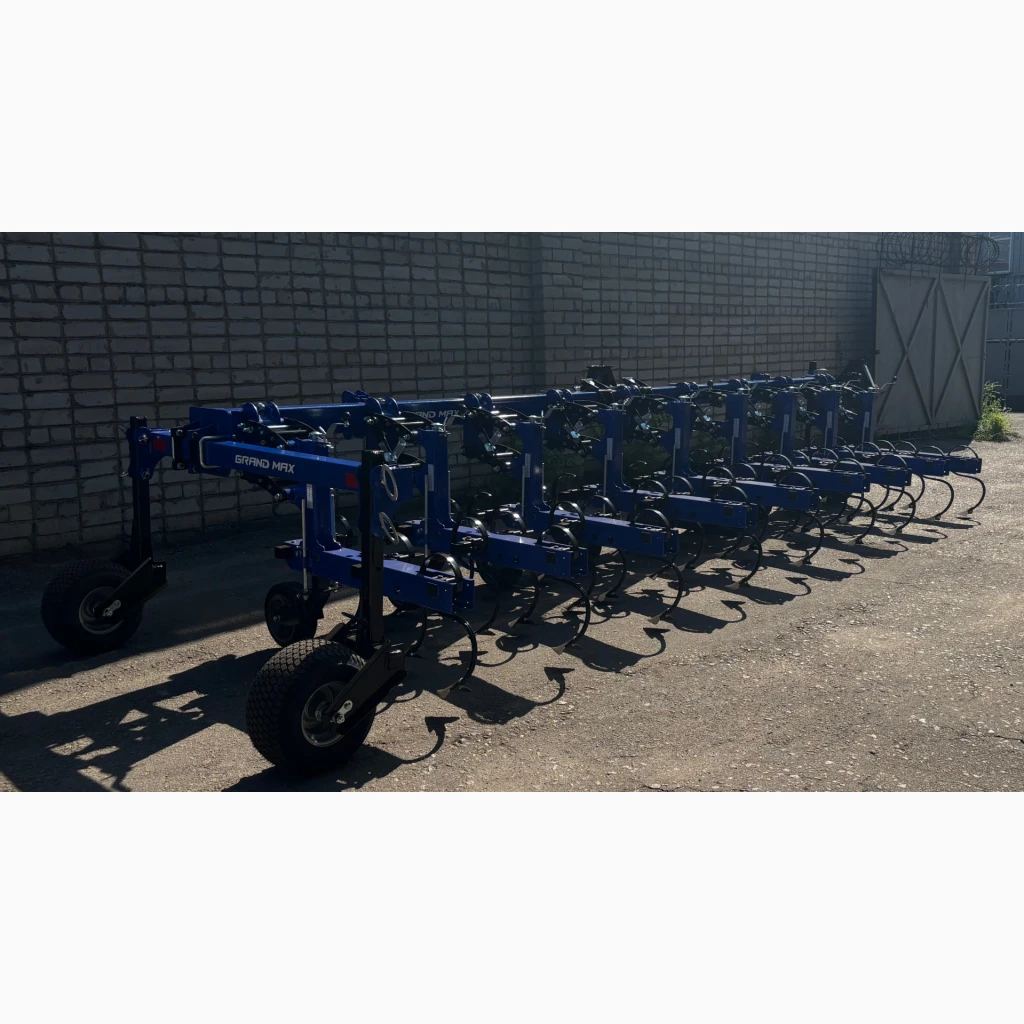

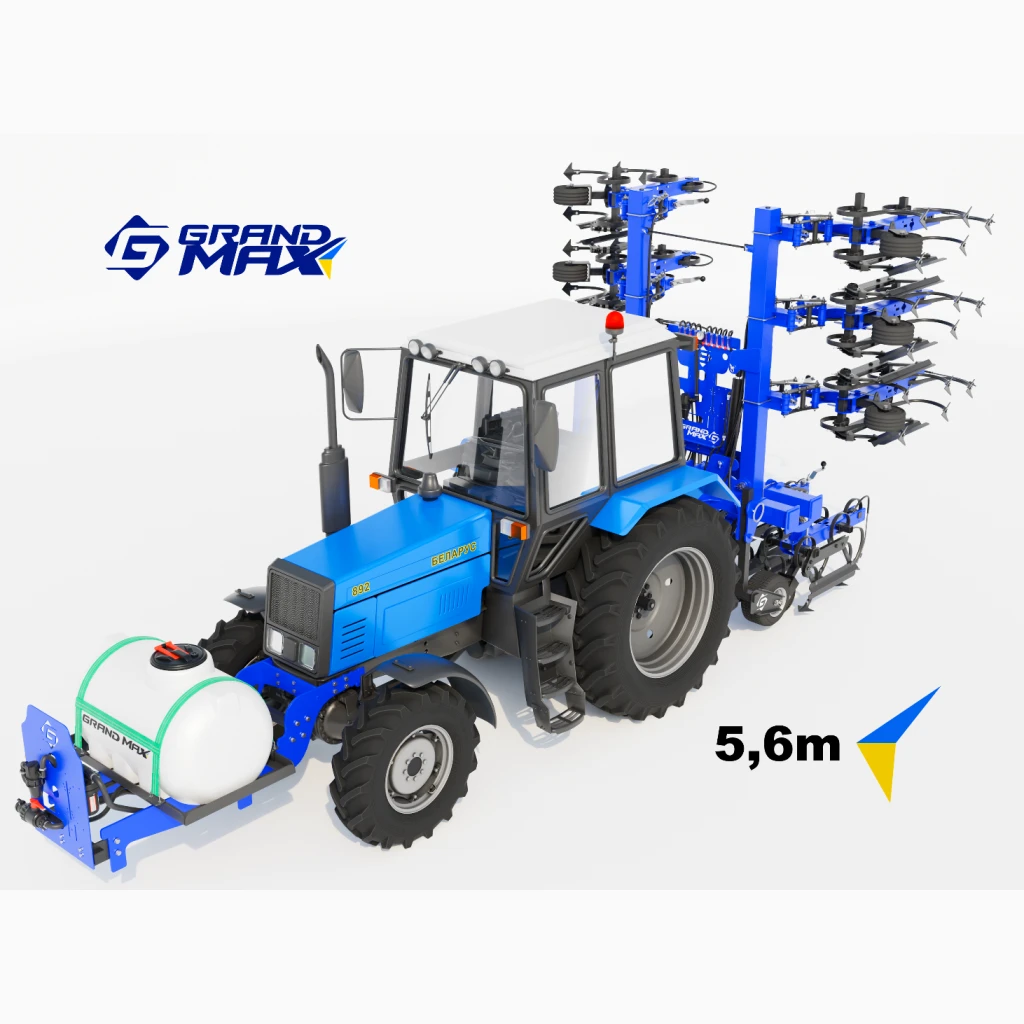

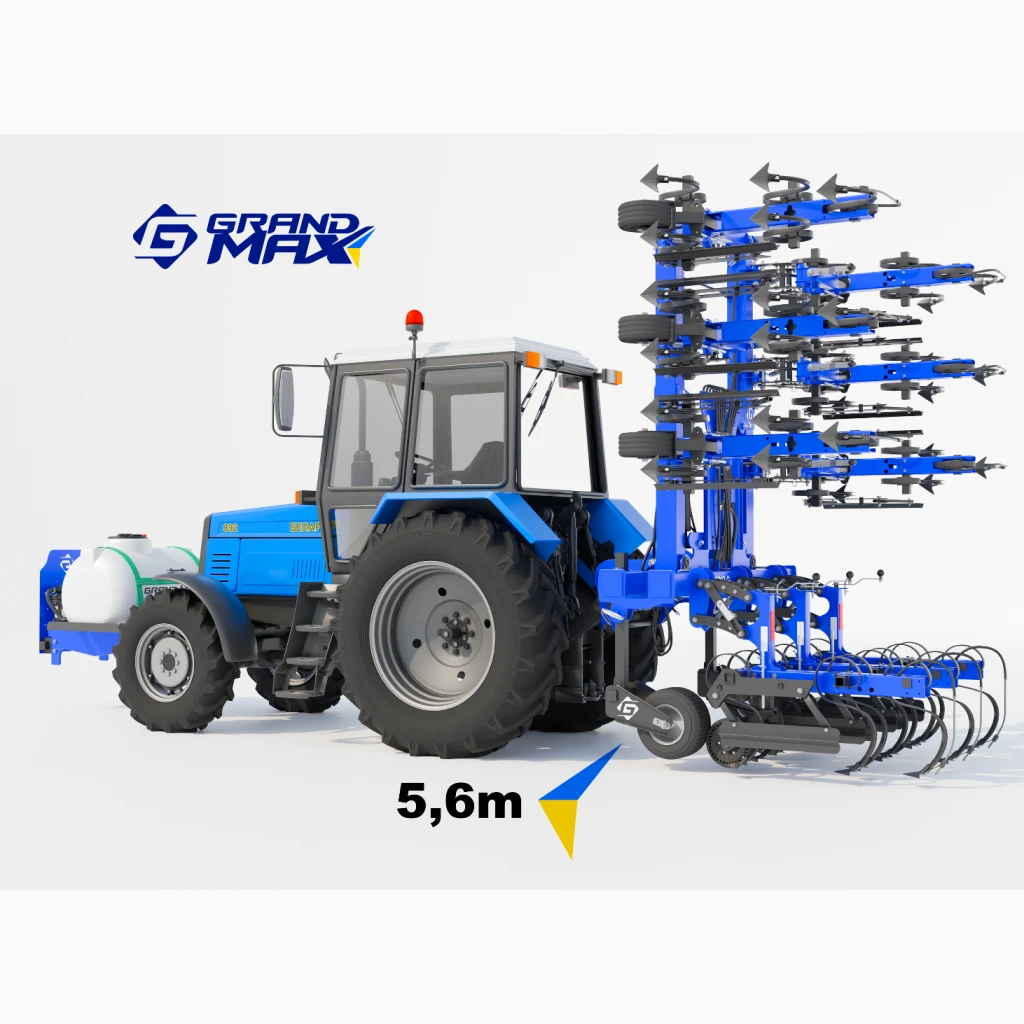

Folding frame - mobility without loss of strength

The main feature of the model is a reinforced folding frame, which provides convenient transportation between fields and public roads.

Advantages of complex design:

✔ transport width up to 2.1–2.5 m;

✔ no need for accompaniment;

✔ quick transfer from transport to working position;

✔ reduction of logistics costs;

✔ saving time when moving;

✔ high structural rigidity;

✔ stable operation at high speeds.

In terms of strength, the frame is not inferior to structures on a solid beam and guarantees durability even with intensive use.

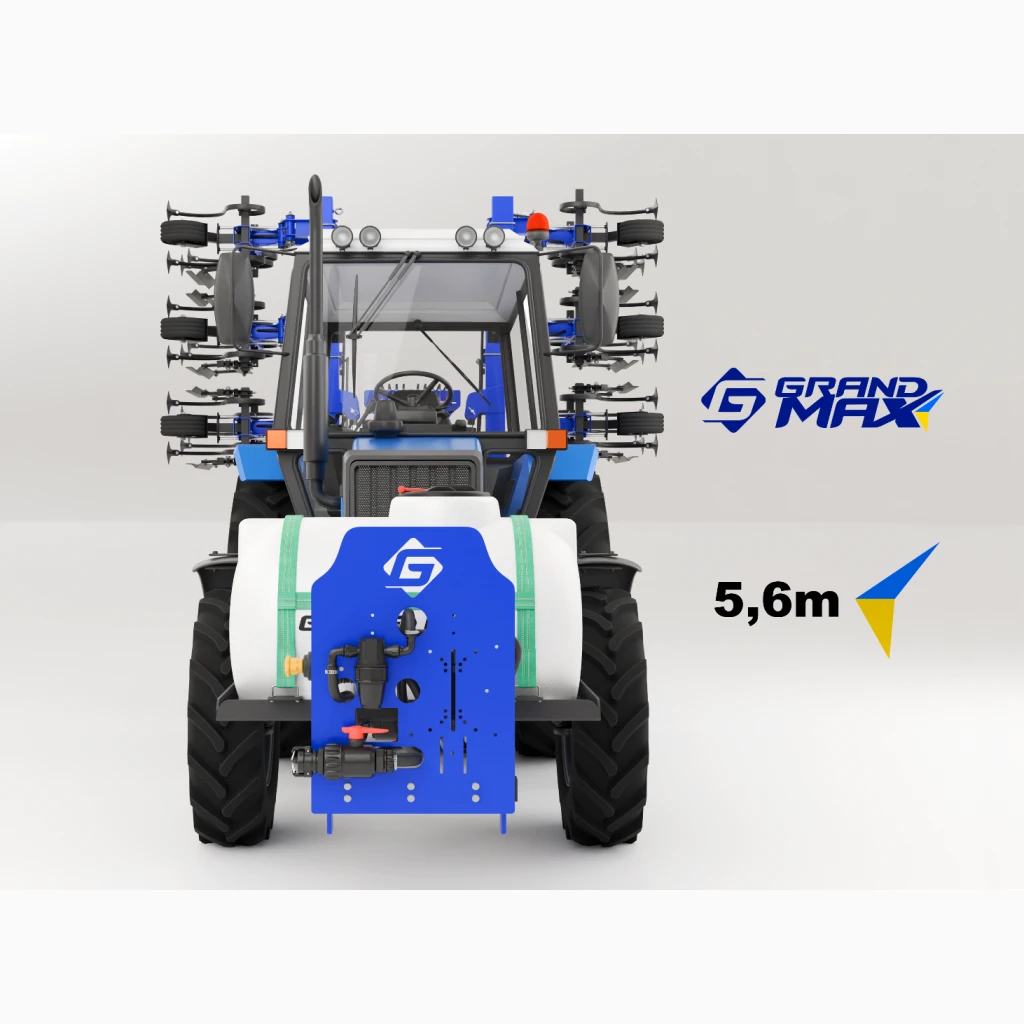

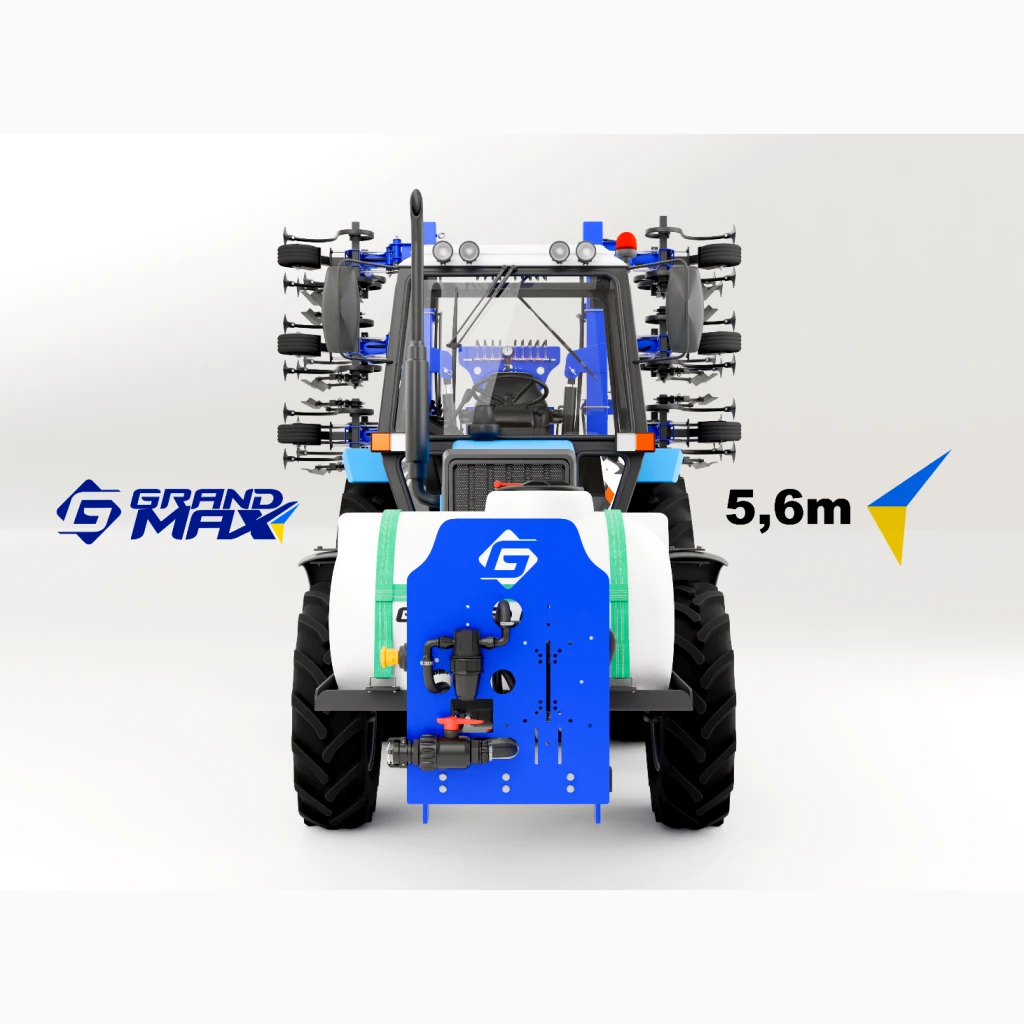

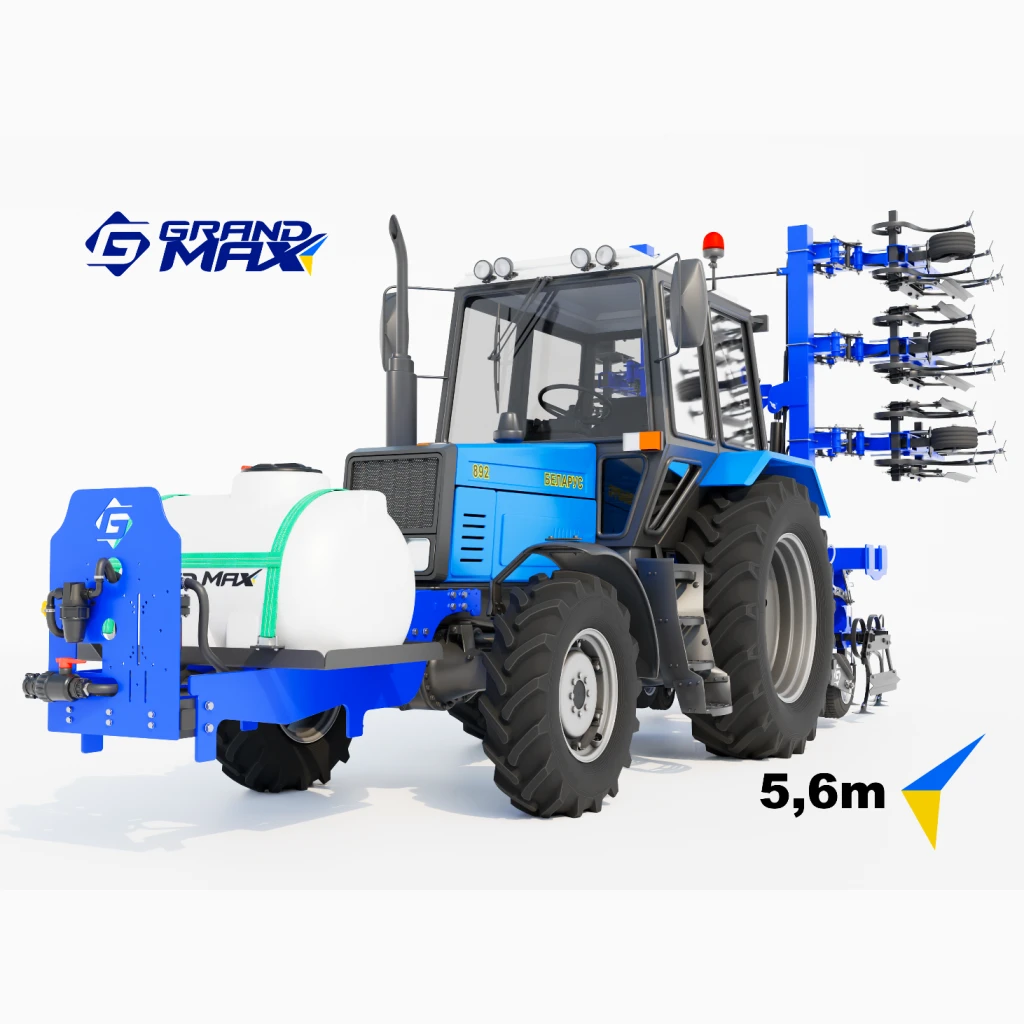

Front fertilizer application system - full operator control

One of the key advantages of Grand Max ROW CONTROL Fold Ferti is the KAS and LCD application system located in front of the tractor.

This layout provides:

✔ permanent visual control of system operation;

✔ pressure control and fertilizer consumption;

✔ quick equipment setup;

✔ easy access to service nodes;

✔ uniform distribution ofweights between tractor axles;

✔ increasing the stability of the unit;

✔ improving maneuverability during work.

The front placement of the tank and equipment is especially appreciated by farms that work using precision farming technologies.

Simultaneous cultivation and application of fertilizers

The Ferti integrated system allows you to perform several technological operations in one pass:

interline processing;
mechanical destruction of weeds;
soil loosening;
local introduction of KAS;
introduction of LCD in the basal zone;
feeding crops during the growing season.

Using a cultivator with fertilizer application allows:

✔ reduce the number of passes of equipment on the field;

✔ reduce soil compaction;

✔ reduce fuel costs by up to 30%;

✔ improve absorption of nutrients;

✔ increase the yield of agricultural crops.

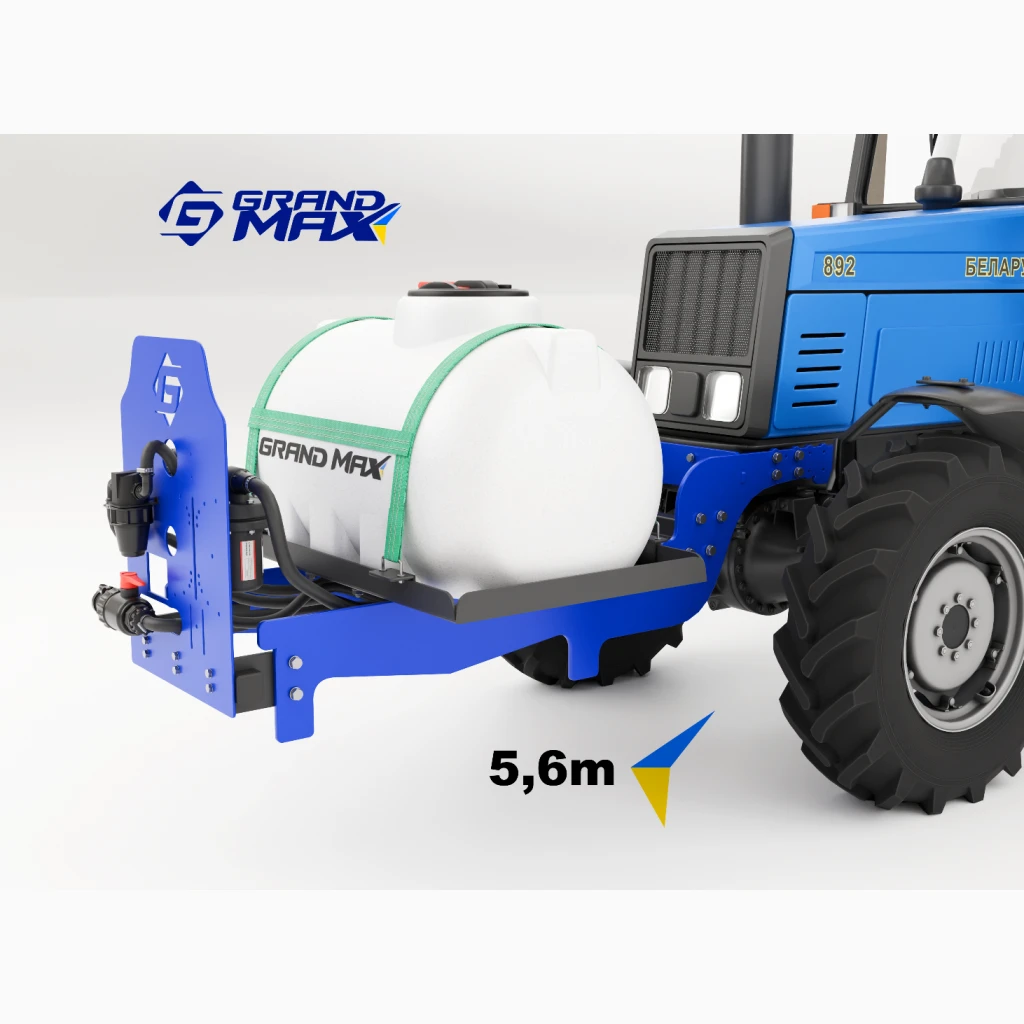

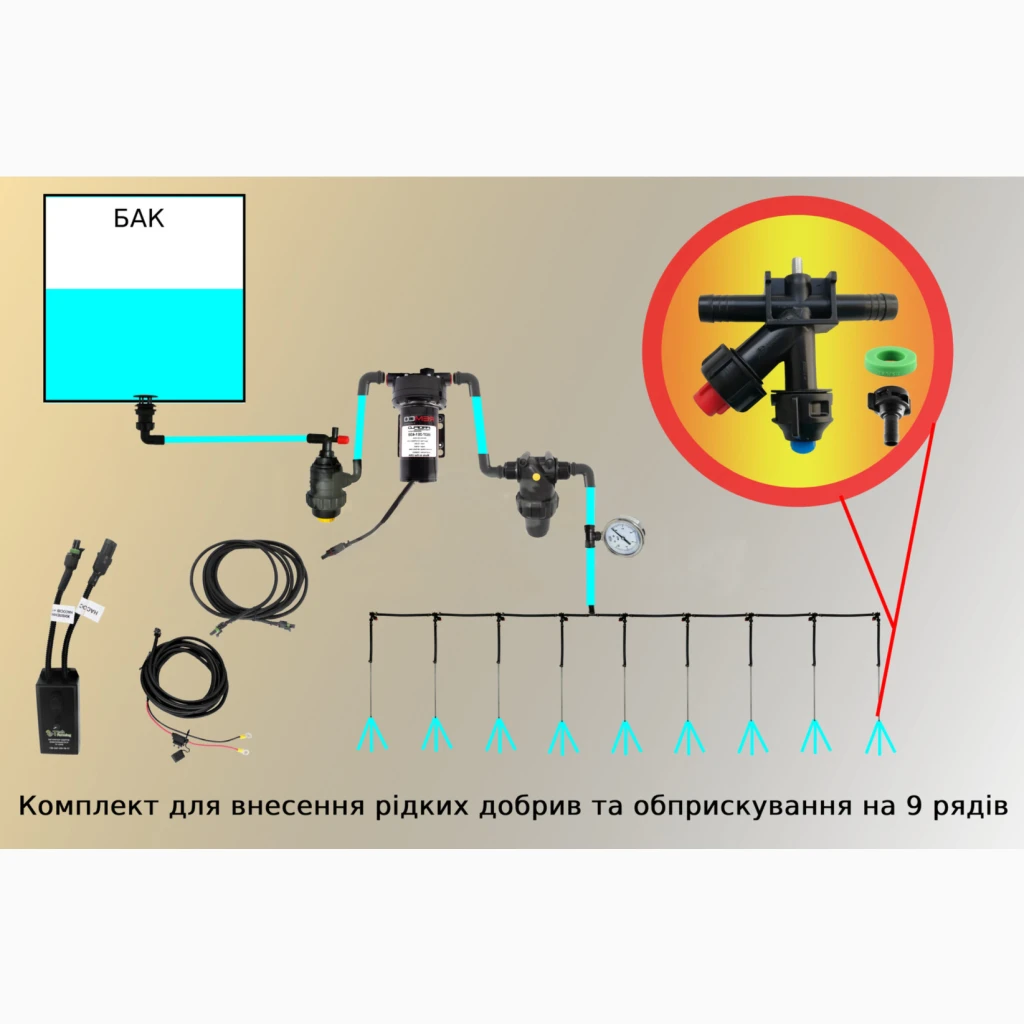

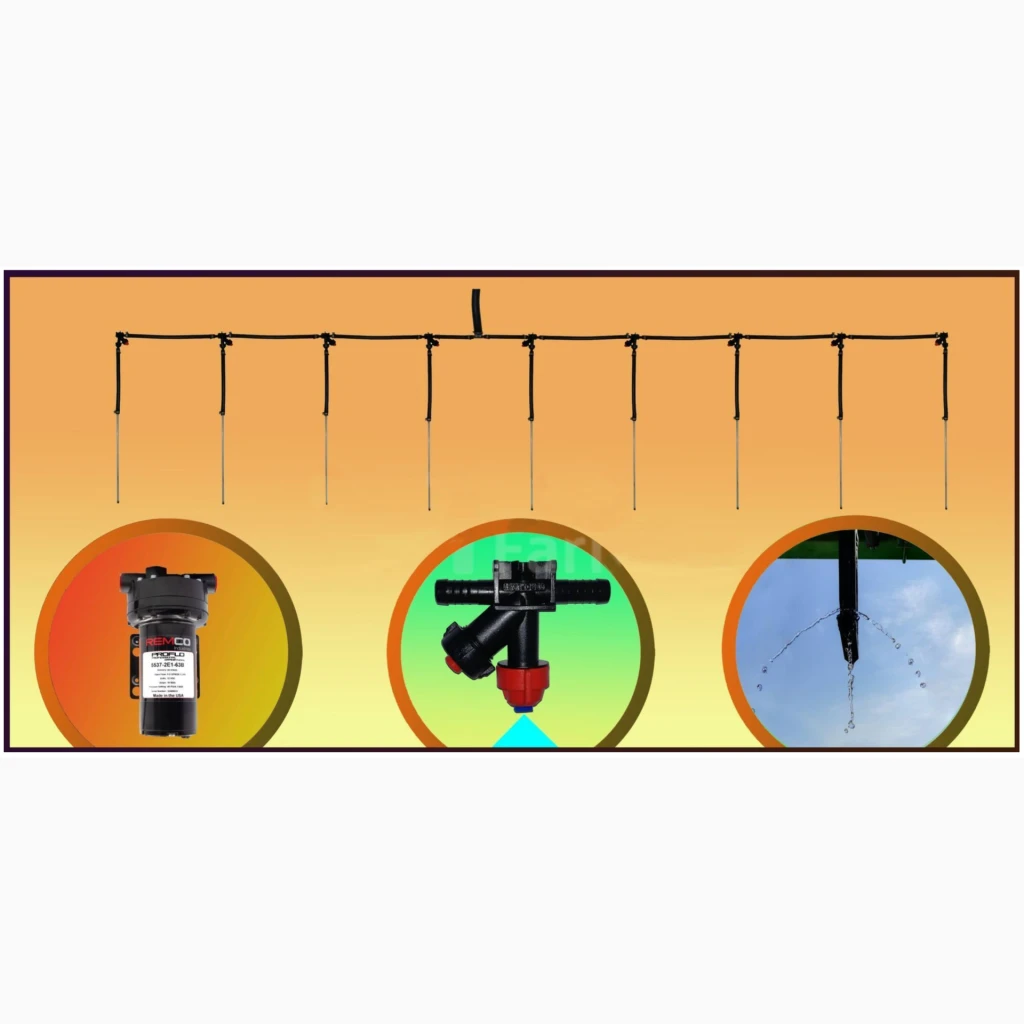

Technical characteristics of the fertilizer application system
Parameter Value
Tank volume 500 l
The material of the tank is plastic (thickness 5 mm)
Temperature regime from −40°C to +60°C
Metal frame 10 mm
Placement in front of the tractor
Refueling through Kamlok
Lower liquid intake, with anti-swirl.
Coarse cleaning filter 160 l/min
Pump Remco (USA), diaphragm
Productivity up to 20.09 l/min
Working pressure up to 10 bar
Power supply 12 V
Suction height up to 4 m
Rotameter control with flow visualization
Management PWM controller, relay
Automation automatic on/off
Reliable construction for daily work

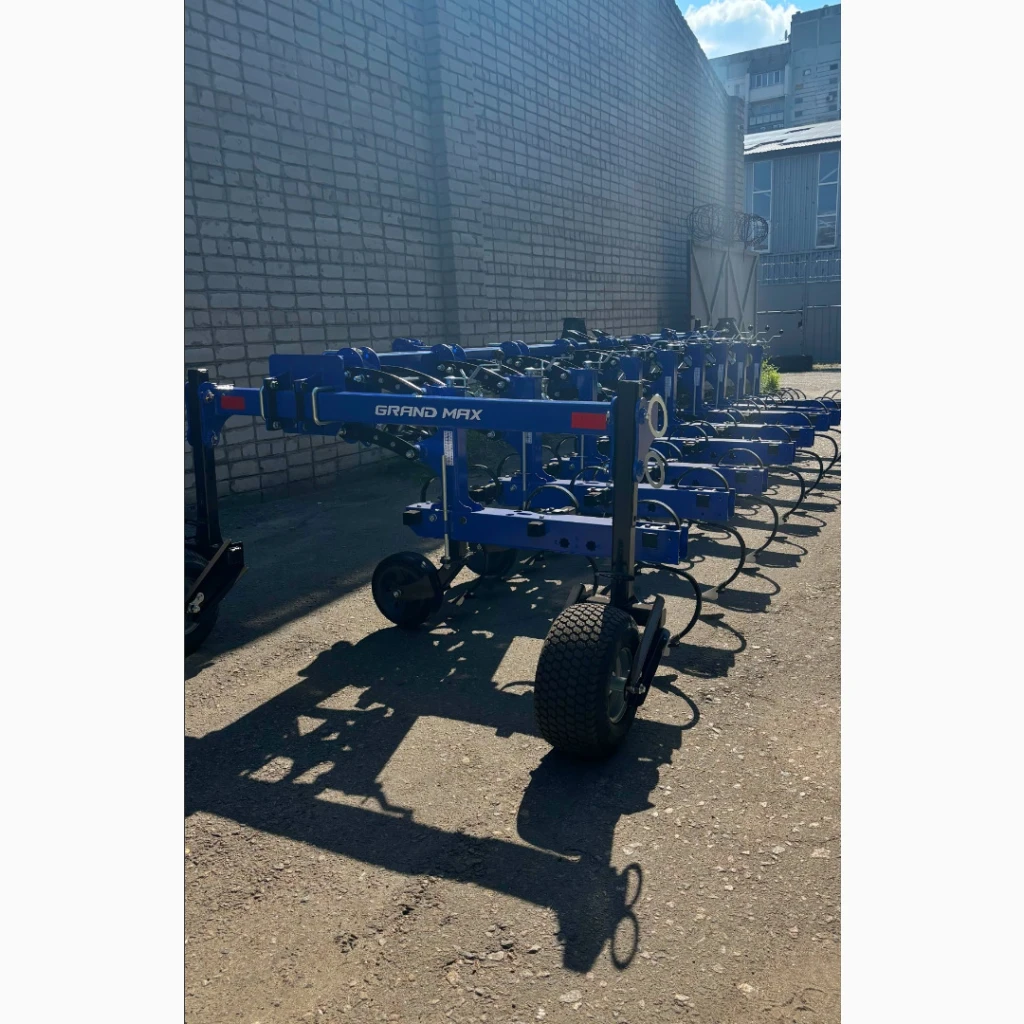

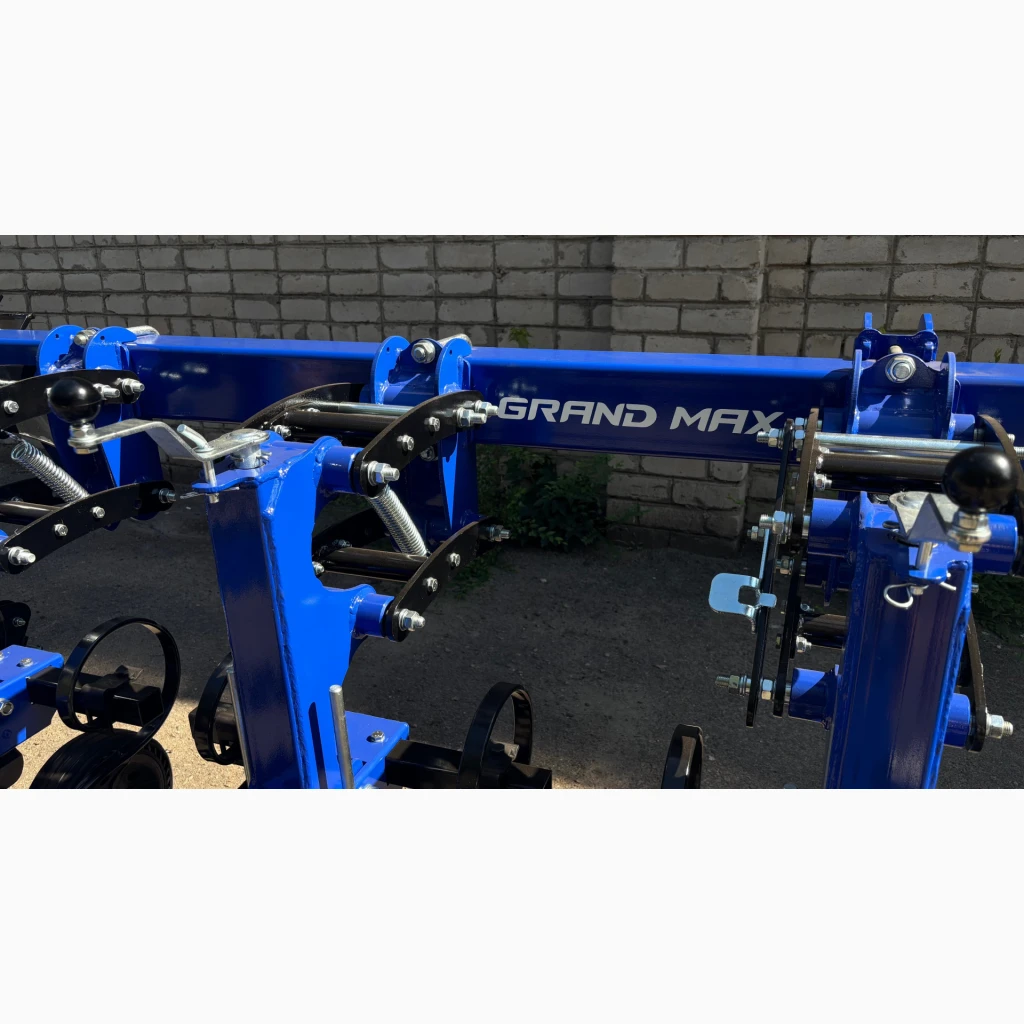

Cultivator for inter-row cultivation Grand Max is made on the basis of a reinforced frame with a section of 140×140×8 mm.

The design provides:

✔ high strength;

✔ resistance to deformations;

✔ uniform load distribution;

✔ stability of work at high speed;
(//tractor-service.com)
✔ long service life.

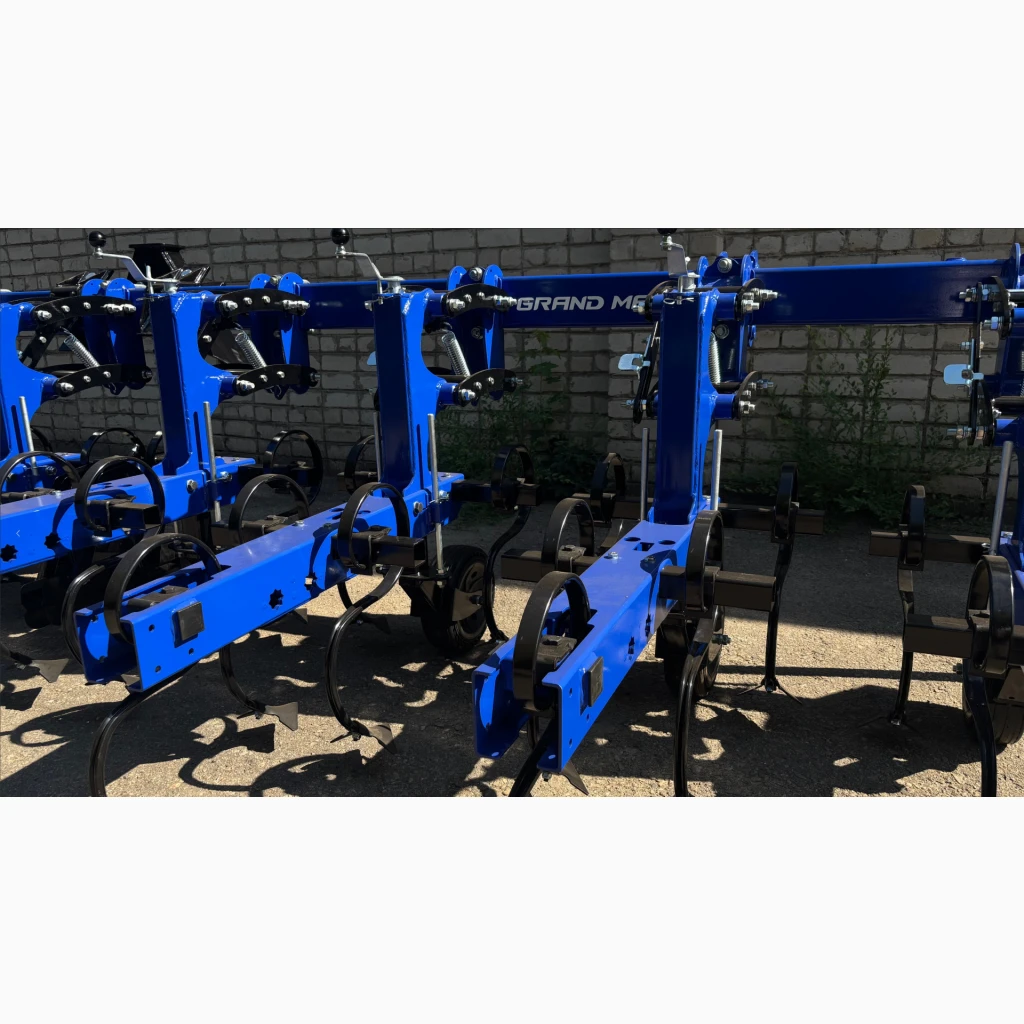

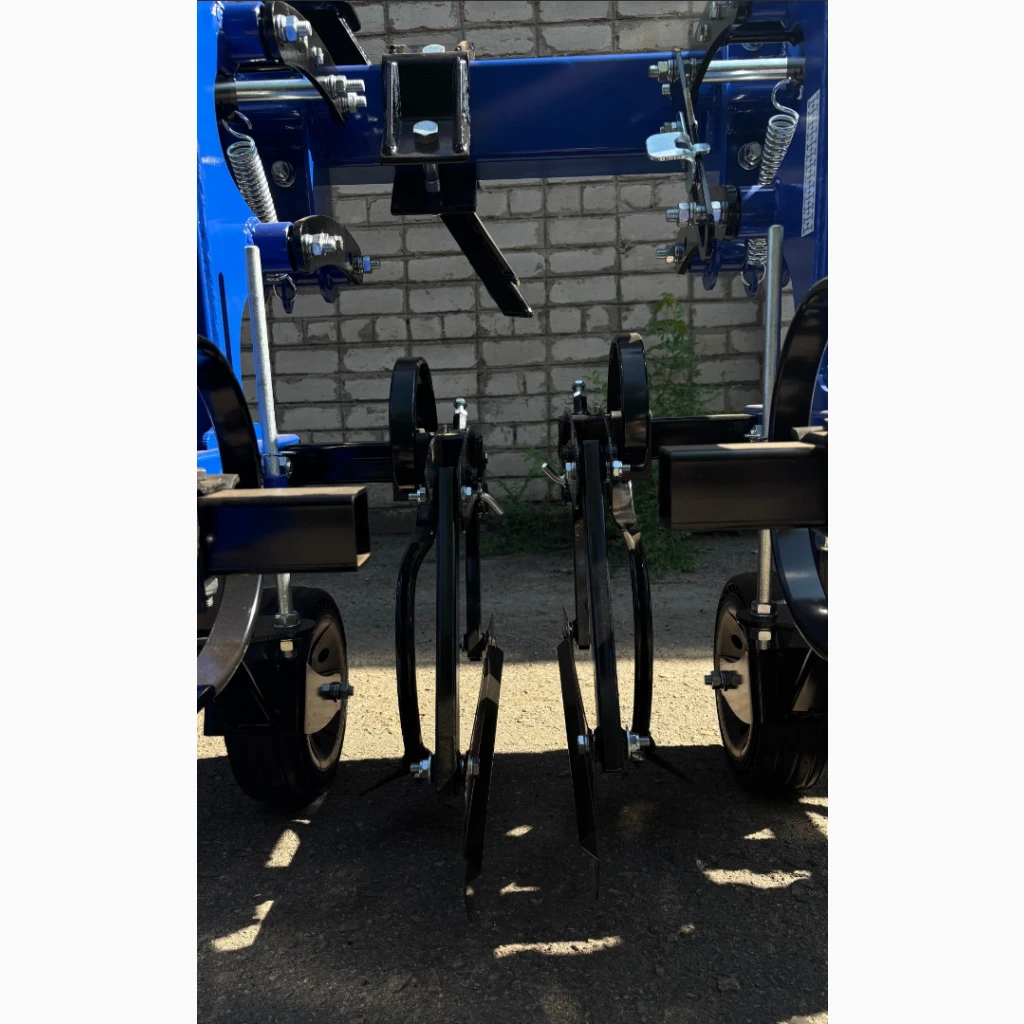

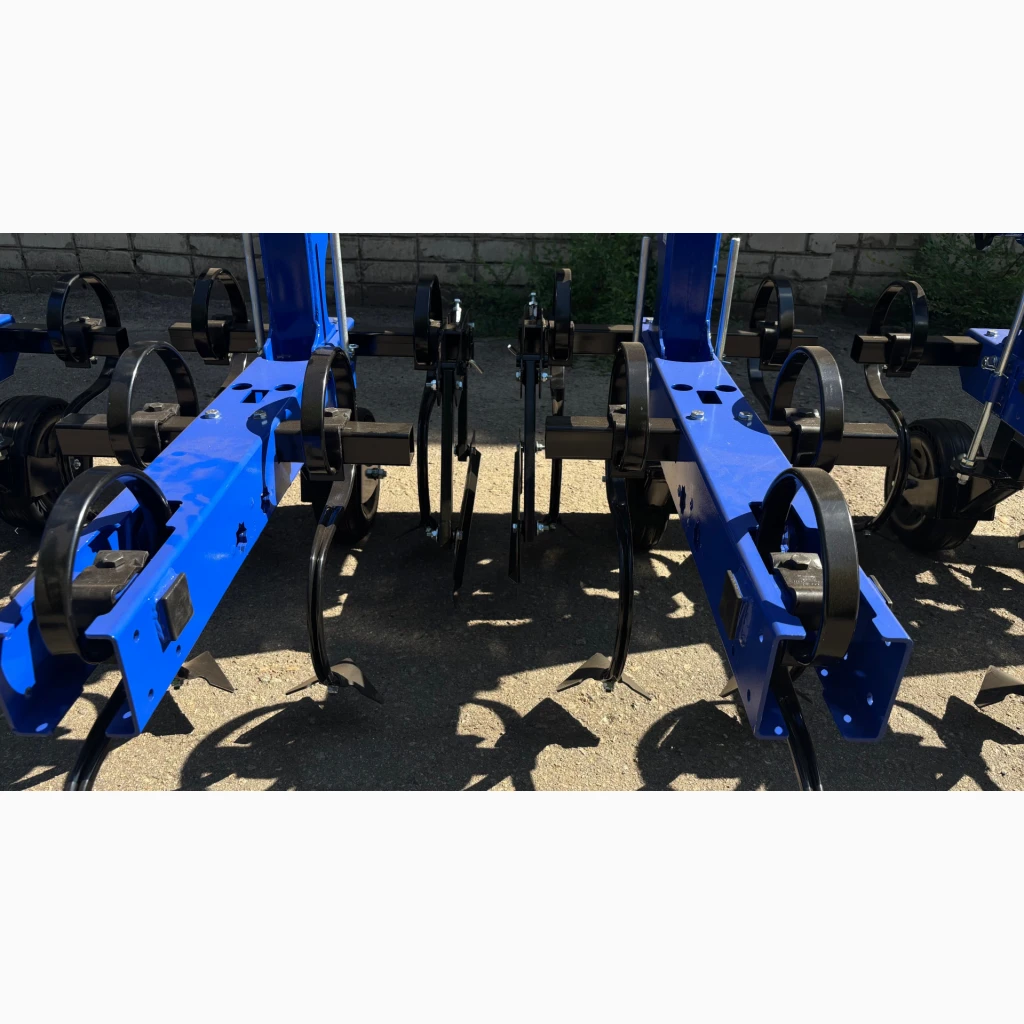

Working bodies Bianchi (Italy)

For high-quality inter-row processing, the cultivator is equipped with modern working bodies:

racks Bianchi (Italy);
S-shaped rack 32×10 mm;
arrow feet 150 mm wide.

Advantages of working sections:

✔ 100% overlap between rows;

✔ quality trimming of weeds;

✔ uniform loosening of the soil;

✔ minimal damage to cultivated plants;

✔ stable processing quality.

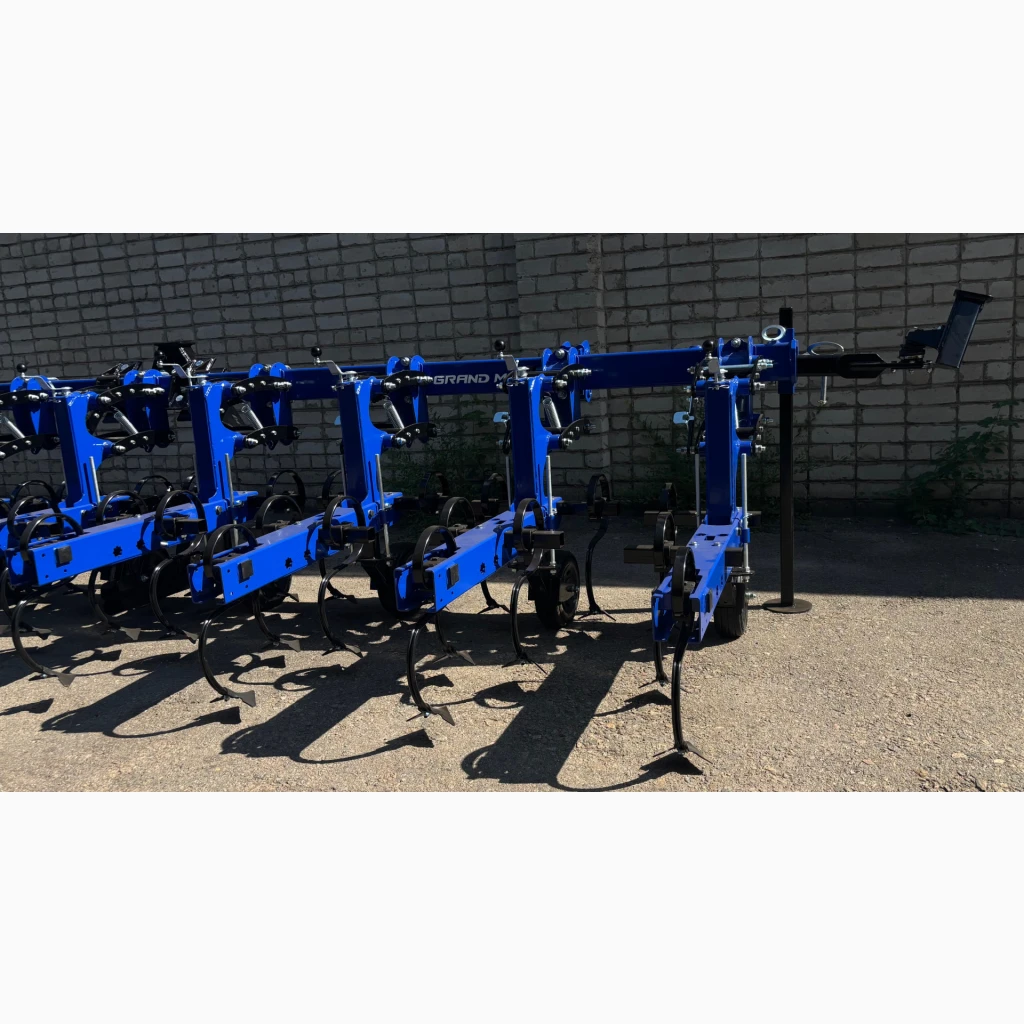

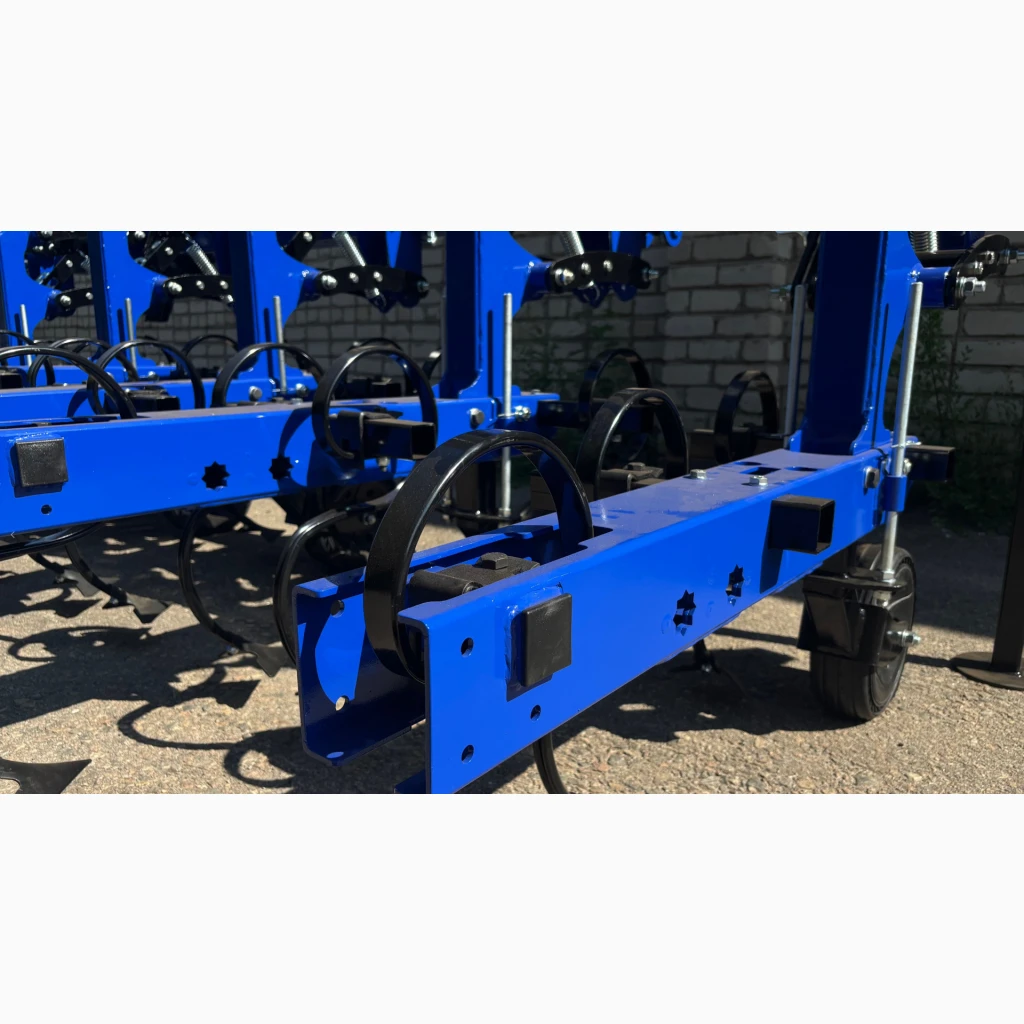

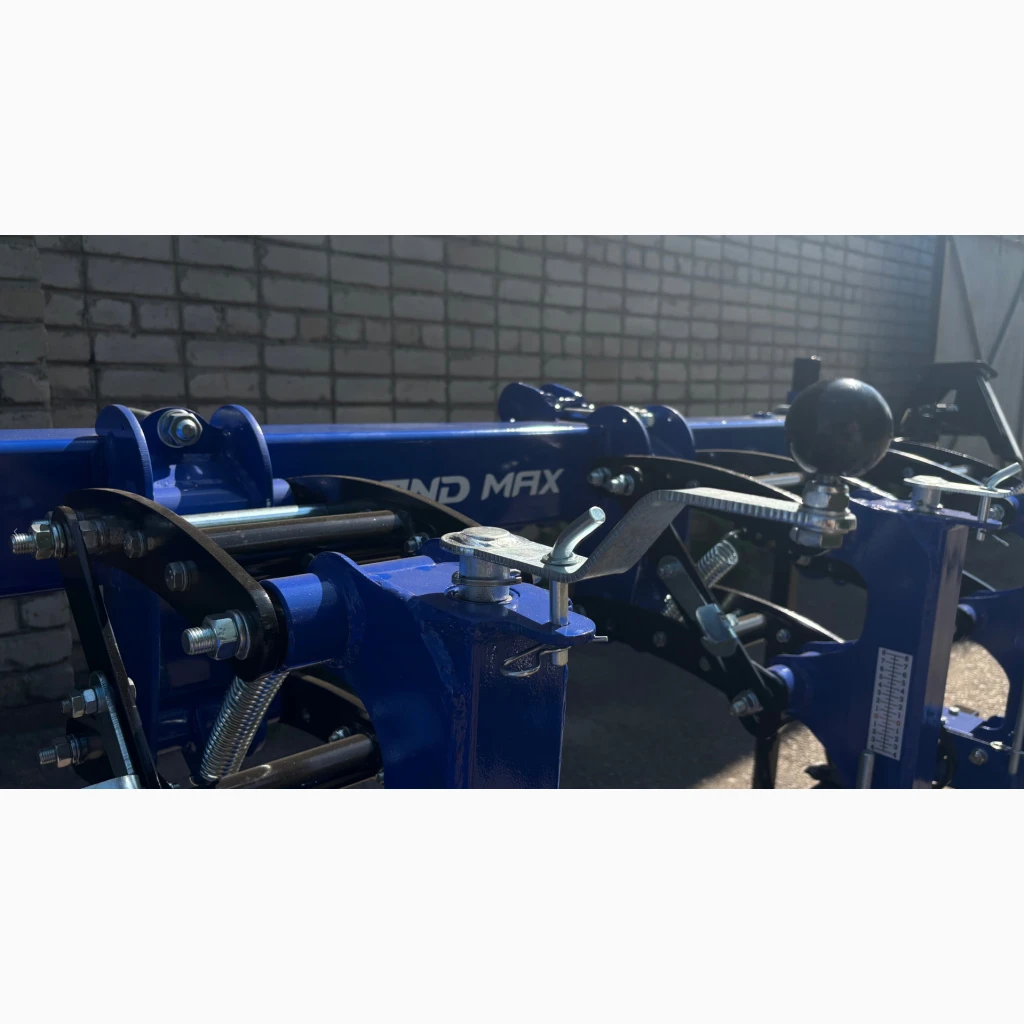

Parallelogram suspension of sections

Each section is mounted on a parallelogram suspension that provides:

exact copying of the relief of the field;
the same depth of work across the entire width;
protection of plants from damage;
stable work even on uneven areas.
Regulation and versatility

Cultivator allows you to quickly configure:

✔ processing depth;

✔ row width from 45 to 75 cm;

✔ pressure of working sections.

Additionally, the following can be installed:

protective discs;
protective shields;
rear hoods;
roller rollers;
additional components of the fertilization system.
For which crops is the cultivator suitable?

Grand Max ROW CONTROL Fold Ferti KRN-5,6 works effectively on crops:

of corn;
sunflower;
soybeans;
rape;
of sugar beet;
vegetable crops.

Recommended terms of inter-row processing:

the first pass — 5–10 days after emergence;
the second is the phase of 3–5 leaves;
the third - before closing the lines.
Technical characteristics of Grand Max ROW CONTROL Fold Ferti KRN-5,6
Parameter Value
Model Grand Max ROW CONTROL Fold Ferti KRN-5,6
Type inter-row weeding cultivator
Folding frame
Working width 5.6 m
The number of rows is 8
Number of sections 9
Number of working bodies 41
Row spacing 45–75 cm.
Processing depth -3...+8 cm
Working speed 8–12 km/h
Weight 1280 kg
The diameter of the wheels is 450 mm.
Tractor power from 80 hp.
Made in Ukraine
The main advantages of the model

✔ folding frame for convenient transportation;

✔ front system of introduction of CAS and LCD;

✔ full control of the system operation by the operator;

✔ inter-row cultivation and application of fertilizers in one pass;

✔ saving fuel and resources;

✔ reduction of herbicide costs;

✔ increasing yield;

✔ high productivity;

✔ minimal soil compaction;

✔ reliable design for intensive work.

Buy cultivator Grand Max ROW CONTROL Fold Ferti KRN-5,6

Cultivator inter-row weeding Grand Max ROW CONTROL Fold Ferti KRN-5,6 is a modern solution for farms that seek to obtain maximum efficiency from each pass of the equipment across the field.

If you need a reliable KRN-5,6 cultivator with the introduction of KAS and LCD, a folding frame and a frontal location of the power system, this model will be the optimal choice for increasing yields, reducing costs and implementing modern agricultural technologies.
