Inter-row weeding cultivator KRN 5.6 Grand Max ROW CONTROL Ferti KRN-5, 6 with solid, Zaporizhia region.

Inter-row weeding cultivator KRN 5.6 Grand Max ROW CONTROLFerti KRN-5,6 with solid frame and fertilizer application system
Cultivator inter-row weeding Grand Max ROW CONTROL Ferti KRN-5,6 with a system of introduction of KAS and LCD

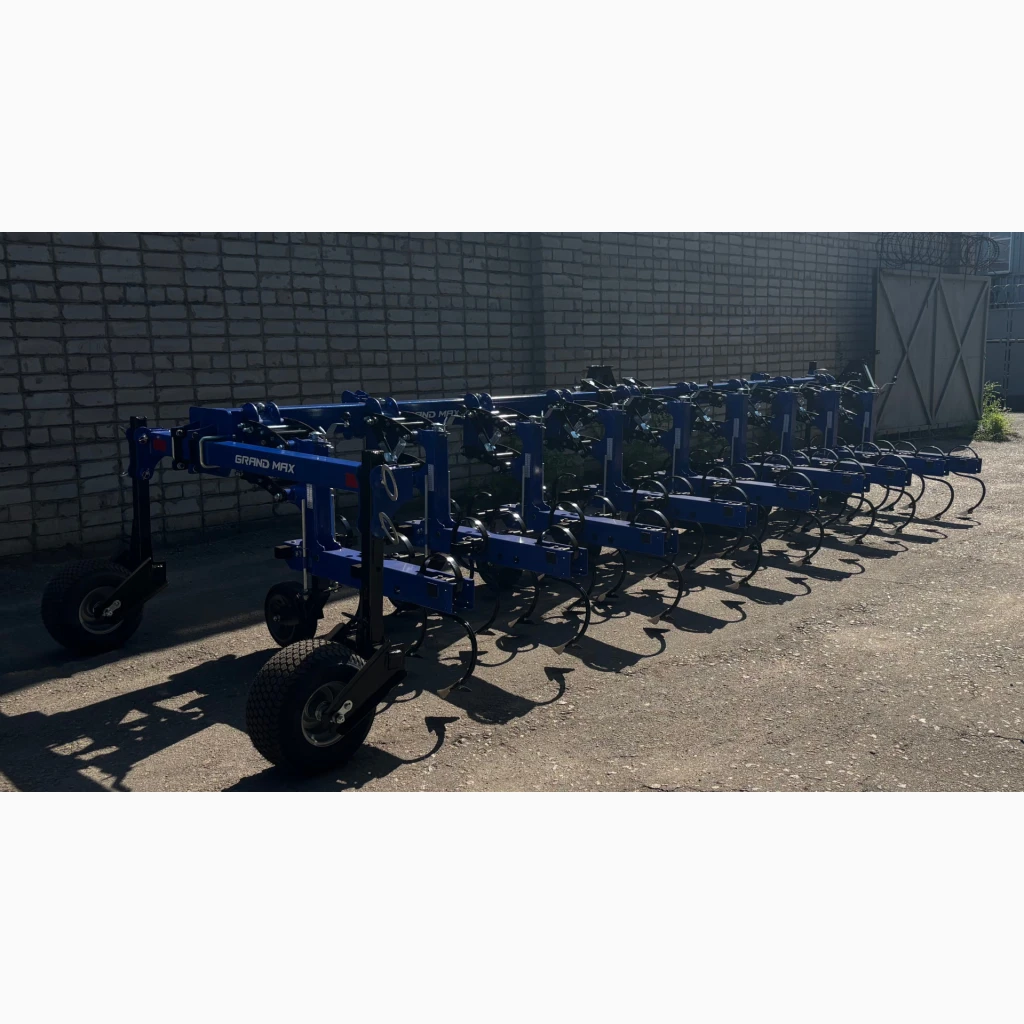

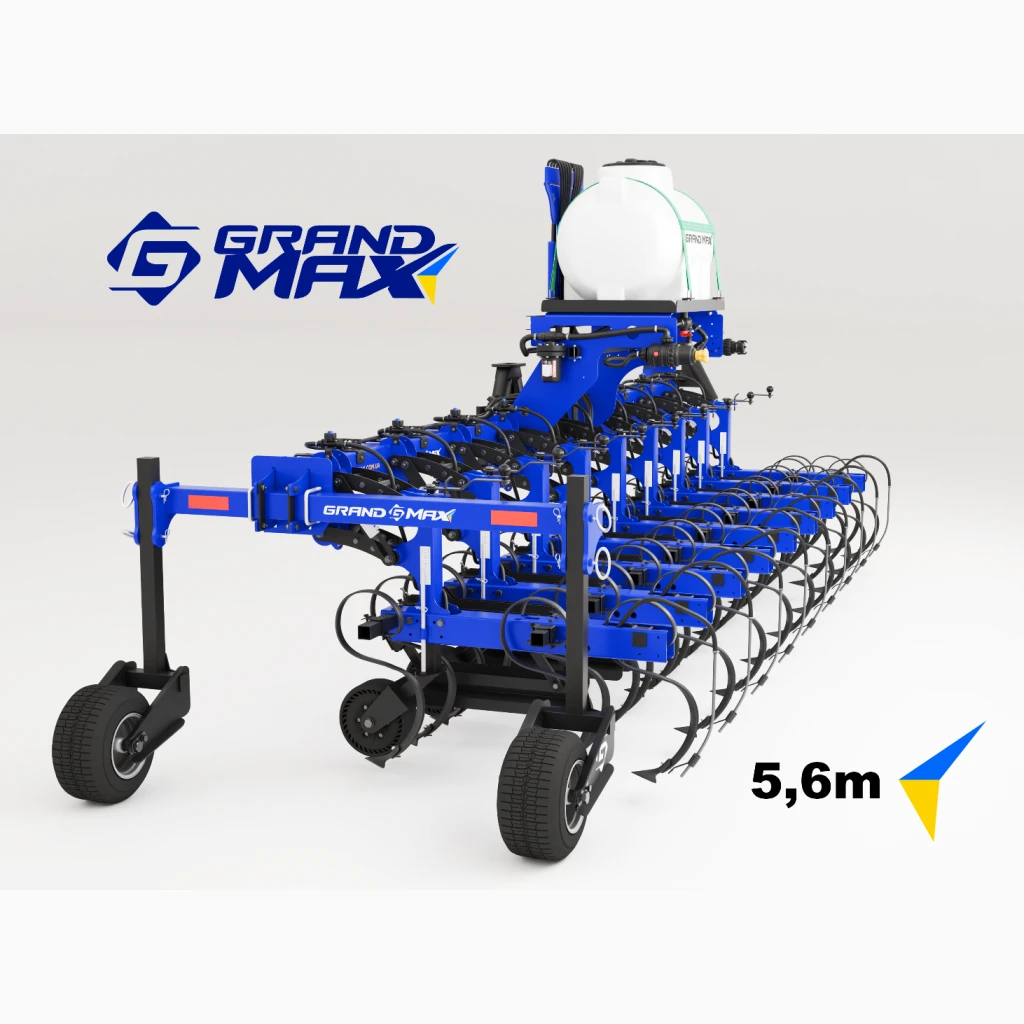

We offer a modern inter-row cultivator Grand Max ROW CONTROL Ferti KRN-5.6 on a solid beam with an integrated system for applying liquid fertilizers. The unit is intended for inter-row cultivation of row crops, mechanical destruction of weeds, loosening of the soil and simultaneous introduction of KAS or LHKD in one pass.

The cultivator combines a strong design, high productivity and modern technologies of precision agriculture. Thanks to the integrated system of applying fertilizers, the farm gets the opportunity to reduce the number of passes of the equipment on the field, reduce fuel costs and increase the efficiency of the use of nutrients.

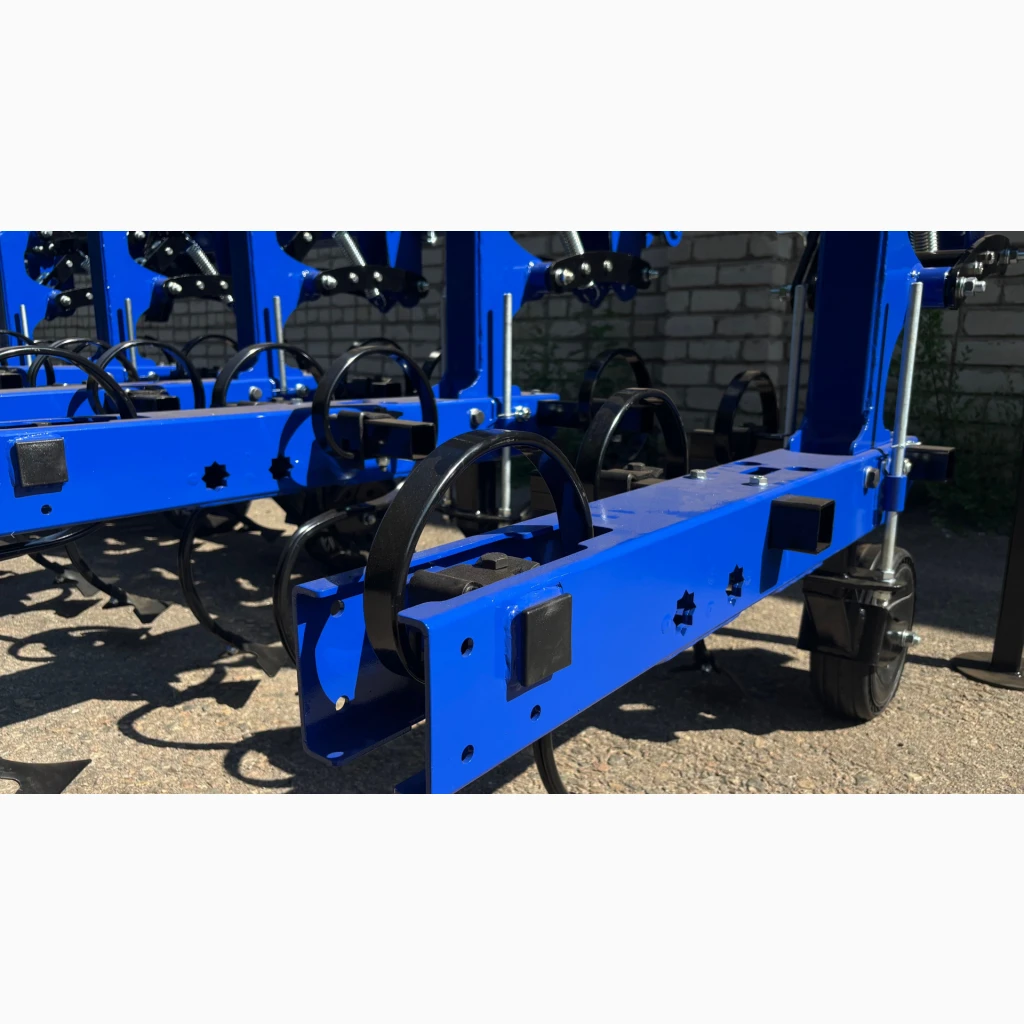

Solid frame - maximum strength and precision.

The basis of the design is a reinforced solid beam, which ensures stable operation even in difficult field conditions.

Advantages of a solid frame:

✔ high structural rigidity;

✔ absence of backlash and distortions;

✔ stable position of working bodies;

✔ exact observance of the processing depth;

✔ minimal vibrations during operation;

✔ reliability on heavy and compacted soils.

That is why the KRN-5,6 Grand Max Ferti cultivator demonstrates a consistently high quality of inter-row cultivation throughout the season.

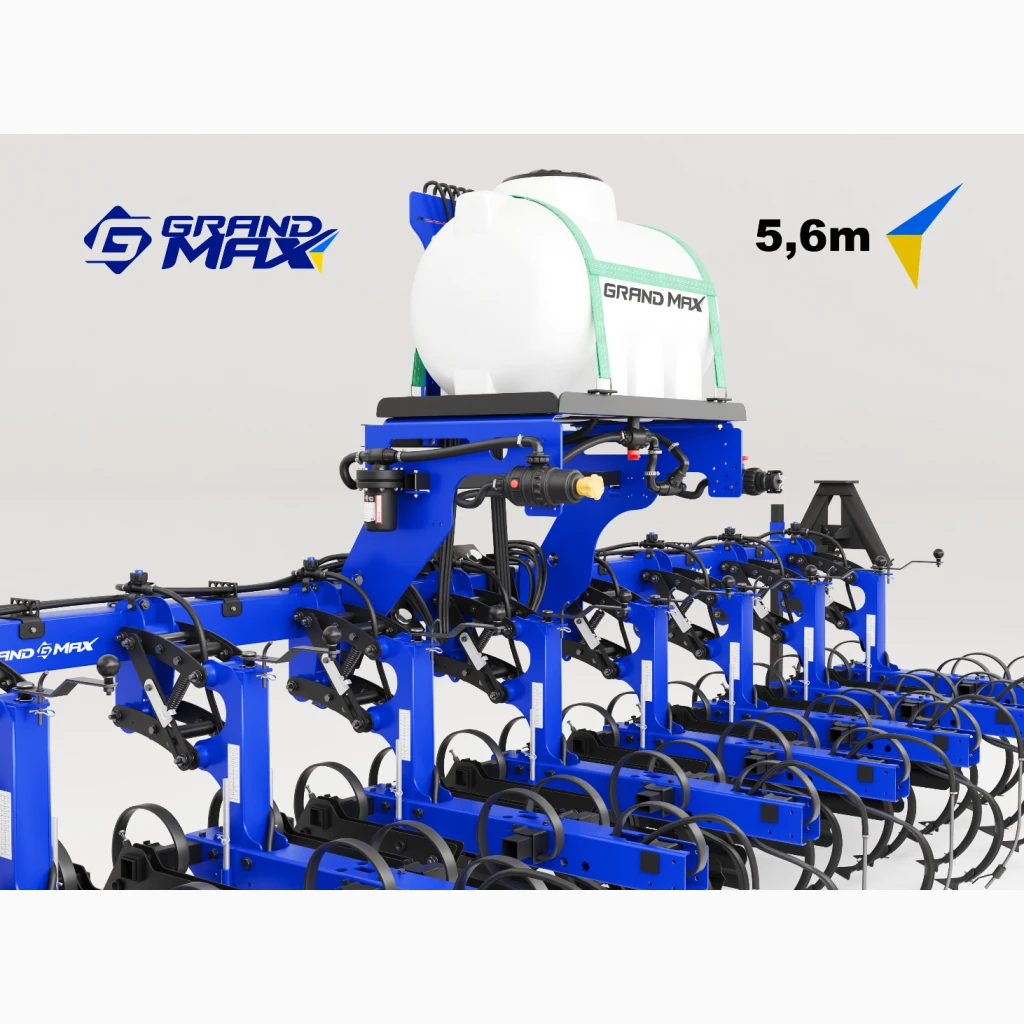

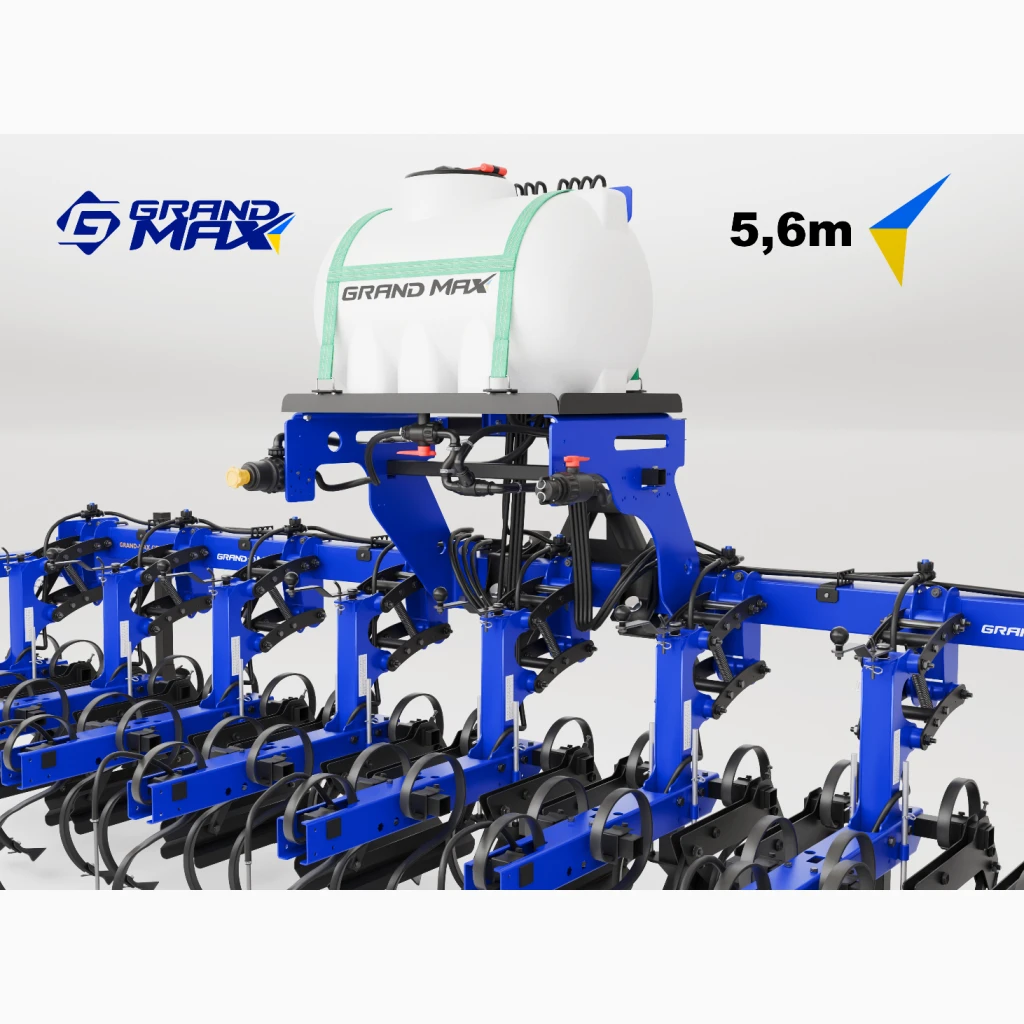

Ferti liquid fertilizer application system

The main feature of the model is the integrated system of introduction of KAS and LCD, which is installed directly on the frame of the unit.

This solution allows you to simultaneously execute:

interline processing;
mechanical destruction of weeds;
local application of fertilizers;
soil loosening;
improvement of crop nutrition.

Advantages of the fertilization system:

✔ exact dosage of CAS and gastrointestinal tract;

✔ applying fertilizers directly to the root zone;

✔ reduction of loss of nutrients;

✔ uniform load distribution on the unit;

✔ no need to use additional equipment;

✔ convenient management and control of work.

Saving resources and increasing productivity.

Using the Grand Max ROW CONTROL Ferti cultivator allows:

perform several operations in one pass;
reduce fuel consumption by up to 30%;
reduce soil compaction;
increase the efficiency of fertilizer use;
to improve the development of the root system of plants;
get a higher yield.

This technology is especially relevant for farms that use elements of precision agriculture and strive to use resources as efficiently as possible.

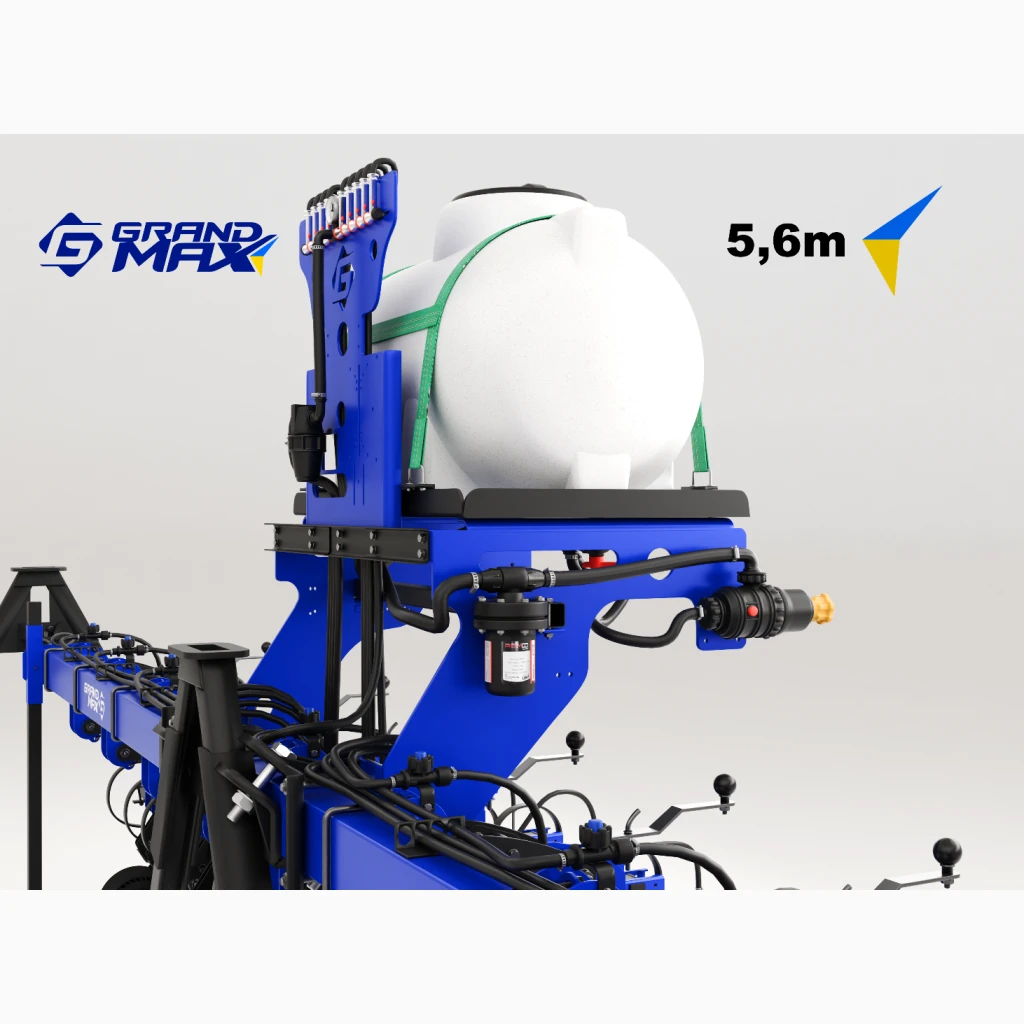

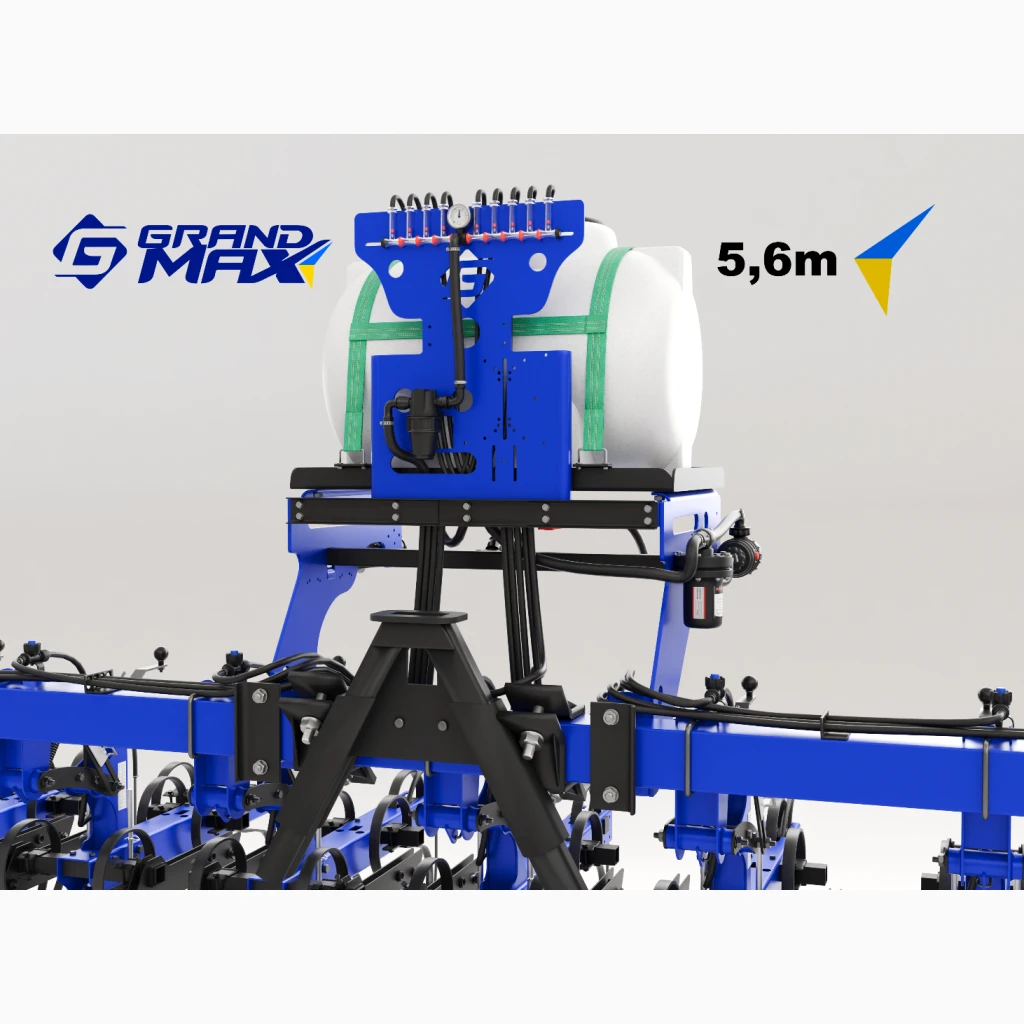

Characteristics of the fertilization system
Parameter Value
Tank volume 500 l
The material of the tank is plastic, thickness 5 mm.
Temperature range from −40°C to +60°C
Metal frame 10 mm
The placement is integrated on the frame
Refueling through Kamlok
Lower liquid intake, with anti-swirl.
Coarse cleaning filter 160 l/min
Pump Remco (USA), diaphragm
Productivity up to 20.09 l/min
Working pressure up to 10 bar
Power supply 12 V
Suction height up to 4 m
Rotameter control with flow visualization
Control PWM controller, relay
Automation automatic on/off

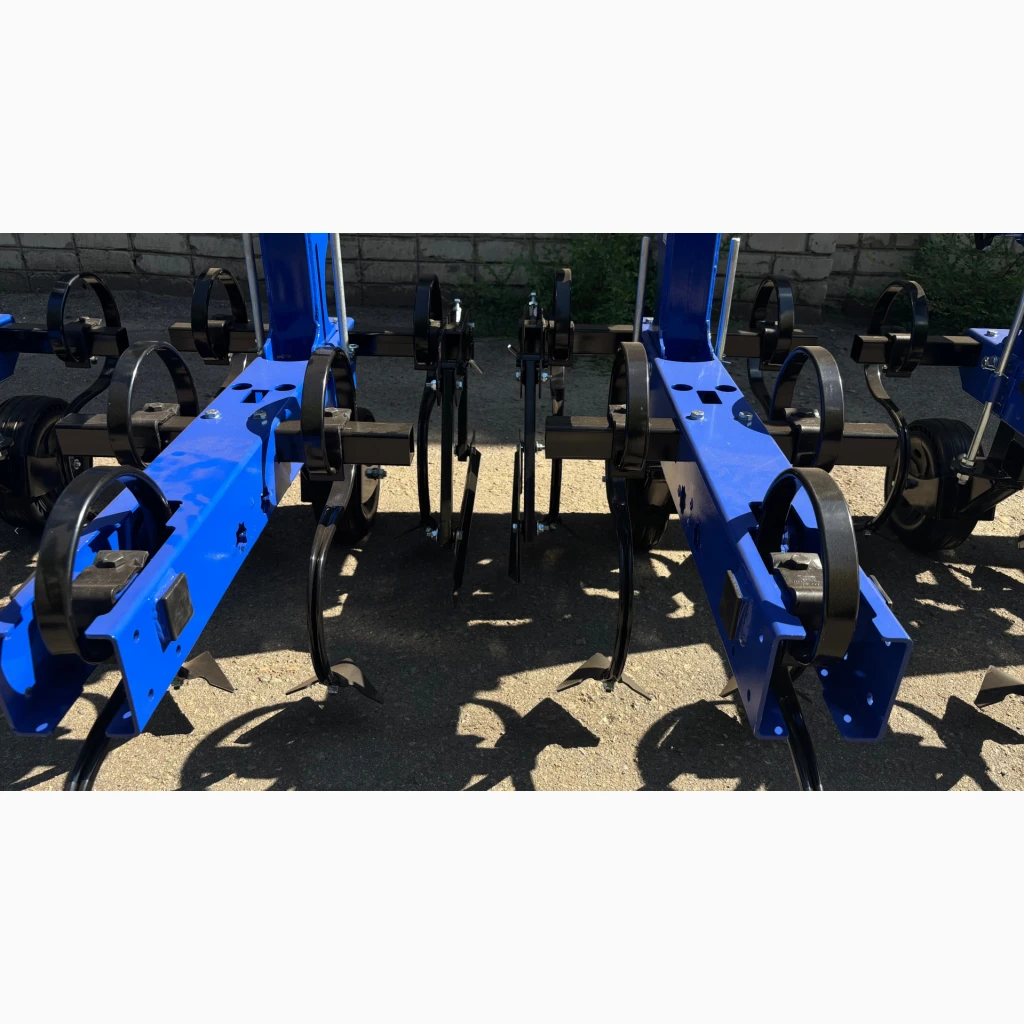

Reliable working bodies for high-quality inter-row processing

The cultivator is equipped with high-quality European components.

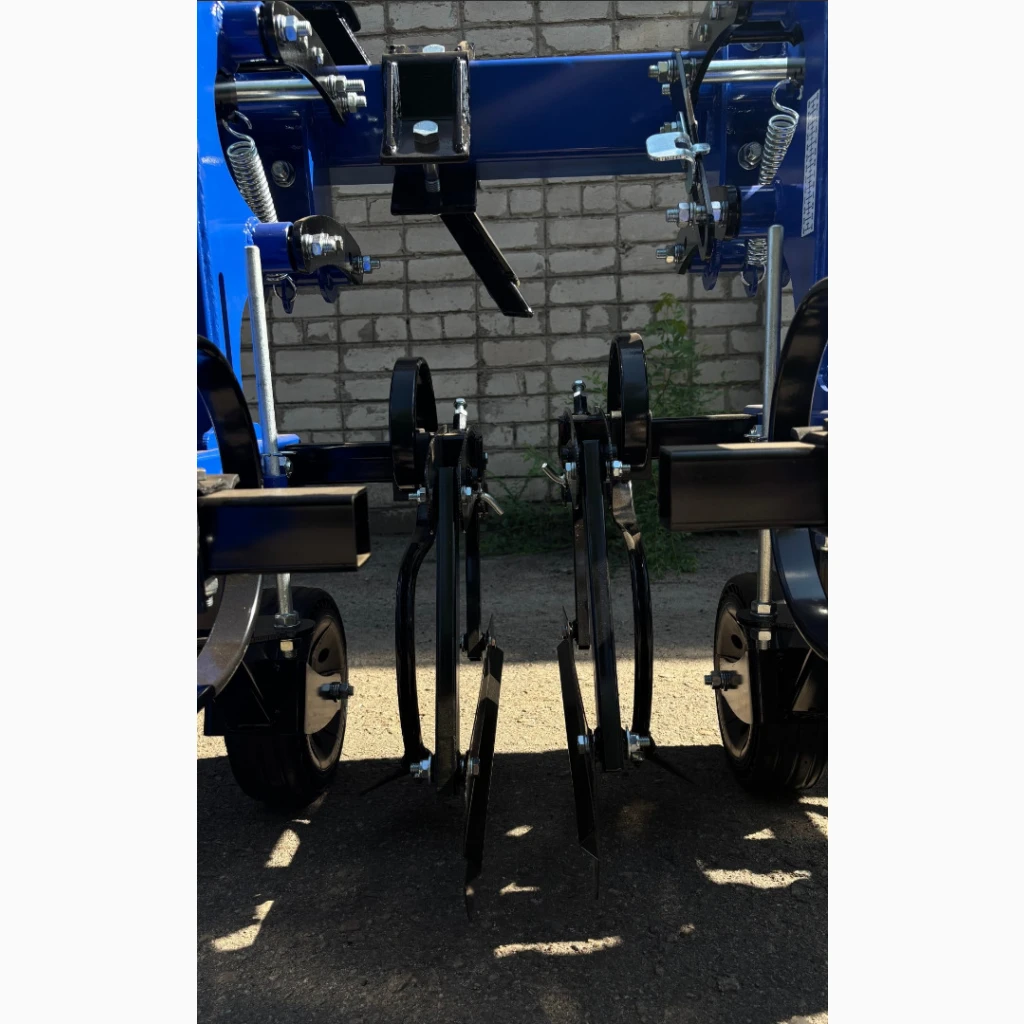

Working bodies:

racks Bianchi (Italy);
S-shaped rack 32×10 mm;
arrow feet 150 mm wide.
(//tractor-service.com)
Advantages of the design:

✔ 100% overlap between rows;

✔ quality cutting of weeds;

✔ uniform loosening of the soil;

✔ minimal damage to cultivated plants;

✔ high quality of cultivation on different types of soil.

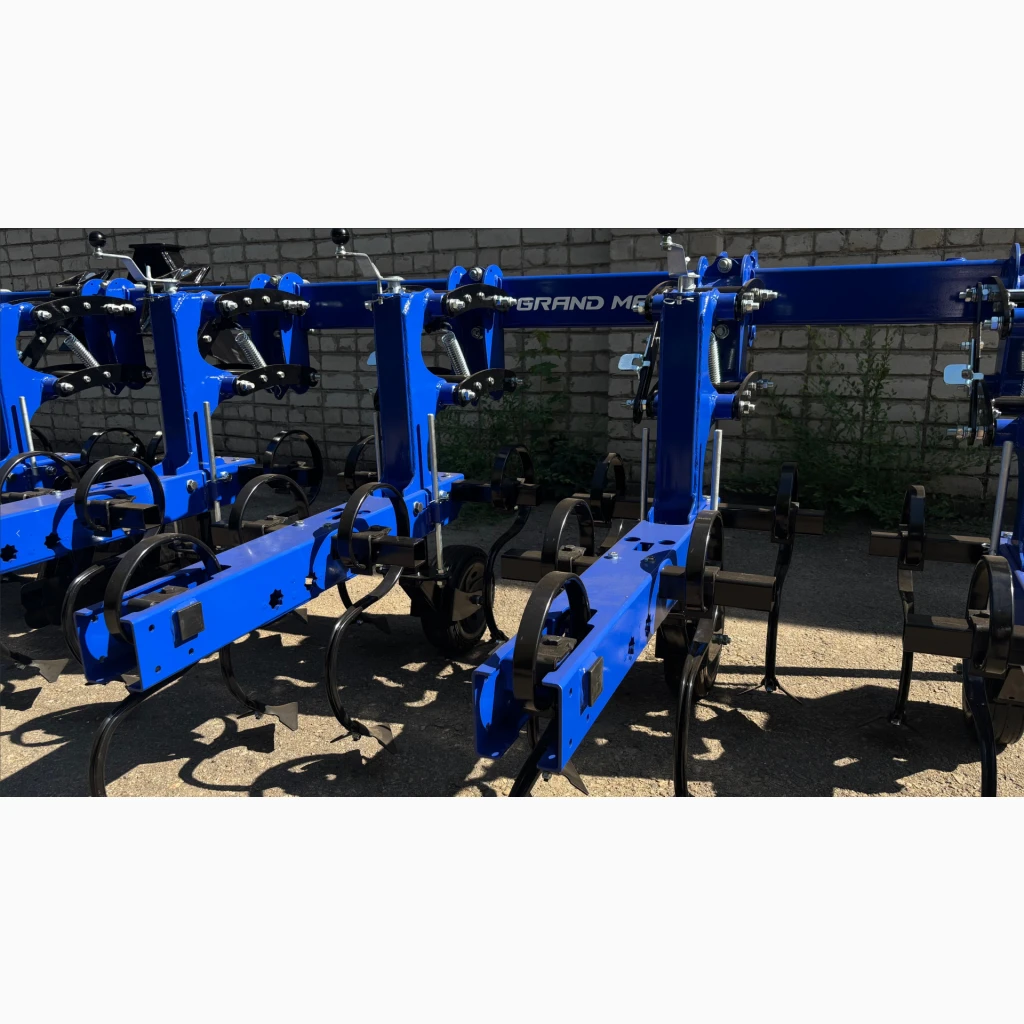

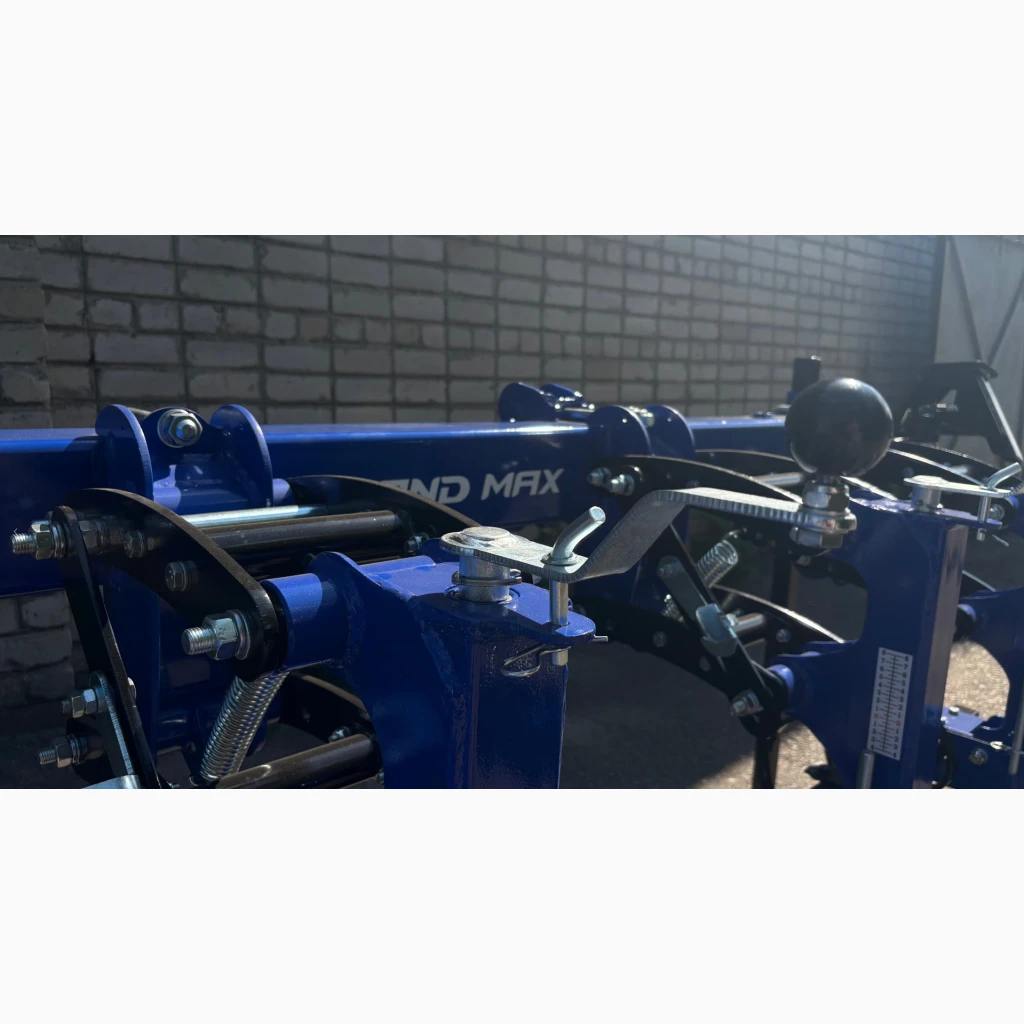

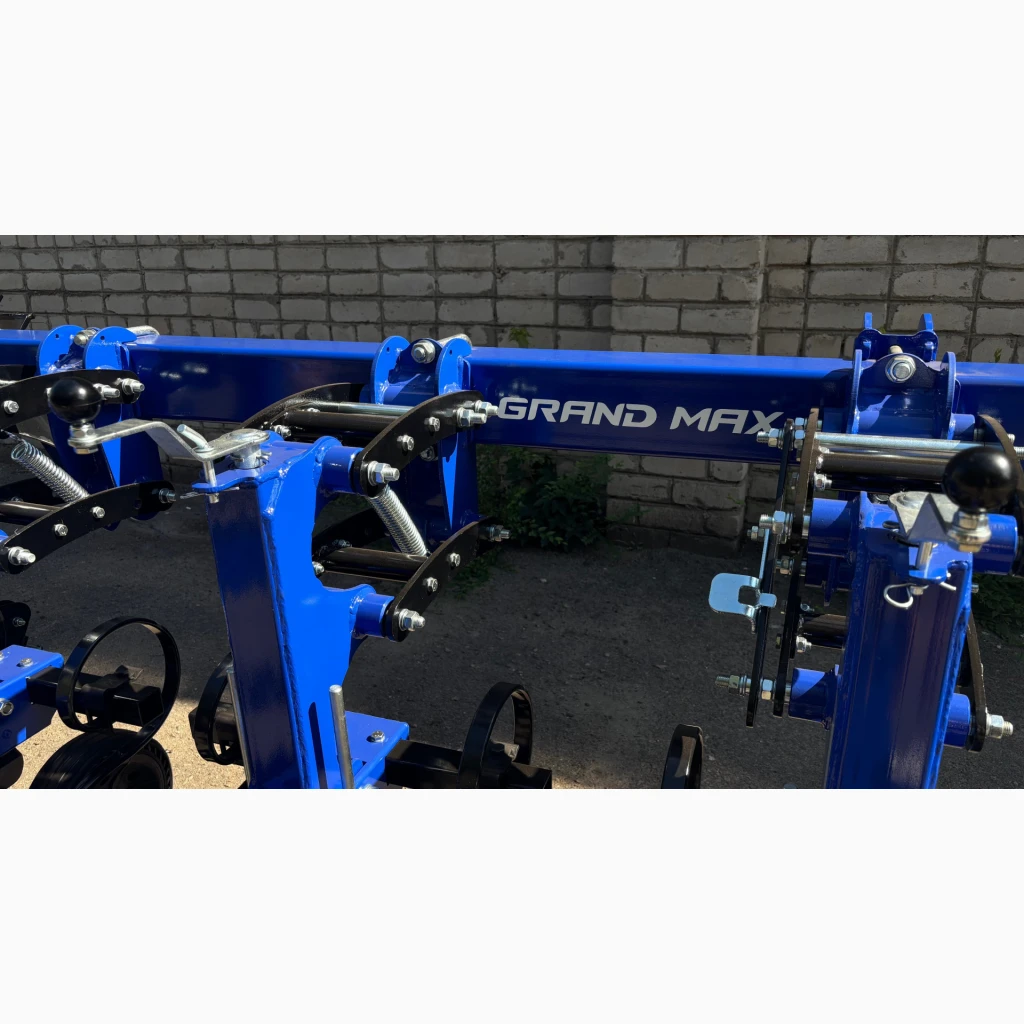

Parallelogram suspension of sections

Each section of the cultivator is mounted on a parallelogram suspension that provides:

exact copying of the relief of the field;
stable working depth;
uniform processing across the entire width;
minimal load on plants.

Thanks to this, the maximum accuracy of inter-row processing is achieved even on uneven areas.

Additional configuration options

If necessary, the cultivator can be equipped with:

protective shields;
protective disks;
by the rear boletus;
with rolling rollers;
additional elements of modernization of the fertilization system.
For which crops is the cultivator suitable?

Grand Max ROW CONTROL Ferti KRN-5,6 is effectively used for processing:

of corn;
sunflower;
soybeans;
rape;
sugar beet;
vegetable crops.

Recommended working hours:

✔ the first treatment - 5–10 days after the emergence of seedlings;

✔ the second - in the phase of 3–5 leaves;

✔ the third - before closing the rows.

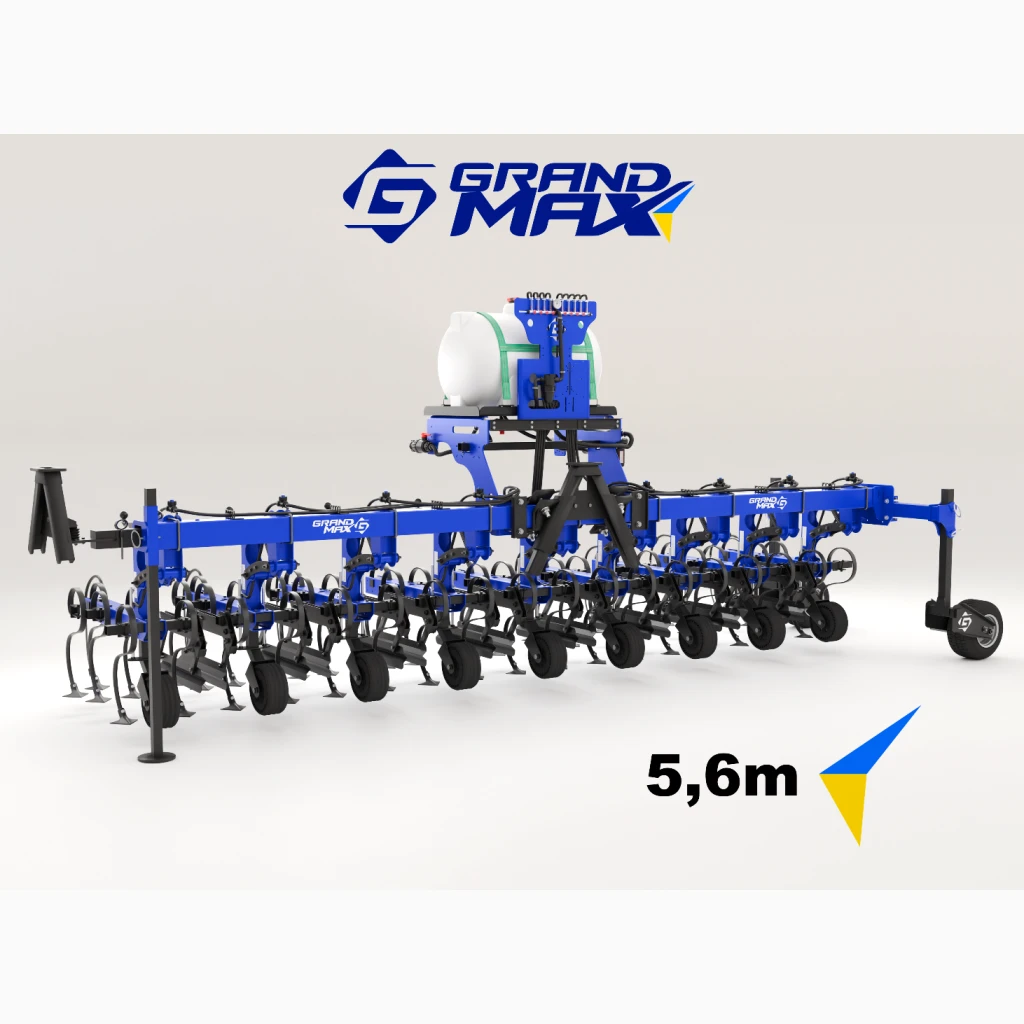

Technical characteristics of Grand Max ROW CONTROL Ferti KRN-5,6
Parameter Value
Model Grand Max ROW CONTROL Ferti KRN-5,6
Type inter-row weeding cultivator
The frame is solid (one-piece beam)
Working width 5.6 m
Number of lines 8
Number of sections 9
Number of working bodies 41
Row spacing 45–75 cm.
Processing depth -3...+8 cm
Working speed 8–12 km/h
Mass 1280 kg
The diameter of the wheels is 450 mm.
Tractor power from 80 hp.
Country of manufacture Ukraine
Advantages of the Grand Max ROW CONTROL Ferti cultivator

✔ solid frame of increased strength;

✔ the system of introduction of CAS and LCD;

✔ inter-row processing and feeding in one pass;

✔ saving fuel and time;

✔ reduction of soil compaction;

✔ accurate application of fertilizers in the root zone;

✔ effective destruction of weeds;

✔ high productivity;

✔ minimal maintenance costs;

✔ increasing the yield of crops.

Buy a KRN-5,6 cultivator with fertilizer application

Grand Max ROW CONTROL Ferti KRN-5,6 is a modern inter-row cultivator with the introduction of KAS and HKD, which allows simultaneous soil cultivation, weed control and crop fertilization.

If you are looking for a reliable inter-row cultivator for corn, sunflower, soybeans or sugar beet, the Grand Max ROW CONTROL Ferti KRN-5,6 will be a profitable investment to increase farm efficiency and obtain consistently high yields.
