Concrete mini plant semi-automatic SUMAB 3 m3/h, Kyiv

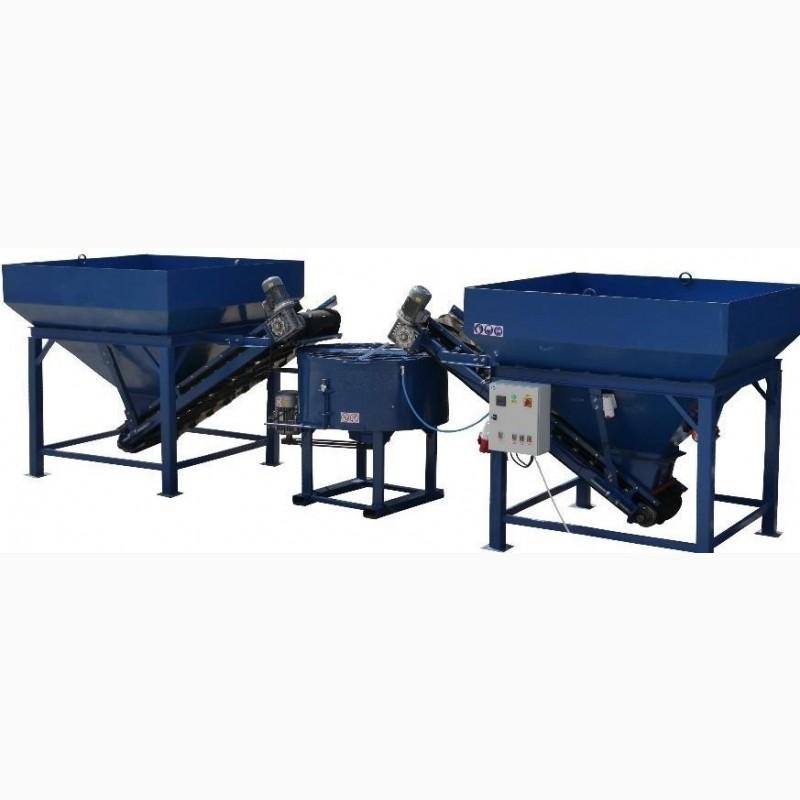

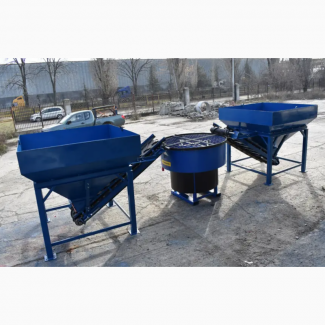

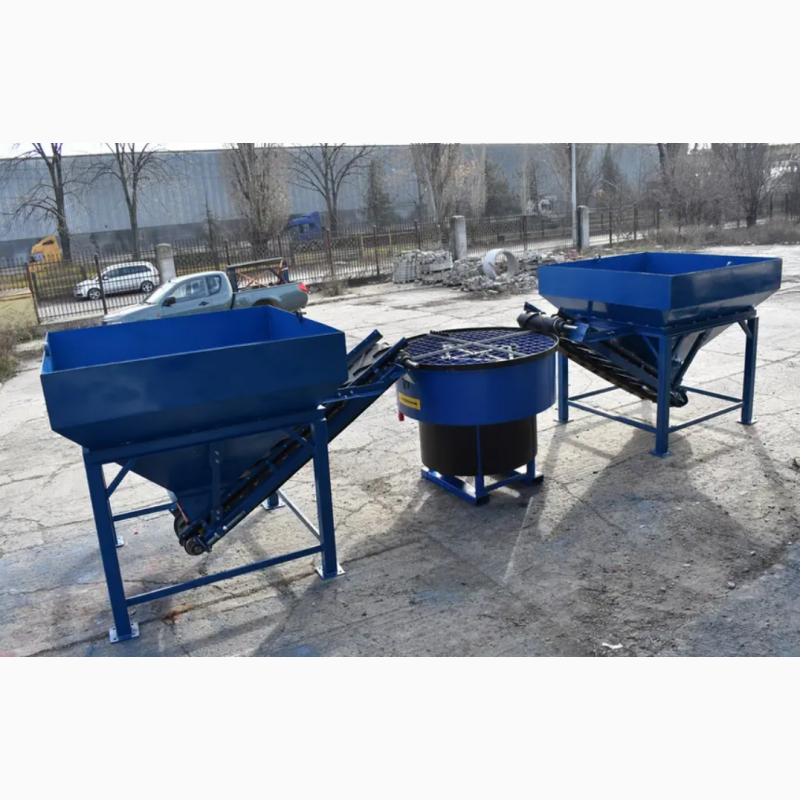

Concrete mini plant semi-automatic SUMAB 3 m3/h.

Components:
- Bunker 1 - capacity 2m3
- Bunker 2 - capacity 2m3
- conveyor belts
- Electric panel

Dosing is carried out using a timer.
Water dosing - digital display settings
Electric vibrator on bunkers
Cement is added manually
The valve of the mixer is opened manually.

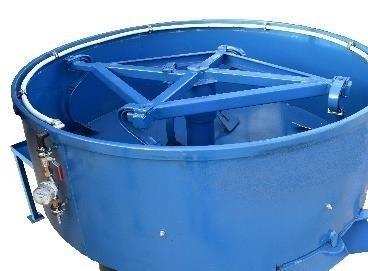

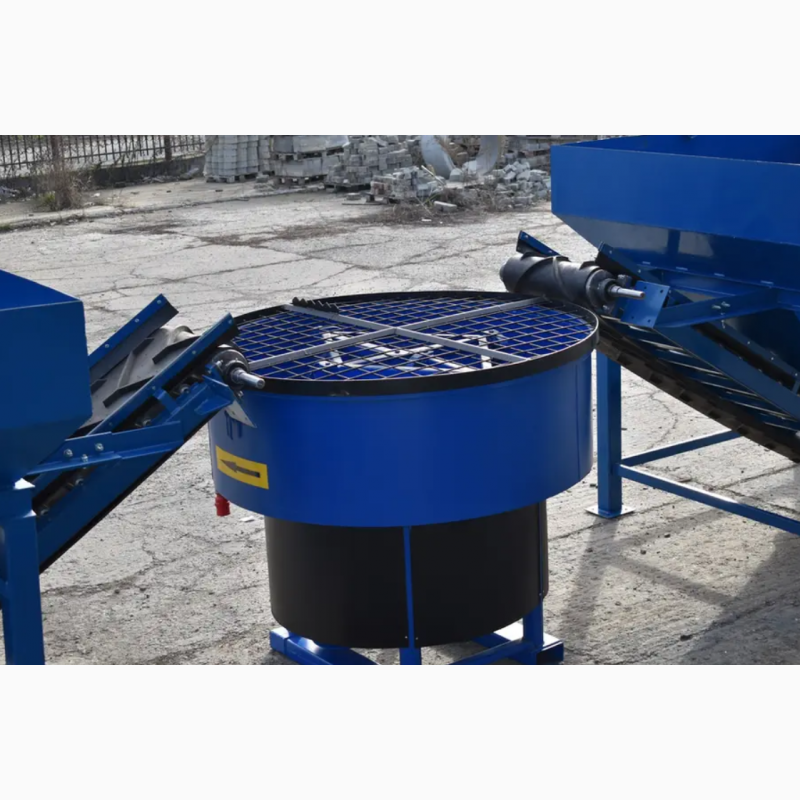

Mixer:
MX500/MX300
- The walls and bottom of the mixer are covered with wear-resistant plates.

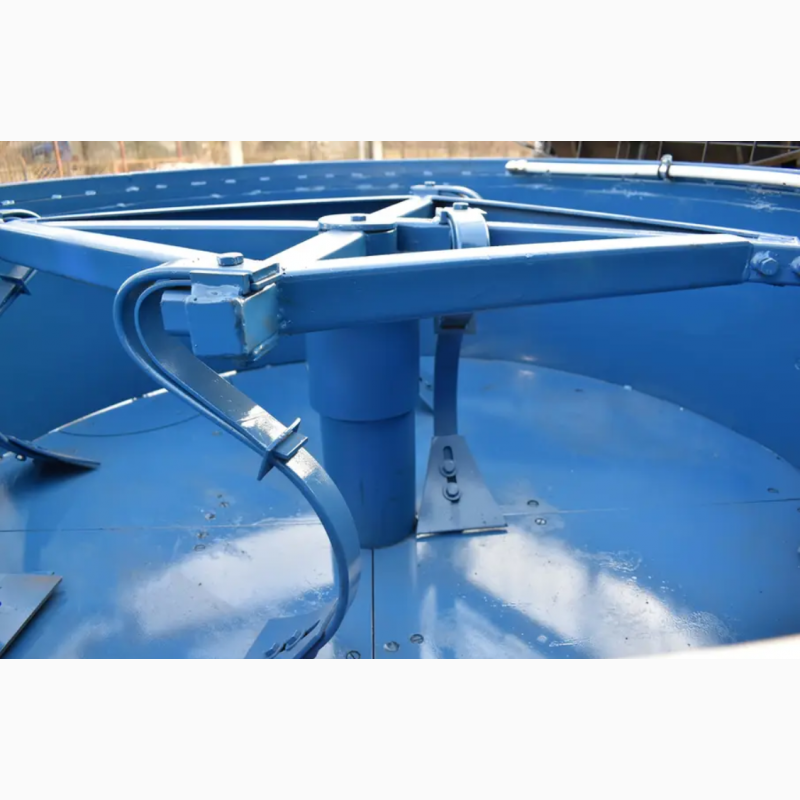

- Replaceable hard alloy mixing teeth.
- protective net

MX300
Useful volume:
Wet concrete: 300 liters
Dry concrete: 200 liters

Performance:
2.4 m3 of dry concrete/hour

Power: 5.5 kW (380 V)
Overall dimensions: 1.40x1, 40x1, 40m.
Weight: 650 kg
(//tractor-service.com)
MX500
Useful volume:
Wet concrete: 500 liters
Dry concrete: 350 liters

Productivity:
3.5 m3 of dry concrete/hour
Power: 11 kW (380 V)
Overall dimensions: 1.70x1.70x1.40m.
Weight: 900 kg.

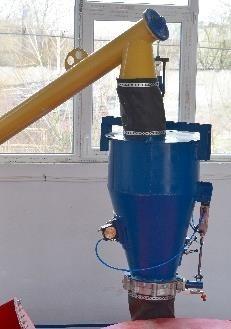

Weights cement 300 kg.
Feeding with a compressor
Cement feed auger
Length: 5.6 m; motor 2.2 kW, diameter 139 mm
Feeding cement into the mixer

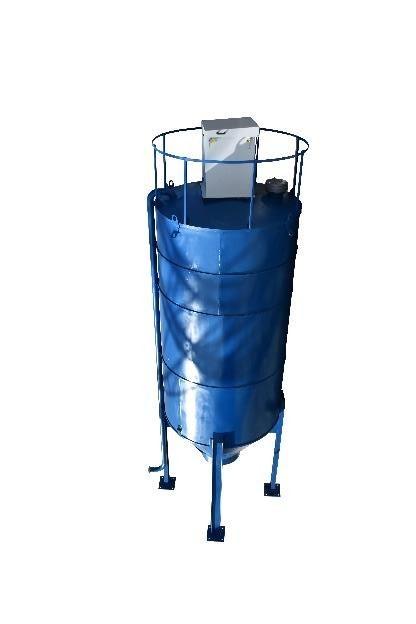

Cement silo
Volume: 24 m3
Stairs and railings at the top.
The silo is equipped with a pressure relief valve, a low volume indicator and a fluidizer.
inner diameter 2500 mm;
The height of the cylindrical shell is 4500 mm;
The height of the conical bottom is 1700 mm;
Overall height, incl. railing 8700 mm.
Net weight: about 4000 kg.

Conveyor belt
Usable length 6m
Belt width 500mm.
Rubber band 7 mm thick with 3 inserts.
Motor 1.5 kW (380 V)
