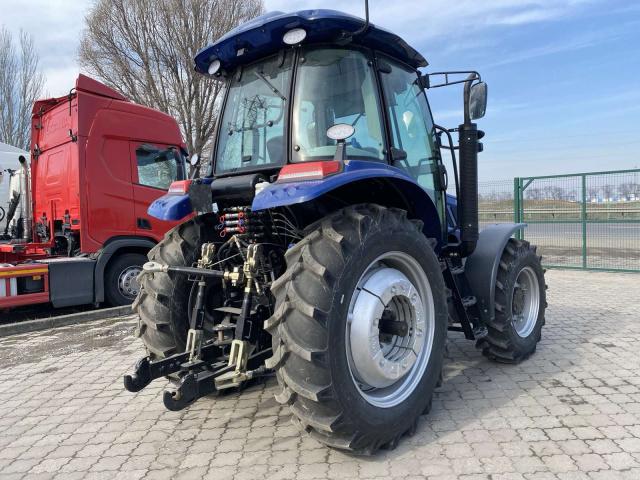

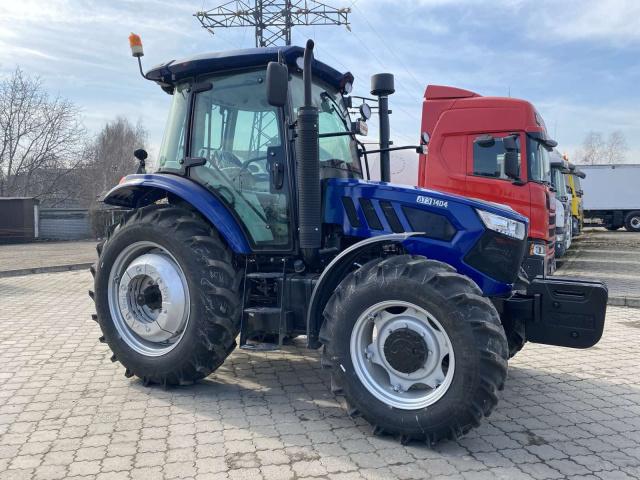

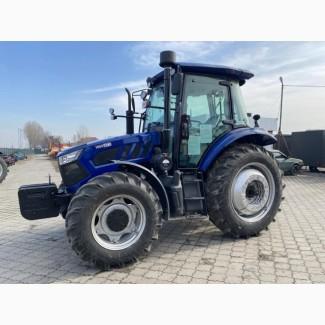

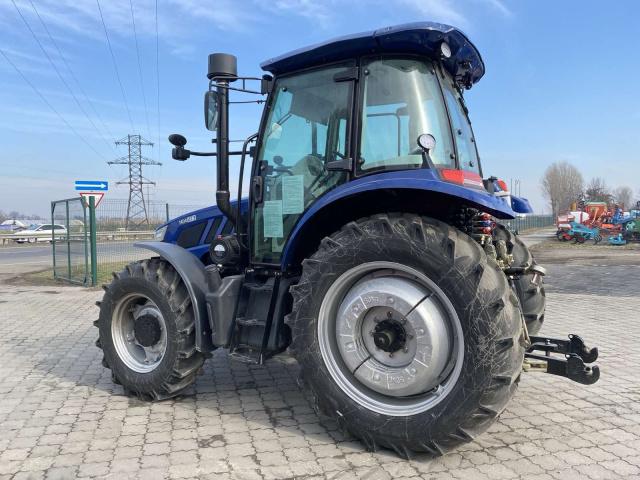

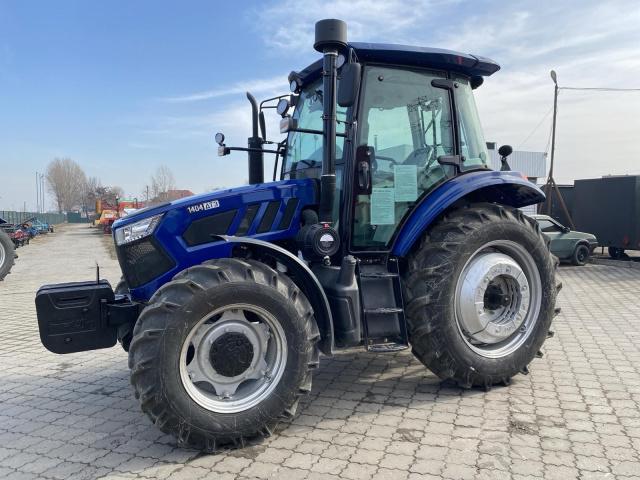

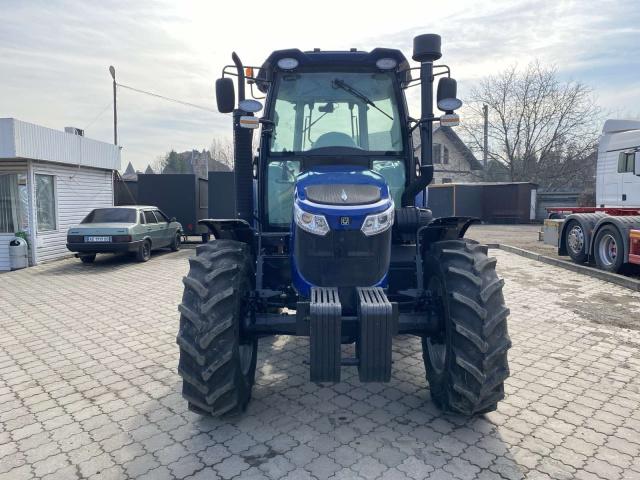

DTZ wheel tractor - 1404 - 140 hp, Dnipropetrovsk region.

Tractor wheeled DTZ 1404, nominal power 140 hp.

Wheel formula 4×4

The number of downshifts (12+12) × 2

Clutch Dry, two-disc, 12''

Nominal traction force, kN 23

Dimensions: L×W×H, mm 4325 × 1970 ×2715

Steering Hydraulic steering

Operating mass, kg 5700, Engine model CF5F140-T-GB011Q

Engine power kW (hp) 102.9 (140)

Engine type 4-cylinder diesel engine, with water cooling, turbine and intercooler

Working volume, l 4.83, Clutch Dry, two-disc, 12''

Gearbox Mechanical, reversible

Number of gears with downshift (12+12) x 2

Synchronization of gear shifting IS

Front / reartires 14.9-26/16.9-38(//tractor-service.com)

Wheel base / ground clearance, mm 2681/475

Working brakes Oil bath with hydraulic drive

Parking brake Mechanical

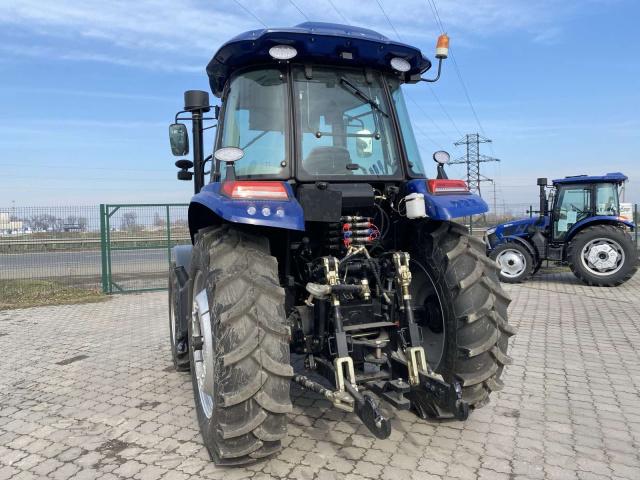

Trailer brake pneumatic drive with compressor E, Attachment: type / category Class II, 3-point

Lifting force of the attachment, kg 3200

Number of hydraulic cylinders 2

Modes of operation of the hinge With forced lowering

Type of hydraulic system Separate

Hydraulic system productivity, l/min 52.3

Number of pairs of hydraulic outlets 3

GDP shanks 8 slots

Turn the power take-off shaft, rpm 540/1000

GDP power, kW 92

Towing device type Detachable trunnion

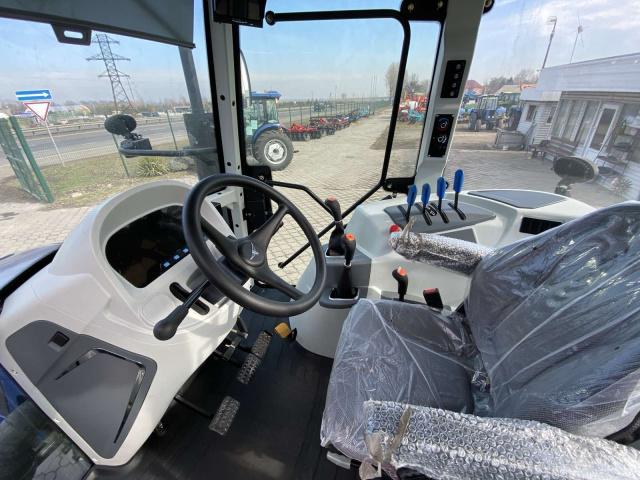

There is a pendulum traction bar, Air conditioner and heater, sunroof,
