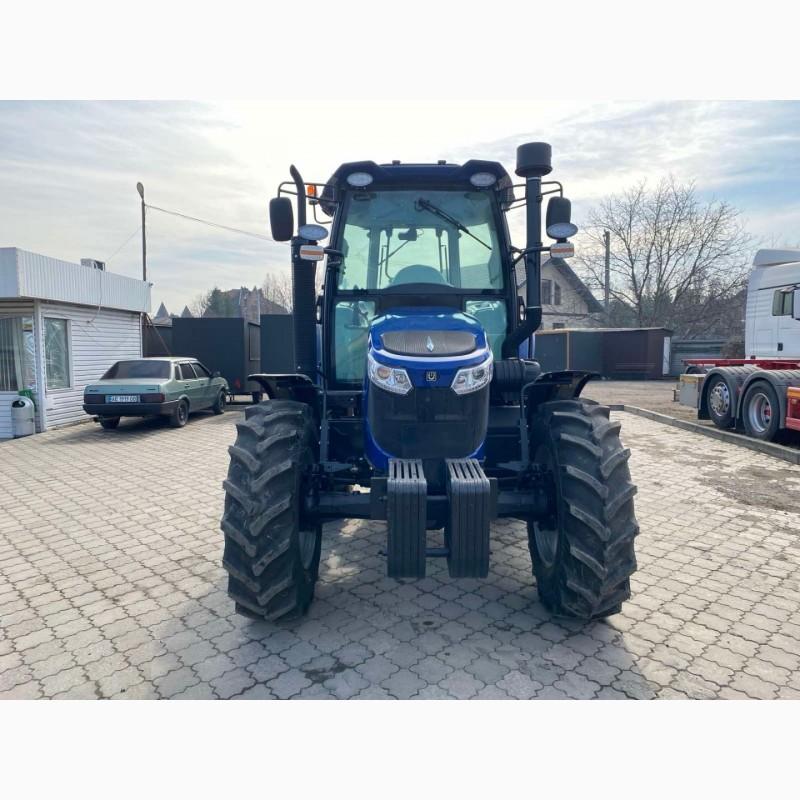

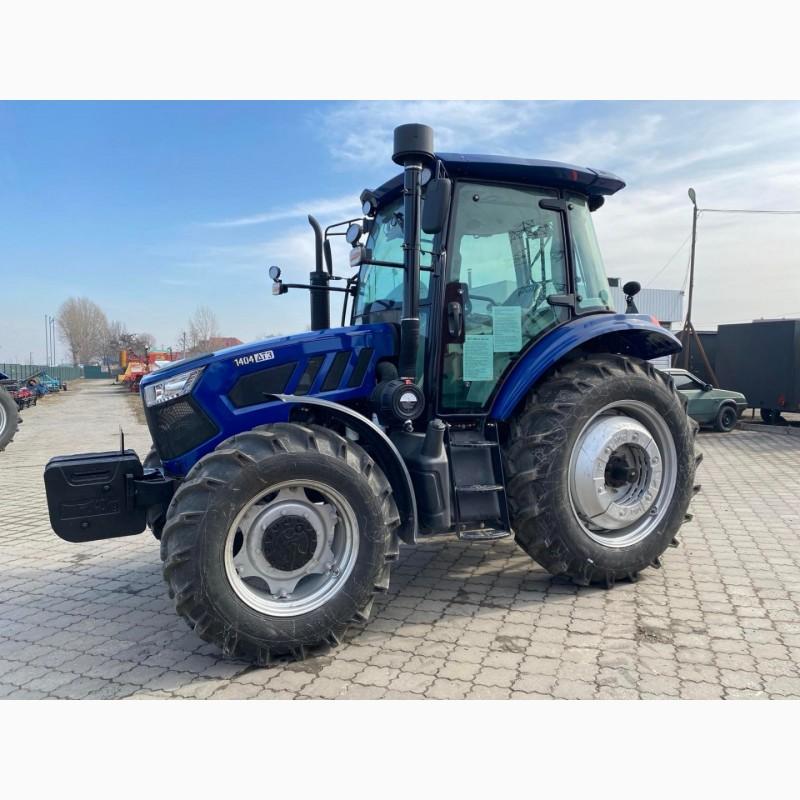

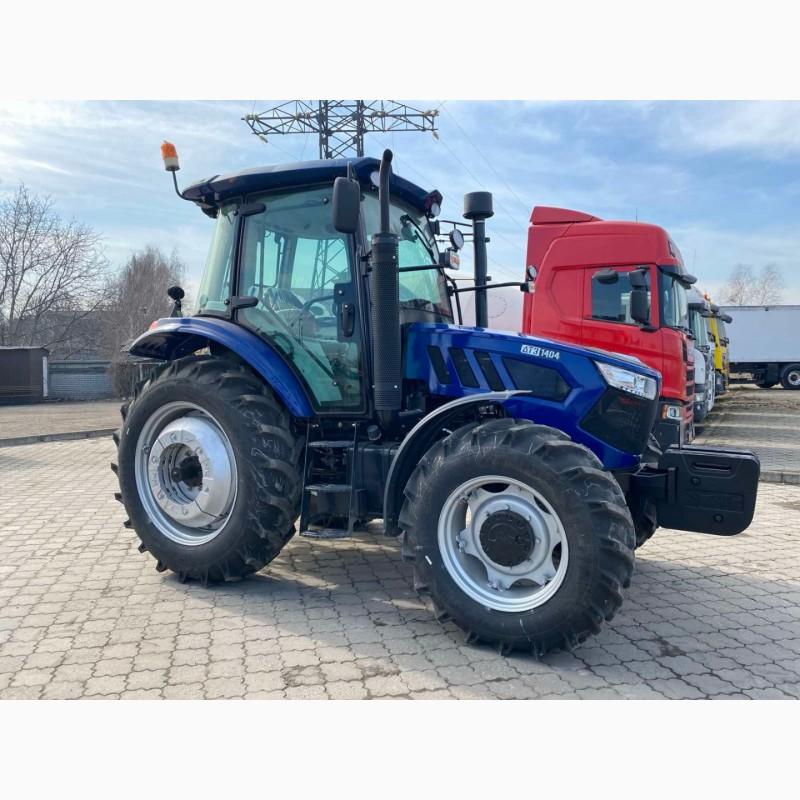

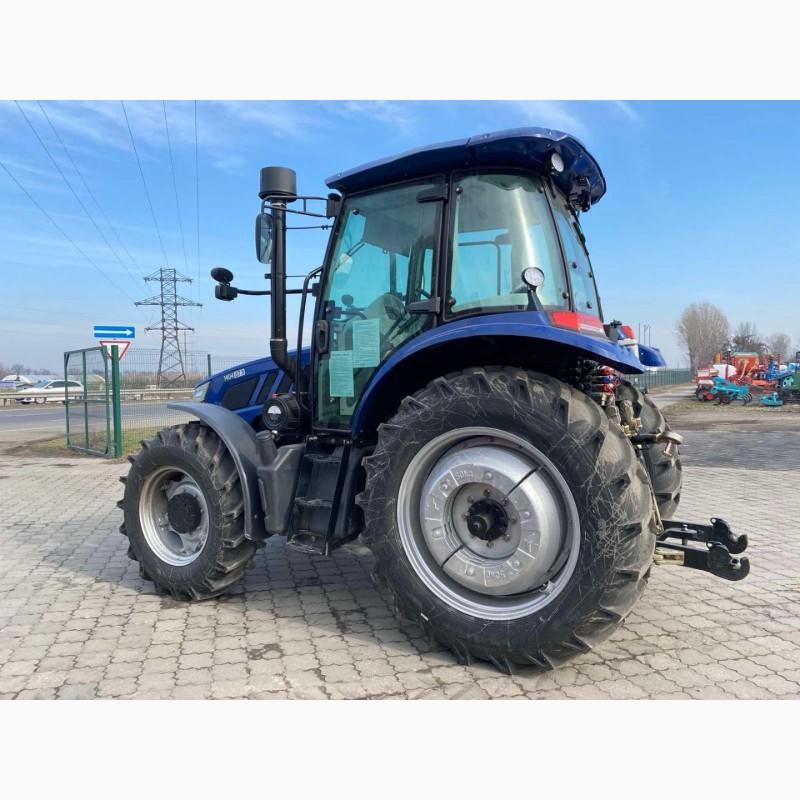

Tractor for sale DTZ 1404 with a capacity of 140 hp
DTZ 1404 tractor for sale, new, in stock.
Warranty 3 years or 1600 m.y. Possible in Leasing. There is also VAT.
Assembled in Dnipro, ALL spare parts available.
Nominal power, k.s. 140
Wheel formula 4×4
The number of downshifts (12+12) × 2
Clutch Dry, two-disc, 12''
Nominal traction force, kN 23
Dimensions: L×W×H, mm 4325 × 1970 × 2715

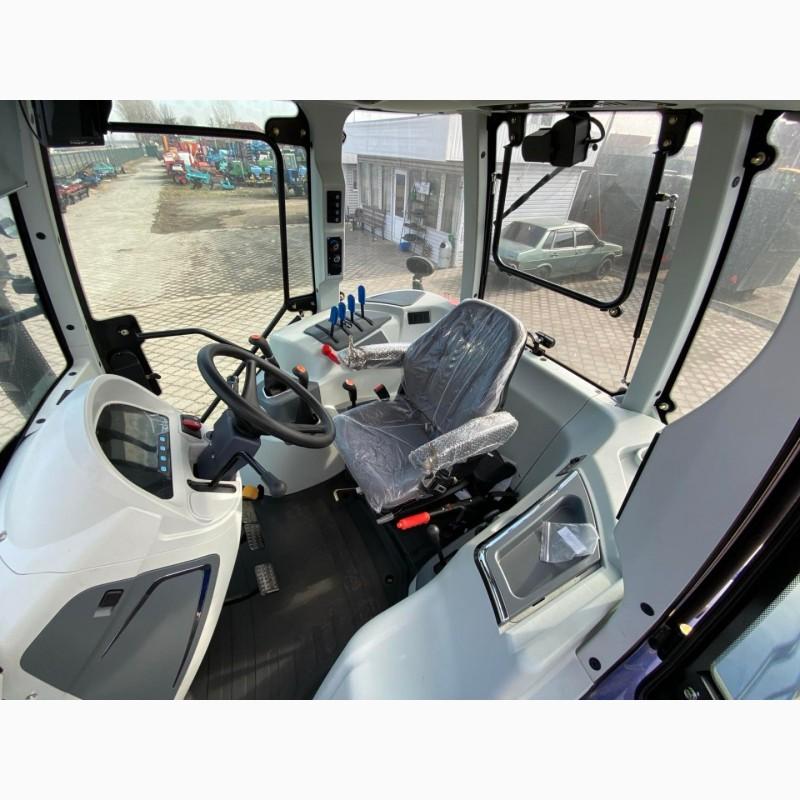

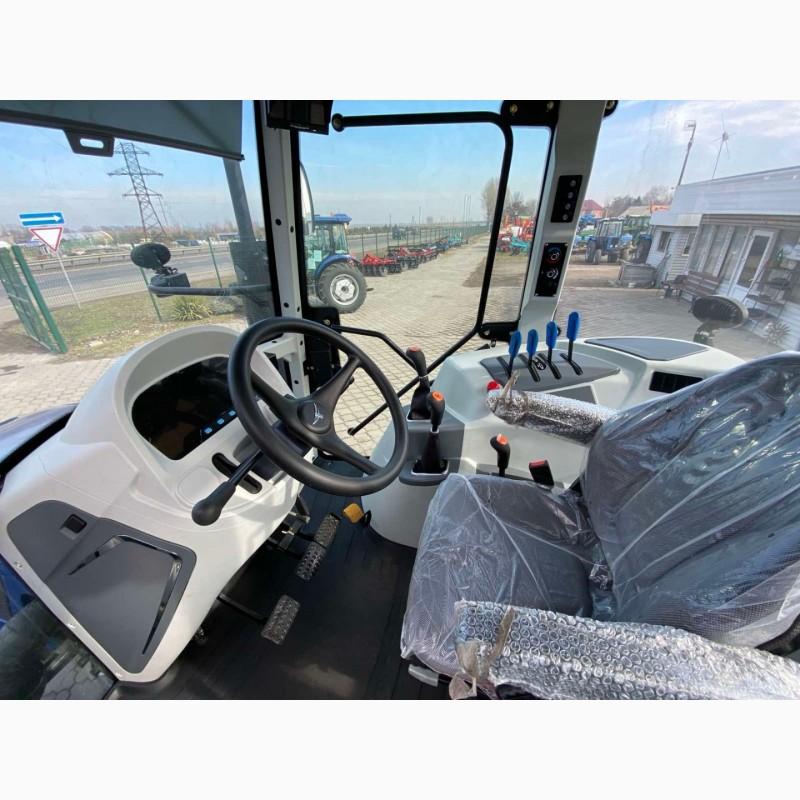

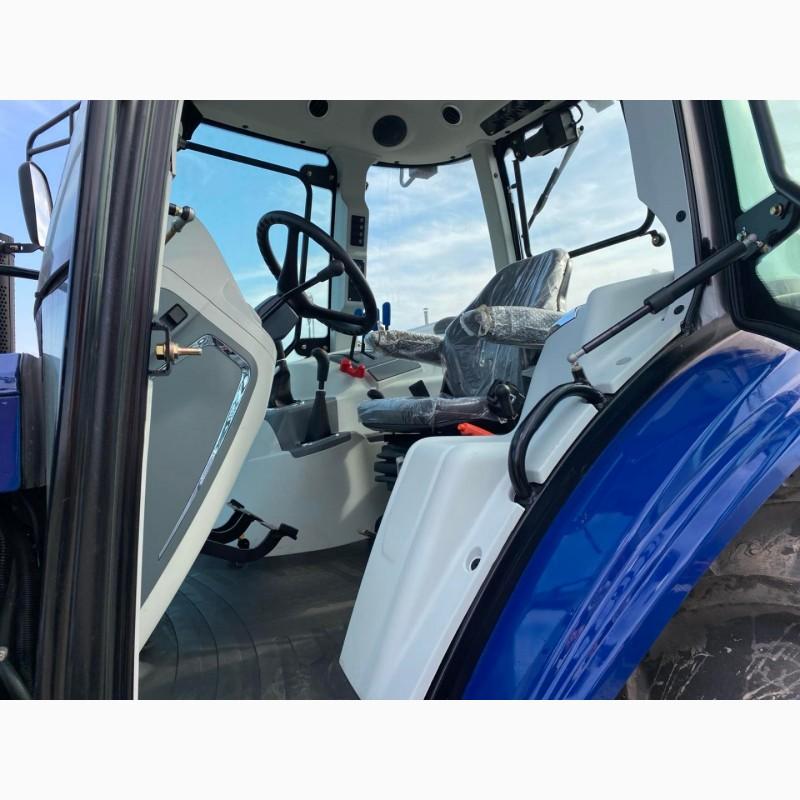

There is a cabin
Steering Hydraulic steering
Operating mass, kg 5700
*ENGINE
Engine model CF5F140-T-GB011Q
Engine power kW (hp) 102.9 (140)
Engine type 4-cylinder diesel engine, with water cooling, turbine and intercooler
Working volume, l 4.83
Nominal operating frequency of rotation, rpm 2300
Maximum torque, Nm 598
Cylinder diameter × piston stroke, mm 108×132
Volume
lubricant in crankcase, l 15
Specific fuel consumption, g/kW * h 235

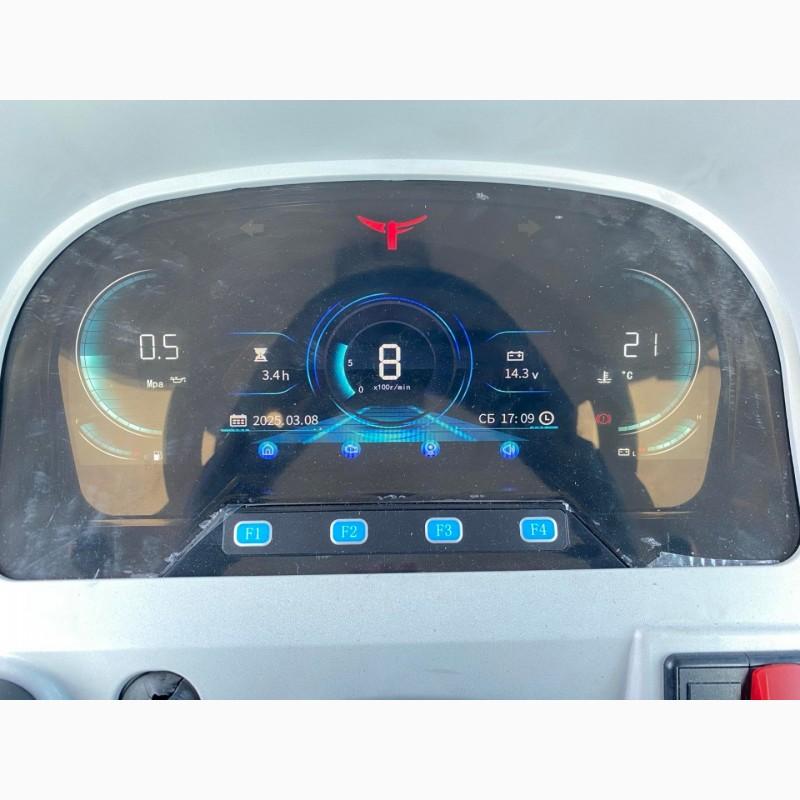

Electronic power management Multi-operation engine management system
Cooling system Forced
Fuel cleaning system Pre-cleaning filter and fine cleaning filter
Air filter 3-stage filter
The volume of the fuel tank, l 220
*TRANSMISSION, CHASSIS
Clutch Dry, two-disc, 12''
Gearbox Mechanical, reversible
The number of downshift gears (12+12) x 2
Synchronization of gear shifting IS
(//tractor-service.com)
Front / rear
tyres 14.9-26/16.9-38
Wheel base / ground clearance, mm 2681/475
Service brakes Oil bath with hydraulic drive
Parking brake Mechanical
Trailer brake pneumatic drive with compressor E
Turning radius without brakes, m 4.8
Turning radius with brakes, m 4.3
Front counterweights, kg 400
Rear counterweights, kg 600
Theoretical forward speed, km/h 1.8 / 28.7
Theoretical speed of backward movement, km/h 0.5 / 16.3

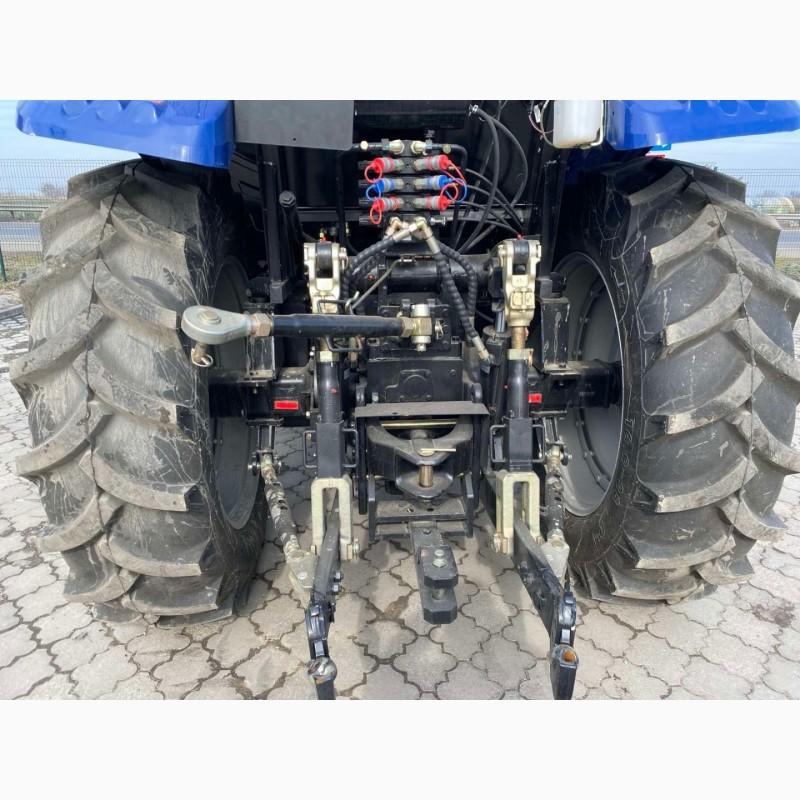

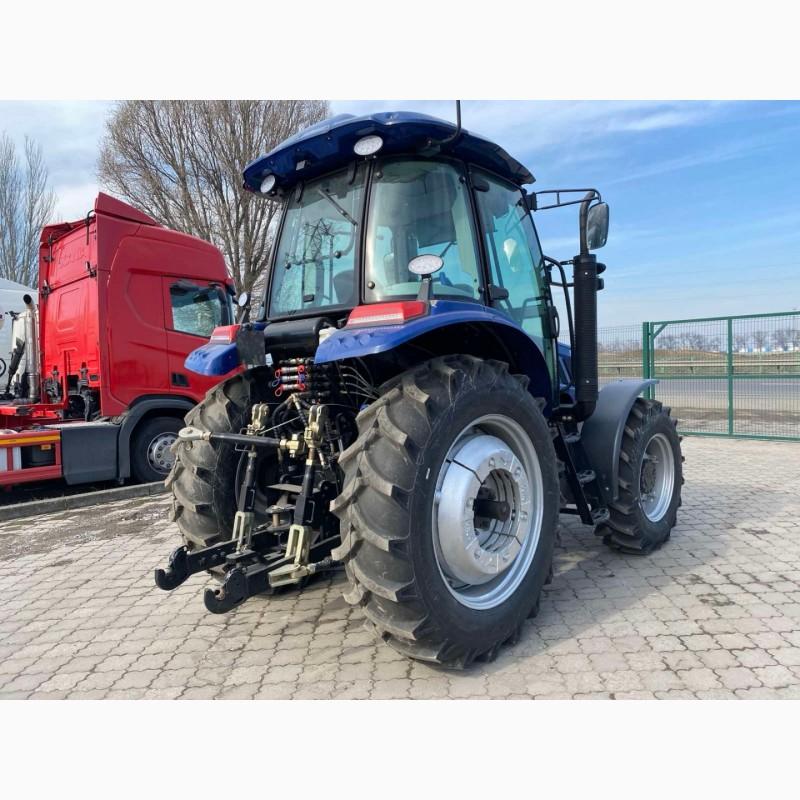

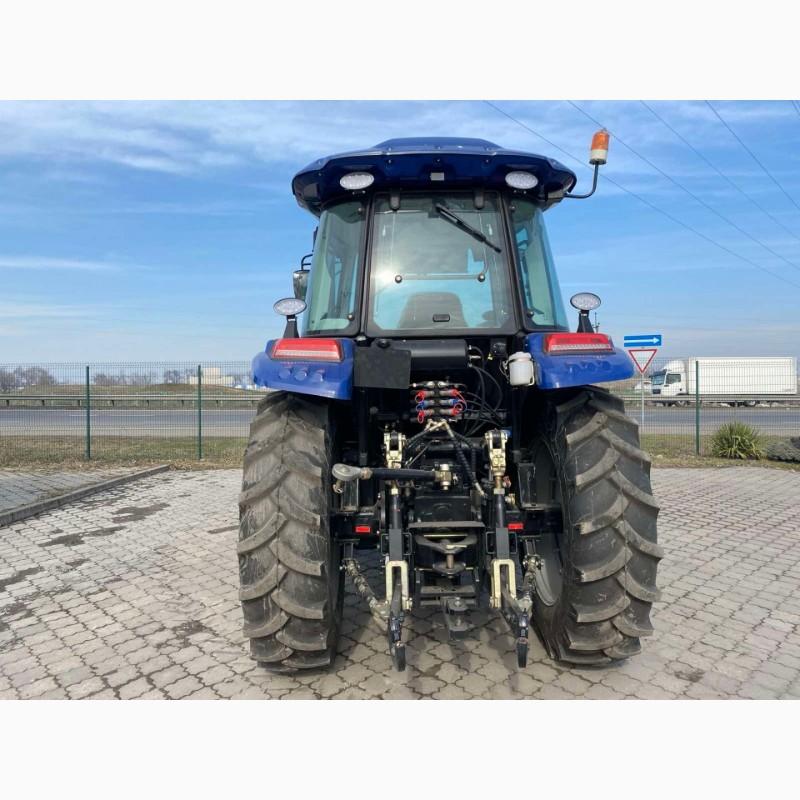

*HINGED SYSTEM
Attachment: type / category Class II, 3-point
Lifting force of the attachment, kg 3200
Number of hydraulic cylinders 2
Modes of operation of the hinge With forced lowering
Type of hydraulic system Separate
Hydraulic system productivity, l/min 52.3
Number of pairs of hydraulic outlets 3
GDP shanks 8 slots
Turn the power take-off shaft, rpm 540/1000
GDP power, kW 92
Towing device type Detachable trunnion
Pendulum traction bar E
.ERGONOMICS, ELECTRICAL EQUIPMENT.
Noise level in the cabin, dB 81
Air filtration in the cabin Paper filters
There is an air conditioner and a heater.

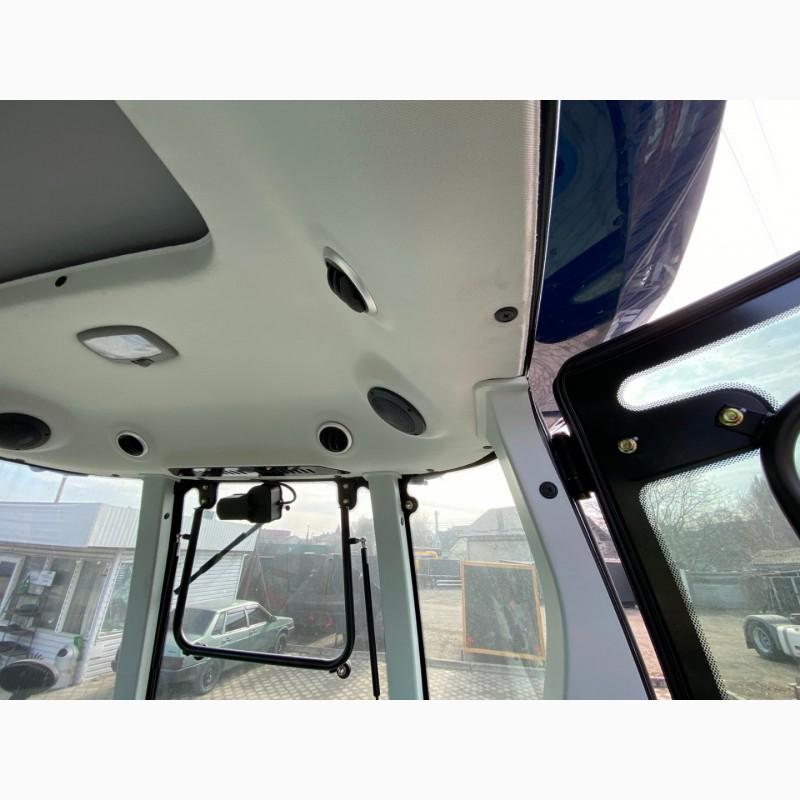

There is a hatch in the roof.
Sun protection canopy E
There is a stereo system
Socket 12 V E
Lighting equipment Main headlights, taillights, taillights, front and rear turn signals
There is other electrical equipment
