Machine for washing food plastic boxes STvega Barrel Box L8500, Kyiv

The STvega Barrel Box L8500 machine is designed for efficient and automated washing of various plastic containers. A two-stage cleaning system allows you to effectively treat a contaminated surface, and a closed water cycle system allows you to significantly reduce water consumption.

The machine is equipped withpumps and containers with nozzles for spraying water and washing solution, special handrails for fixing the containers during passage through the hopper, a remote control panel, which can be used to regulate the water supply, pressure and speed of the conveyor belt.

Principle of operation:

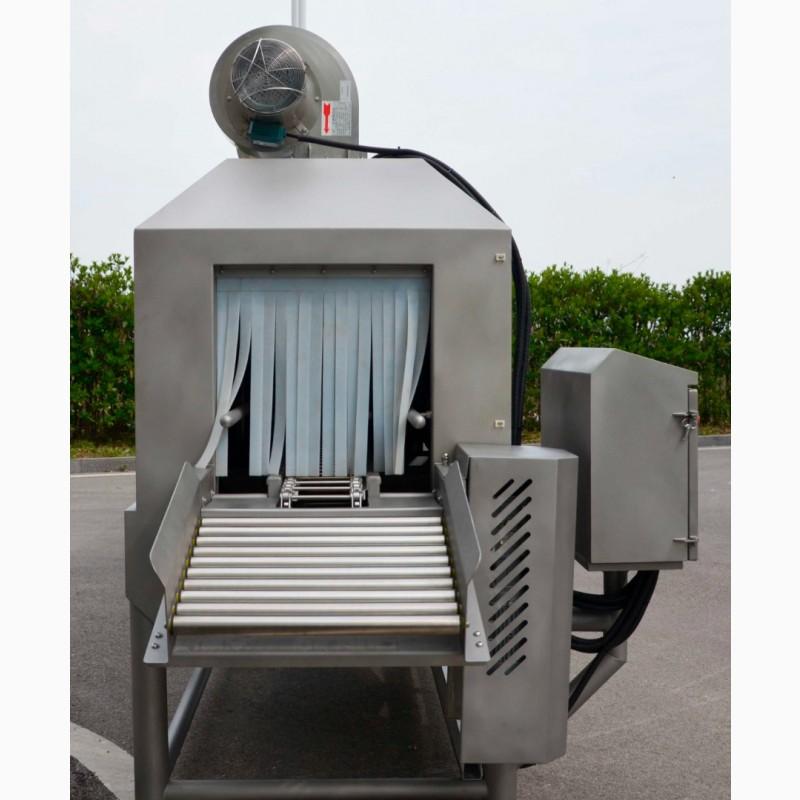

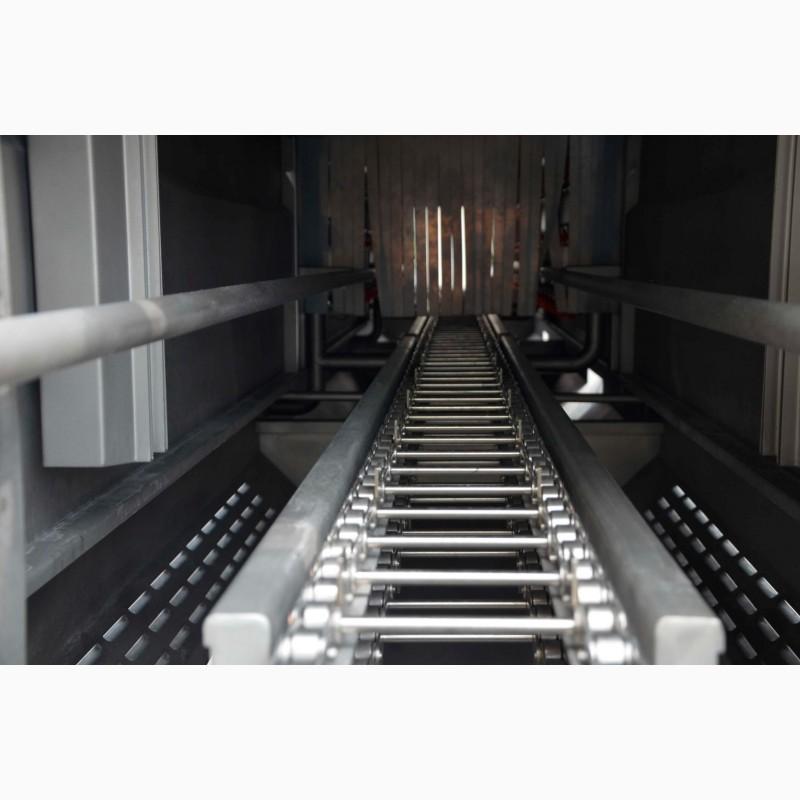

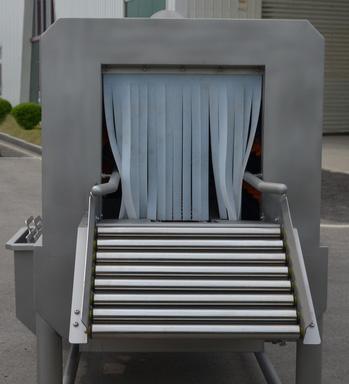

This equipment is made in the form of a tunnel hopper, divided into three sections, in which the surface of the container to be cleaned is processed. Contaminated packaging is placed by the operator on a chain conveyor belt, which is sent to primary processing.

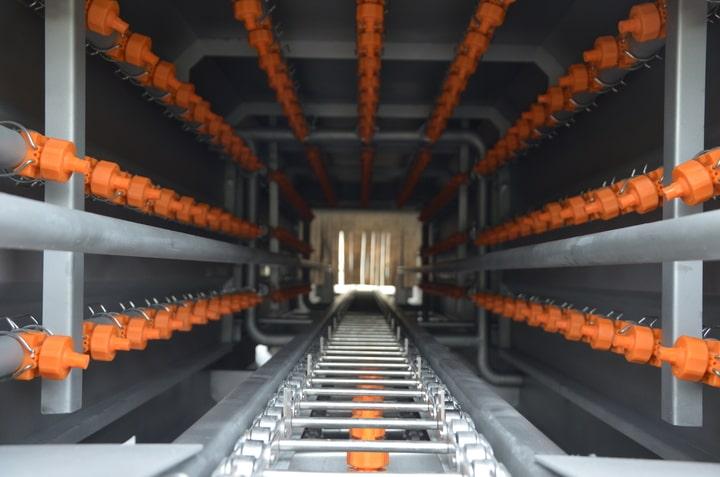

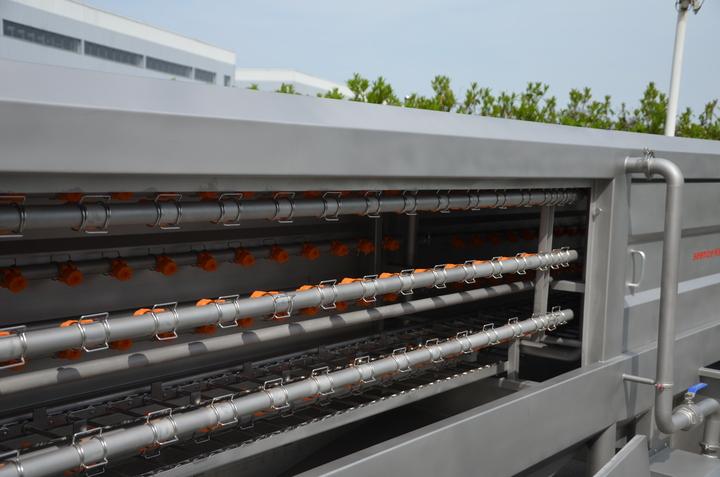

The first stage of processing occurs thanks to the supply of washing solution under high pressure through a system of nozzles. The nozzles are located from different sides along the entire perimeter of the section tunnel, which enables high-quality processing of containers from all sides.

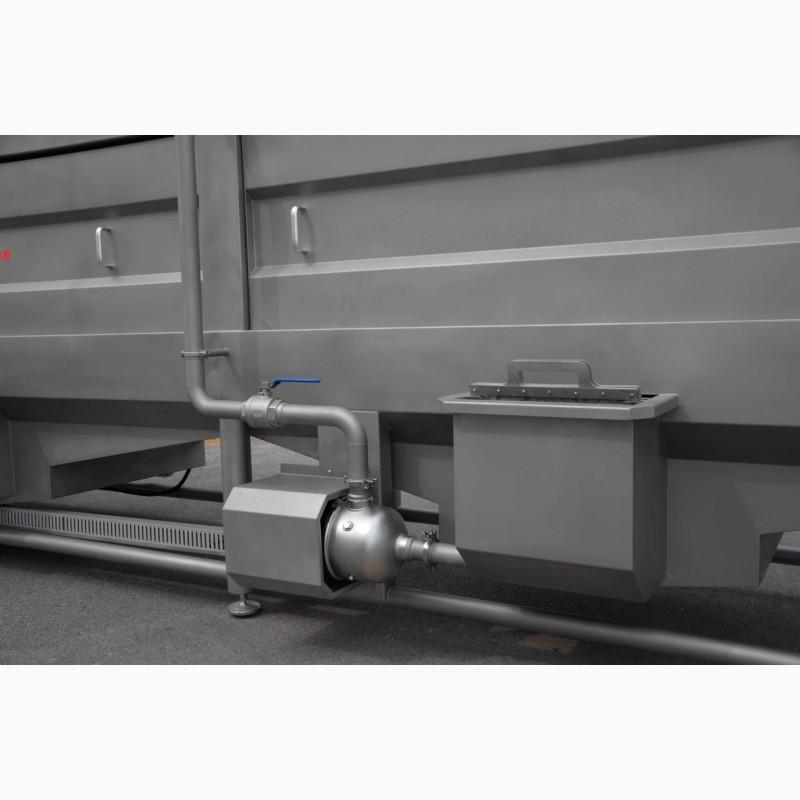

The second stage consists in rinsing the containers with warm water from the washing solution through the nozzle system. At this stage, the container is sterilized and re-cleaned due to the flow of hot water. At both stages, the used water passes through the filter system and enters the tank for further use.

At the third, final stage, the cleaned container is blown with air to remove water residues from the outer surface of the boxes. There is no hot air drying function, the container is blown with the air that is in the production.

Note: in the model with a steam type of heating, stable operation requires aSteam generator with a capacity of 300 kg/h.

Equipment advantages:
• Effectively cleans containers of any degree of contamination, thanks to the nozzles placed on different sides along the entire perimeter of the tunnel, there are no dead zones for cleaning.
• Guide rails are installed along the entire length of the tunnel hopper to fix the tare.
• The closed cycle of water use makes it possible to significantly reduce water consumption and increase the efficiency of the machine.

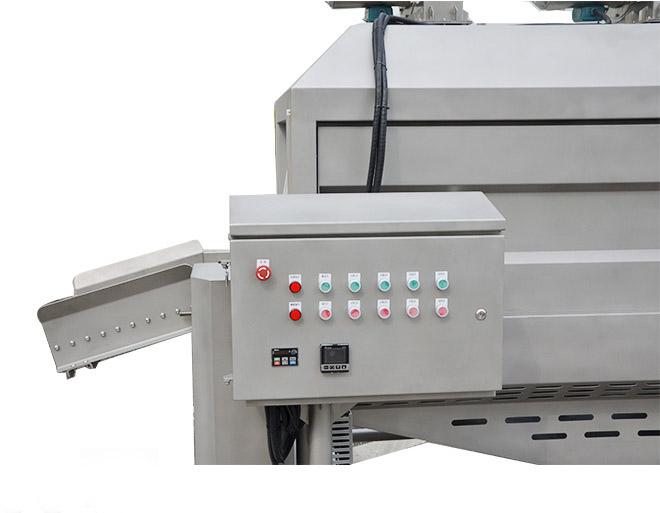

• With the help of a remote control panel, you can adjust the water supply, pressure and speed of the conveyor belt.
• The machine is made of SUS 304 stainless steel for maximum service life and fully complies with food safety standards.(//tractor-service.com)

Features:
Dimensions: 8500*1650*2250 mm
The total length of the cleaning zone: 8000 mm
Length of the primary cleaning section: 3000 mm
The length of the secondary cleaning and rinsing section: 2000 mm
Length of the air blowing section: 2000 mm
The length of the entrance and exit zones: 1000 mm
Feed height: 850 mm
Exit height: 800 mm
Effective processing width: 480 mm (can be customized according to customer needs)
Water tank volume: 2*0.45 mᶾ
Power (electricity): 26.95 kW
Power (steam boiler): 8.95 kW
Material: stainless steel SUS 304
