Mobile diesel generator CUMMINS M 200D (200 KW) on a wheeled chassis, Kyiv

Mobile DieselGenerator with an American CUMMINS engine, economical and with a large motor resource, on a mobile chassis.

The manufacturer's representative offers minimum prices and convenient terms of equipment supply.

The generators have a heater to help use the generator in the winter and make cold starting easier. (If required by the customer, it is possible to install a WEBASTO heater, which greatly facilitates starting the generator at temperatures below 0*С)

Due to the constant recharging of the battery from the generator, you will not have to worry about its discharge.

Diesel generator warranty service for 2 years or 2,000 engine hours, whichever comes first (provided by qualified specialists).

Professional engineering and technical staff with 10 years of work experience.

Service center in Kyiv.

Delivery throughout the territory of Ukraine (except temporarily occupied).

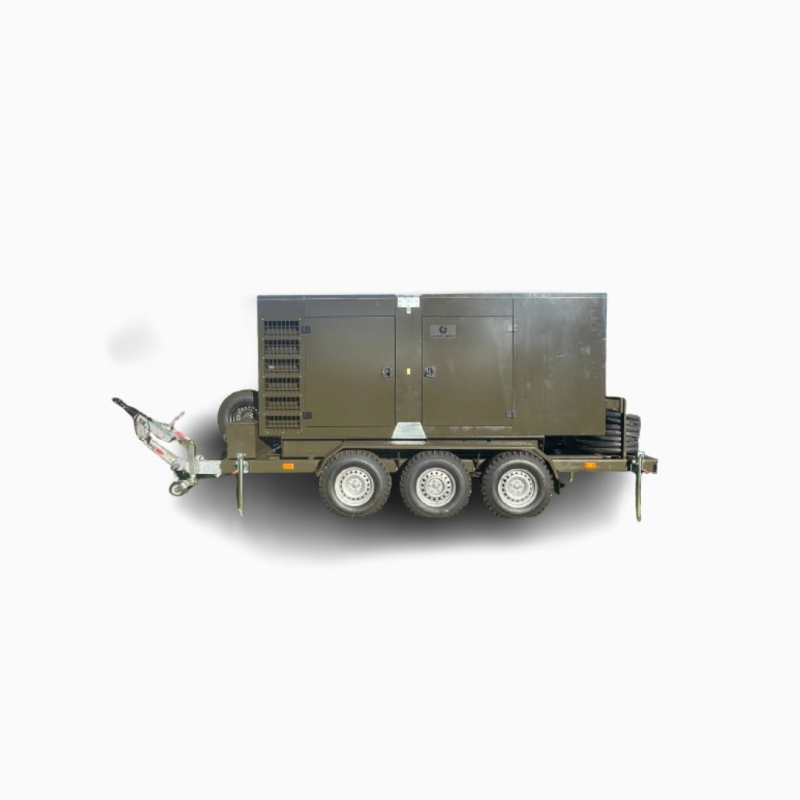

Mobile DIESEL GENERATOR CUMMINS C 200 D (250 kVa) in a casing, 200 kW on a wheeled chassis.

Purpose and mode of operation - To work as a backup power source and ensure continuous operation 24 hours a day.

The equipment is a diesel power plant on a frame in a casing for stationary installation;

- battery with cables and terminals;

- lubricating/technical fluids for first start-up and replacement;

Technical characteristics:

Nominal power, kW 200

Nominal power, kVA 250

Maximum power, kW 220

Maximum power, kVA 270

Output voltage, 230/400

Output current frequency, Hz 50

Fuel tank capacity, l 350

Weight of the diesel generator (without fuel), kg 2850

Fuel consumption at 100% load, l/h 58

Fuel consumption at 75% load, l/h 39

Fuel consumption at 50% load, l/h 27

Engine speed, rpm 1500

Rated engine power, kW at 1500 rpm 220

Engine volume, l 8.9

Oil system capacity, l 27.6

Cooling system capacity, l 34

In the set:

Synchronous alternating current generator

An automatic fire extinguisher of the Sprut-1o type was installed inside the gas station.

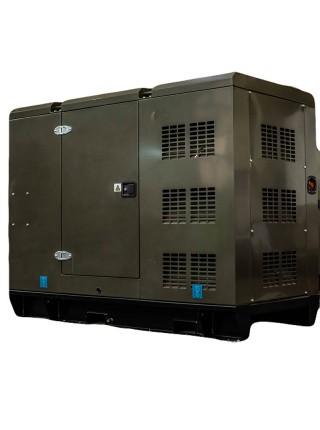

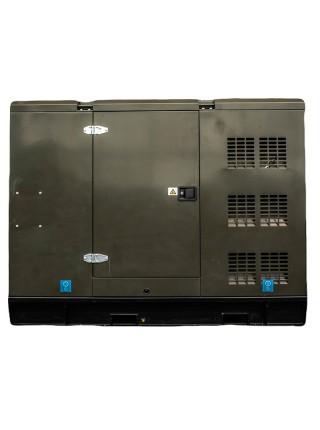

DSU in a noise-absorbing casing IP23 on a wheeled chassis

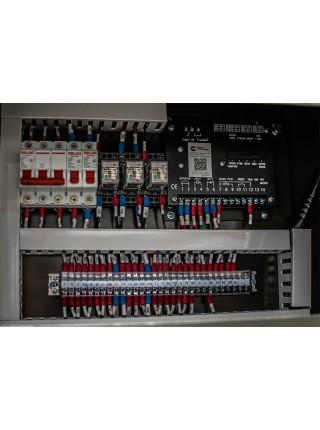

Control panel with interface in Ukrainian.

Fuel tank built into the DSU frame

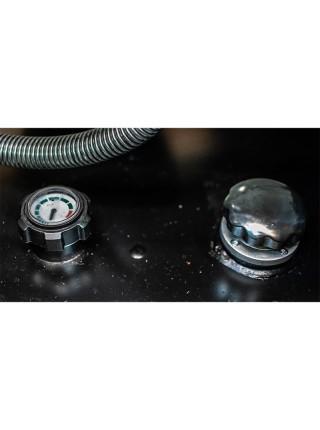

The fuel level indicator on the control panel of the diesel generator allows you to determine the fuel level without the need to open the engine cover.

Coolant

Accumulator battery (AKB)

Automatic battery charger

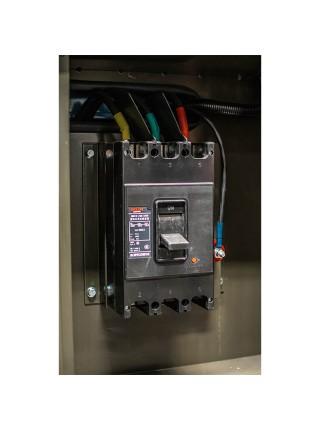

Three-pole automatic switch

Muffler

Emergency stop button

Motor oil

A set of filters (air, fuel, oil) in regular places

Operating instructions

Reference dimensions (L x W x H) 3455X1310X2050 (mm)

Noise level, dB 70

Weight of the diesel generator (without fuel), kg 2850

Main technical characteristicselectric power station:

- Automatic engine stop when the control parameters reach the limit values.

- Automatic voltage regulator.

- Control of frequency, voltage and current.(//tractor-service.com)

- Correct sine wave at the output.

- Electronic microprocessor control panel.

- Counter of engine hours.

- Emergency stop button.

- Remote monitoring and control of equipment.

- Automatic heating of the coolant.

- Charging the battery in standby mode.

- Control panel interface language - Ukrainian

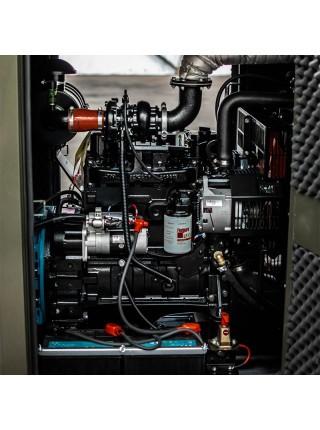

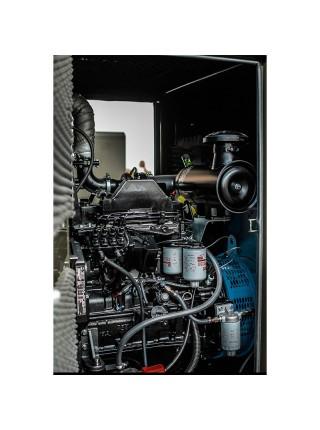

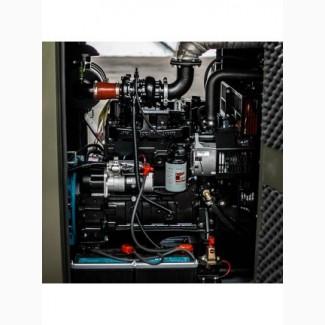

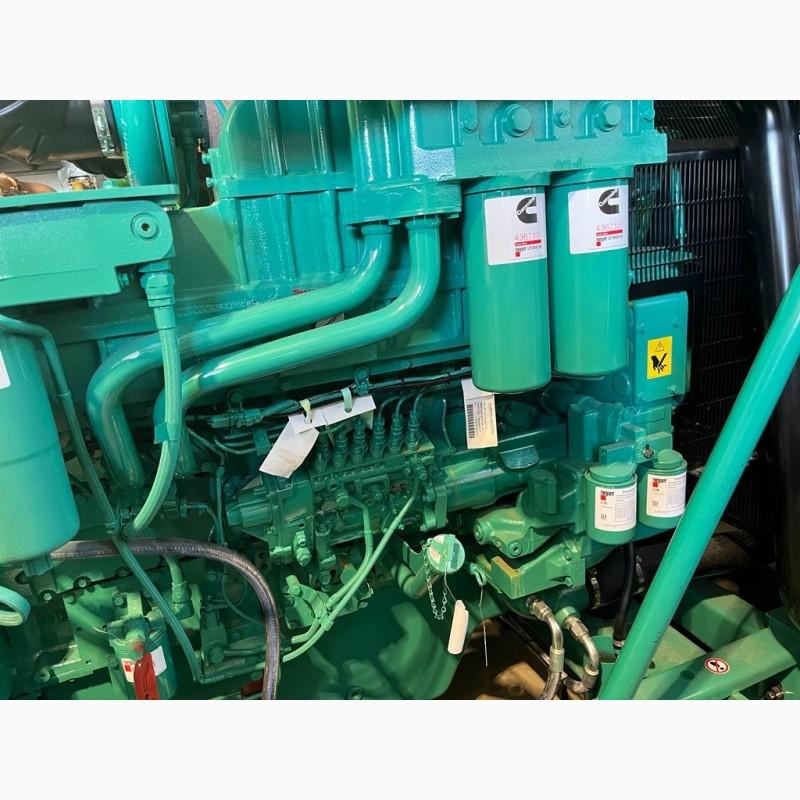

Engine model Cummins 6LTАА 8.9-G2.

Power associated with the engine (kW) 220

Engine power in standby mode (kW) 240

4-stroke turbocharged engine

Volume (l) 8.9

Compression ratio 16.6:1

Method of starting Electrostarter, AVR

Speed control: ^5%

Environmental standard EURO 4

Speed mode - Electronic speed control

Fuel consumption at 75%-100% load, l/h - 39-58

Fuel consumption at 75%-100% load, l/kW - 0.26-0.29

Working time at 75% load - 12 hours

Fuel system model BYC A/Electronic speed controller

Fuel tank volume (l) 350

Cooling method – Closed water cooling

Oil system capacity (l) 27.6

The capacity of the cooling system is 11 l.

Reference engine weight (kg) 650

Alternating current generator model - STRUM

Nominal voltage (V) 380

Nominal frequency (Hz) 50

Nominal speed (rpm) 1500

Power utilization factor 0.8

Phase and wiring - three phase, Y-shaped configuration

Efficiency (%) 95.19

Excitation method - Brushless excitation

Insulation class – H

Protection level - IP23

Reference weight of the alternator (kg) 820

Control of operating parameters

Coolant temperatures

Fuel level - sensor

Oil level - visually (dipstick)./sensor

Minimum ambient temperature, -35

The maximum ambient temperature is +50

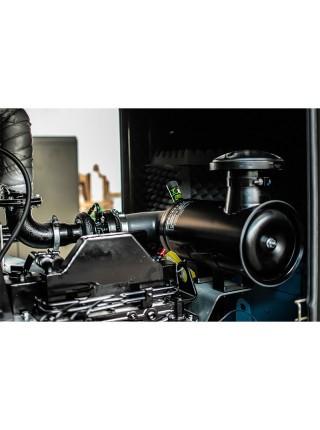

Noise reduction equipment - Industrial muffler

Requirements for refueling with working fluids - The product is delivered filled with oil and cooling fluid designed for ambient temperatures from -35°C to +50°C.

Warranty obligations:

Warranty – 24 months or 2000 engine hours.

- The warranty period of operation of the diesel power plant is 24 months.

- Warranty period of operation of the battery is 24 months.

Additional services:

- Commissioning and debugging works

- Training of the customer's service personnel
