CUMMINS 20 kW diesel generator, Kyiv

Generators with American CUMMINS engines, economical and with a large motor resource.

The manufacturer's representative offers minimum prices and convenient terms of equipment supply.

The generators have a heater that will help to use the generator in the winter and simplify cold start-up. (If the customer needs, it is possible to install a WEBASTO heater, which will make it much easier to start the generator at a temperature below 0*С)

Due to the constant recharging of the battery from the generator, you will not have to worry about its discharge.

Diesel generator warranty service for 2 years or 2,000 engine hours, whichever comes first. (provided by qualified specialists).

Professional engineering and technical staff with 10 years of work experience.

Service center in Kyiv.

Delivery throughout the territory of Ukraine (except temporarily occupied).

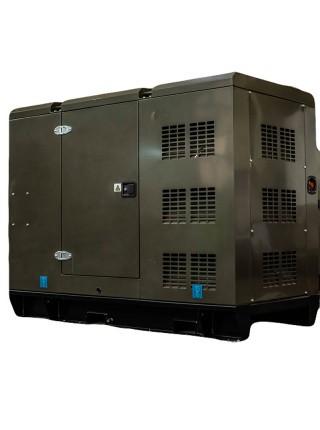

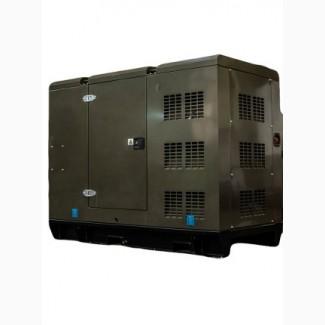

DIESEL GENERATOR CUMMINS CUMMINS C 20D (25kVa) in casing, 20 kW

Purpose and mode of operation - To work as a backup power source and ensure continuous operation 24 hours a day.

Equipment - Diesel power plant on a frame in a casing for stationary installation;

- Accumulator battery with cables and terminals;

- Lubricating/technical fluids for the first start and one replacement;

Nominal power (kW) 20

Maximum power (kW) 22

Permissible overload is 110% - within 1 hour.

Capacity (kVA) 25

Associated speed (rpm) 1500

Associated voltage (V) 400 (380)

Rated current (A) 38

Associated frequency (Hz) 50

Nominal power utilization factor 0.8

Phases 3

Reference weight (kg) 1200

Reference dimensions (L x W x H) 2250X1100X1605 (mm)

Noise level, dB 70

Main technical characteristicselectric power station:

- Automatic engine stop when the control parameters reach the limit values.

- Automatic voltage regulator.

- Control of frequency, voltage and current.

- Correct sine wave at the output.

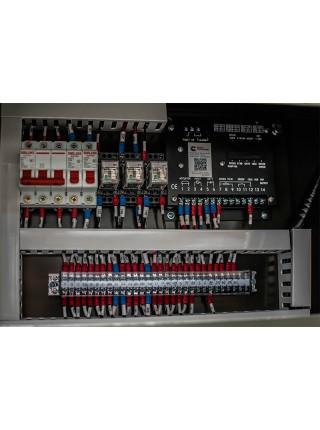

- Electronic microprocessor control panel.

- Counter of engine hours.

- Emergency stop button.

- Remote monitoring and control of equipment.

- Automatic heating of the coolant.

- Charging the battery in standby mode.

- Control panel interface language - Ukrainian

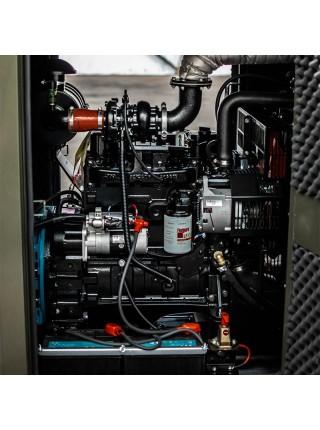

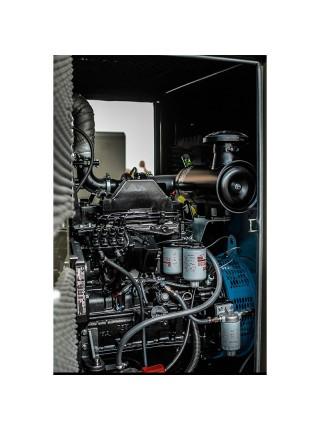

Engine Model Cummins 4B.3-G2

Engine related power (kW) 24

Engine power in backup source mode (kW) 27

4 stroke engine

Volume (l) 3.9(//tractor-service.com)

Compression ratio 18.0: 1

Method of starting Electrostarter, AVR

Speed control: ^5%

Environmental standard EURO 4

Speed mode - Electronic speed control

Fuel consumption at 75%-100% load, l/h - 5.2-7.5

Fuel consumption at 75%-100% load, l/kW - 0.34-0.38

Working time at 75% load - 16 hours

Fuel system model BYC A/Electronic speed controller

Fuel tank volume (l) 90

Dimensions of the fuel tank (mm) 2250X1100X235

Cooling method - Closed water cooling

Oil system capacity (l) 10.9

The capacity of the cooling system is 7.2 l.

Reference engine weight (kg) 321

Alternating current generator model - STRUM

Nominal voltage (V) 380

Nominal frequency (Hz) 50

Nominal speed (rpm) 1500

Power utilization factor 0.8

Phase and wiring - Three phase, Y-shaped configuration

Efficiency (%) 95.19

Excitation method - Brushless excitation

Insulation class - H

Protection level - IP23

Reference weight of the alternator (kg) 280

Control of operating parameters

Coolant temperatures

Fuel level sensor

Oil level - visually (dipstick)./sensor

Minimum ambient temperature, 0С -35

Maximum ambient temperature, 0С +50

The need to perform in a noise-proof all-weather jacket

and requirements for it - Execution in a noise-proof all-weather casing (metal parts are covered with an electrostatic coating and painted with a resistant paint that excludes corrosion during the set period of operation; the presence of thermal insulation of the exhaust system)

Noise reduction equipment - Industrial muffler

Requirements for refueling with working fluids - The product is delivered filled with oil and coolant designed for ambient temperatures from -35°C to +50°C.

Warranty obligations:

Warranty – 24 months or 2000 engine hours.

- Warranty period of operationdiesel power plant 24 months

- Warranty period of operation of the battery is 24 months.

Additional services:

- Commissioning and debugging works

- Training of Customer service personnel
