VESTA-8-02 precision drill sowing SPU-8 (UPS-8). VESNA-8, Poltava region.

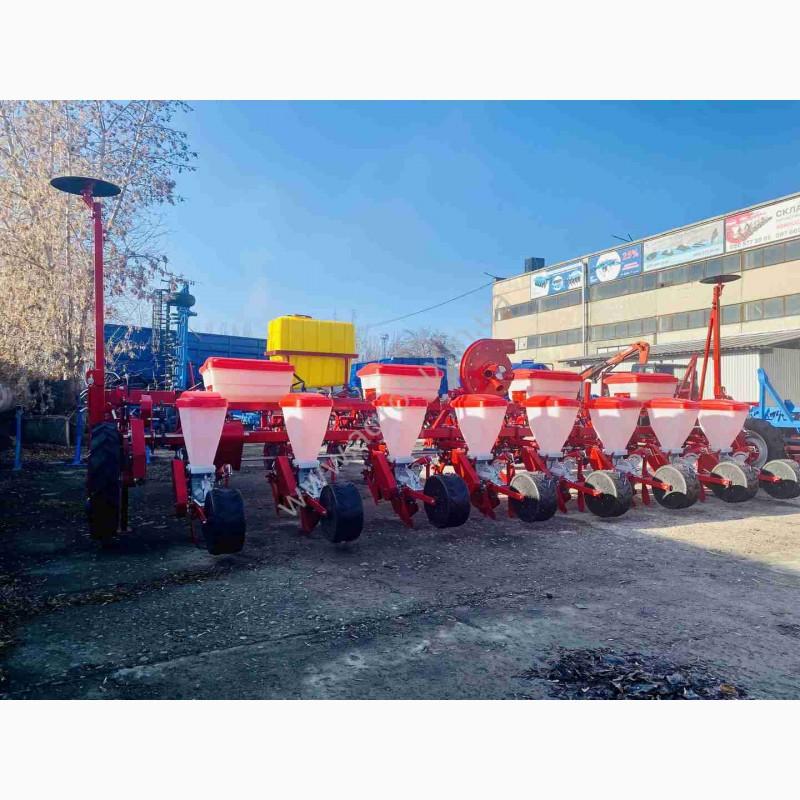

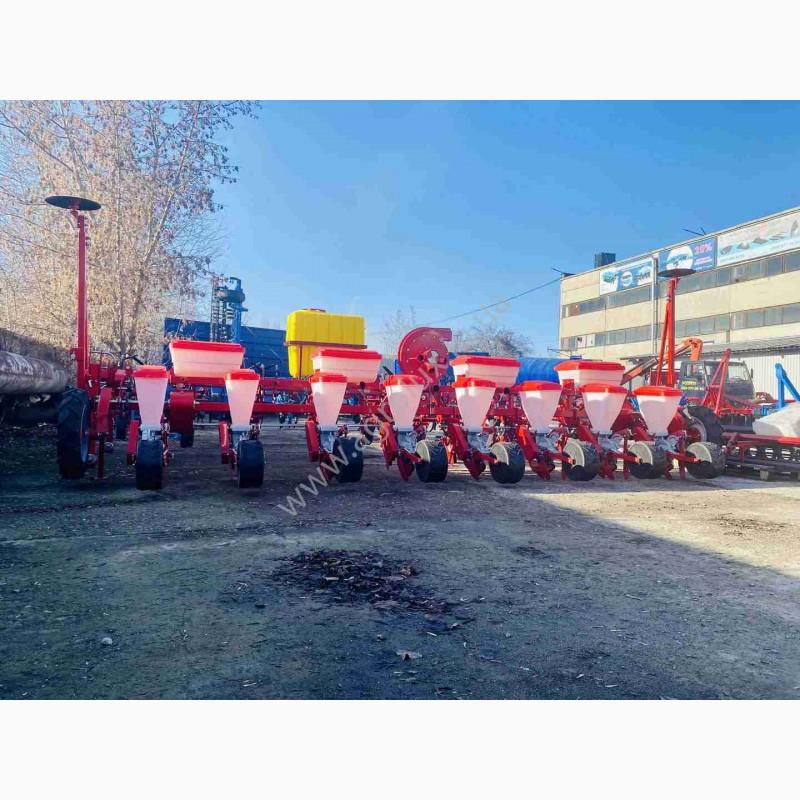

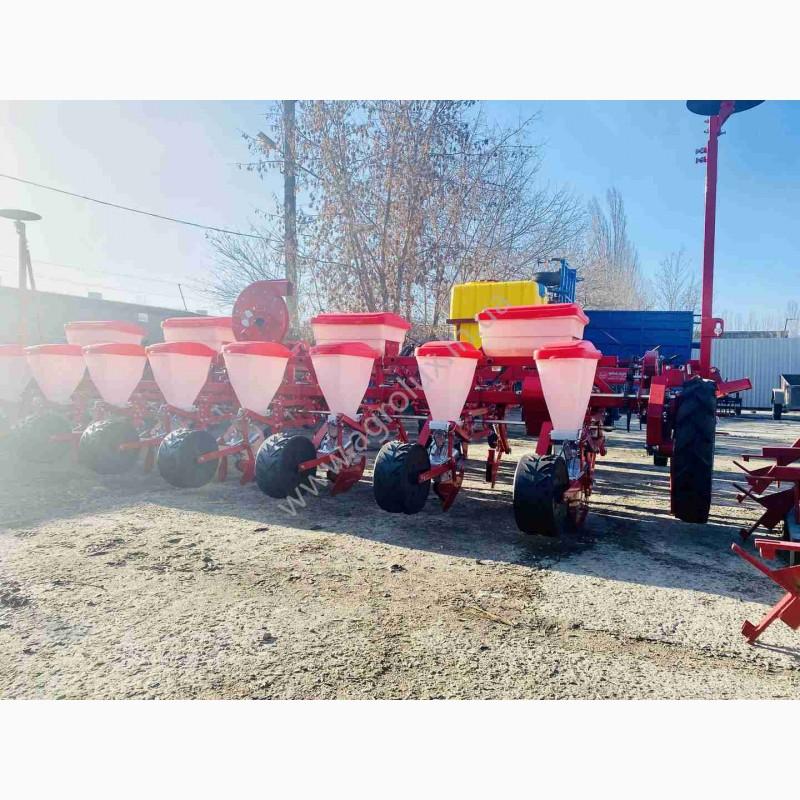

Seeder VESTA-8-02. SPU-8 precision seeding row seeder (UPS-8). VESNA-8 Universalpneumatic seeders SPU-6 (UPS-6) and SPU-8 UPS-8) are intended forprecise sowing of calibrated seeds of corn, sunflower, castor, sorghum, soybeans, as well as seeds of fodder beans, beans, lupine with simultaneous, separate application of granular mineral fertilizers.
Advantages of the Vesta8-SPU-8 (UPS-8) planter:

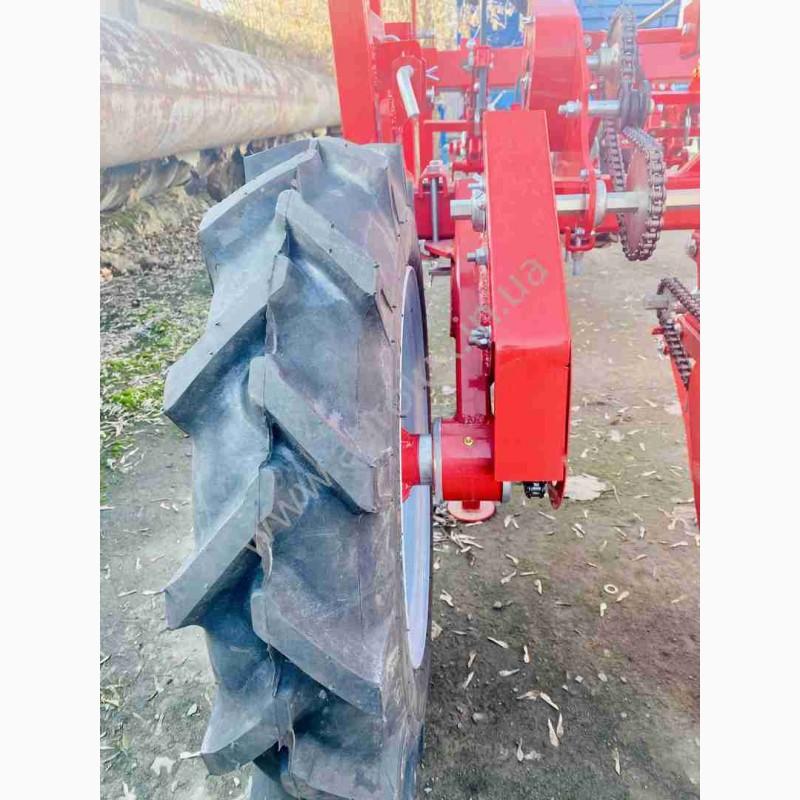

-Two-circuit section drive
-The inter-sectional arrangement of the supporting and driving wheels allows you to avoid sifting and to maintain the necessary depth of wrapping of seeds and fertilizers.
-Improved fertilizer application mechanism
-Hydrofied markers

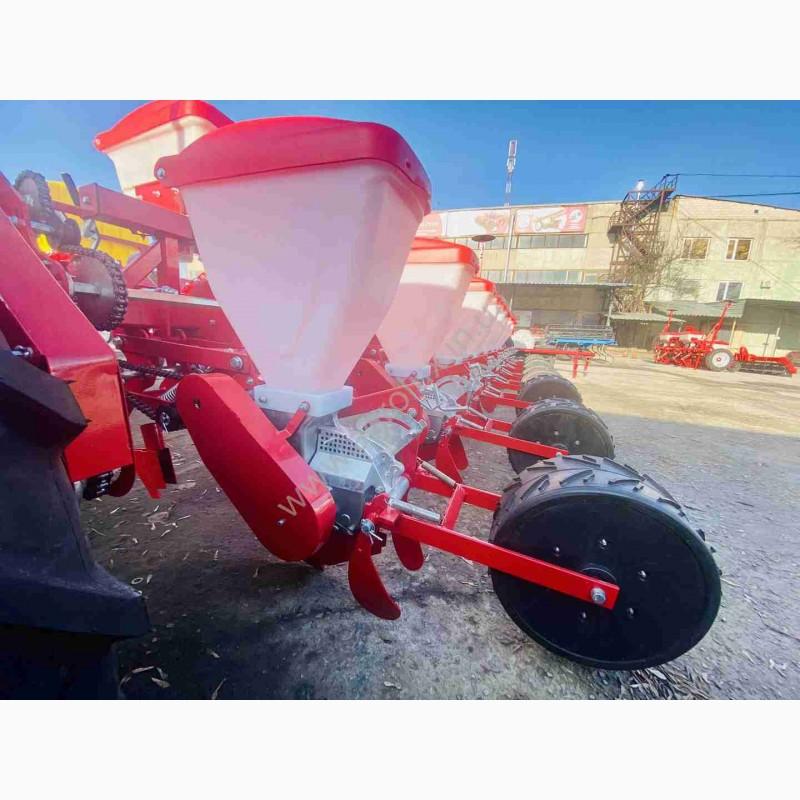

-Fat hoppers are made of high-strength rotomoulding polyethylene.
-Strengthened frame
-Powder painting

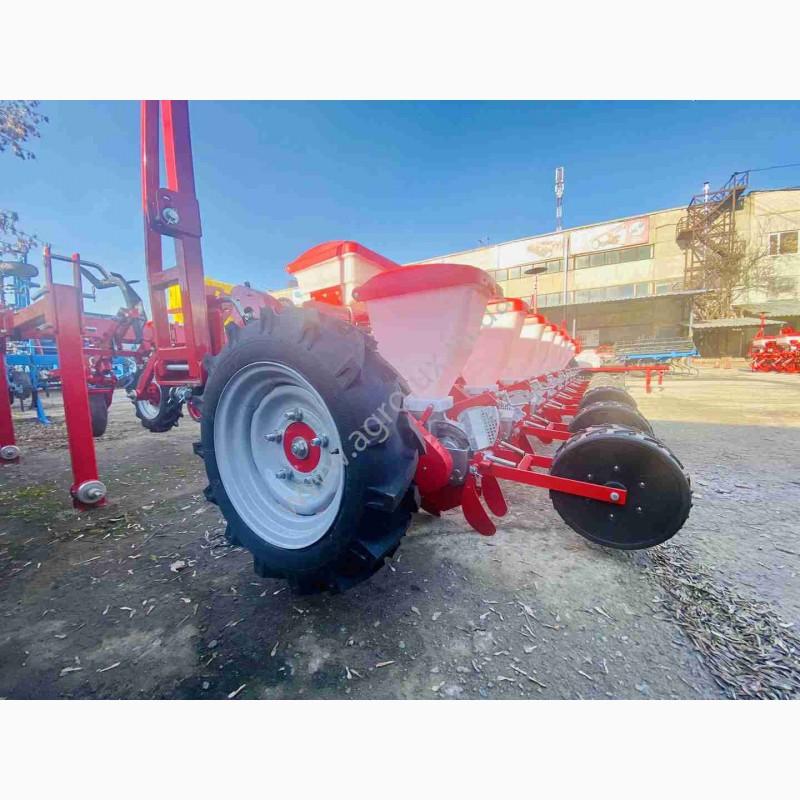

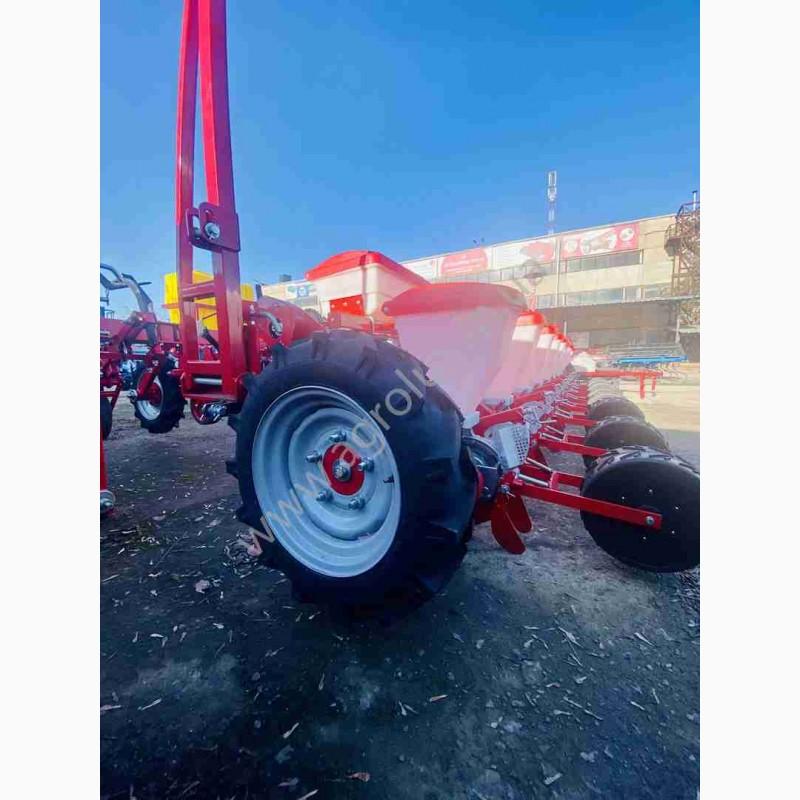

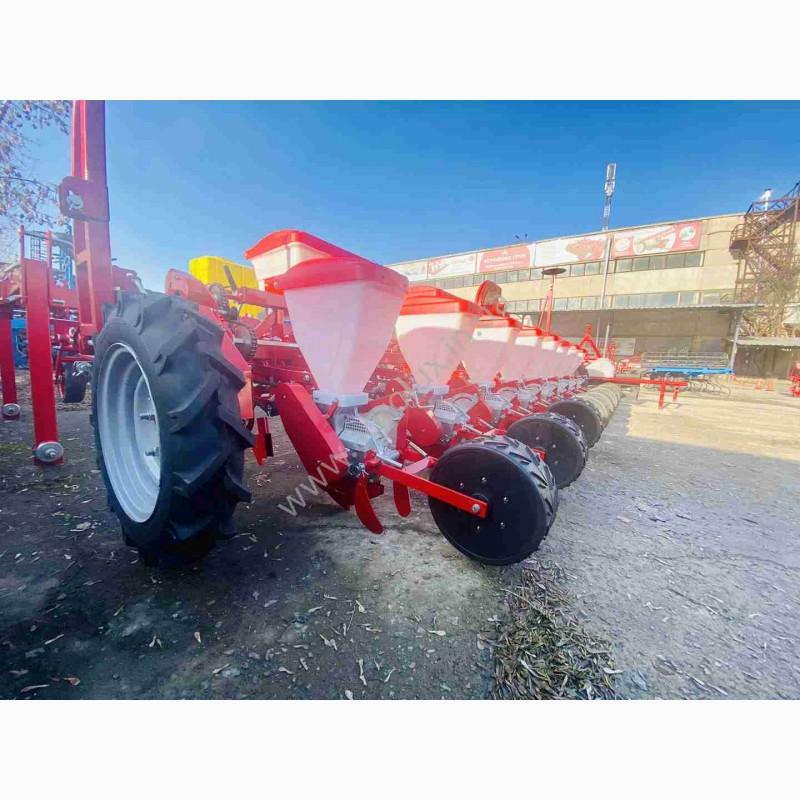

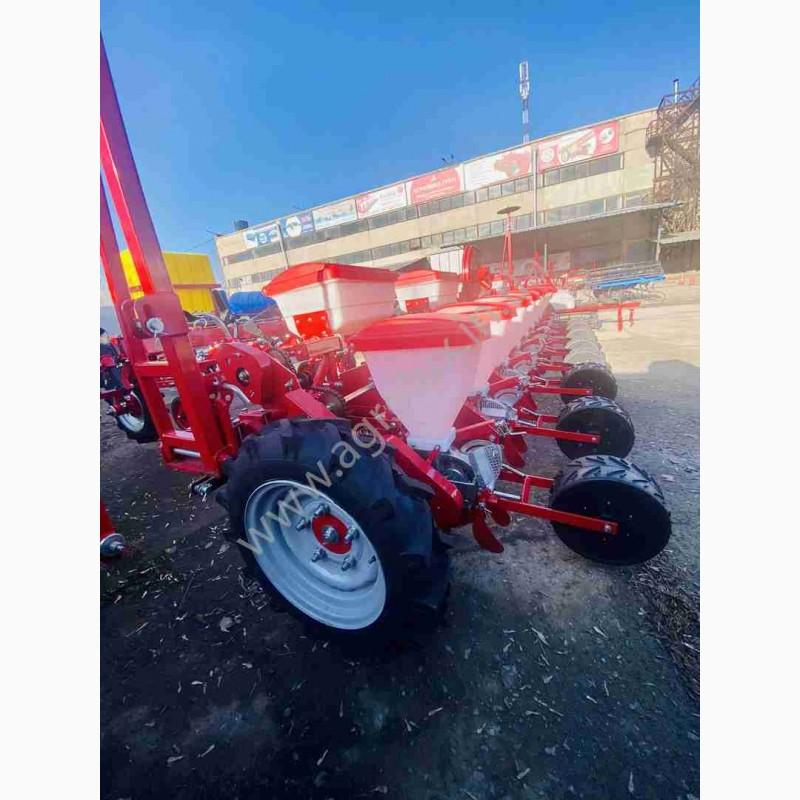

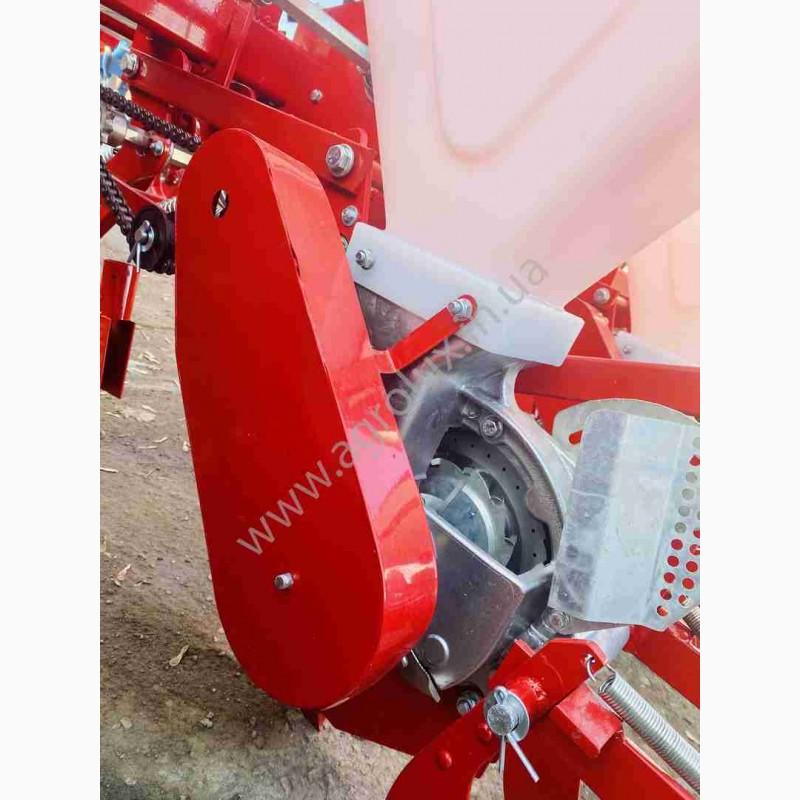

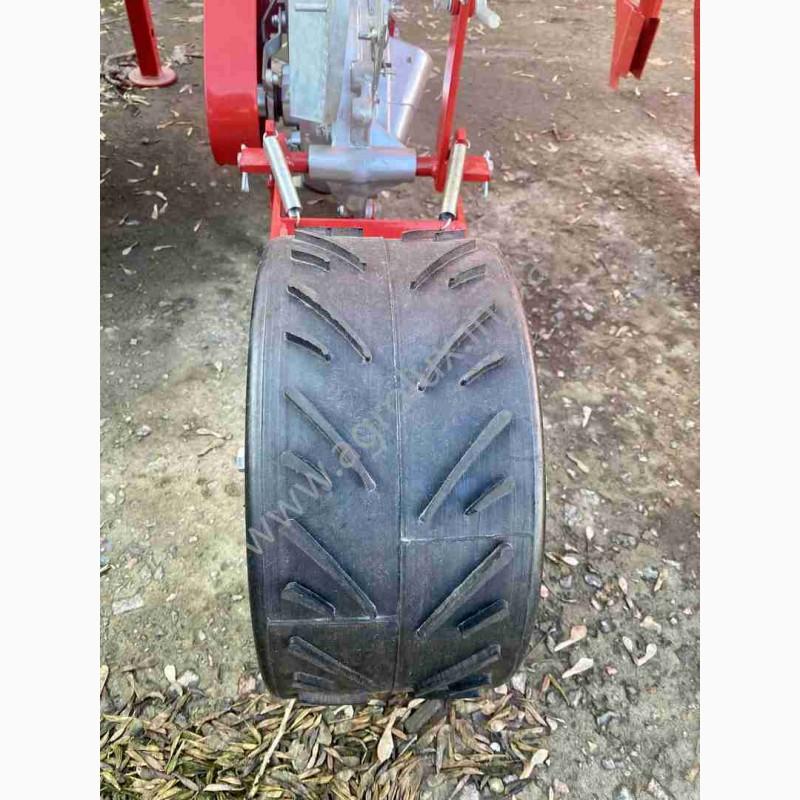

The cross-sectional arrangement of the supporting and driving wheels allows you to maintain the required depth of seed wrapping more accurately. It is also possible to sow uncalibrated seeds, but in this case the accuracy will directly depend on the difference in size and the degree of damage to the seed material.Precise sowing seeders ensure sowing at the final density, in addition to the use of manual labor when forming the necessary interval between plants. Pneumatic seeders devices of precision seed drills reduce the process of crushing seeds by 10 times compared to mechanical ones. The drills have a strong hydroficated marker with a larger disk, which has the ability to change the angle of attack to obtain a clearly visible trace. To order, the drills are equipped with a transport device, which allows you to move it on general purpose roads without the use of additional vehicles. The drill is equipped with a centrifugal fan driven by a tractor PTO (540 rpm). There is a damper on the fan to regulate the discharge of the air flow. The fan is equipped with an overrunning clutch that protects the belt transmission from increased wear. sunflower The parallelogram overhang of the section ensures the best copying of the relief of the field. As a result of modernization, the sowing section was equipped with a 2-circuit drive of a new design. Reliable protection of the drive ensures work in fields littered with plant residues. The amount of seeds that enter the seeding chamber from the hopper is regulated by a shutter. The presence of an inspection window allows you to visually control the quality of the seeding device during the adjustment process. An unloading hatch is provided for quick removal of seeds from the seeding device chamber. row with the required amount of displacement, which excludes the harmful effect of fat on the seeds. The rolling of the soil in the sown rows improves the contact between the seeds and the moist soil at the bottom of the furrows, provides capillary rise of moisture and creates favorable conditions for earlier and friendly seed germination. Gas exchange is carried out thanks to open zones.
Technical characteristics of planters SPU-6 (UPS-6) SPU-8 (UPS-8)
The unit type is mounted
Width of capture m 4.2 5.6
Number of rows pcs. 6 8(//tractor-service.com)
Width between rows cm 45.70
Working speed km/h 2.5-9
Productivity ha/h 1.1-3.8 1.4-5.1
Capacity of bunkers (total)
- for seeds l 150200
- for fertilizers l 192
Sowing rate
- for seeds pc/p.m. 2-42
- for fertilizers kg/ha 50-250
Seed wrapping depth mm 40-120
overall dimensions
- in working position mm 1700x4900x1600 1700x6250x1430
- in transport position mm 5450x2300x2360 6800x2300x3010
Weight kg 1074 1278
It is aggregated with tractors hp. from 65 hp
