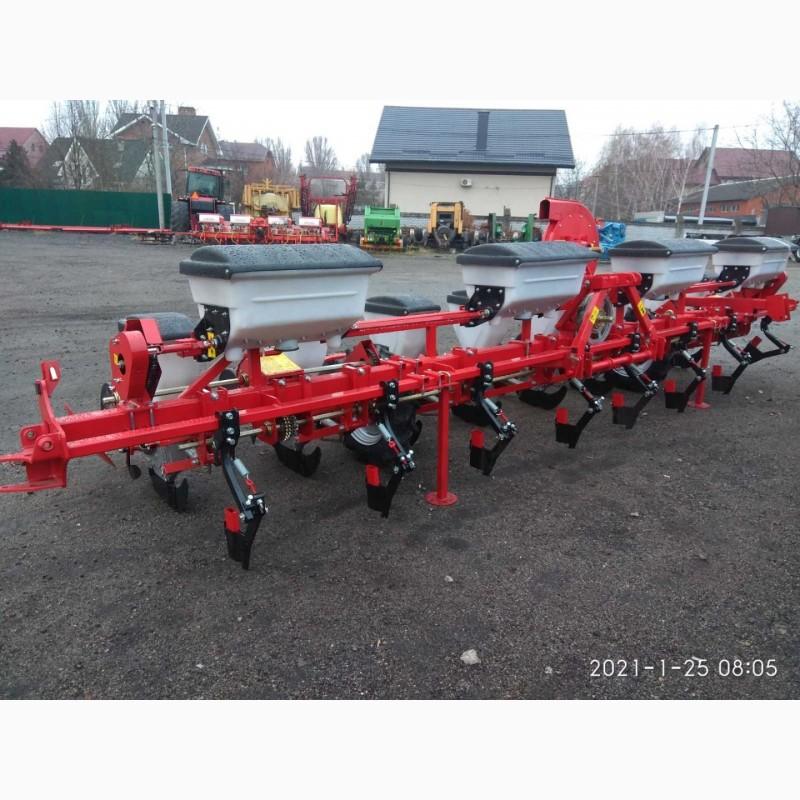

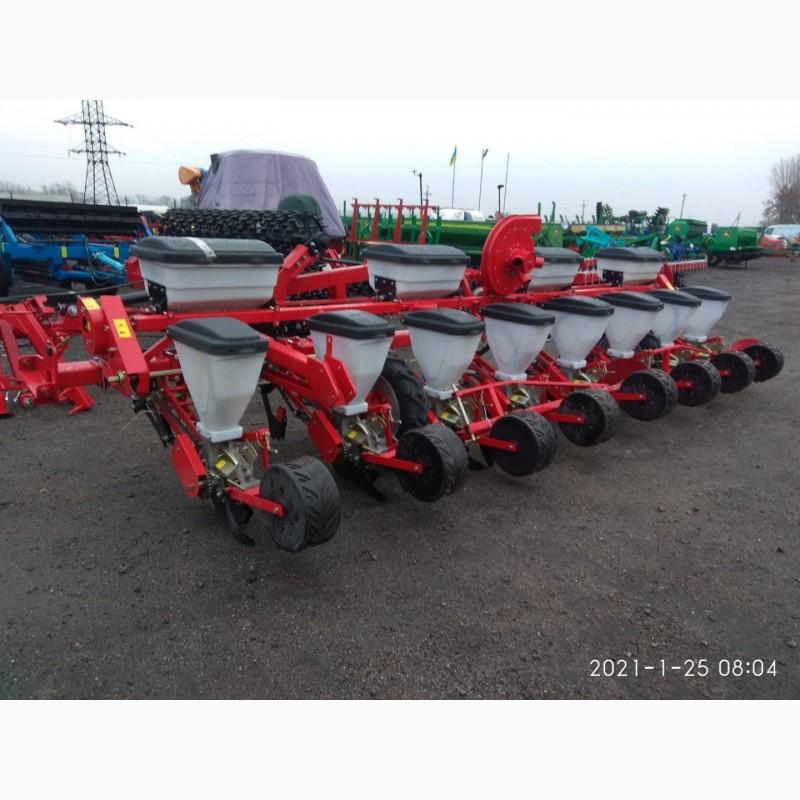

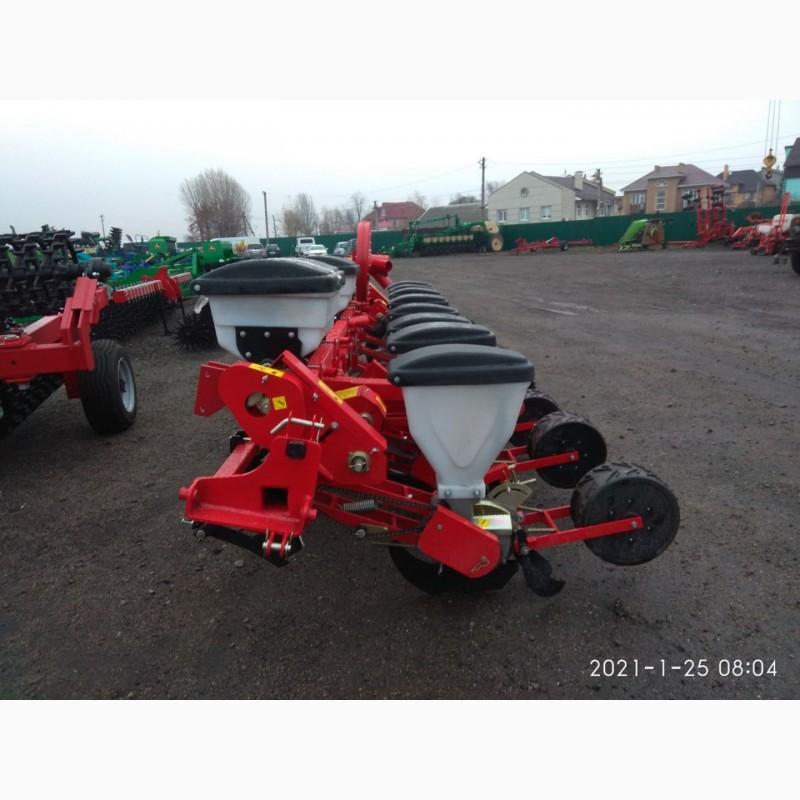

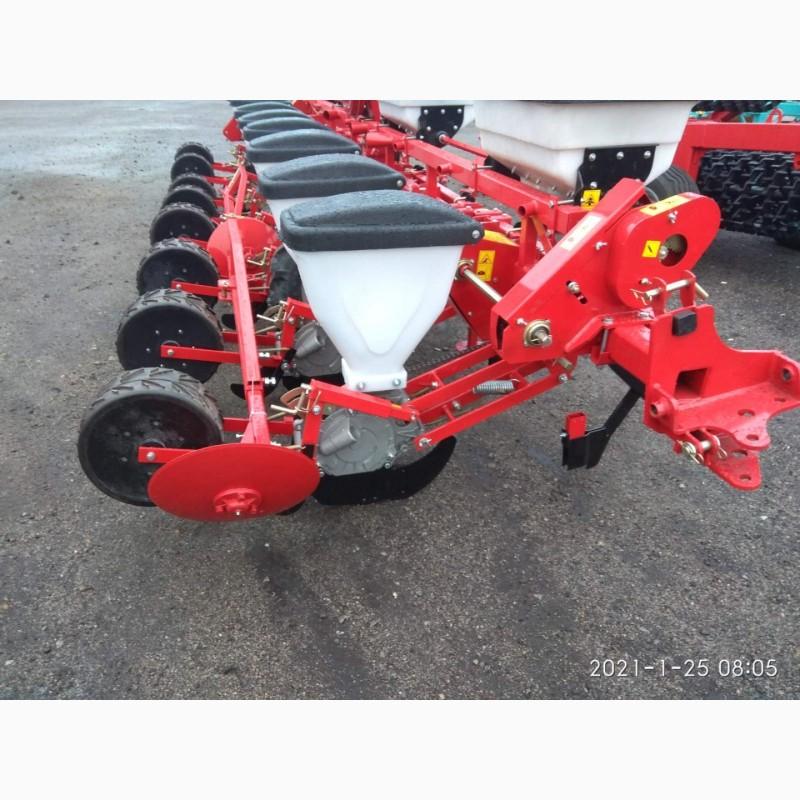

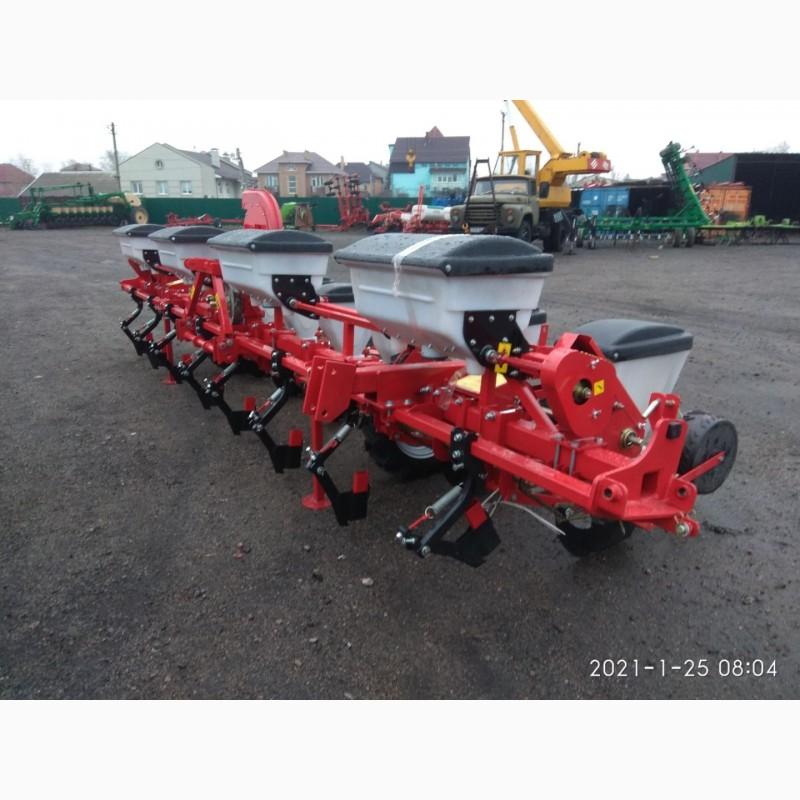

UPS-8 row planter for sale, Dnipropetrovsk region.

UPS-8 pneumatic row drills are intended for spot sowing of corn and sunflower seeds, with the simultaneous application of granular mineral fertilizers separately from the seeds and rolling of the soil in the rows.

Precise sowing drills ensure sowing to the final density, in addition to the use of manual labor when forming the necessary interval between plants.
All drive shafts of grain and fat seeders are mounted on rolling bearings.
Due to the location of the axis of the drive wheels on the same line as the grain coulters, simultaneous copying of the topography of the field by both the frame and the sowing section is achieved.
A tread with soil grips on thetires of the support-drive wheels reduces their slippage, which ensures the specified interval between the seeds.
The planters have a strong hydrofed marker with a larger diameter disc that has the ability to change the angle of attack for a highly visible trail.

The semi-automatic hitch ensures quick and safe connection of the planter to the tractor.

UPS indicators 8
The type of machine is mounted.
Gripping width m 5.6
Number of rows approx. 8
Width between rows mm 450, 600, 700, 900(//tractor-service.com)
450x900, 600x1200
Working speed km/h 3.6-9
Productivity ha/h 2-5.04
Hopper capacity (total) dm3
- for seeds 200
- for fertilizers 192
Sowing norms
- for seeds pc/p.m. 2-43
- for fertilizers kg/ha 50-250
Seed wrapping depth mm 40-120
Overall dimensions mm
- in working position 1700x6250x1430
- in transport position 6800x2300x3010
Mass kg 1278±3%
It is aggregated with tractors hp. (ts) 80
