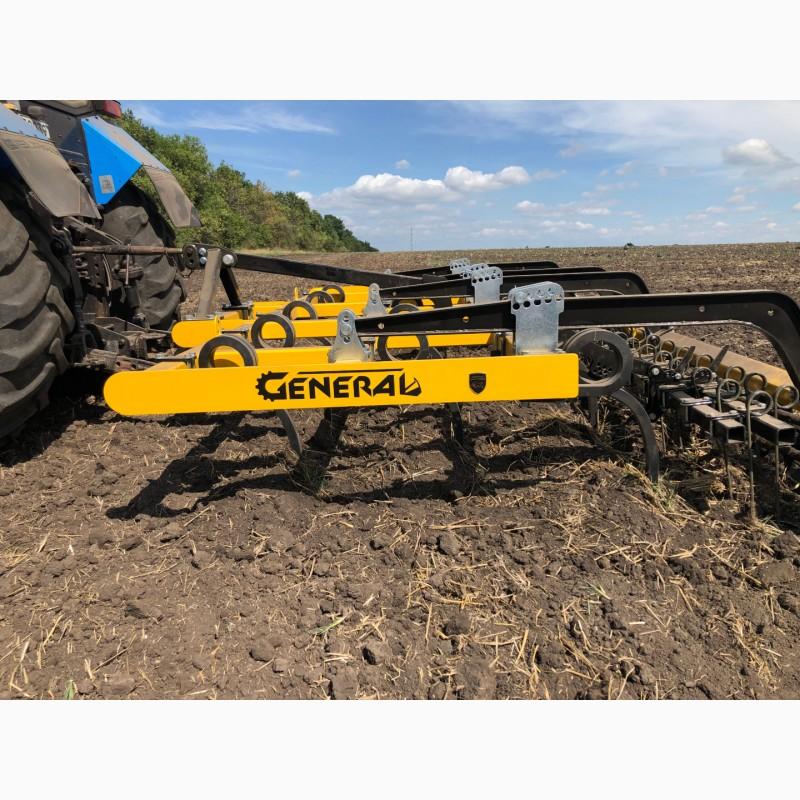

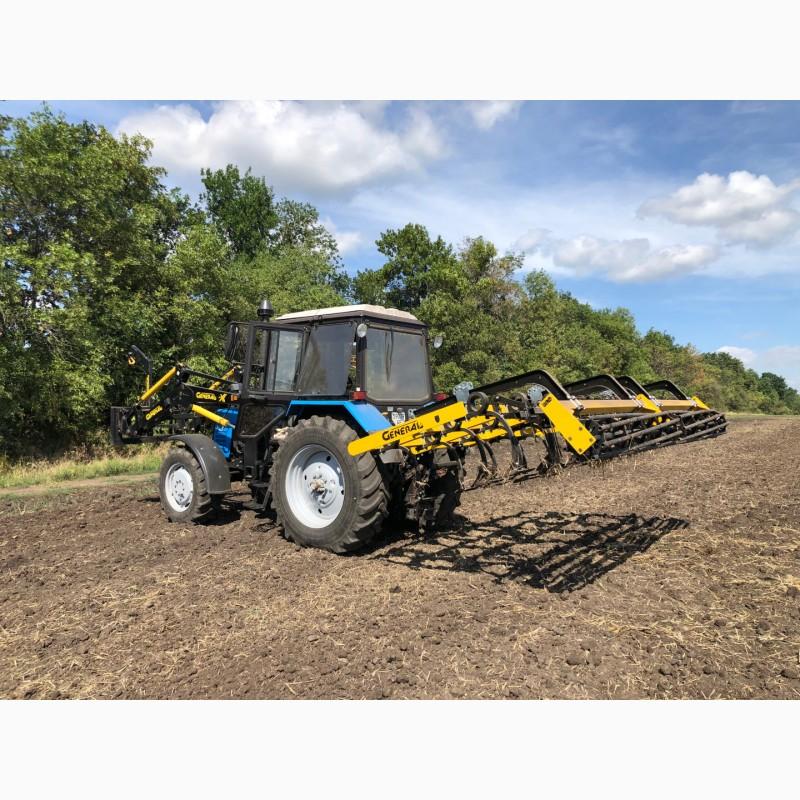

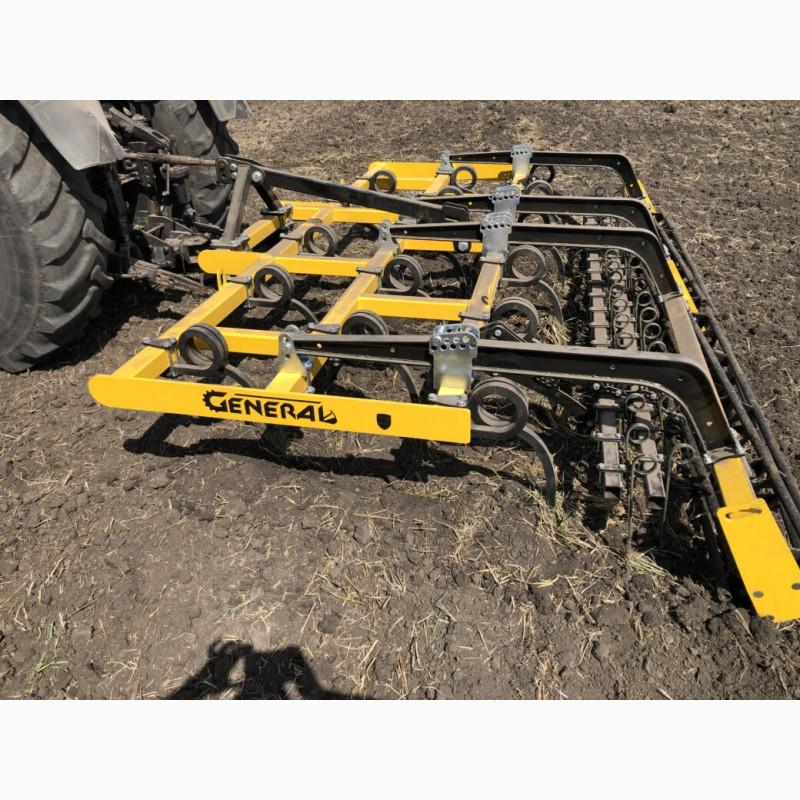

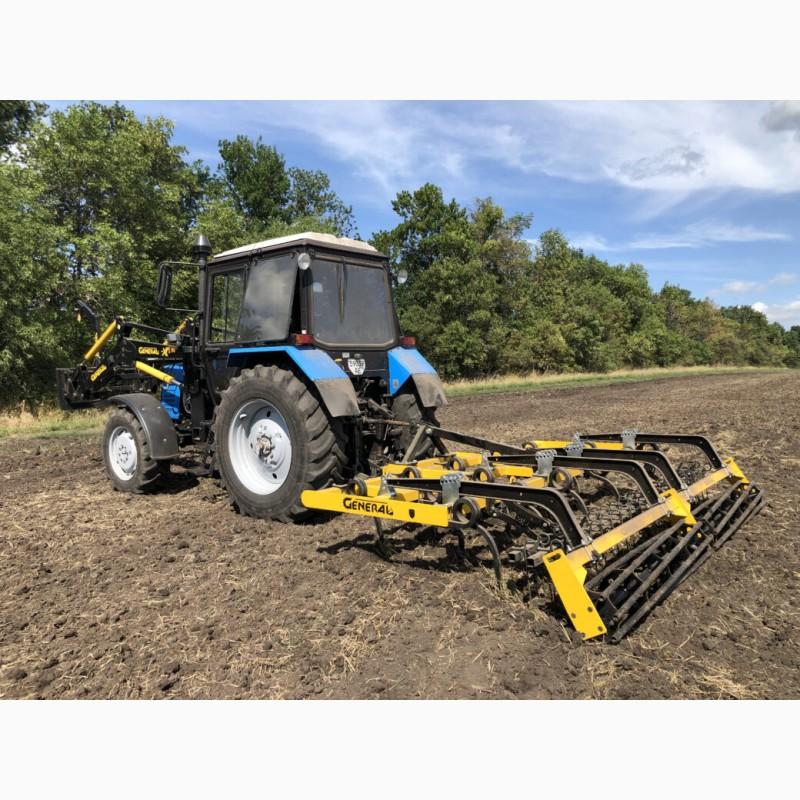

Cultivator solid mounted 3-row General KNS 3.5 (on two-row rack), Zaporizhzhya region.

Cultivator solid hinged 3-row General KNS 3.5 (on a two-wire rack)

Cultivator of continuous processing mounted 3-row GENERAL KNS 3.5 (on a two-row rack)

The hanging cultivator GENERAL KNS is universal and is used for pre-sowing cultivation and continuous steam processing. This cultivator provides complete soil preparation for sowing in just one pass through the field!

GENERAL KNS combines the simultaneous execution of 4 operations:

cleaning steam from weeds with trimming and combing their roots
loosening the soil without turning the layer and combing plant residues
breaking up lumps of earth and leveling the soil with a rake with spring teeth
compaction and formation of the ideal structure of the sole and the surface layer of the soil with rolling rollers to prevent moisture evaporation.

The working bodies on this model are arranged evenly in a checkerboard pattern in three rows. This arrangement of the racks provides an impeccable effect of loosening and mixing the soil, while not being clogged with weeds and plant residues!

The range of applications of GENERAL KNS:

Pre-sowing cultivation and preparation of the seed bed

Complete processing and cleaning of vapors from weeds.

Alignment of plowing

Technical characteristics

Aggregation method: hinged, quick-detachable euro beam

Gripping width: 3.5 m

Number of rows: 3
(//tractor-service.com)
Decoration depth: 3 - 15 cm.

Powertractor: from 60 HP

Type of working body: S-shaped spring worker

The step of placement of working bodies: uniform, in checkerboard order, with a step of 220 mm (660 mm in one row! )

The thickness of the profile pipe of the frame: 5 mm.

Rake: yard

Rollers Cultivator: double, with a diameter of 320mm, one of 4 types (pipe straight, pipe spiral, strip straight, strip spiral)

All elements of the cultivator undergo mandatory processing, namely: cleaning, grinding. Before painting, primer and drying are carried out in the painting chamber! At the end, all parts are covered with enamel and dried in a drying chamber to acquire the necessary hardness of the paint.

Advantages of a two-turn rack:

There is no need for any adjustments, all organs are initially in the same plane;
the two-turn rack is not prone to plastic deformations (it springs back and returns to its place);
during operation, the paw carries out constant cyclic oscillations in the longitudinal direction, which reduces the sticking of the soil (the so-called vibration effect);
the spring stand protects the paw from damage on problematic soils with stones, roots, etc.;
Very simply arranged, no hinges etc.
We actually use three bolt fasteners, which differ from the original in terms of strength and reliability.

* Please specify the prices - they may change - according to the exchange rate, prices for metal, fuel and payment terms.

An individual approach to each client is ready to discuss and find compromise solutions as a result of negotiations and meetings.

Call! We will be happy to help!

We hope for fruitful cooperation!
