Cultivator solid trailed 3-row General CPRS 5.0- Bellota, Zaporizhia region.

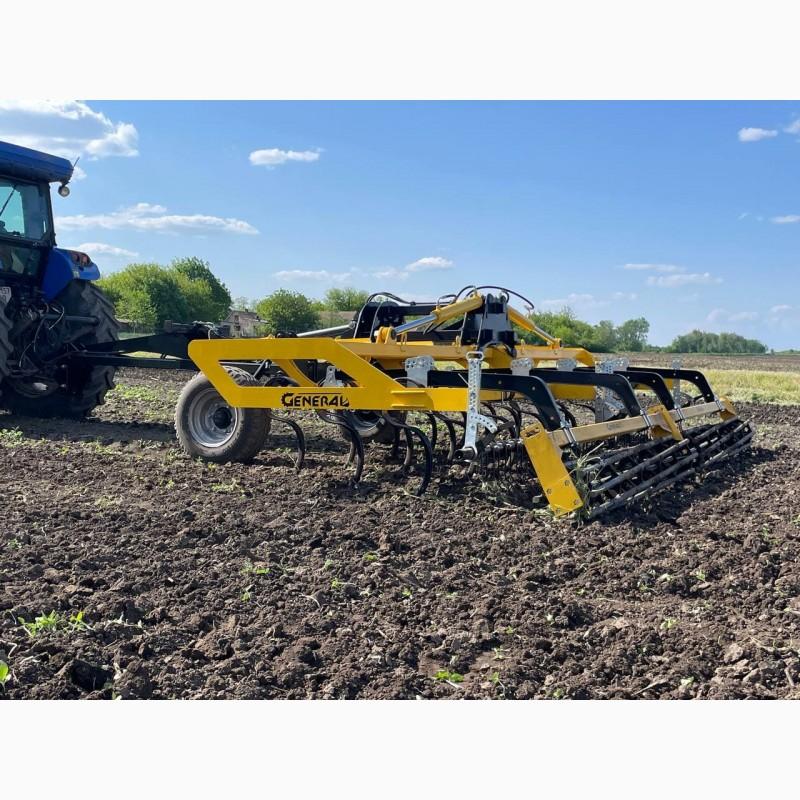

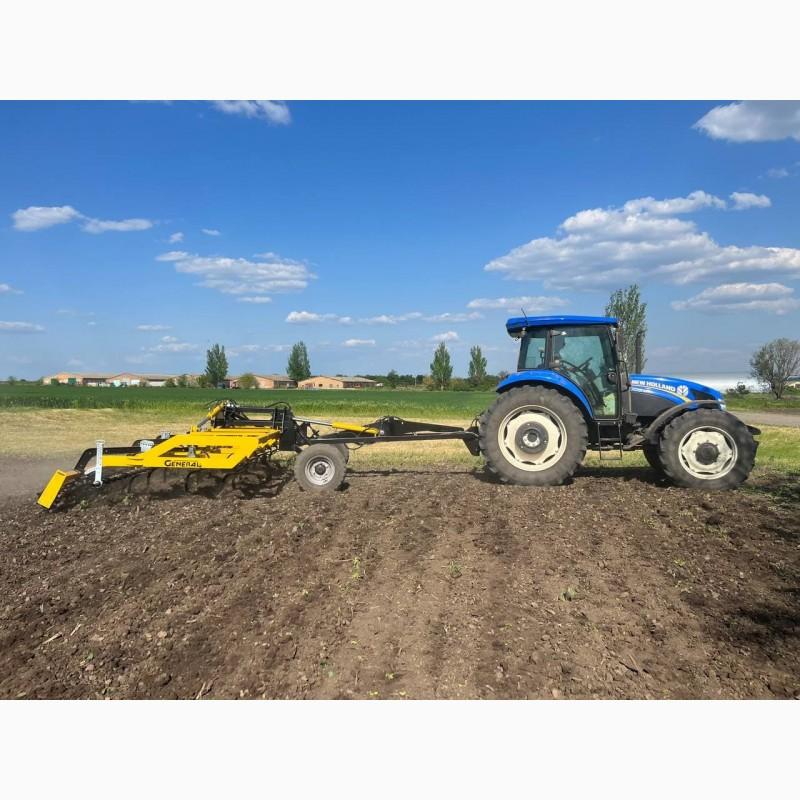

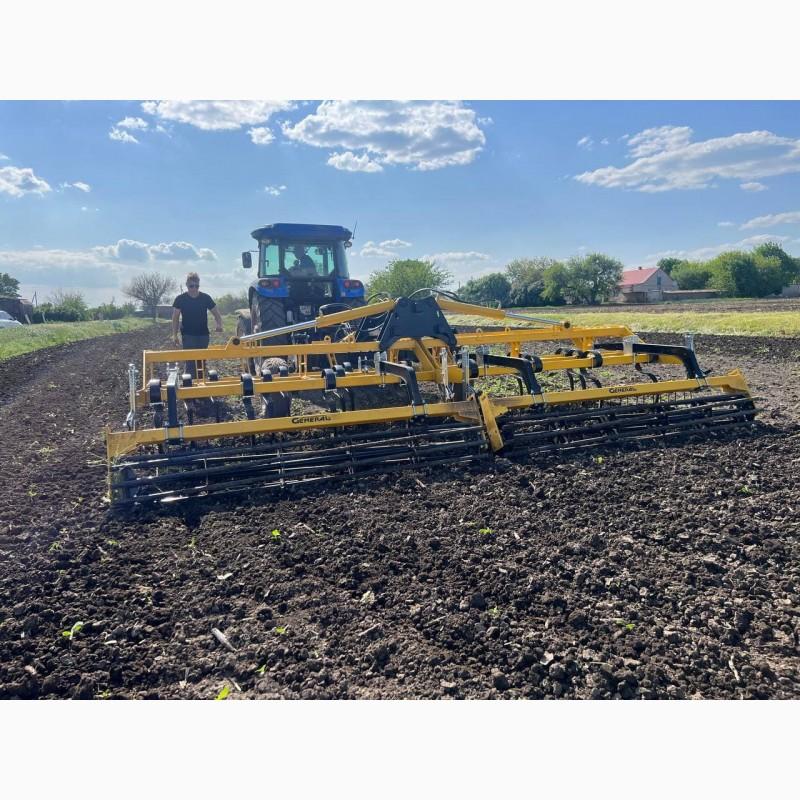

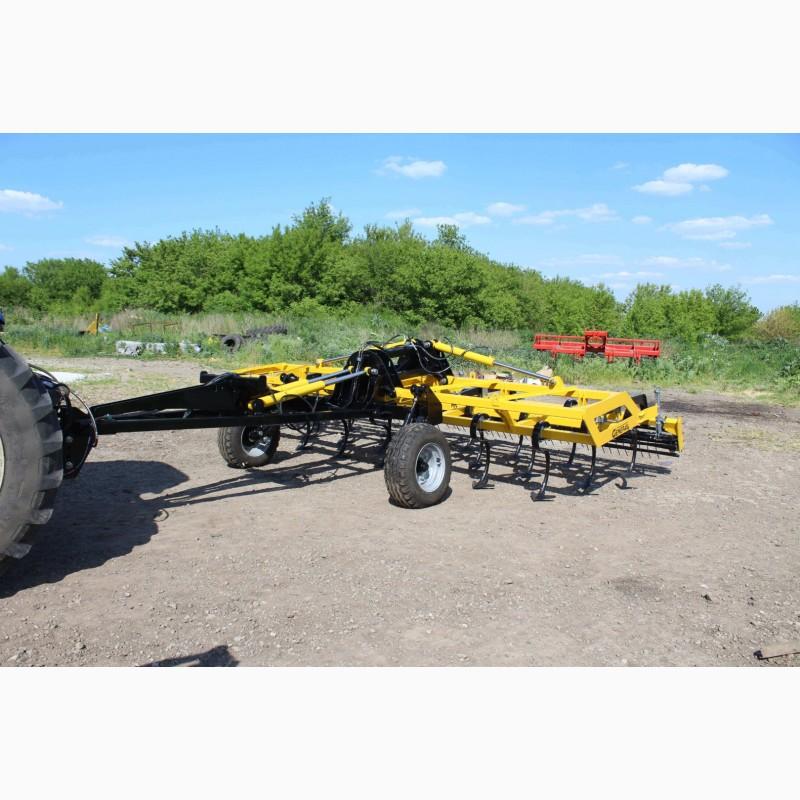

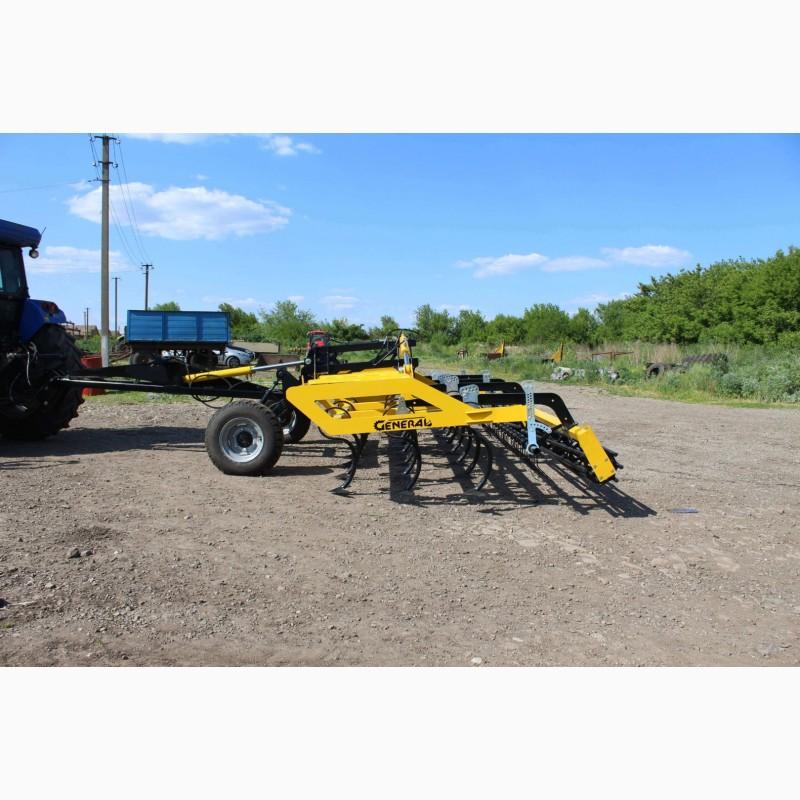

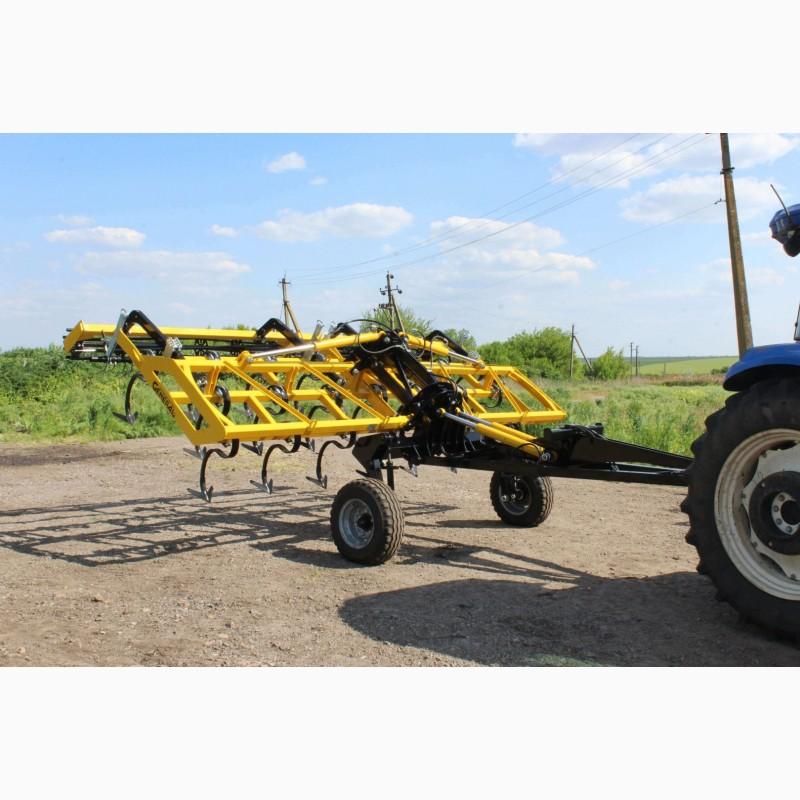

Cultivator solid trailed 3-row General CPRS 5.0 - Bellota

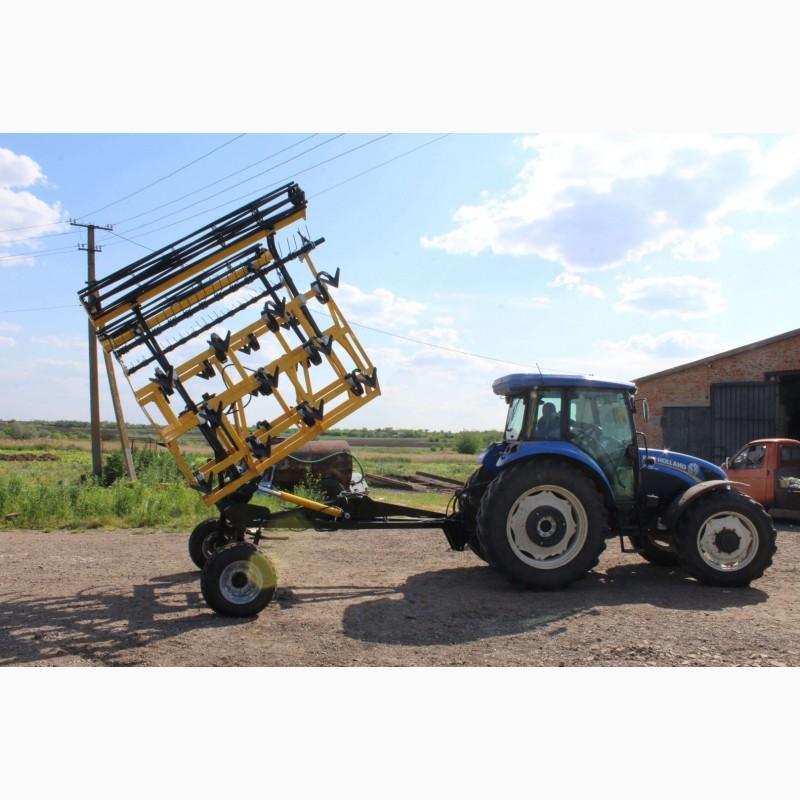

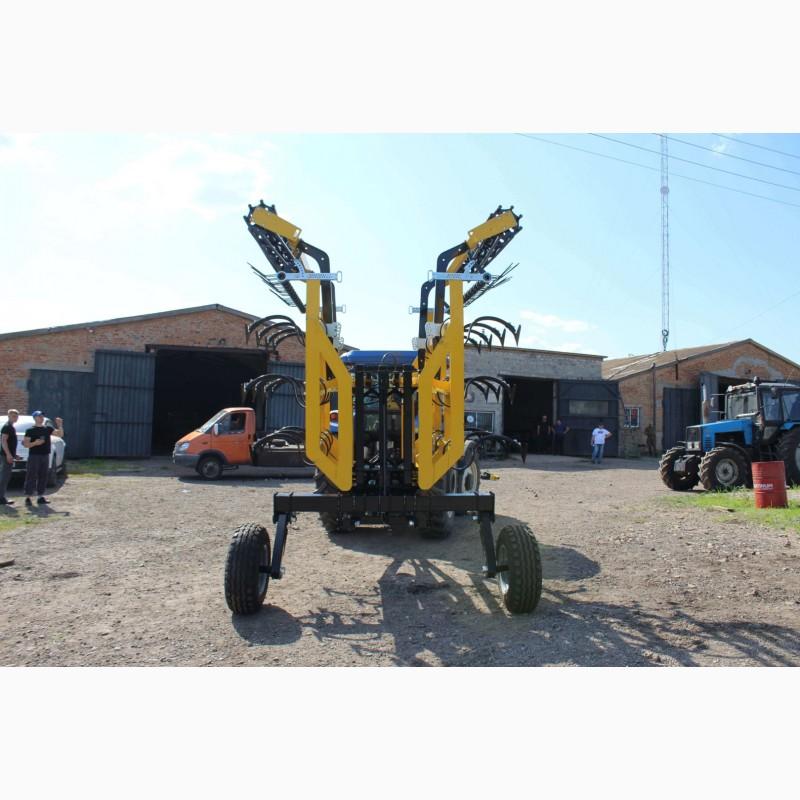

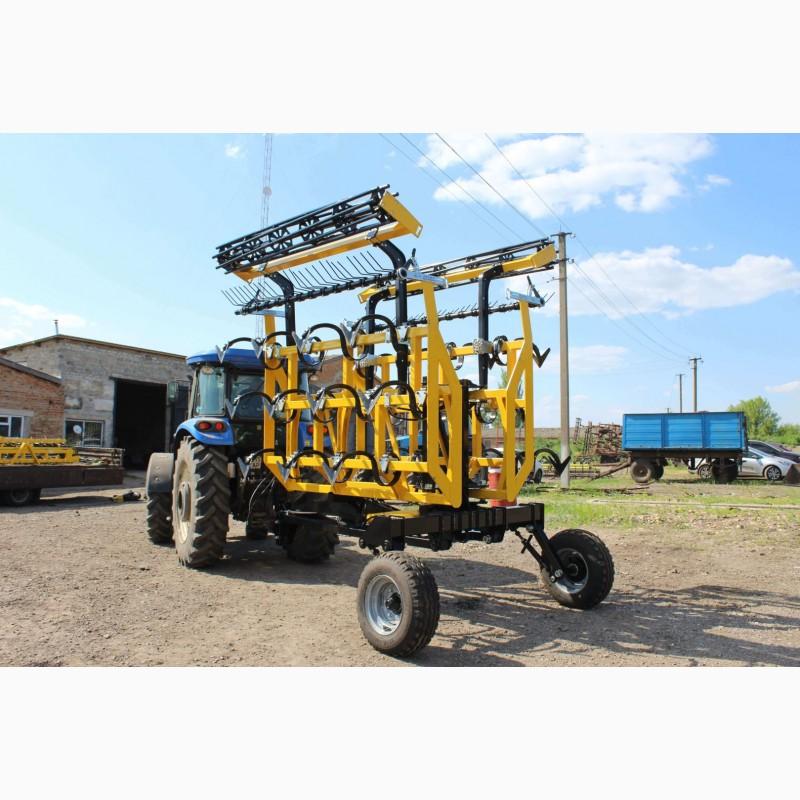

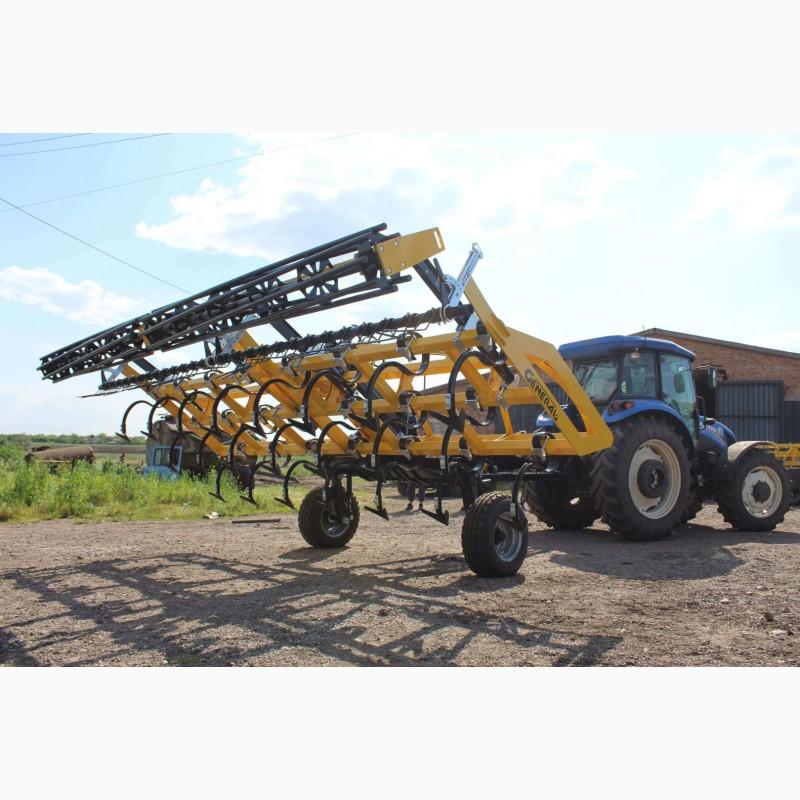

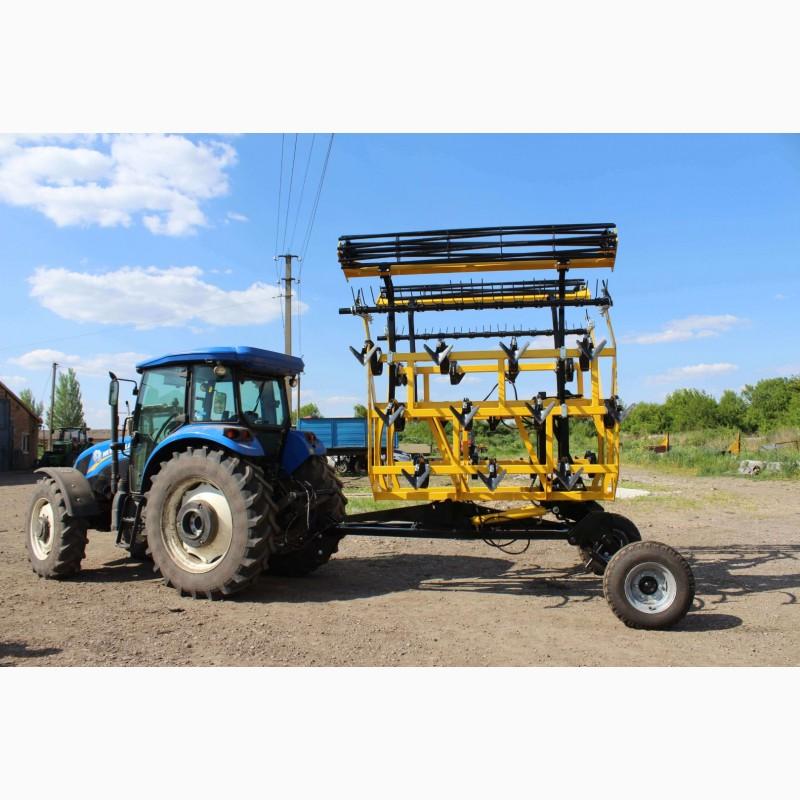

The hinged cultivator GENERAL KPRS 5.0 is foldable and universal and is used for pre-sowing cultivation and continuous steam processing. This cultivator ensures complete preparation of the soil for sowing in just one pass through the field!

General CPRS 5.0 folding combines the simultaneous execution of 7 operations:

cleaning steam from weeds with trimming and combing their roots,
loosening of the soil without circulating the layer and depositing plant residues
painting lumps of earth and leveling the soil with a rake with spring teeth
compaction and formation of the ideal structure of the surface layer of the soil by rolling rollers to prevent moisture evaporation.

On this General cultivator, you can choose:

active rigid racks Gryadil with adjustment of the angle of attack of the paws
safety springs with stiffness adjustment.

Active rigid racks Gryadil - this type of racks is recommended for use on heavy wet soil. Thanks to the protective spring mechanism, the racks are easily adapted to different types of soil and do not break under critical loads or passively vibrate S-shaped Bellota racks made of highly elastic boron steel.

Springs with stiffness adjustment - this type of racks is recommended for use on dry loose soil. Thanks to the monolithic S-like design, the racks vibrate and perfectly loosen and level the soil!

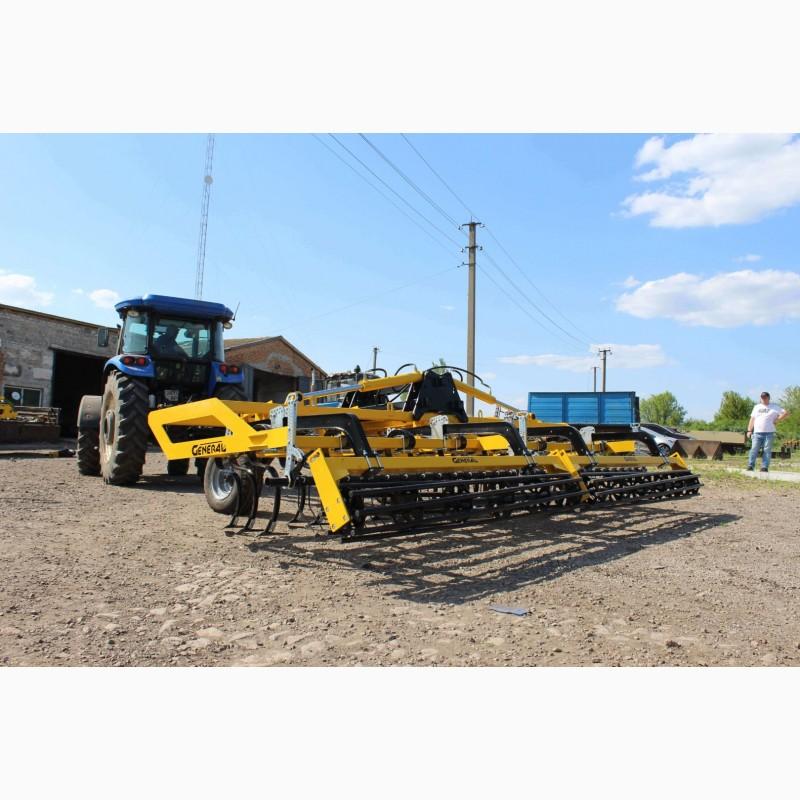

The working bodies on this model are arranged evenly in a checkerboard pattern in three rows.
The spectrum of application of the General CPSU:

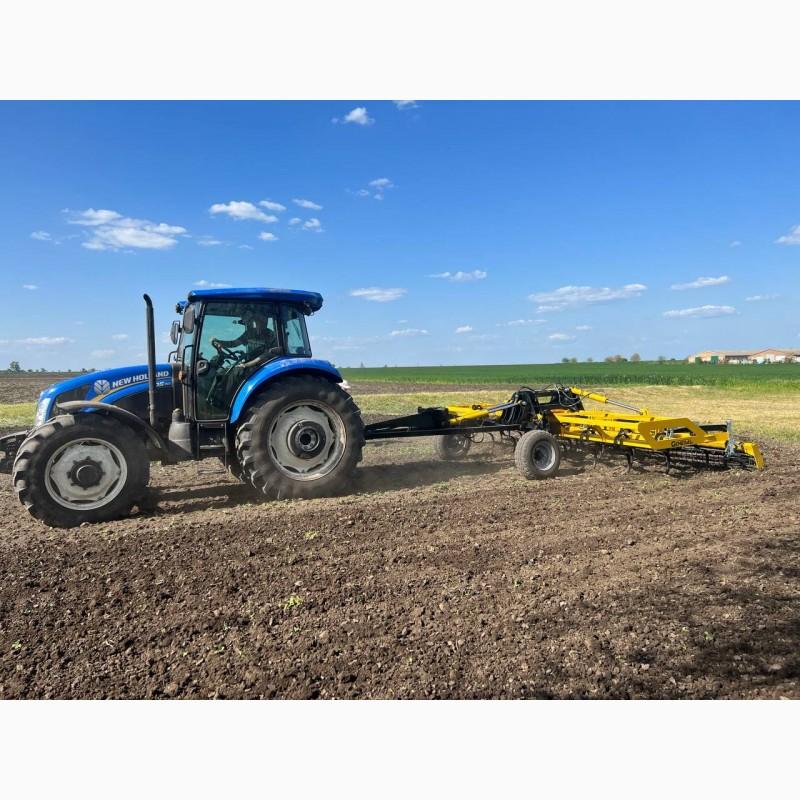

Pre-sowing cultivation and seedbed preparation
Continuous treatment and cleaning of vapors from weeds.
Alignment of plowing

Technical characteristics General

Aggregation method: Trailed
Capture width: 5 m
Number of rows: 3(//tractor-service.com)
Processing depth: 4 - 15 cm.

Working bodies General:

Type of rack: Passive vibrating S-like Bellota made of high-elastic steel
A bushing with a bushing for lubricating the replaceable bushings of the working body.
Placement step: even in checkerboard order
Paw width: 260 mm
Material of legs and racks: Forged hardened boron steel with polymer super-resistant coating.

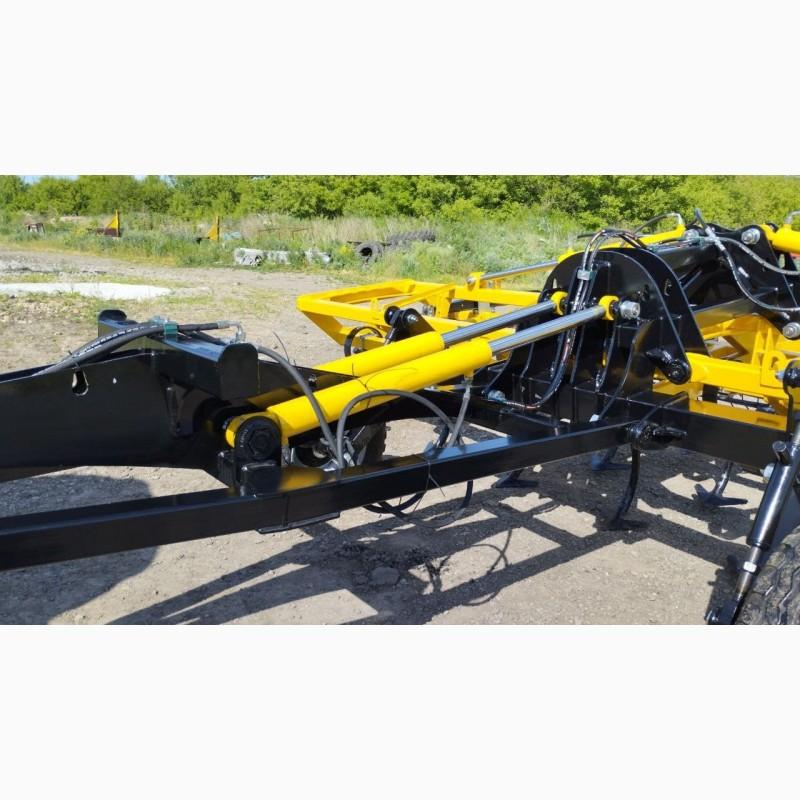

Frame with a wall thickness of 5 mm.

Complete set General:

Grabs with spring hard teeth 8x320 mm made of hardened steel grade 70
Rollers rolling with a diameter of 300 mm, knife thickness 6 mm and bearings in a cast iron housing UCF 208 (Japan)
Lubricated fingers of power drives
Fingers made of steel 45 with cotter pin.

All elements of the General cultivator undergo mandatory processing, namely: cleaning, grinding and sandblasting! Before painting, primer and drying with a heat gun is carried out! At the end, all parts are covered with a polyurethane coating and dried in a drying chamber!
Functional properties General

Adjustment of the angle of attack and the depth of processing of rakes.
Height adjustmentrolling rollers.
Adjusting the cultivator processing depth.

* Specify the prices - they may change - according to the exchange rate, prices for metal, fuel and payment terms.
