Equipment for the production of concrete pipes and culverts, 150-800 mm, Kyiv

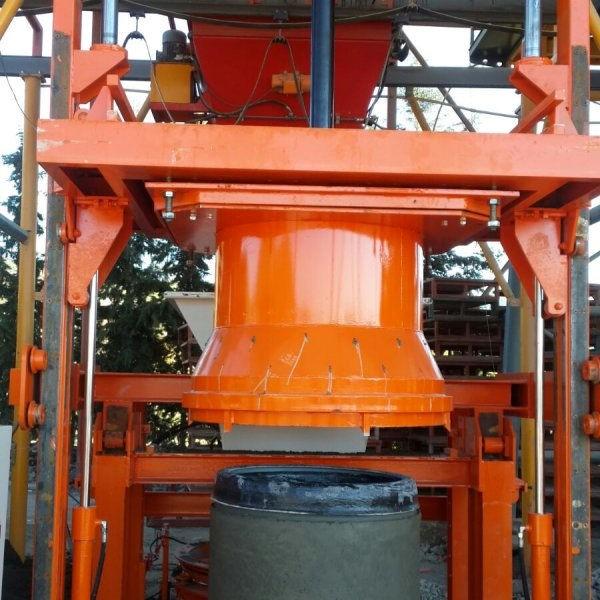

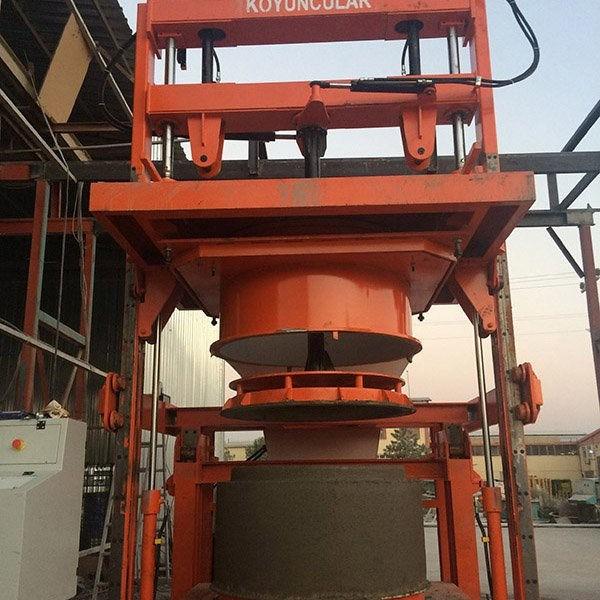

A machine for the production of concrete pipes with a diameter of 150-800 mm.

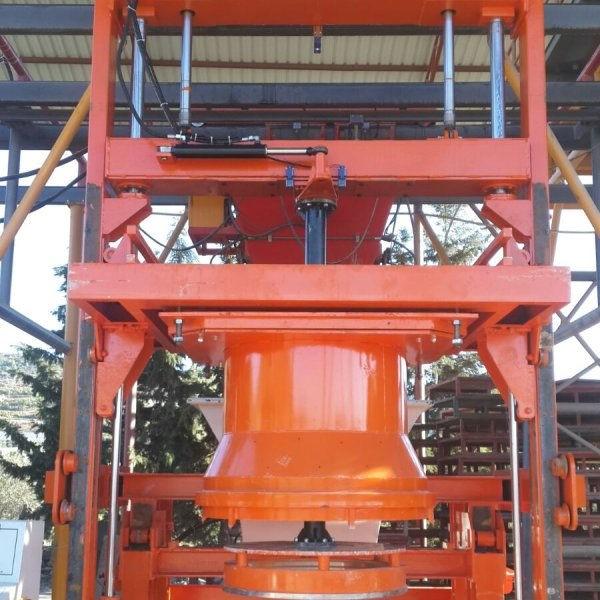

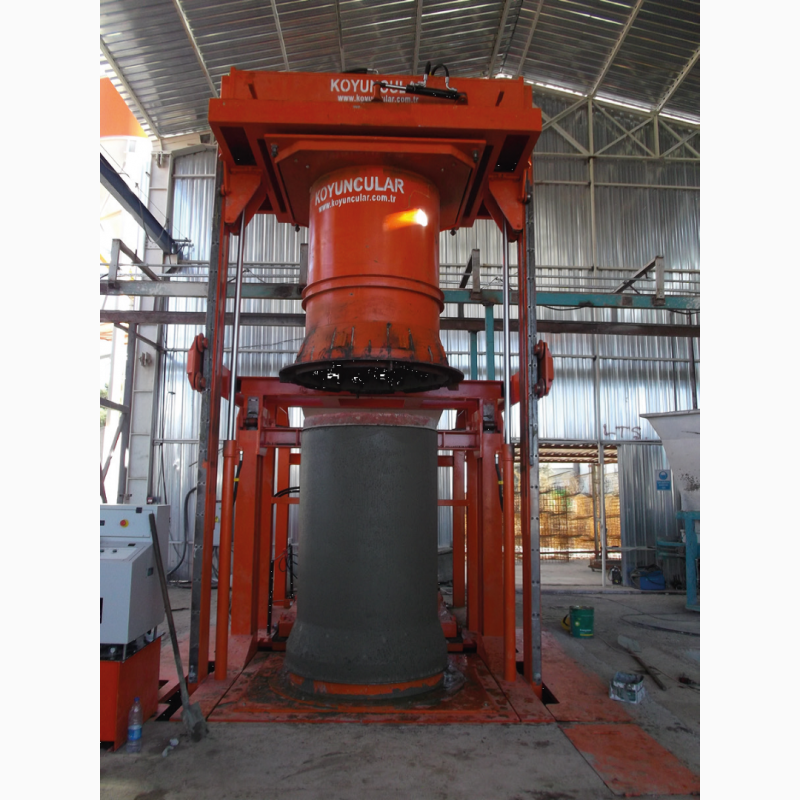

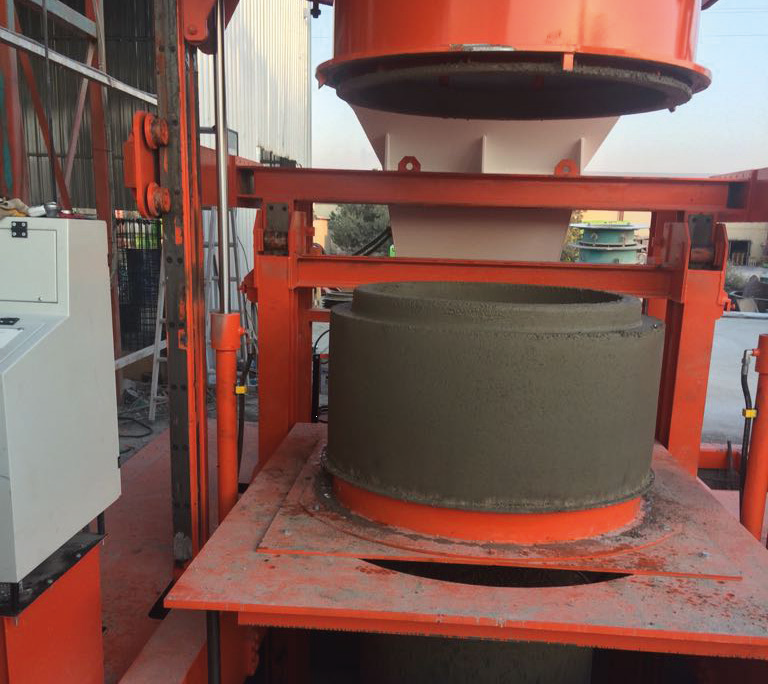

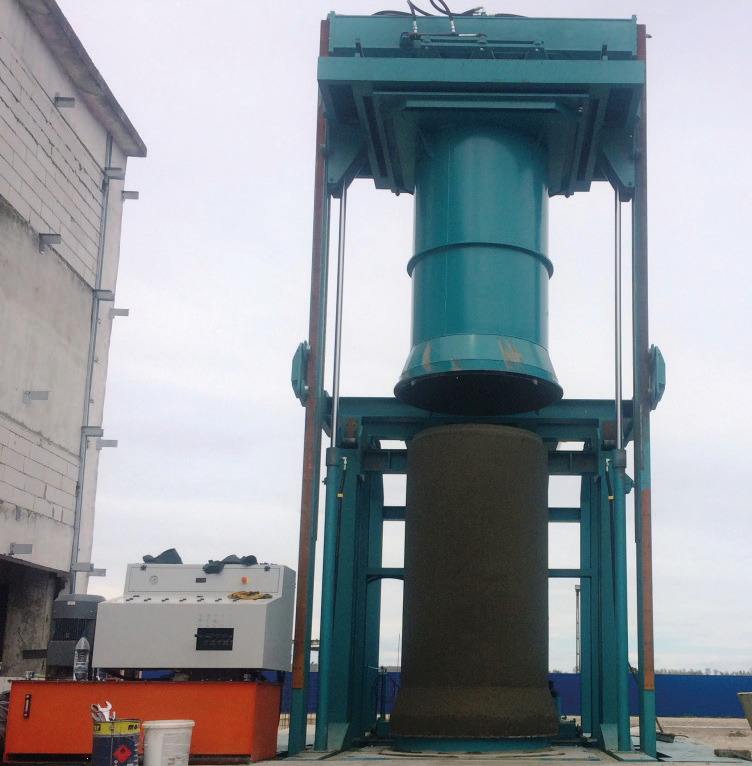

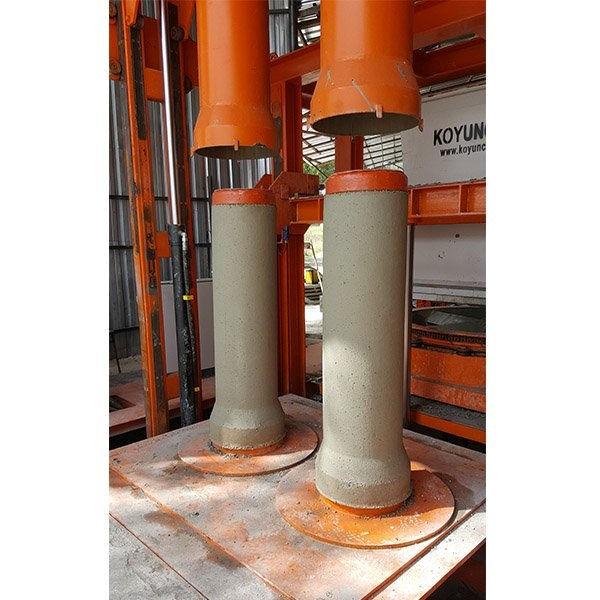

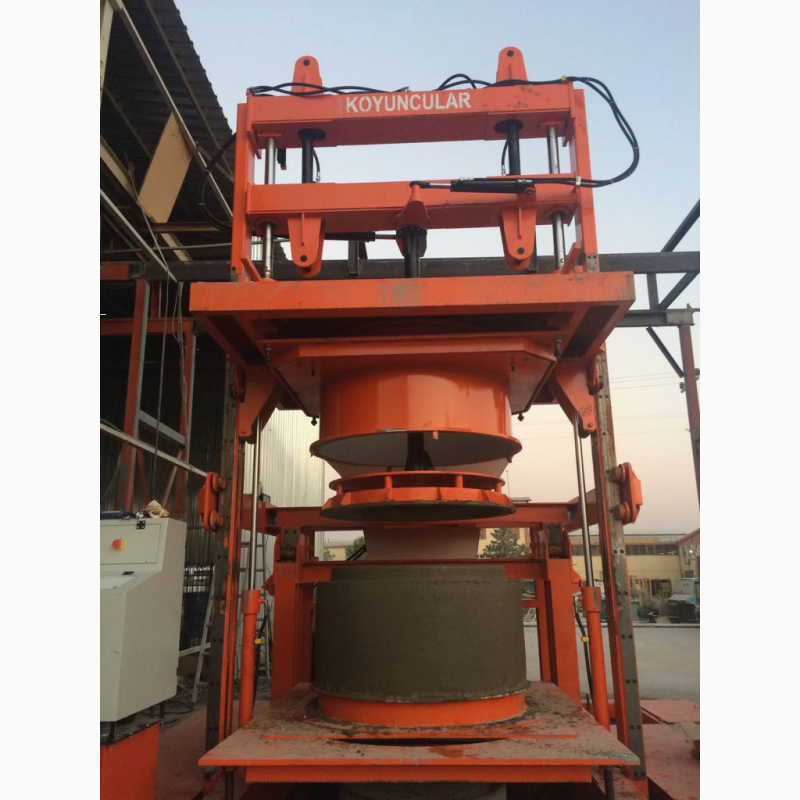

Concrete pipe machine KMS 800 with three molds for simultaneous production;

It manufactures concrete pipes with diameters from Ø150 mm to Ø800 mm with a minimum length of 1000 mm and a maximum length of 2000 mm according to the Iller Bank TSE 821 specification.

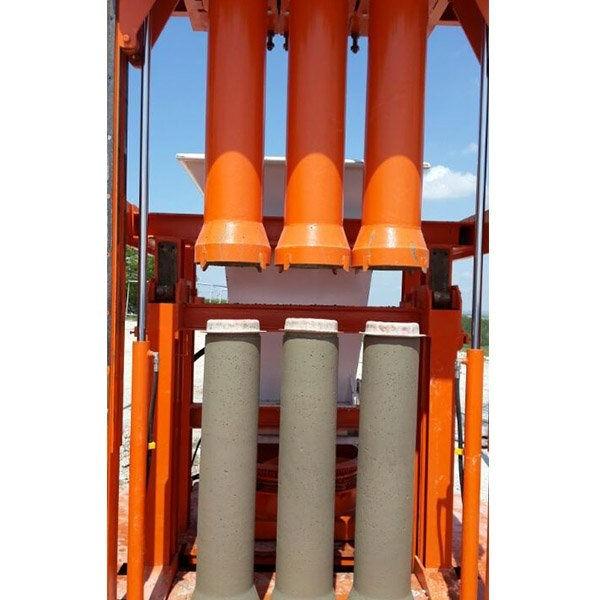

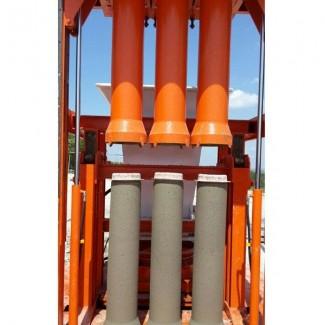

Three molds for concrete pipes Ø150 mm and Ø200 mm, two molds for concrete pipes Ø300 mm and one mold for other diameters can be connected at the same time.

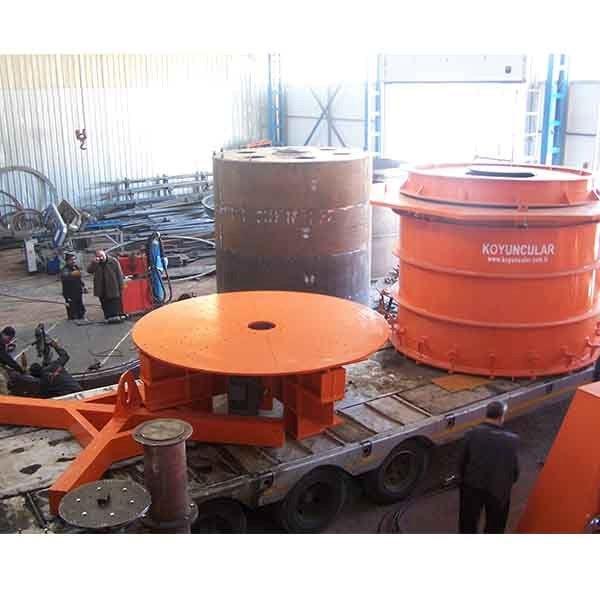

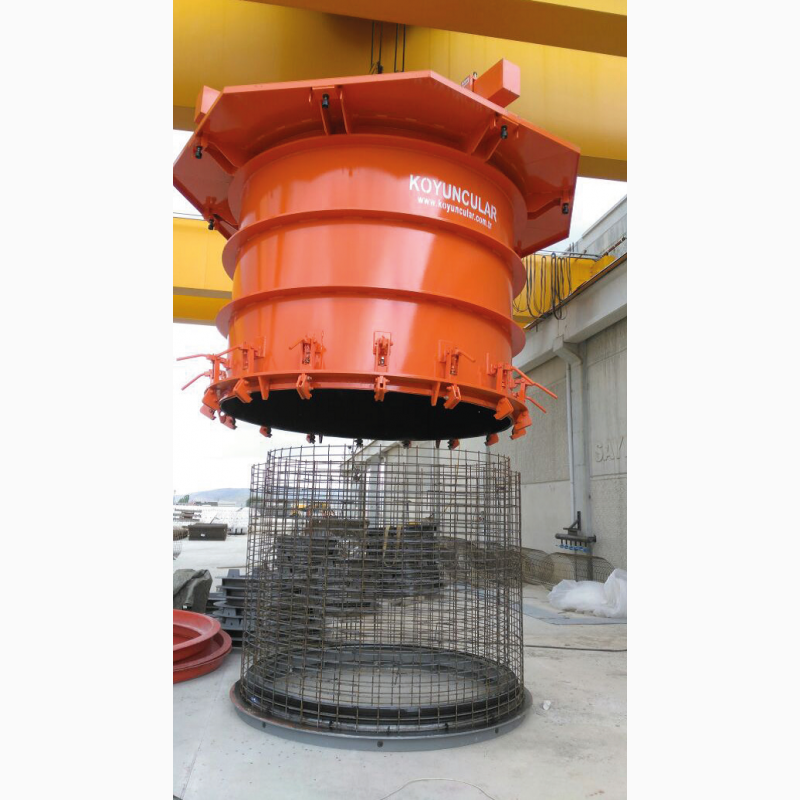

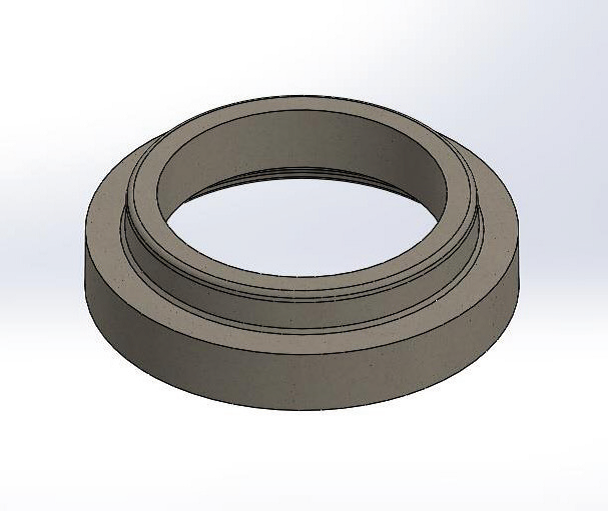

Molds and pallets with built-in gasket or hinged section gasket are manufactured according to requirements from Ø150 mm to 800 mm.
Our machines, manufactured in accordance with the KMS quality and trust policy, have been working without any problems for many years.

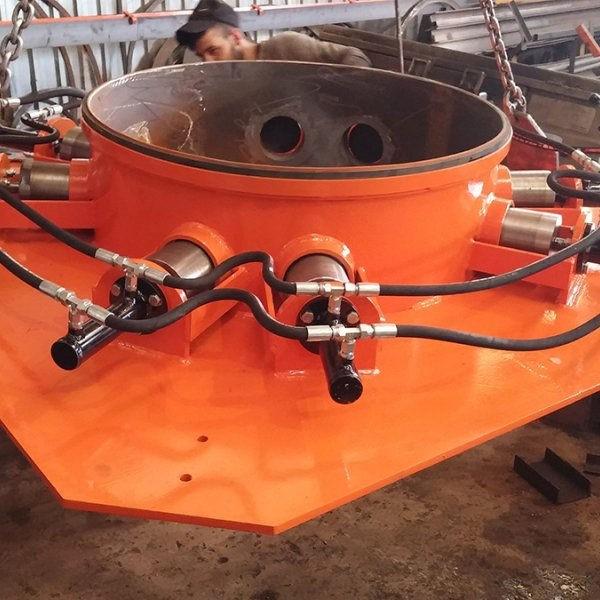

Vibration system of the machine with a closed liquid oil circulation system. The automaticlubricant system is activated during machine operation. The vibrator uses SKF or FAG bearings, resistant to high cycles and heat.
Press forms are made on CNC lathes according to the dimensions and stamping method.

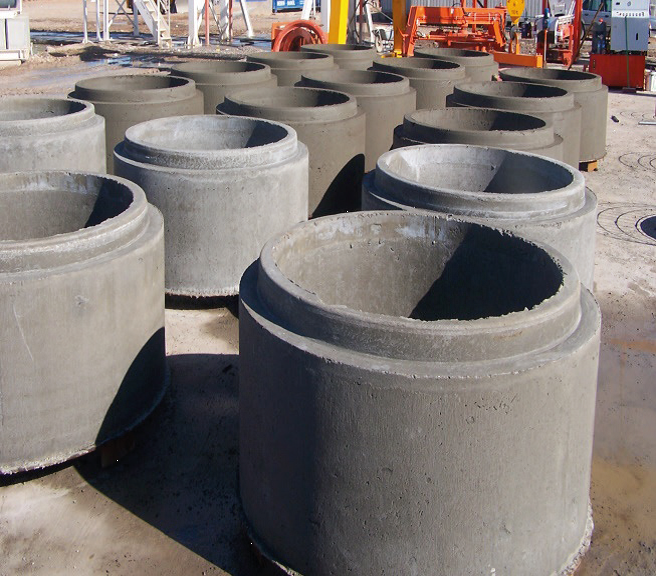

Manufactured concrete pipes are transported by forklift and delivered to the drying area.
The Triple System Concrete Pipe Making Machine has been designed to produce concrete pipes in the quickest and fastest way possible.
Our machines, manufactured in accordance with the KMS quality and trust policy, have been operating without any problems for many years.
The most important feature of KMS which raises awareness in its industry is that it responds to all kinds of queries and technical support needs of our esteemed customers immediately after installation and supports their two-way relationship at all times.

Technical specification:

Control system - Manual/semi-automatic

Production capacity Ø150mm-800mm

Vibrator motor power 11 kW 3000 rpm x 3 pcs.

Hydraulic motor power 18.5 kW 1500 rpm

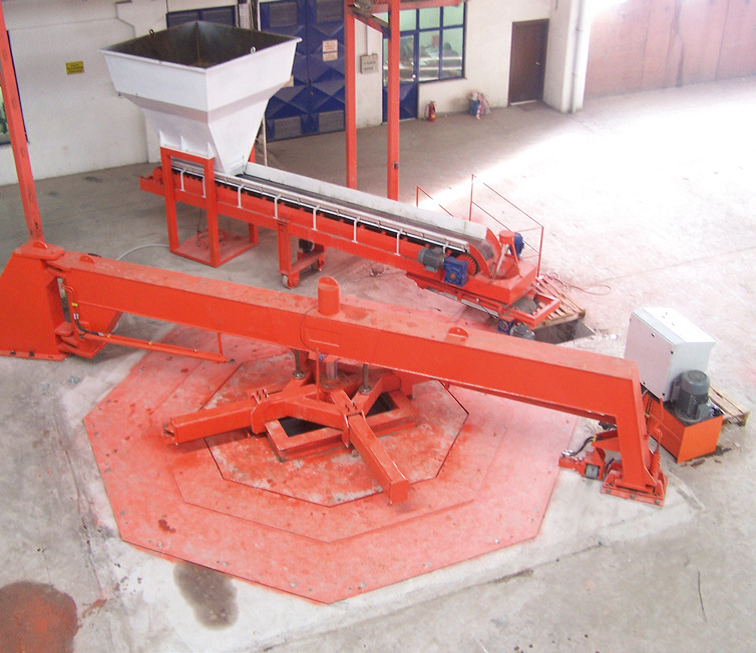

Distribution cart for solution Engine power 5.5 kW 30 rpm

Rotation motor power 2.2 kW 55 rpm

Vibrator lubrication system 0.37 kW 1500 rpm x3 pcs.

Hydraulic pressure 200 bar

Ladle for mortar 1.5 m3

Product specifications(//tractor-service.com)

Machine for pipes, Height size (mm) Average weight (kg)

Ø150 1500 110

Ø200 1500 157

Ø300 1500 250

Ø400 2000 520

Ø500 2000 750

Ø600 2000 1050

Ø800 2000 1350

Production volume Height mm Production per shift 8 hours

in one print

Ø150 3 pcs. 1000/2000 450 pieces

Ø200 3 pcs. 1000/2000 450 pieces

Ø300 2 pcs. 1000/2000 250 pieces

Ø400 1 pc. 1000/2000 150 pieces

Ø500 1 pc. 1000/2000 100 pieces

Ø600 1 pc. 1000/2000 80 pieces

Ø800 1 pc. 1000/2000 60 pieces

Warranty 24 months.

The manufacturer carries out chief installation and staff training.
