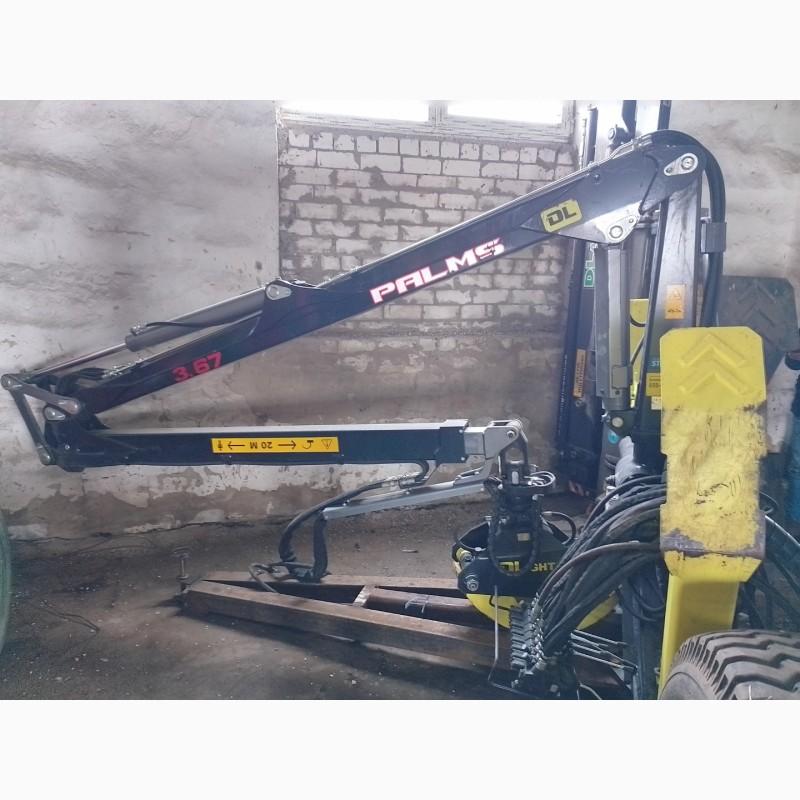

Manipulator Palms 3.67, Cherkasy region.

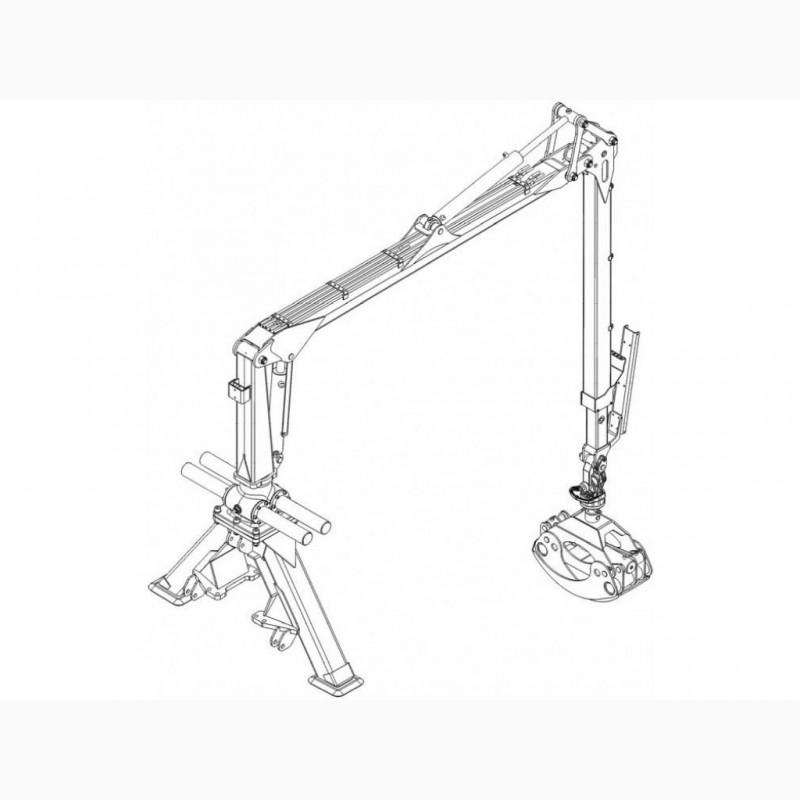

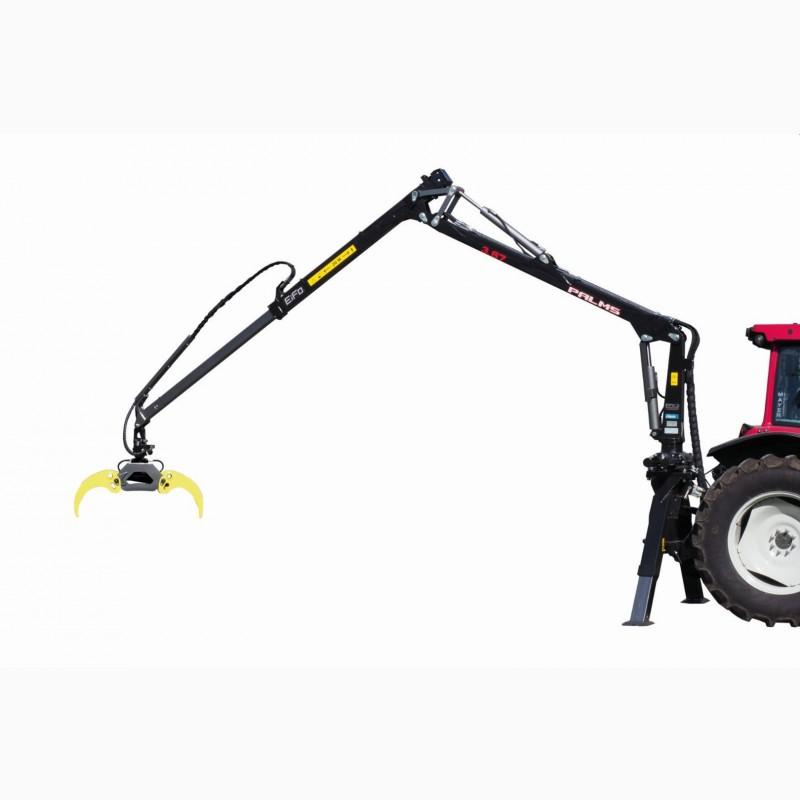

The Palms 3.67 manipulator crane is designed for factory mounts fortractors MTZ, KhTZ, YuMZ, but can be installed on similar models foreign production. Connection due to the standard hydraulic distributor system. It is intended for collecting and loading timber both in a pair with a timber semi-trailer and separately.

TECHNICAL CHARACTERISTICS:

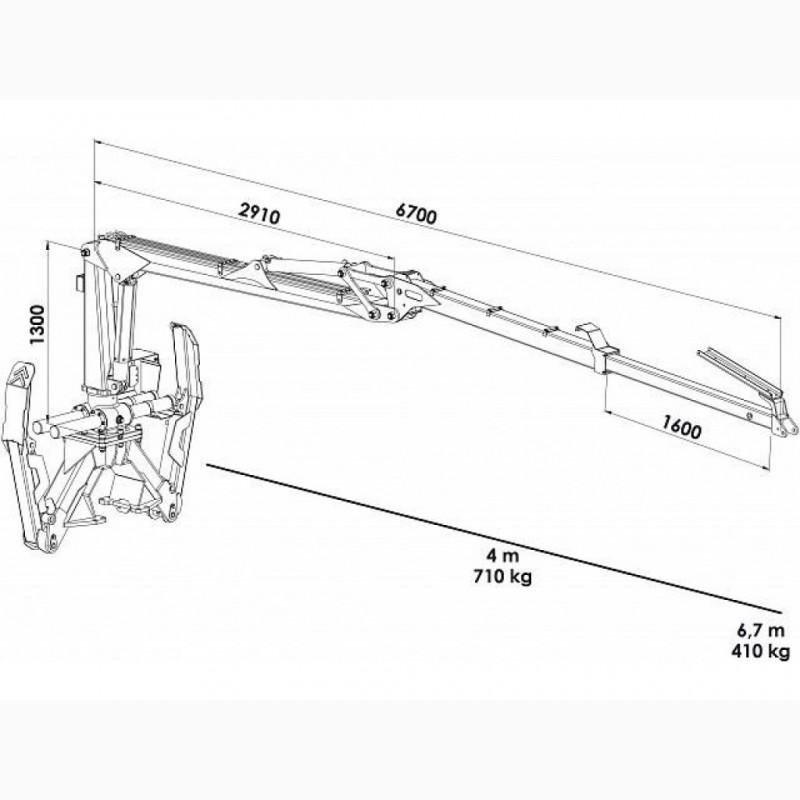

The maximum departure of the arrow: 6.7 m.
Lifting moment, standard, gross: 41kNm
Load capacity of the manipulator for 4 m, without grapple and rotator: 710 kg
Load capacity of the manipulator at maximum boom reach: 410 kg
Rotary hydraulic cylinders: 4 pcs(//tractor-service.com)
Torque: 12 kNm
Arrow turning angle: 370°
Weight of the manipulator without supports and distribution block: 620 kg.
Supports Type FD (folding) weight: 390 kg
Weight of the standard grab and rotator: 108 kg
Working pressure in the hydraulic system: 190 bar
The maximum power of the potator: 30 kN
Recommended powerpump: 30-45 l/min
Telescopic boom stroke length: 1.6 m
Supports Type A (telescopic) weight: 300 kg
