Hydraulic manipulator crane, loader, 1000 kg, for big bags on MTZ tractor, YuMZ, Dnipropetrovsk region.

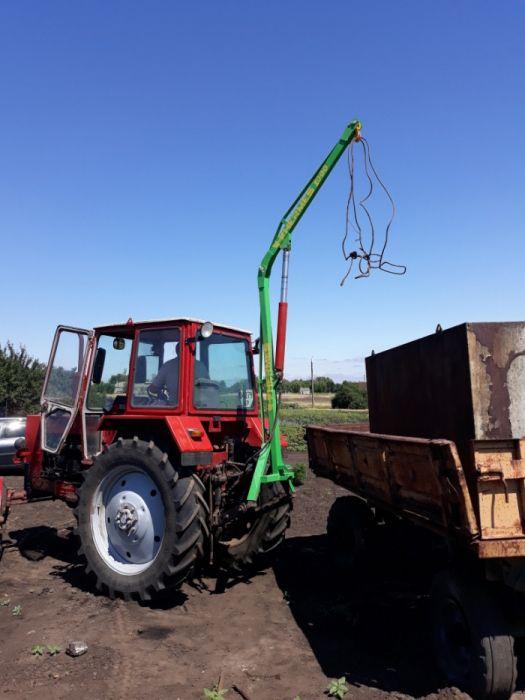

The advantage of our crane is that it is possible to transport tractors trailers and trailersfertilizer spreaders without removing the manipulator.
A manipulator crane was installed on the tractor and at the same time a trailer or fertilizer spreader was attached. One tractor in the warehouse will load fertilizers or take the seed material to the field and load the planter or spread the fertilizers.

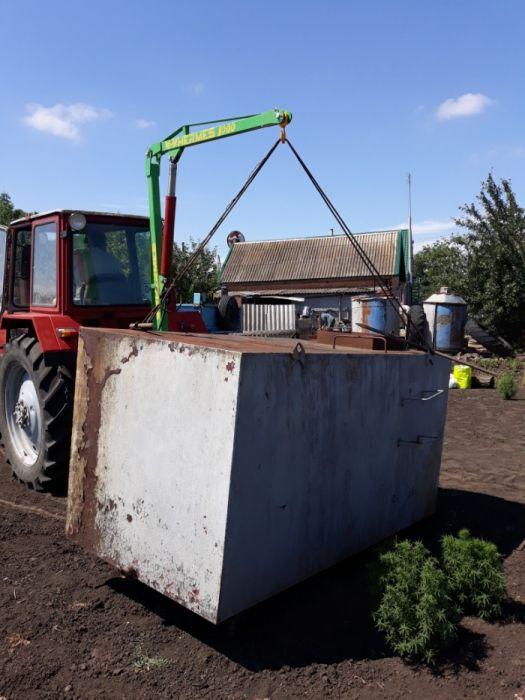

It is used in field conditions for loading and unloading of seed material, fertilizers and other bulk goods transported in "Big-Bag" bags. Also for loading and emptying containers with water such as Eurokub 1000l and other tanks. This is also the case when performing various types of repair and construction work. (Lifting of engines, gearboxes, slabs, bricks, and other loads).

Characteristics:
(//tractor-service.com)
The maximum lifting height is 4.3m.
Load capacity-1000 kg.
The possibility of towing a trailer 2PTS-4 and analogues
The weight of the installation is 350 kg.
Hook working body - 2t
Hydraulic cylinder 1 piece

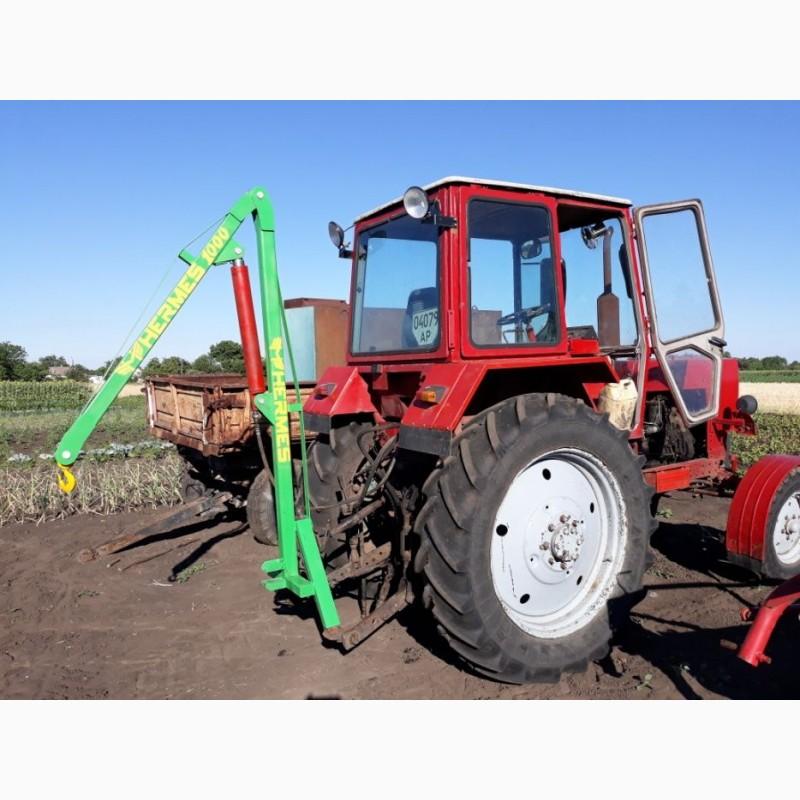

Structurally designed for mounting on tractors: MTZ, YuMZ, T-150, KhTZ, T-40, T-25, as well assimilar tractors European, American, Chinese and other manufacturers. It is connected to the regular hydraulic system of the tractor.
