I will sell a trailing harrow BZSh-18, Dnipropetrovsk region.

BZSH-18 trailing harrow for sale.Tooth harrow trailing BZSh-18 with a working width of 18 meters, the trail consists of 16 rows of teeth made of 65G steel and heat-treated, the angle of attack of which is 45 and 67 degrees. A trailing harrow is subject to partial state compensation of 25-40%. Production. Guarantee. The main functions of the BZSh-18 tooth trail harrow for early spring field work:
- sealing of moisture, grinding of clods, leveling of the field surface, distribution of harvest residues on the field surface after winter;
- acceleration of drying of the upper layer of the soil for the possibility of carrying out earlier sowing without weathering of moisture;
- application of mineral fertilizers and soil herbicides;
- provoking the germination of weed seeds, and destroying their seedlings during further processing.
In the period of harvesting and the summer period: provoking the germination of weed seeds, shallow processing of stubble after harvesting (instead of peeling, when the soil is not strongly compacted)
- uniform distribution of crop residues on the surface of the field, mulching of the soil to accumulate a large amount of moisture and retain it. Prevention of water and wind erosion.
Autumn period of field work:
- provoking the germination of weed seeds, and destroying their seedlings during further processing;
- crushing lumps, leveling the field surface, distribution of plant residues for high-quality sowing of winter crops;
- application of mineral fertilizers. Technical characteristics of trail harrow BZSh-18
BZSh -18
Type Trailer
Processing width 17.65 m(//tractor-service.com)
Tractor power from 330 hp. p.
Working speed 8-15 km/h
The processing depth is 4-9 cm.
Angle of attack 45°; 67°
Number of rows of teeth 16
Transport width 4.9 m
Weight kg. 6750
Features of the trailing (heavy) BZSh-18 tooth harrow are the following structural and technological solutions, which allow to significantly increase reliability and working life, as well as improve maintainability.

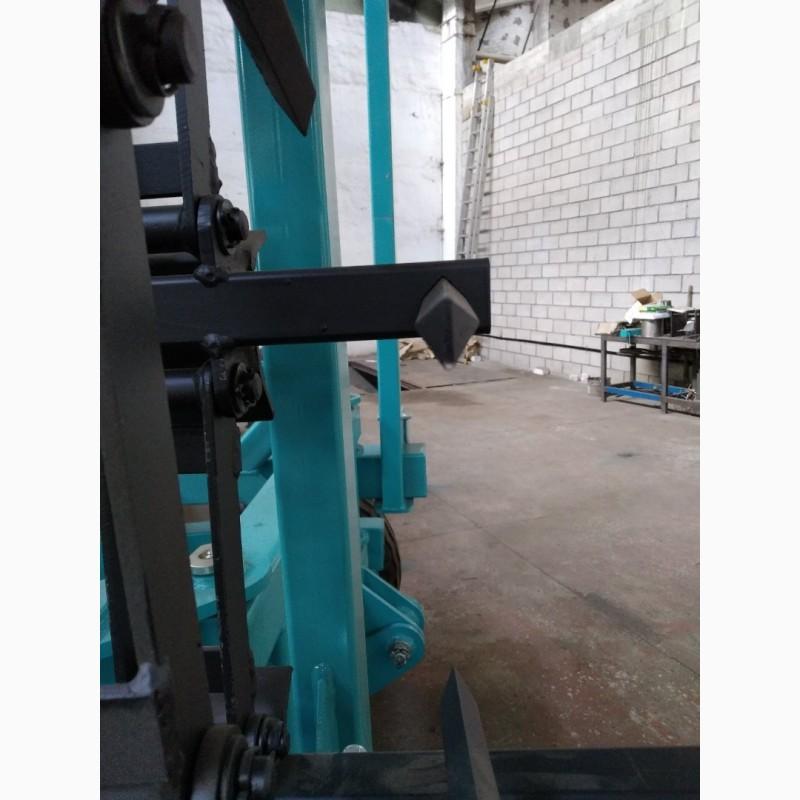

• The tooth is made of a square of 65G steel with appropriate heat treatment. The use of a square milled on two sides into a sharp wedge ensures the work of the cutting edge of the square and the wedge working surface with the effect of self-sharpening. A sharp wedge easily penetrates the soil.

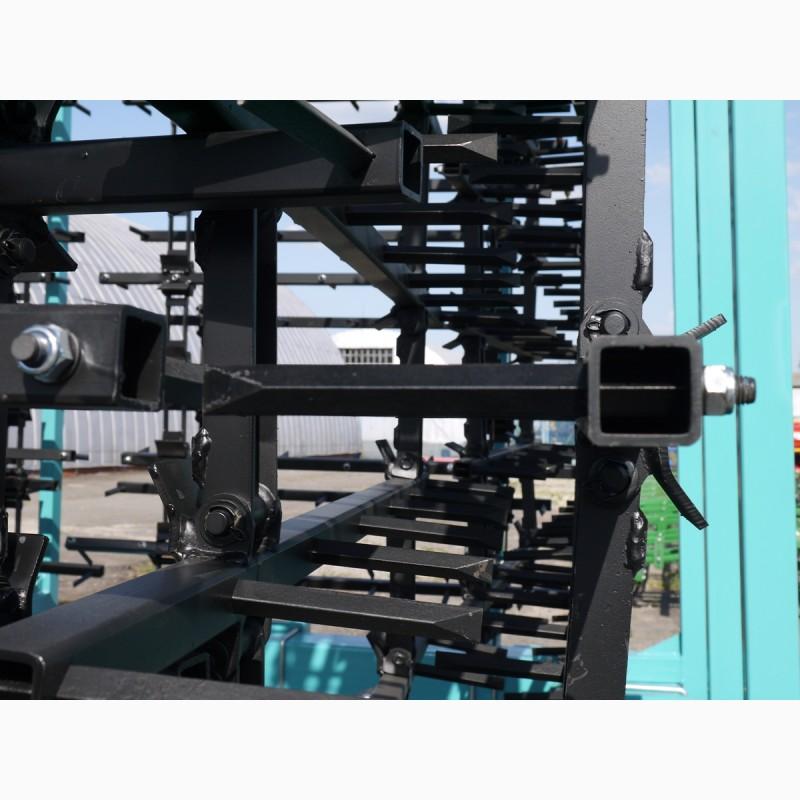

• When using the teeth of a thick-walled pipe with a square section as a supporting beam, it became possible to orient a square hole with a section of 16x16 in one wall of the pipe, which in turn allows you to avoid a dangerous transitional section of the tooth in the area of ​​the square thread.

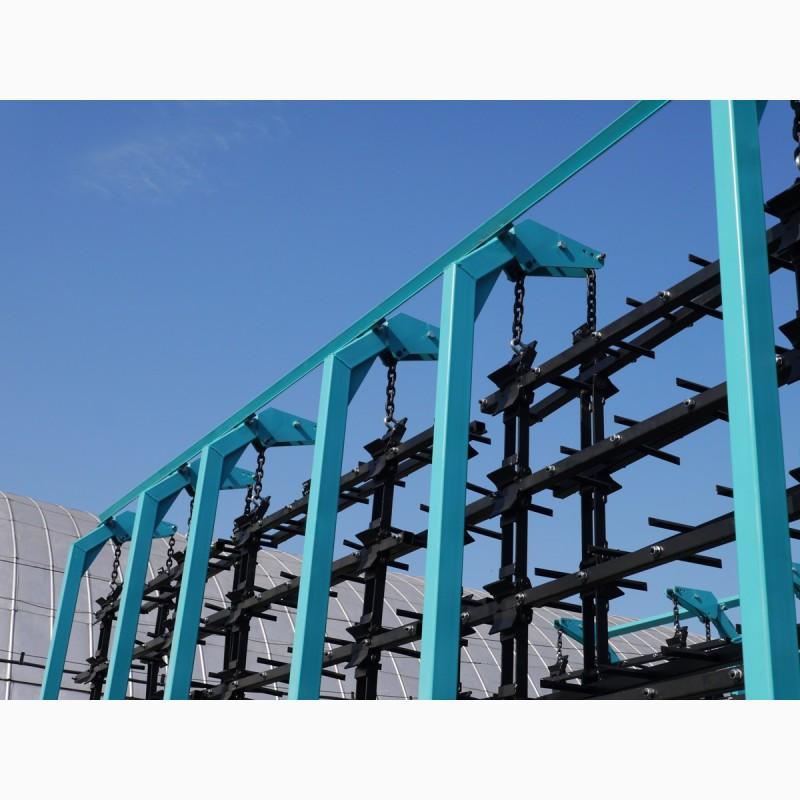

• The links that collect the load-bearing beams into a train are made of strong 30G2R steel, used formanufacturing disks drill bits, laps. Also, the frame structure of the link gives the train stability when working without demolishing the track. Fastening the link to the tooth beam with the help of three-dimensional axes significantly increases the maintainability of the site.
• Stops stamped from sheet steel installed on the tooth beam ensure the necessary angle of installation of the teeth (23° or 45° from the vertical).

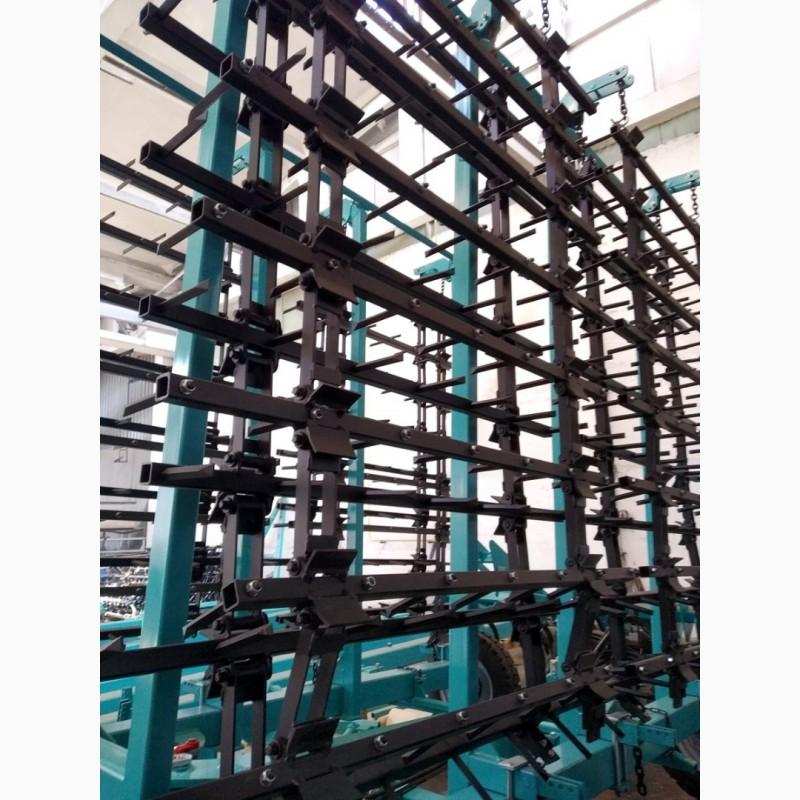

• The arrangement of the teeth with an interaxial distance of adjacent teeth in the plane of 25 mm and a diagonal of the square of 22 mm provides almost complete overlap of the working area over the entire width of the grip in the construction of the loop, which consists of ten supporting beams with teeth.
• The supporting frame allows you to install additional containers and systems for applying the necessary chemicals and fertilizers.
