I will sell a trailing harrow BZSh-14, Dnipropetrovsk region.

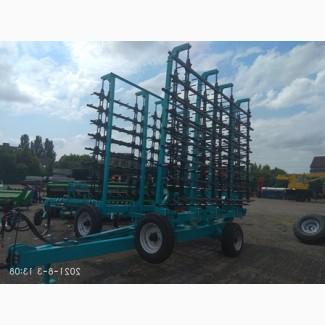

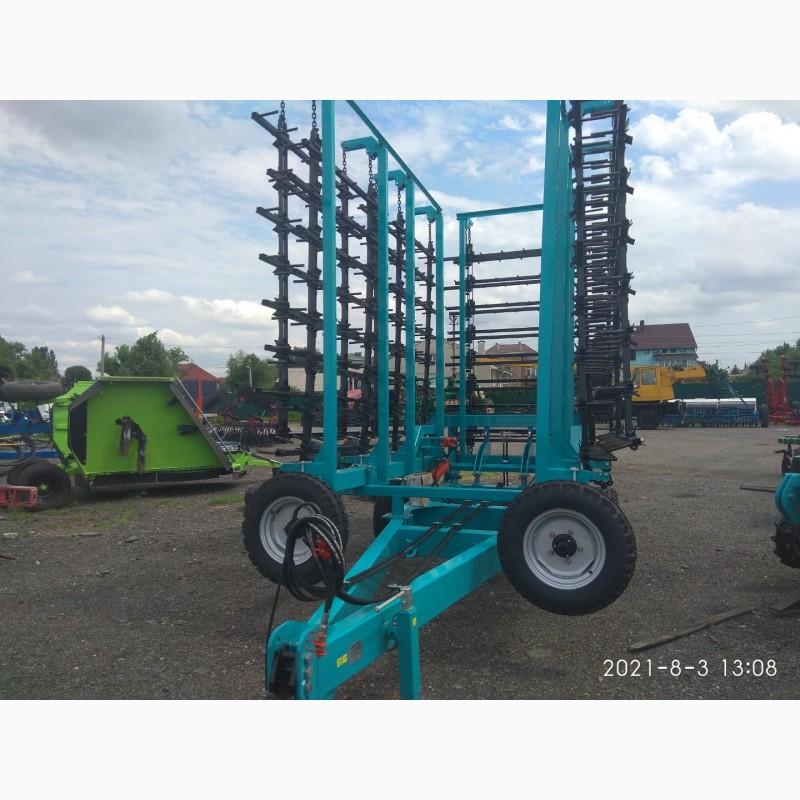

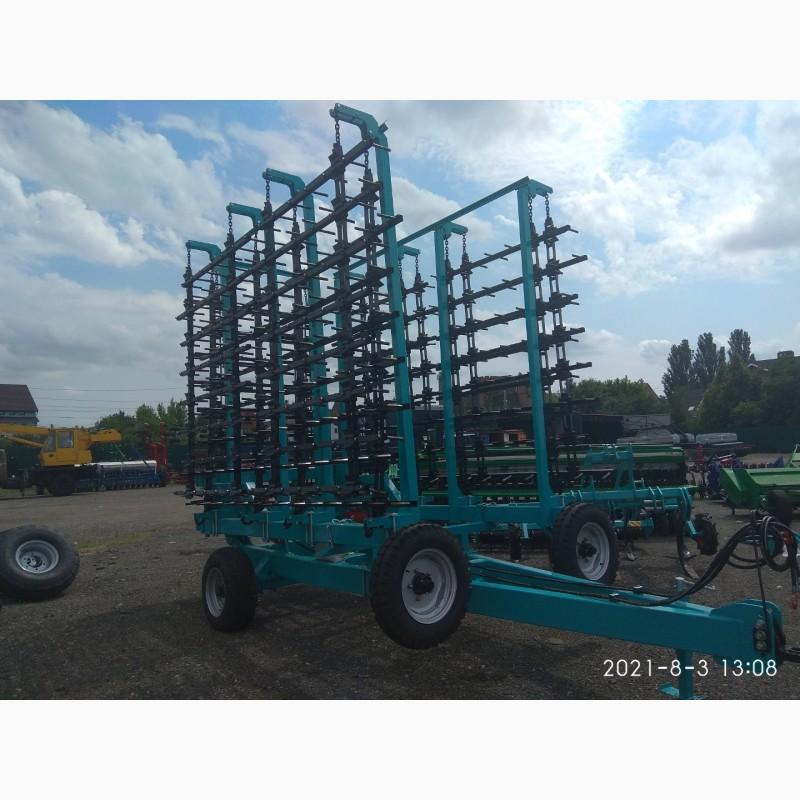

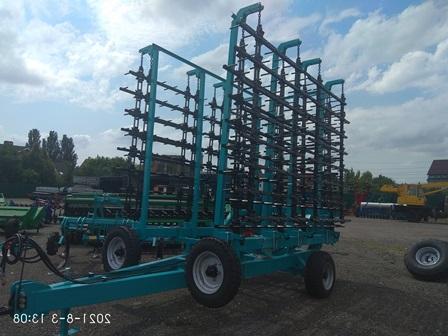

BZSh-14 trailing harrow for sale
Tarling trailing harrow BZSh-14 is aggregated with tractors with a power of 260 hp or more. and has a trail with a width of 14 meters in 16 rows of teeth is intended for early spring closing of moisture, leveling of the soil, preparation of fields for sowing, care of steam fields. A trailing harrow is subject to partial state compensation of up to 40%. The main functions of the trailing tooth harrow BZSh-14 are:
Closing moisture in early spring, leveling the field surface, crushing soil lumps, creating a uniform loose layer of soil, reducing moisture evaporation, partial destruction of weed seedlings, destroying the soil crust, applying mineral fertilizers, processing winter and grain crops at increased speeds, closing soil herbicides, harrowing winter and row crops, plowing.
BZSh -14
Trailer type
Processing width 14.1 m
Tractor power from 260 hp. p.
Working speed 8-15 km/h
The processing depth is 4-9 cm.
Angle of attack 45°; 67°(//tractor-service.com)
Number of rows of teeth 16
Transport width 4.3 m
Weight kg. 5000

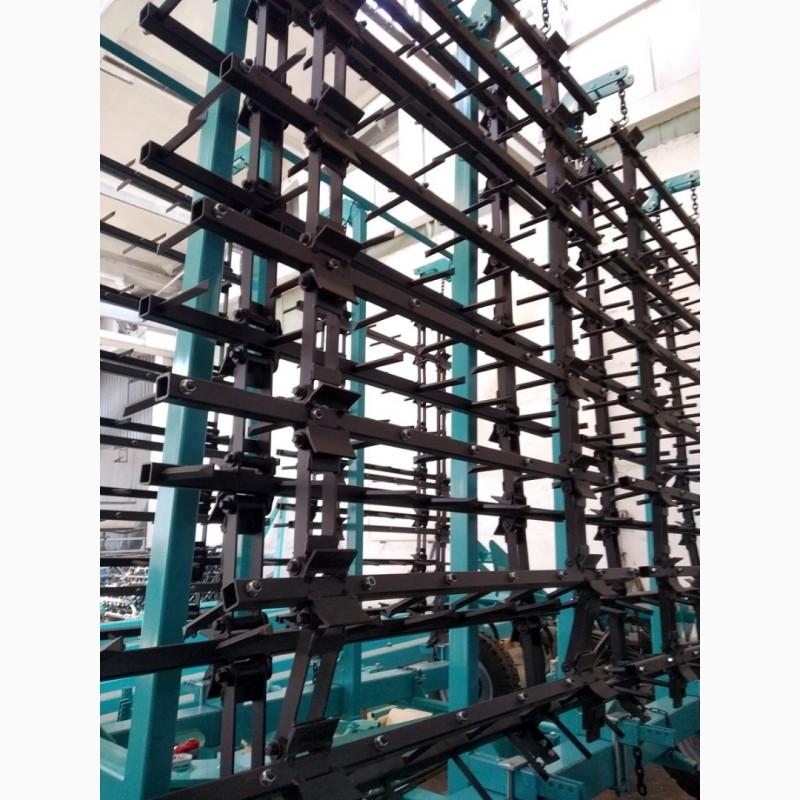

Features of the trailing (heavy) BZS harrow are the following structural and technological solutions, which allow to significantly increase reliability and working life, as well as improve maintainability.

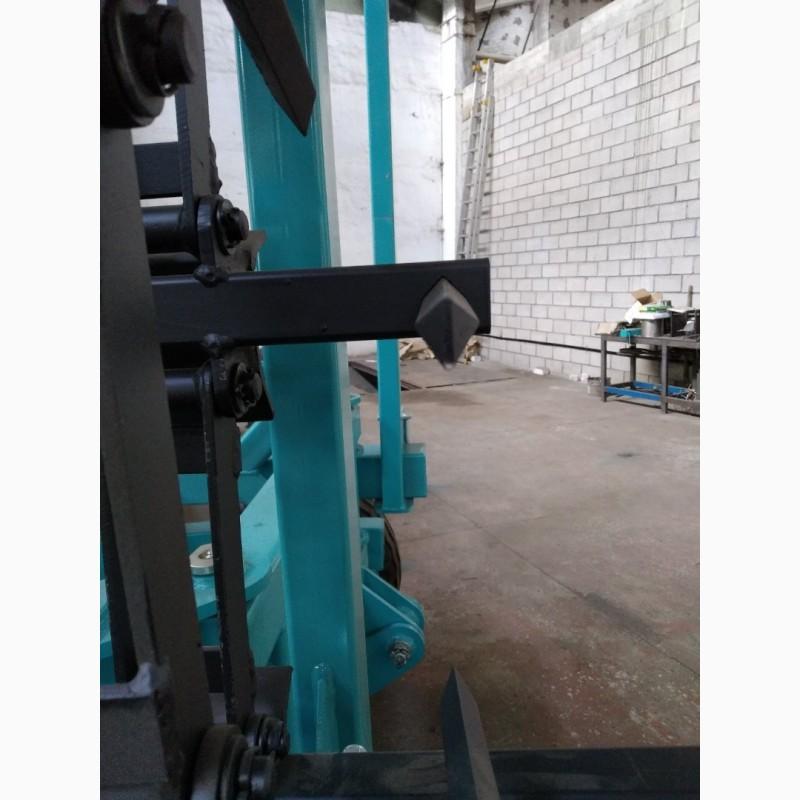

• The tooth is made of a square of 65G steel with appropriate heat treatment. The use of a square milled on two sides into a sharp wedge ensures the operation of the cutting edge of the square and the wedge working surface with the effect of self-sharpening. A sharp wedge easily penetrates the soil.

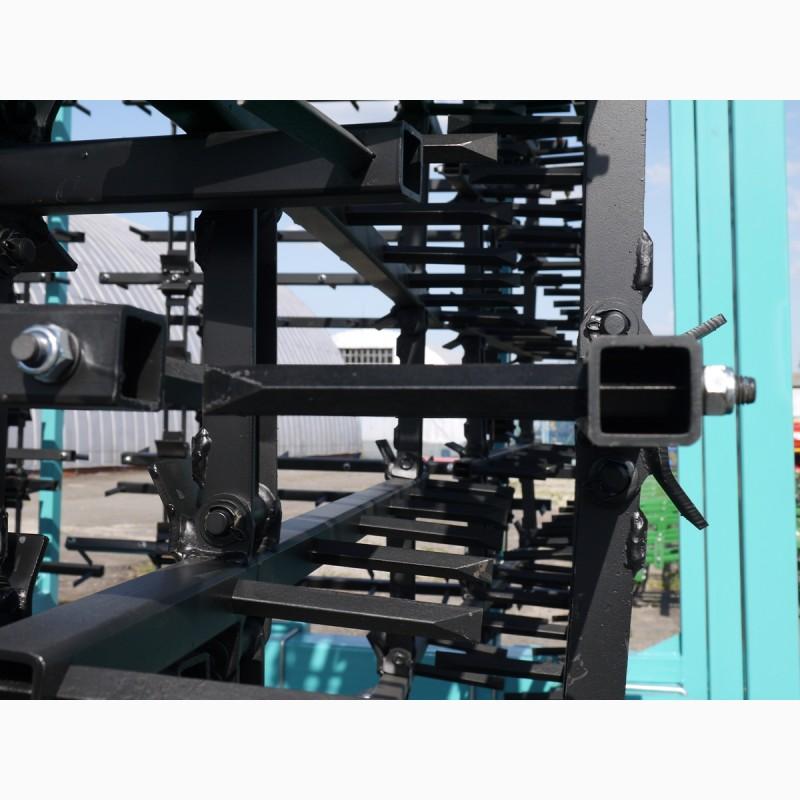

• When using the teeth of a thick-walled pipe with a square cross-section as a supporting beam, it became possible to orient a square hole with a 16x16 cross-section in one wall of the pipe, which in turn allows you to avoid the dangerous transitional section of the tooth in the area of the square thread.
• The links that assemble the load-bearing beams into a train are made of strong 30G2R steel, used formanufacturing discs drill bits, laps. Also, the frame structure of the link gives the train stability when working without demolishing the track. Fastening the link to the toothed beam with the help of three-dimensional axes significantly increases the maintainability of the site.
• Stops stamped from sheet steel installed on the tooth beam provide the necessary angle of installation of the teeth (23° or 45° from the vertical).
• The arrangement of the teeth with an interaxial distance of adjacent teeth in the plan of 25 mm and a diagonal of the square of 22 mm provides almost complete overlap of the working area over the entire width of the grip in the construction of the loop, which consists of ten supporting beams with teeth.
• The supporting frame allows you to install additional tanks and systems for applying the necessary chemicals and fertilizers.
State compensation 25-40%. Production. Guarantee.
