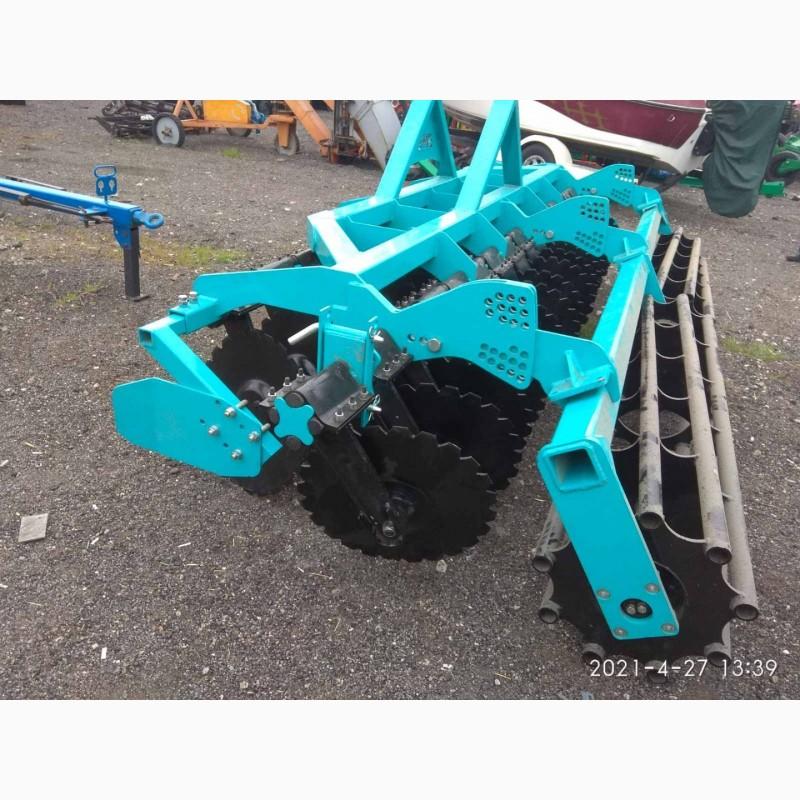

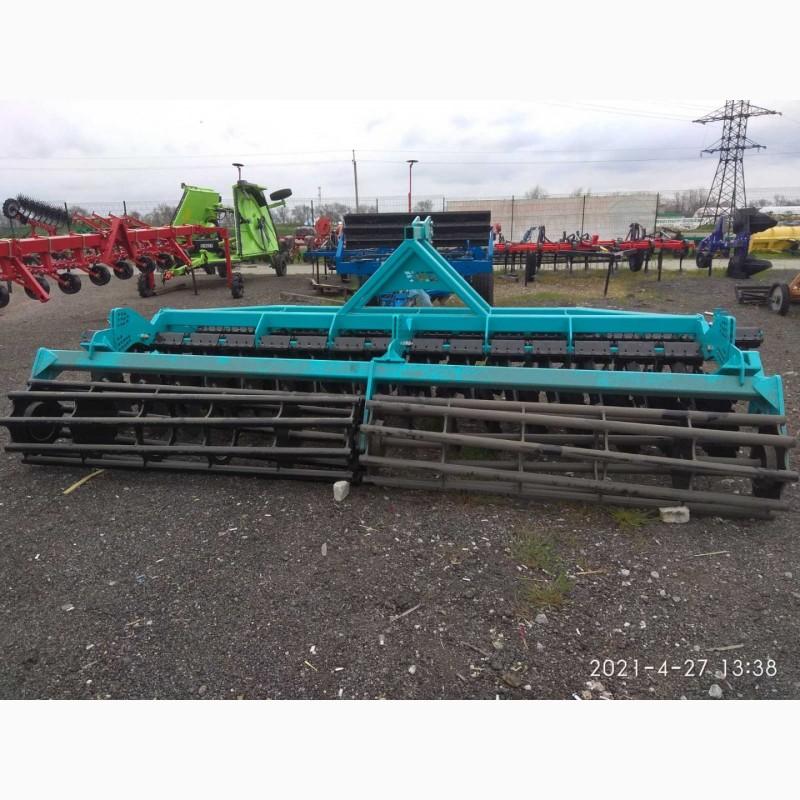

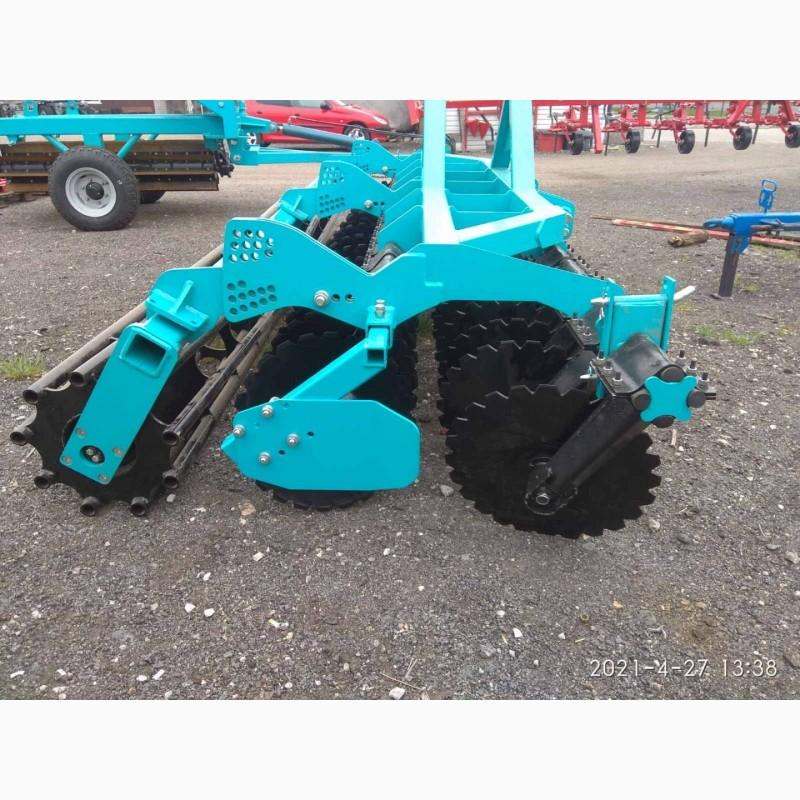

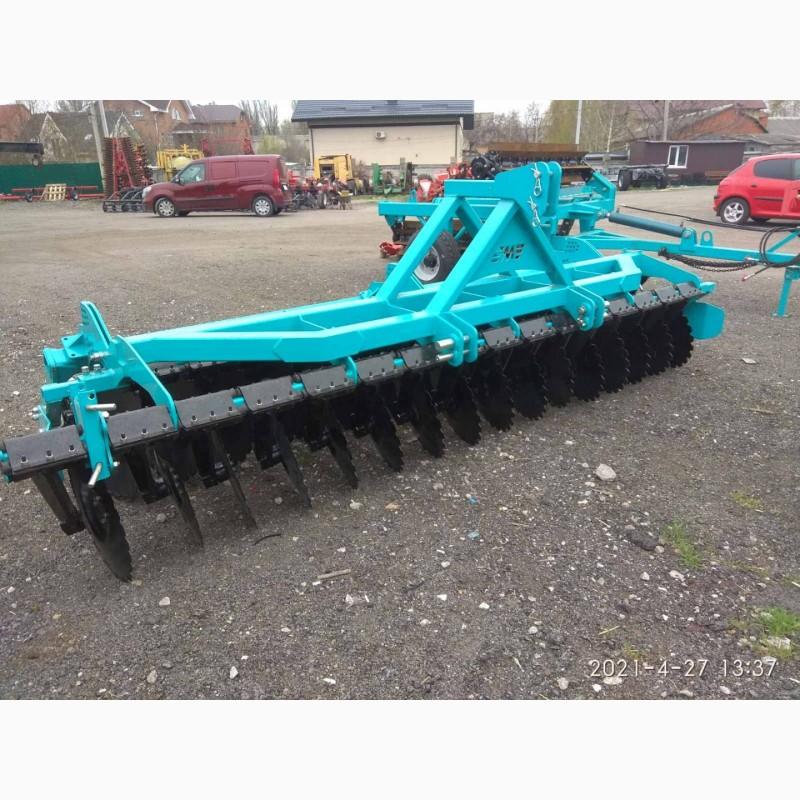

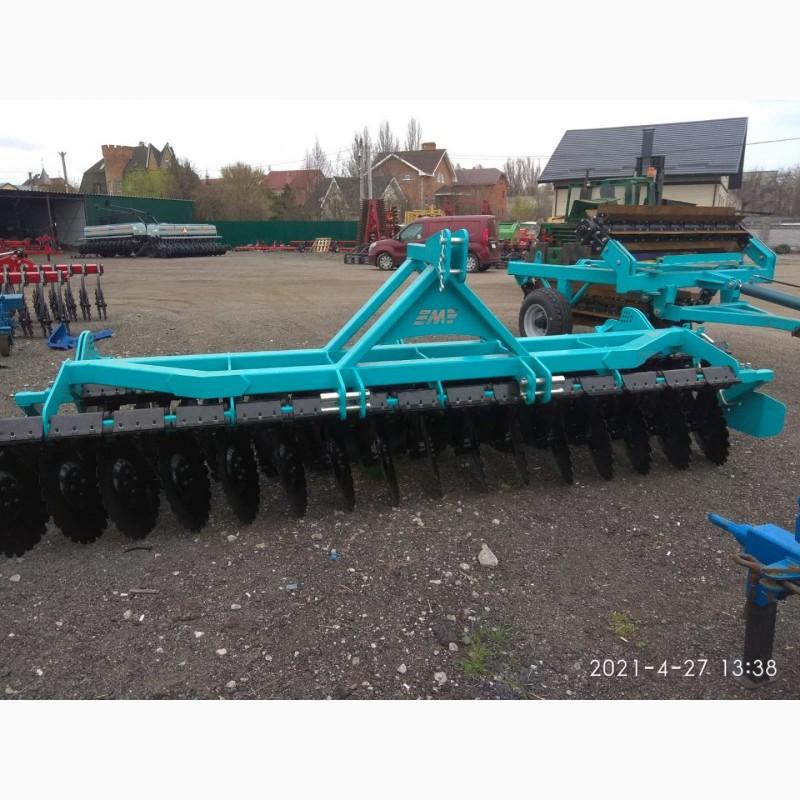

Lushlichnik disk mounted NDL-3/4 (disk harrow , discator) is intended for the main and pre-sowing soil treatment after plowing. Tel. 0976938955, 0660244393, website https://agrokomisionka.pp.ua/ and https://agrompk.com.ua/
The working body consists of a rigid rack mounted on rubber dampers, which provides protection against overloads and field copying.
Disc hubs of the closed type with maintenance-free double-row ball bearing.

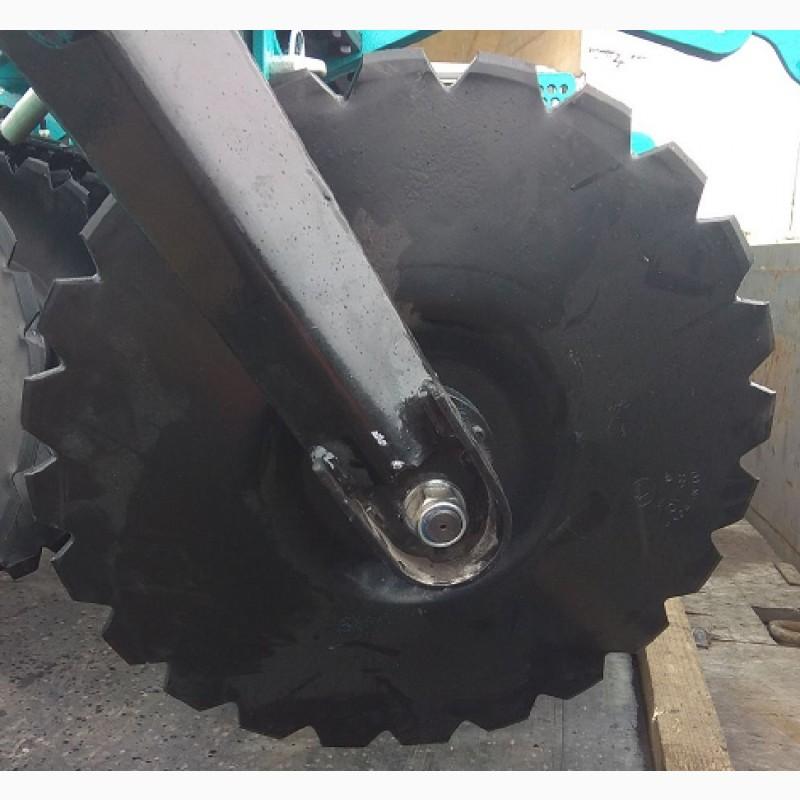

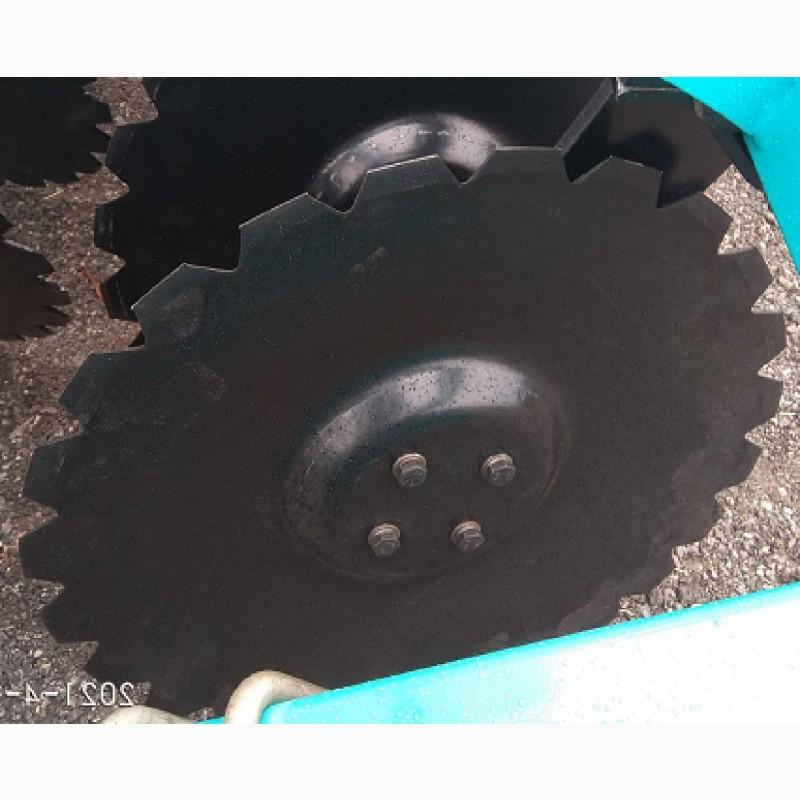

The disk is made by the Italian OFAS plant from boron-containing steel.
Adjustment of processing depth is carried out due to the rolling roller. For the NDL harrow there is a device for converting the harrow from a mounted version to a trailed one (to be ordered additionally)
Bearings in NDL-4:
in disc hubs - 357234.
in the nodes of rotation of the roller - UCF 210.
Technical characteristics of the NDL disk harrow Type Mounted Mounted
Processing width 4m.(//tractor-service.com)
Tractor power from 80 hp. from 130 hp.
Working speed 9-15 km/h
Transport speed 20 km/h
Productivity - up to 4.5 ha/h to 6 ha/h
The diameter of the discs is 560 mm.
Disc material is steel 30MnB5.
Number of disks – 24 pcs / 32 pcs.
The distance betweendisks –250 mm.
The processing depth is 5-15 cm.
Weight 1.0t / 1.4t.
