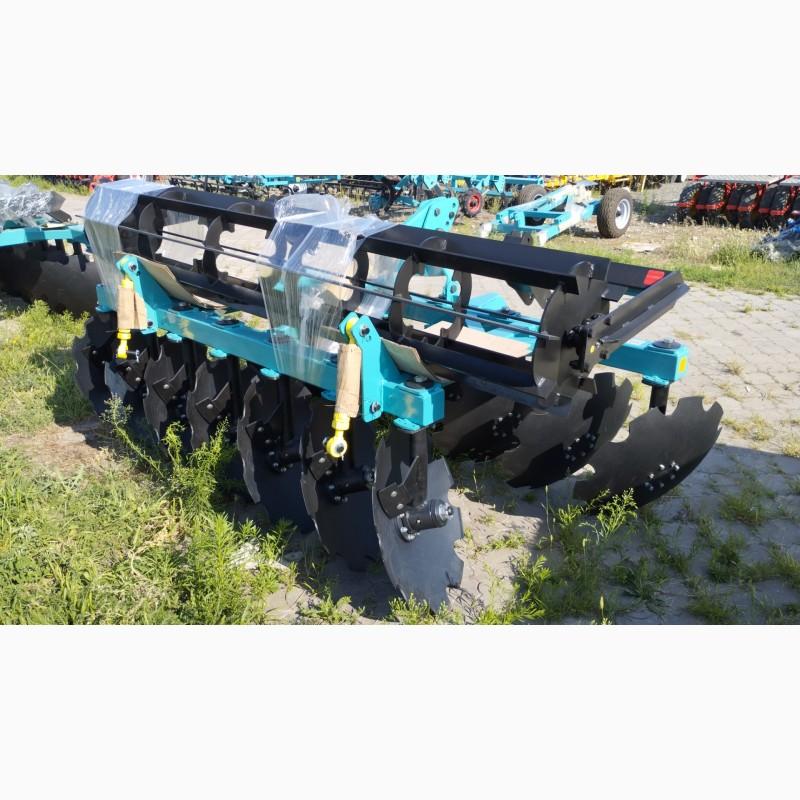

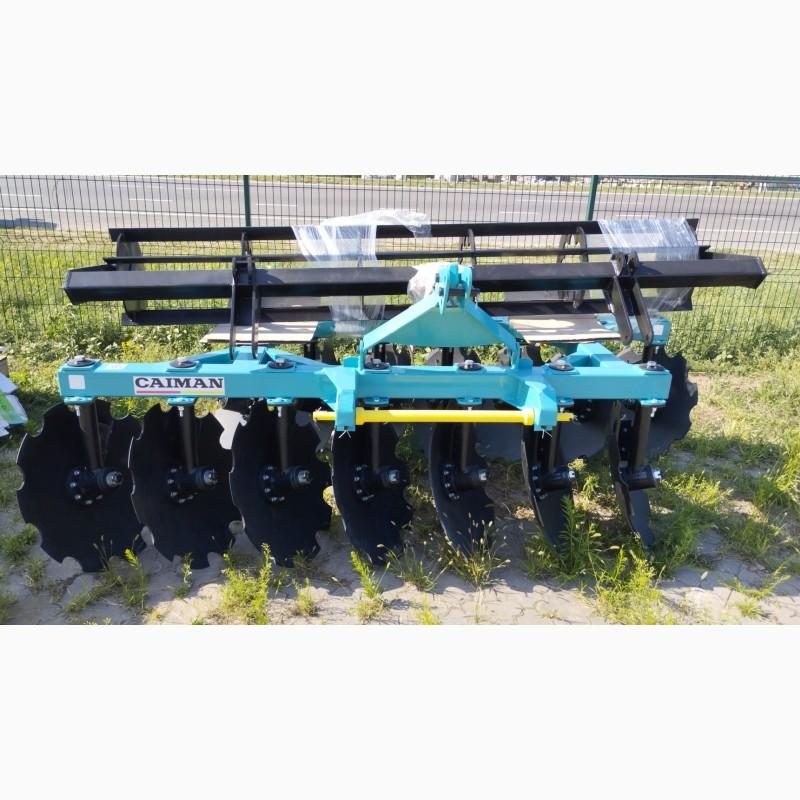

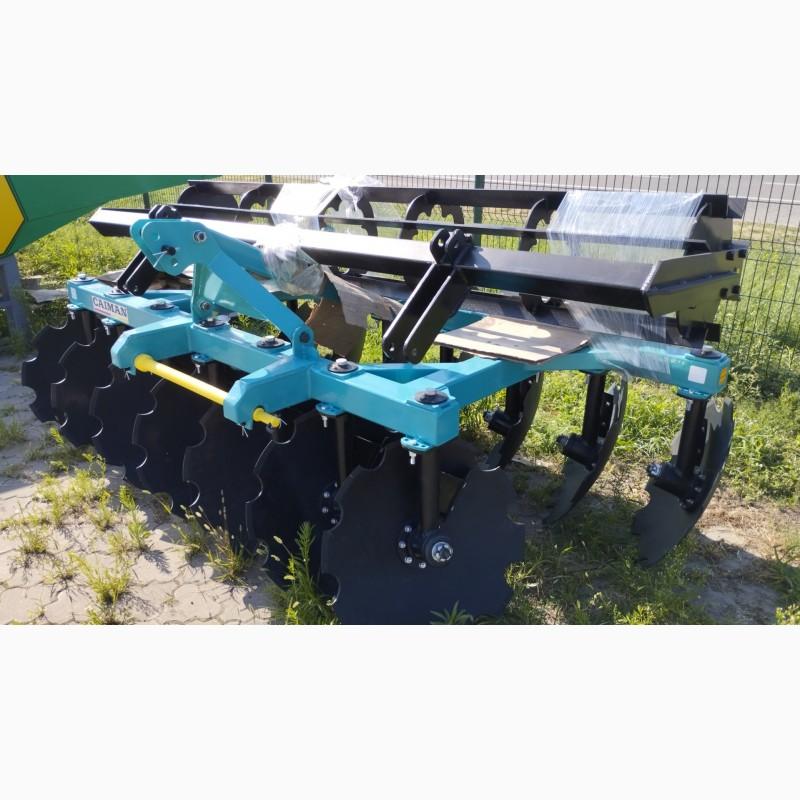

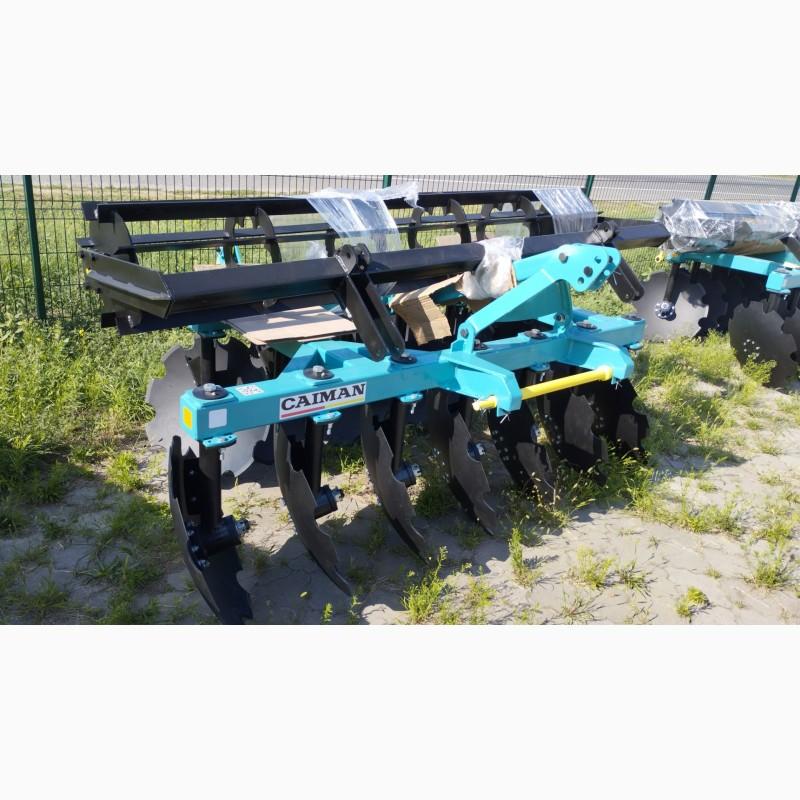

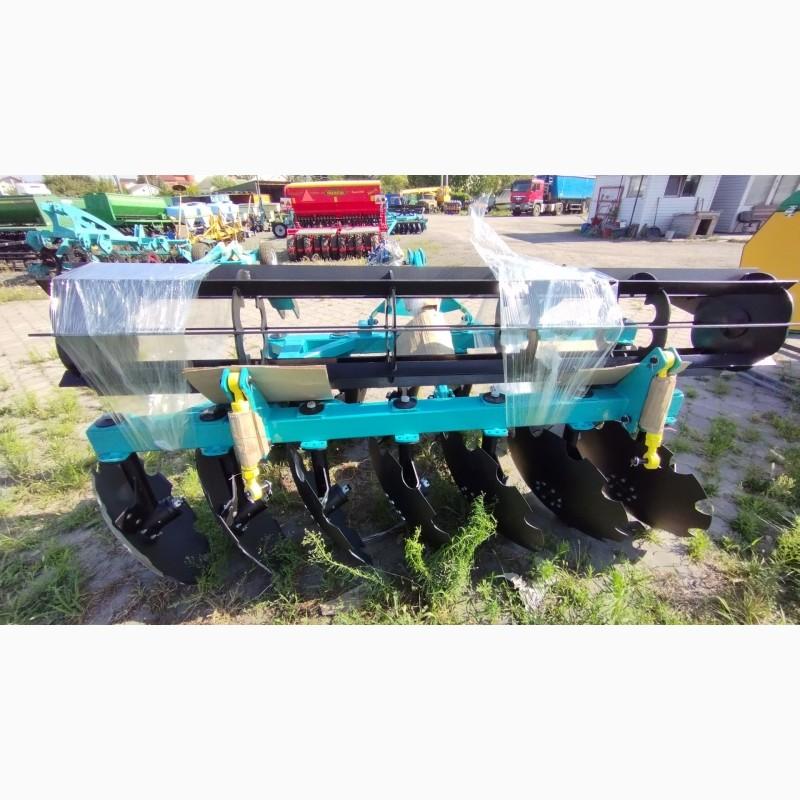

ADN mounted disc harrow - 2, 5, Dnipropetrovsk region.

Intended for processing all types of soil by shuttle method with rolling the top layer of soil for preservation.Disk harrow trailed ADP-2.5 combines the functions of a plow,husker, a cultivator and a disc harrow.
Design features:
- in the design of the ADP-2.5 frame, especially responsible nodes are reinforced compared to similar units;
- the design of the ADP-2.5 frame incorporates the principle of universality. With the help of a transport device, the customer can easily assemble the ADP-2.5 trailed harrow from the mounted harrow type ADN-2.5.
- the rack of the working body is installed in the frame in a sleeve that protects the seat in the frame from deformations. In addition, in the place of installation of the rack in the frame, a guide is installed to avoid jamming during the change of the angle of attack of the disk;
- the rack of the working body, made of a circle with a diameter of 60 mm. reliably proven itself in work on clogged and dry soils;
- Quick release method of removing discs;
- discs made of boron steel;
- adjustment of the angle of attack (3 positions);
- Powder coating.

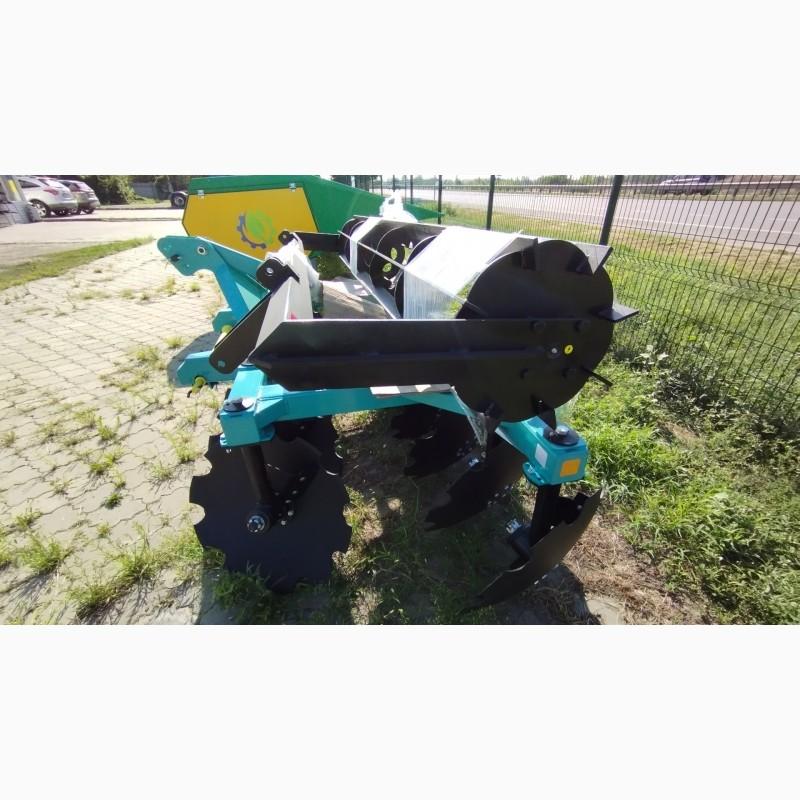

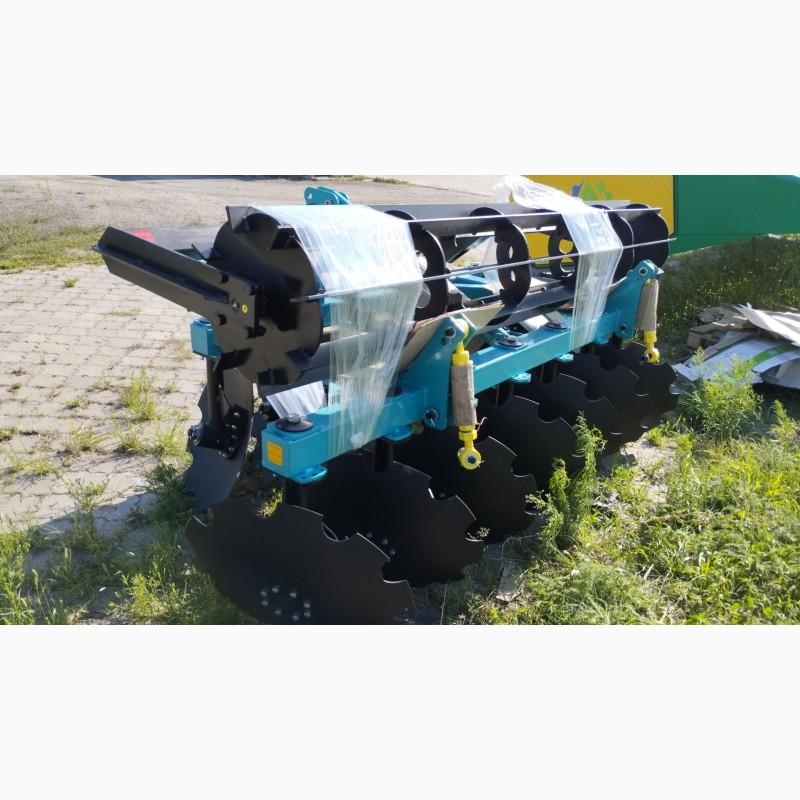

- the following modernizations were made in the design of the roller-chest roller, which rolls, for more efficient work:
- installed strips of 60x6 mm.;(//tractor-service.com)
- Roller mounting brackets reinforced with stiffening ribs;

Technical characteristics
Width of capture (m) - 2.5
Fuel consumption (l/ha) - 7.2-8.5
Productivity (ha/h) - 1.8-2.2
Ø - working disk - 660 mm.
Disk - a daisy with 10 petals.
Depth of soil treatment (cm) - 8-18
Working speed (km/h) - 8-12
Transport speed (km/h) - slightly more than 20
Weight of the unit, kg. - 970
