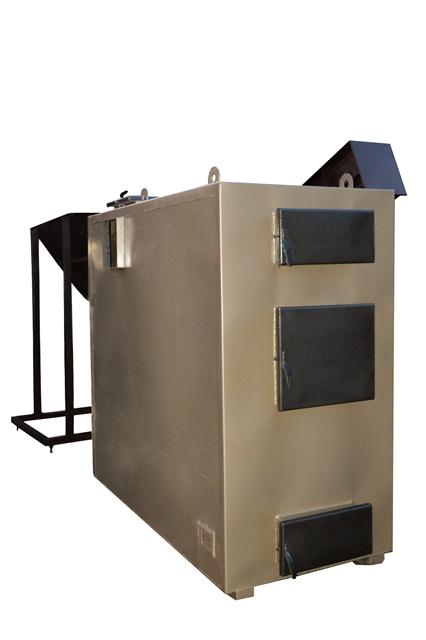

Air heating boiler with automatic supply of chips, sawdust with a capacity of 150 kW, Poltava region.

Boiler air heating with automatic supply of chips, sawdust with a capacity of 150 kW is intended for heating domestic, commercial, warehouse and industrial premises with a volume of up to 6000 m3, and is also suitable for use in the technological process of drying materials.
Advantages ofair boiler heating with automatic chip supply:
- low cost of fuel (chips, sawdust) compared to pellets and briquettes;
- high performance;
- minimum room heating time;
- Ease of use;
- minimal emission of harmful substances into the atmosphere;
- Using the hopper for intermediate storage of wood chips, sawdust, you can top up the boiler during its operation in manual and fully automatic mode.
In the presence of a constant source of chip formation,installation of a boiler working on chips is the most profitable.
Technical characteristics of a 150 kW air heating boiler with automatic chip supply:
Nominal power, kW – 150
Efficiency, % - more than 93
The heat carrier is air.
The volume of the heated room, m3 - up to 6000
The metal used in the production of the boiler is steel with a thickness of 5 mm(//tractor-service.com)
The size of the loading hole, mm – 400/400
Chimney diameter, mm - 200
Fuel loading - manual or automatic.
Removal of slag is manual.
Boiler weight, kg – 1550
Boiler service life, years - 6-10
Warranty, month - 12

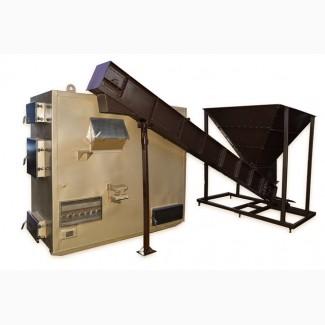

Complete set – boiler, fan, hopper for intermediate chip storage, special chip supply system to the combustion zone, boiler control unit (programmer).
After installation and commissioning of the boiler, for autonomous operation, the initial setting of the automatic supply of air and fuel to the furnace in accordance with the selected temperature is required.
If necessary, it is possible to install 2 or 3 boilers together.
We will deliver the boiler to any populated place in Ukraine.
The cost of the boiler is UAH 143,900.
The cost of the mechanism with the hopper is UAH 120,800.
The cost of the automation kit is UAH 17,300.
It is possible to make cauldrons according to the Customer's individual dimensions.
It is possible to install a burner that works on waste oil and any liquid fuel.
