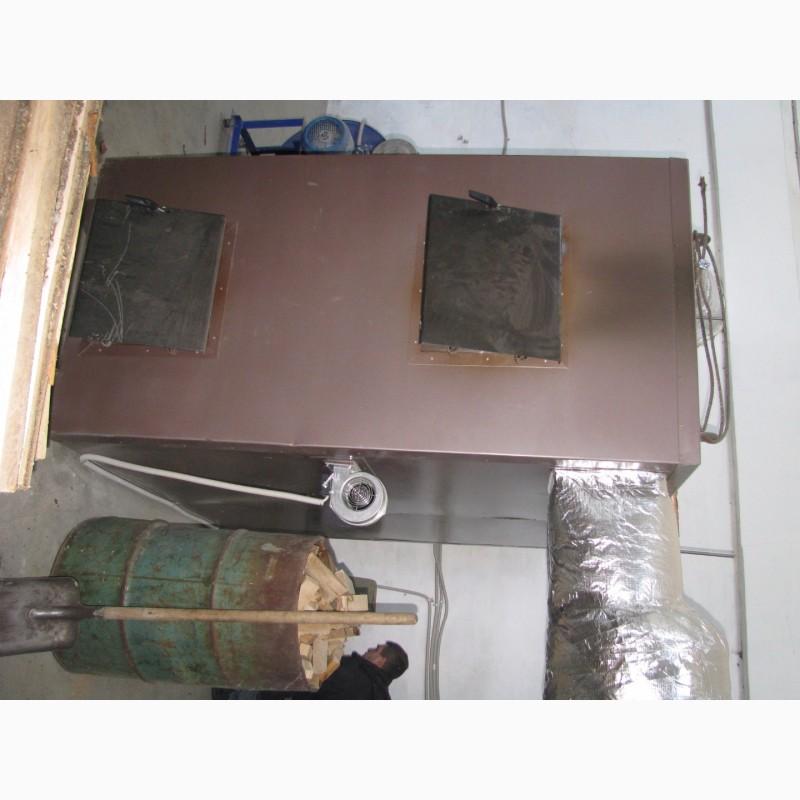

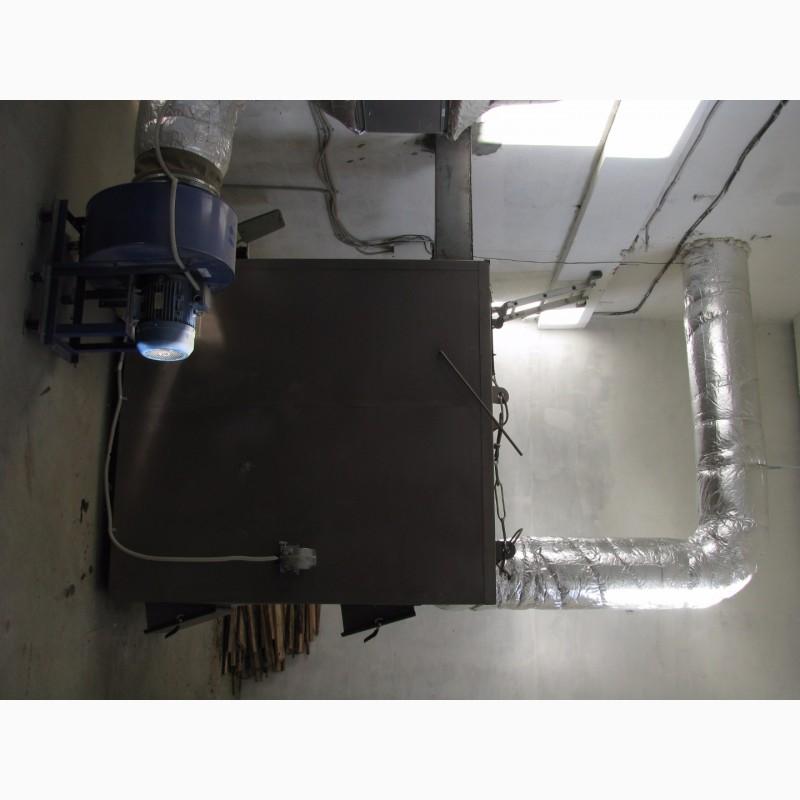

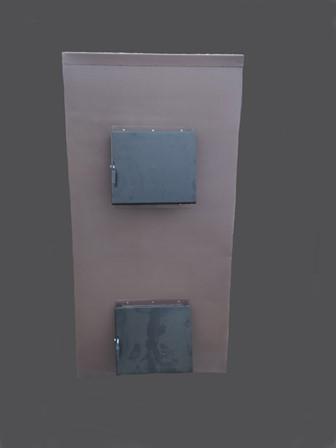

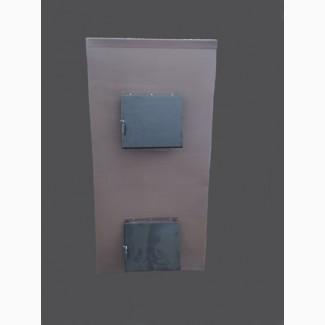

KFPV-200 pyrolysis air heating boiler from the manufacturer, Poltava region.

Kotel pyrolysis air heating KFPV-200 from the manufacturer.

Fuel for this boiler can be:
- Wood waste from construction industry;
- furniture production waste (fiberboard, chipboard);
- packages of hay, straw;
- briquettes (buckwheat,sunflower, corn cobs, oats);
- Pellets.
The KFPV-200 pyrolysis air heating boiler is used for:
- air heating of premises up to 8000 m3, such as livestock complexes, pig farms, farms, greenhouses, workshops, hangars, workshops, technical stations, etc.;
- drying of grain crops, raw materials for the production of pellets, medicinal plants, etc. as a heat generator.

One load is designed for 6-8 hours of burning, depending on the type of fuel chosen. The best fuel is large logs of any species with a moisture content of up to 20%.
Characteristics of the KFPV-200 air heating pyrolysis boiler

Parameters Unit Value
Heat output, kW, 200
Volume of loading chamber (gas formation), m3, 0.94
Working air temperature, 0C, 50-120
Efficiency at fuel humidity, %:
20% - 90
40% - 82
Nominal rarefaction for the boiler (no more), Pa, 40
The temperature of the outgoing gases (not less), 0С, 160
Electric power, kW, 2.2(//tractor-service.com)
Supply voltage, V, 220
Chimney diameter, mm, 250
The volume of the heated room, cubic meters, 8000
The maximum length of firewood, mm, 1000
Overall dimensions, mm
Depth - 2210
Width - 950
Height - 2250

Weight kg 1900
Firewood, briquettes used.

Made of boiler steel with a thickness of 5 mm.
It is possible to make cauldrons according to the Customer's individual sizes.
It is recommended to install the boiler in a separate room.
Be sure to ground the boiler and centrifugal fan.

The warranty period is 12 months (with the exception of cases of thermal deformation of the metal resulting from overheating of the cauldron).

Equipment delivery time: 14-20 days.
Each boiler can be equipped with a small fraction burner, which works on any solid fuel (pellets, sawdust, sunflower husks, any agricultural waste with any ash content).
It is possible to install a burner that works on waste oil and any liquid fuel. It is possible to set the automatic removal of ashes.

We are forming a dealer network. We invite trading and assembly organizations to cooperate.
