Line for the production of minced meat from cattle bones 1500 kg/h, Zaporizhia region.

Installation method of items 1 and 5: anchor to the floor.

The line comes with 5 assembly units:

Shredder
Belt conveyor (2 pieces)
Crusher.
Control panel

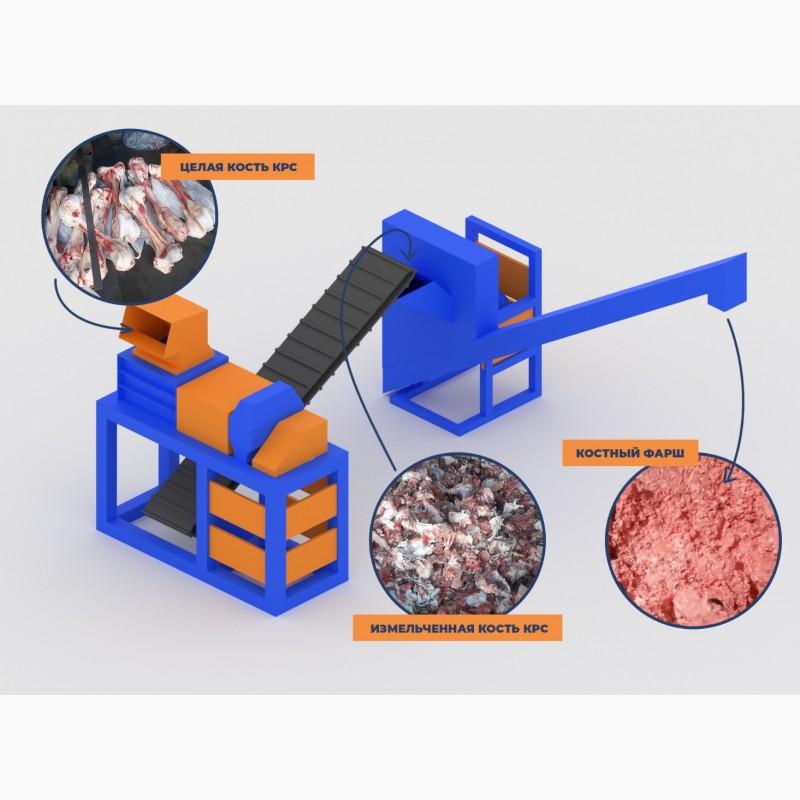

Technical description. process:
● Feeding of the incoming bone of cattle into the hopper (1) of the shredder: manual.
● Grinding cattle bones with a shredder (2). The principle of shredding: mechanical fracture of the whole bone of cattle between the movable and immovable knives of the shredder.
● Moving crushed bonewith a belt conveyor (3) into a hoppercrushers (4).
● Crushing of crushed bone in a crusher (5) to a fraction of 0.0 - 4.0 mm. Crushing is carried out according to the disintegrator principle.
● Product discharge from the crusher onto the conveyor belt (6).
● The mode of operation of the line is continuous.

Complete set:
1. Shredder SHk1 - 03 - 05/15 for preliminary crushing of cattle bones.
● nominal productivity - about 700 kg/h, maximum - 3000 kg/h
● grinding fraction - about 50 mm
● consumed power – 15 kW
● the gearbox is driven by a 15.0 kW, 1500 rpm engine through a belt drive.
Configuration: single, the presence of fixed knives. Выгрузка нижняя. Geared drive. Loading window 500x300 mm.
(//tractor-service.com)
2. SHk600/30 bone crusher for minced meat fraction.
● productivity - about 1500 kg/hour
● the size of the driving bone - about 50 mm
● grinding fraction - up to 4 mm
● power consumption – 30 kW

3. Matching belt conveyor 350x2000 mm
power consumption 2 kW.

4. Discharge belt conveyor (discharge screw conveyor) 350x2000 mm power consumption 2 kW.

5. Combined control panel.
________________________________________

Electrical equipment: network 380 V.
Connection: the section of the copper wire of the cable is not less than 10.0m2, the presence of a neutral wire. Grounding contour.
The electrical elements of the installation are made in accordance with GOST 12.2.003 - 91, grounding is made in accordance with GOST 12.1.030 - 81.

Warranty period of operation is 12 months from the day of shipment of the equipment.

VIDEO:
https://www.youtube.com/watch?v=oRoHd3mxXg0
https://www.youtube.com/watch?v=0TAvWqaJxXI

Tested on bull bone.
