Wolchok uglovoi WR-160K, Lviv region.

They are intended for crushing fresh and frozen meat (up to -200C) for the necessary granulation, as well as for performing other technological operations depending on the equipment used.

Design advantages:
• Made with high-quality acid-resistant steel
• High-quality meat shredders.
• Construction of the discharge chamber and discharge auger from highly abrasion-resistant, acid-resistant material.
• 2 functional drives of the feeding and pumping screws provide automatic selection of the amount of dosed raw material.
• Equipment of drive engines with an overload protection system
• The cutting system consists of high-quality cutting tools
• Equipment for the injection screw with automatic ejection system (option WR - 160K, WR - 200K)
• Equipmentperipheral caps a device for separating cartilage and membranes (option), as well as a chicken bone separator (option)
• Equipment of the top with a safety system, consisting of a protective cover of the neck, a cover of the loading chamber (WR-130), a platform for service personnel (WR-160K, WR-200K)
• Spindle equipment with a microprocessor command-controller to manage all parameters during operation
• Unique design of the driving and feeding screws, production of screws on CNC machining centers from one steel element using the cutting method.
• Crushing system of frozen meat blocks (-20 ° C) (option)
• Special version of the top for frozen fish blocks

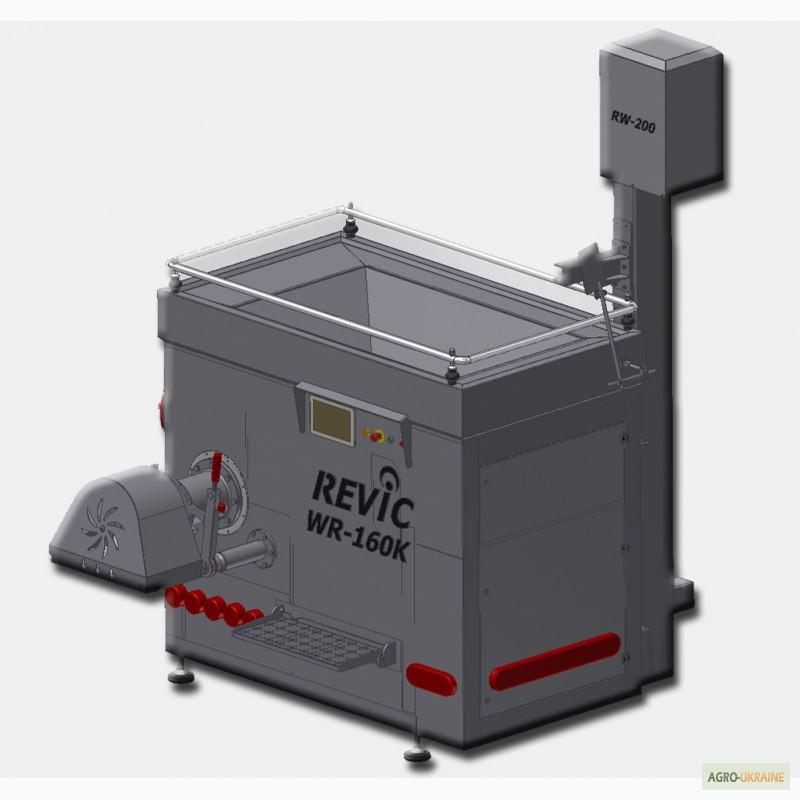

The WR-160K corner grinder with loading column is intended for grinding fresh, cooked and frozen meat.
The main advantages of the design of the corner top(//tractor-service.com)
- the corner top is made of stainless steel
- the engine is equipped with an overload protection system
- the auger is equipped with an automatic ejection system.
- peripheral equipment for the separation of cartilage and mucous.
- the safety system includes: a protective cover, a loading chamber cover, a service platform
- micro-processor control of the angular top
- integrated mast lifter RW-200 with gearbox
- two-speed engine of the meat cutting system
- adjustment of the rotation speed of the meat feeding system in the top
Technical characteristics of the angle grinder
Corner top WR-160-K
The volume of the chute, l 420
Feed engine power, kW 2.2
Power of the cutting engine, kW 30/21 (two speeds)
Top weight, kg 1600
Top dimensions, mm 1830x1100x1735
Control touch screen
Power source 380 V~/50 Hz
Power of the loading engine, kW 0.75
