Flour packaging, Chernihiv region.

Flour packaging

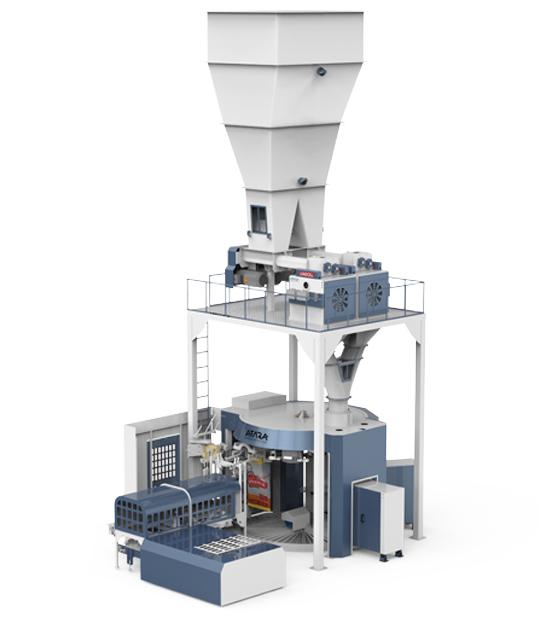

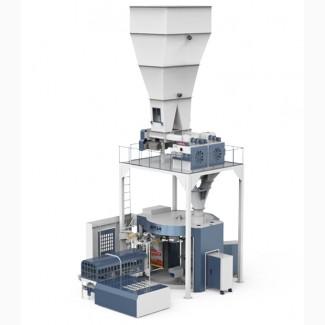

Robotic flour packaging line in rotary execution of four-station unloading with two-stage weighing (25-50 kg)

ROBOTIZED FLOUR PACKAGING LINE IN ROTARY EXECUTION OF FOUR-STATION UNLOADING WITH TWO-STAGE WEIGHING (25-50 KG)
■ The possibility of using open paper, polyethylene (PE), laminated and fabric bags.
■ It is used for automatic packaging of flour, fodder andgrains in open bags of 10-25-50 kg.
■ Possibility of accurate filling when working with different parameters in different products with recipe control.
■ All screw motors have speed regulators.
■Belt conveyor the bag is easily adjusted to a height from 300 cm to 1000 cm.
■ Conveyor belt motors have a speed regulator that is adjusted to the required speed.
■ The bag sewing machine is installed on a movable stand with height adjustment, in front and back.
■ Thanks to optical sensors, thread consumption is minimized.
■ Emergency stop button and special design in accordance with safety regulations.
■ A digital capacitive sensor with an aluminum housing is installed in the flour hopper.
■ Additional functions of automatic high-speed insertion and closing of bags are available.
(//tractor-service.com)
General Characteristics
Product Code UNRCT6I 25-50
Flour Packaging Product
Density 0.55 kg/m³
Permissible Weighing Range 2x50 kg
Weighing range 25-50 kg
Weighing accuracy ±%0.3
The volume of the Upper Bunker is 7500 Lt.
Bowl capacity 122x2 Lt
Working pressure 6-8 Bar
Power supply 400 V/50-60 Hz
Energy consumption 15 kW/h
Degree of Protection IP54
Mass 7000 Kg
The air requirement is 30 m³/hour.
Productivity (Bags/Hour) 600 (Bags/Hour)
