Doser in Doi-pack UFU-3 model 21, Kharkiv region.

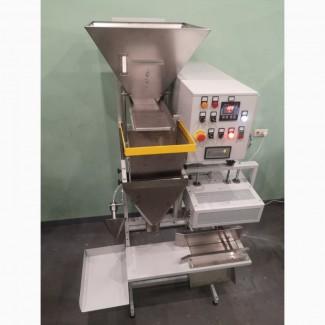

UFU-3 packaging unit (model 21) is intended for packaging andpackaging food and non-food loose, non-clumping and not strongly prone to sticking products (cereals, sugar, pasta, flour, starch, spices, etc.) into a "Doy-pak" package or any package with a flat bottom in semi-automatic mode with automatic sealing and removal of the package from the working area of the installation. The installation can be equipped with one or two weighing electronic dispensers. The installation can be equipped with a protective hermetic box. A quick-disassembly and easy-to-wash version is possible.

Technical data:

Productivity, pack/min - up to 20

Dosing limits - 30-5000 g

Allowable error - according to DSTU

Applicablecontainer - package "Doy-pak", "Stabilo"

Package sizes - from 60*100 to 250*400(//tractor-service.com)

The volume of the loading hopper is 36 – 150 l.

Mains voltage/ current frequency - 220-230/50 V/Hz

The installed capacity is 0.6-1.5 kW.

Pressure of compressed air, Bar - 5-7

Compressed air consumption, l/min, no more than 100

Overall dimensions, no more than 1200x1000x2010 mm

Mass - 120-250 kg
