For sale Nutcracker Promyshlenny "ODM-994/250" Used, Kyiv
Region:all Ukraine,
Kyiv
(Darnytskyi)

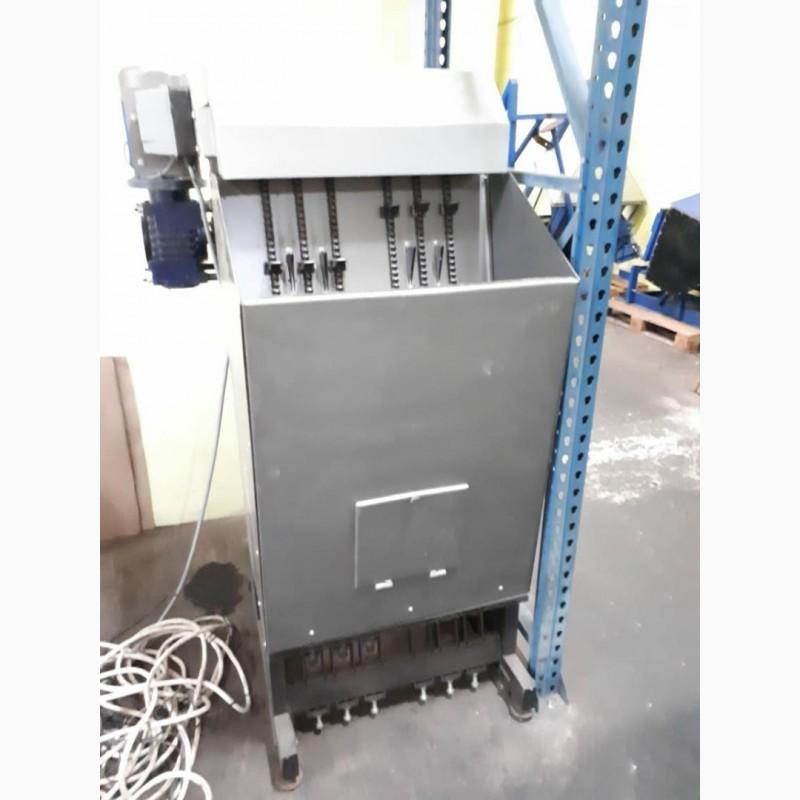

Walnut shelling machine for sale "ОДМ-994/250". The machine is in good condition. worked for one part-time season. "ОДМ-994/250". Машина в хорошем состоянии, проработала один неполный сезон.
Principle of operation:
A walnut is placed in the loading compartment. The nut grabs the hook on the transport chain and delivers the log to the piercing mechanism. The nut is crushed as a result of the compression of two pairs of plates with a conical working part, which compress the nut according to the size, when the plates are decompressed, the nut is lowered into the unloading hopper. The gap and degree of compression between the plates can be easily adjusted to achieve the desired splitting of the nut. One person will be required forobsluvivaniya orehokola.
Main technical characteristics
Productivity of the machine: 270 nuts/min. or ~ 200 kg/hour (without taking into account the time required to adjust the machine); Percentage of whole kernel: up to 70%(//tractor-service.com)
The speed of rotation of the working shafts: 45 rpm;
The amount of adjustment of the deformation of the nut when it is crushed: from 0 to 5 mm;
Parameters of the power grid: voltage (380± 22) V, frequency (50± 1) Hz;
Power consumption: 1500 W;
The type of motor-reducer used in the car: worm one-stage МЧ-80-45-56-3-1-UZ;
Overall dimensions of the machine: 941*xxxxxx mm; 176
Вес: 340 кг
Principle of operation:
A walnut is placed in the loading compartment. The nut grabs the hook on the transport chain and delivers the log to the piercing mechanism. The nut is crushed as a result of the compression of two pairs of plates with a conical working part, which compress the nut according to the size, when the plates are decompressed, the nut is lowered into the unloading hopper. The gap and degree of compression between the plates can be easily adjusted to achieve the desired splitting of the nut. One person will be required forobsluvivaniya orehokola.
Main technical characteristics
Productivity of the machine: 270 nuts/min. or ~ 200 kg/hour (without taking into account the time required to adjust the machine); Percentage of whole kernel: up to 70%(//tractor-service.com)
The speed of rotation of the working shafts: 45 rpm;
The amount of adjustment of the deformation of the nut when it is crushed: from 0 to 5 mm;
Parameters of the power grid: voltage (380± 22) V, frequency (50± 1) Hz;
Power consumption: 1500 W;
The type of motor-reducer used in the car: worm one-stage МЧ-80-45-56-3-1-UZ;
Overall dimensions of the machine: 941*xxxxxx mm; 176
Вес: 340 кг
