Hub IL50-98/4T-M22 FKL, KM040110, F06160015, R1812511OR, m11308, m19008, 910974, 02122, Dnipropetrovsk region.

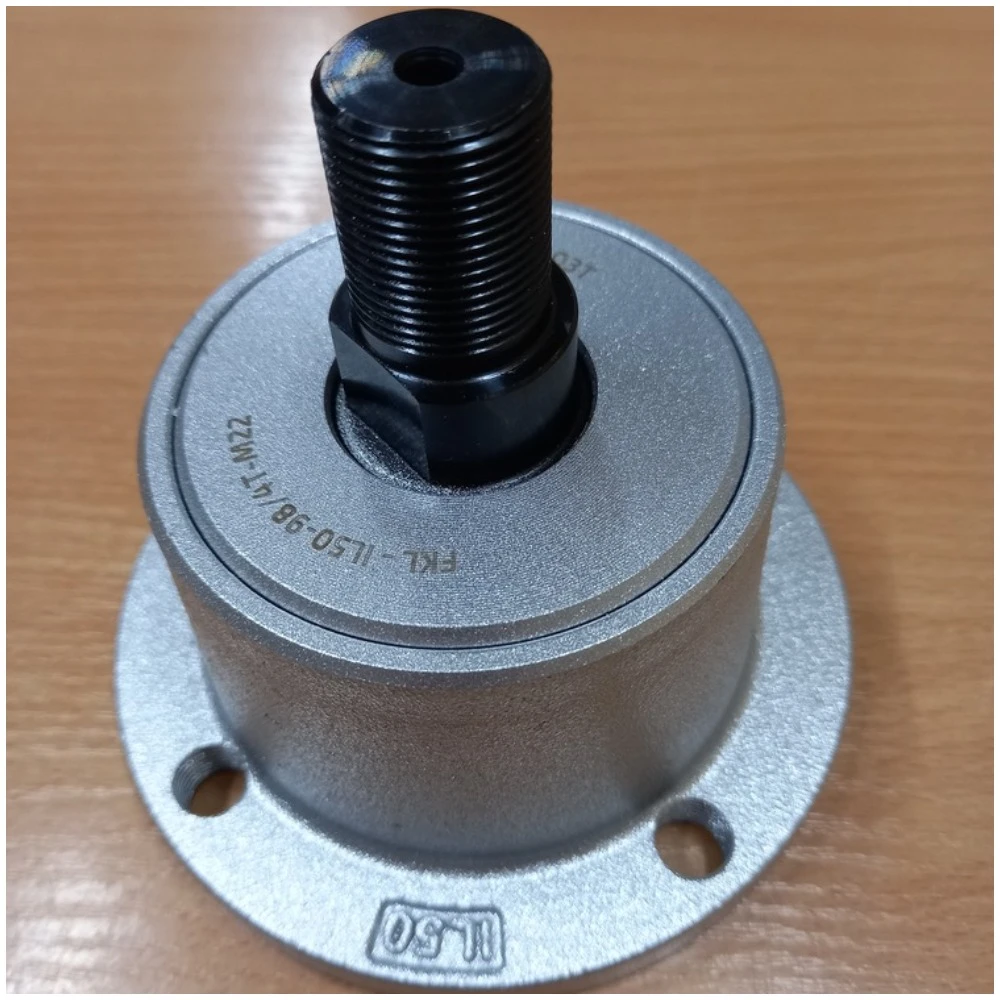

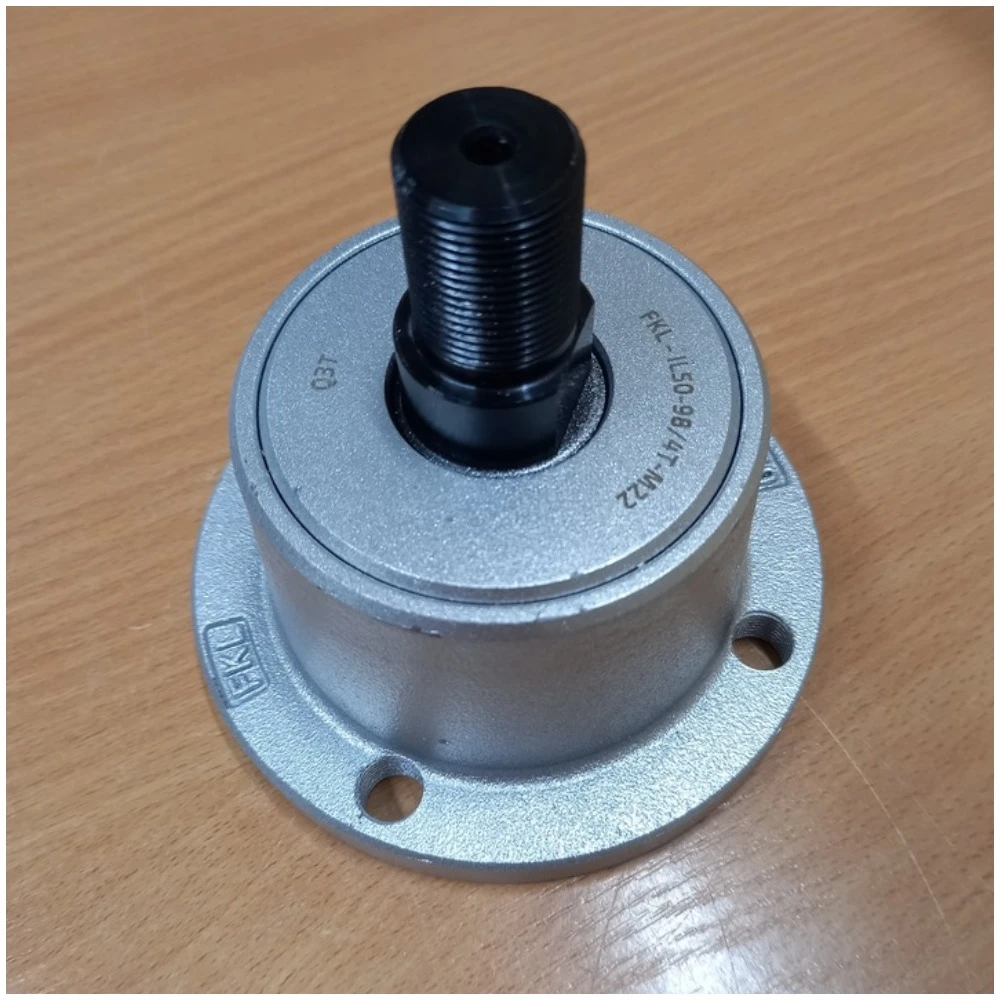

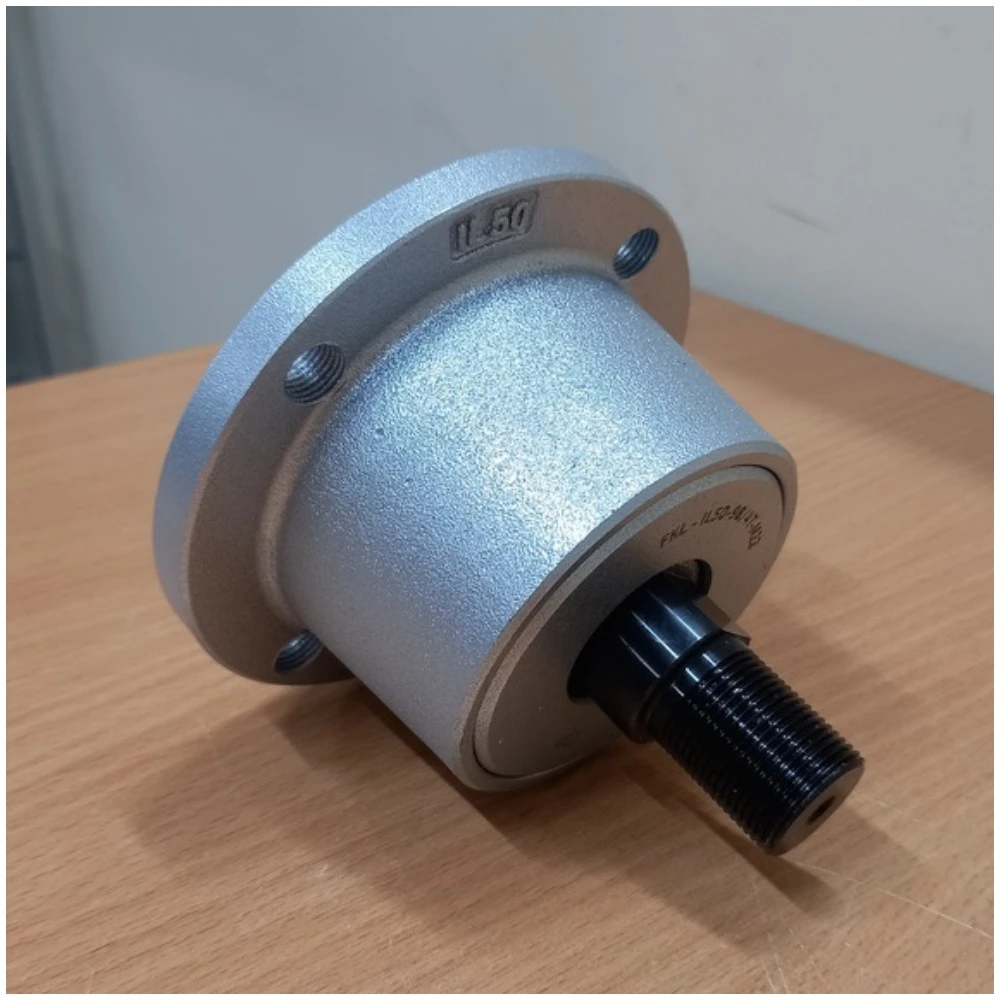

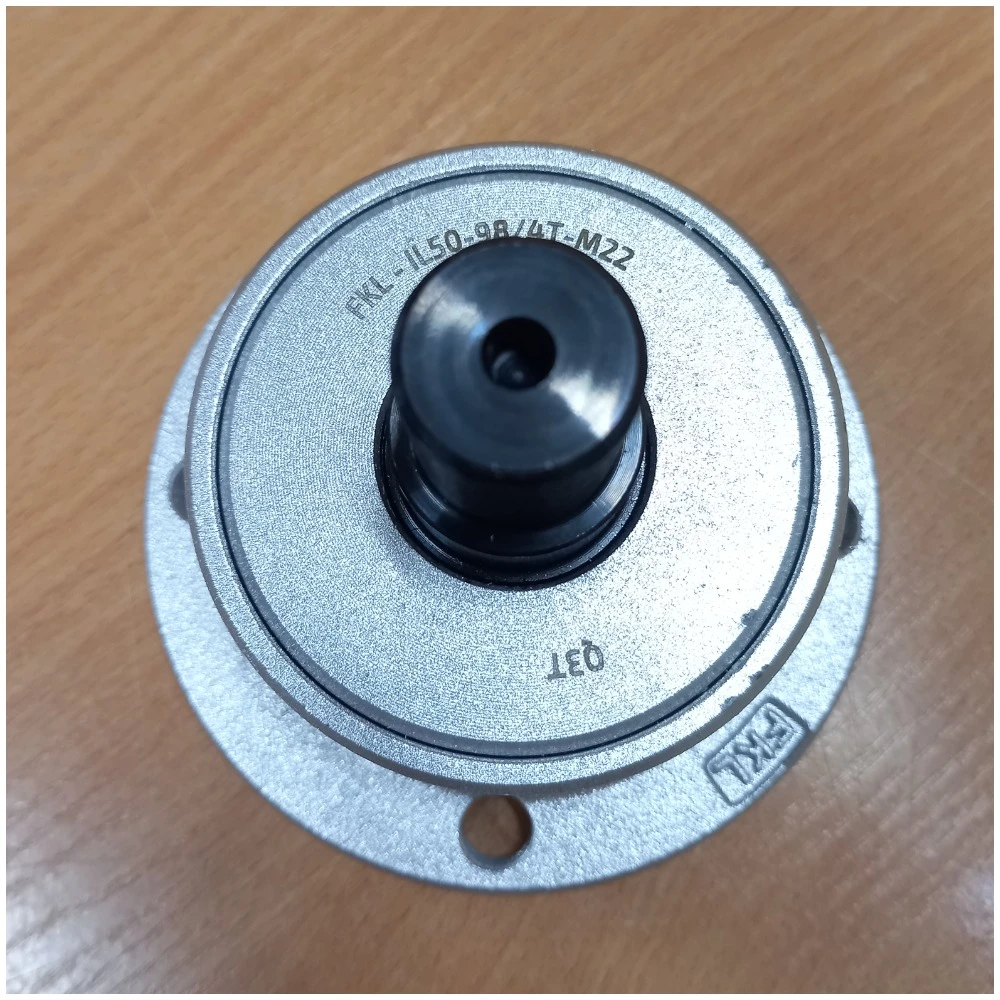

We offer Agro Point IL50-98/4T-M22 FKL cutting unit hub (Serbia).
Field of application -disc harrows,cultivators,mulchers on spring struts or with struts on elastomers and disc diameter up to 710 mm.

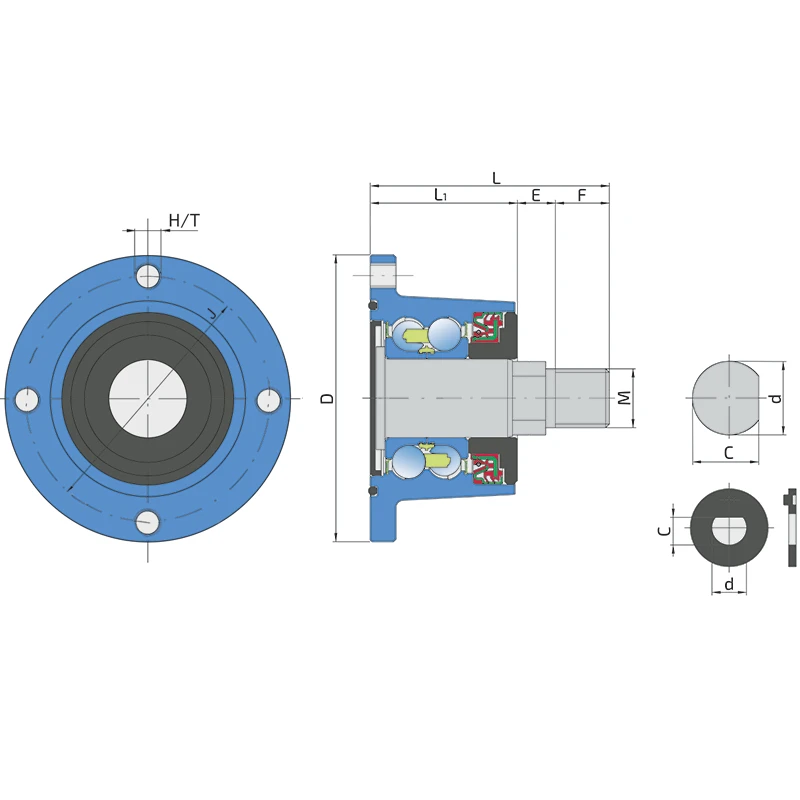

Total length - 102, total flange length - 60, hole center distance - 98, thread length - 25, weight - 2.51, flange diameter - 117, hole diameter - 27.95, dynamic load - 60, static load - 45.8.

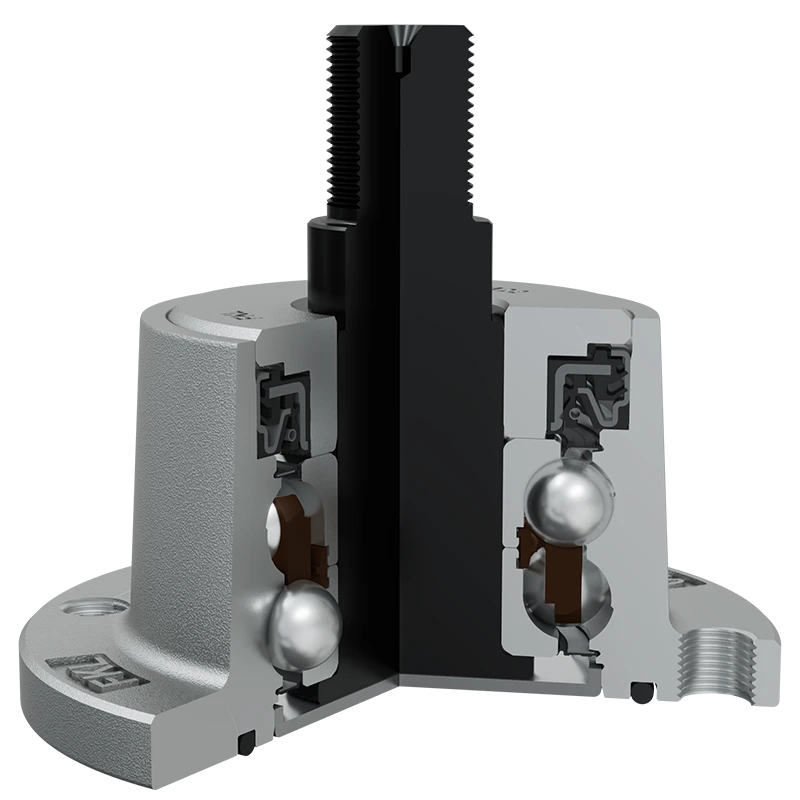

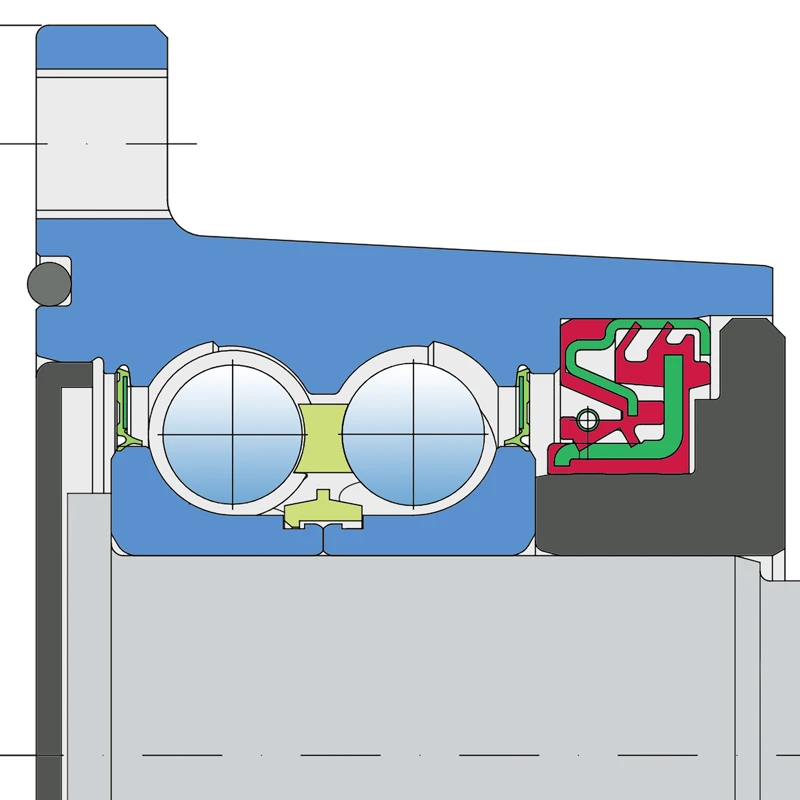

The hub of the IL50-98/4T-M22 cutting assembly is a maintenance-free bearing assembly, completely eliminating the influence of the human factor on the performance characteristics of the entire cutting assembly. A modern system of seals, together with high-quality materials used during the production of the hub, made it possible to guarantee the correct operation of the cutting assembly during a long service life.(//tractor-service.com)

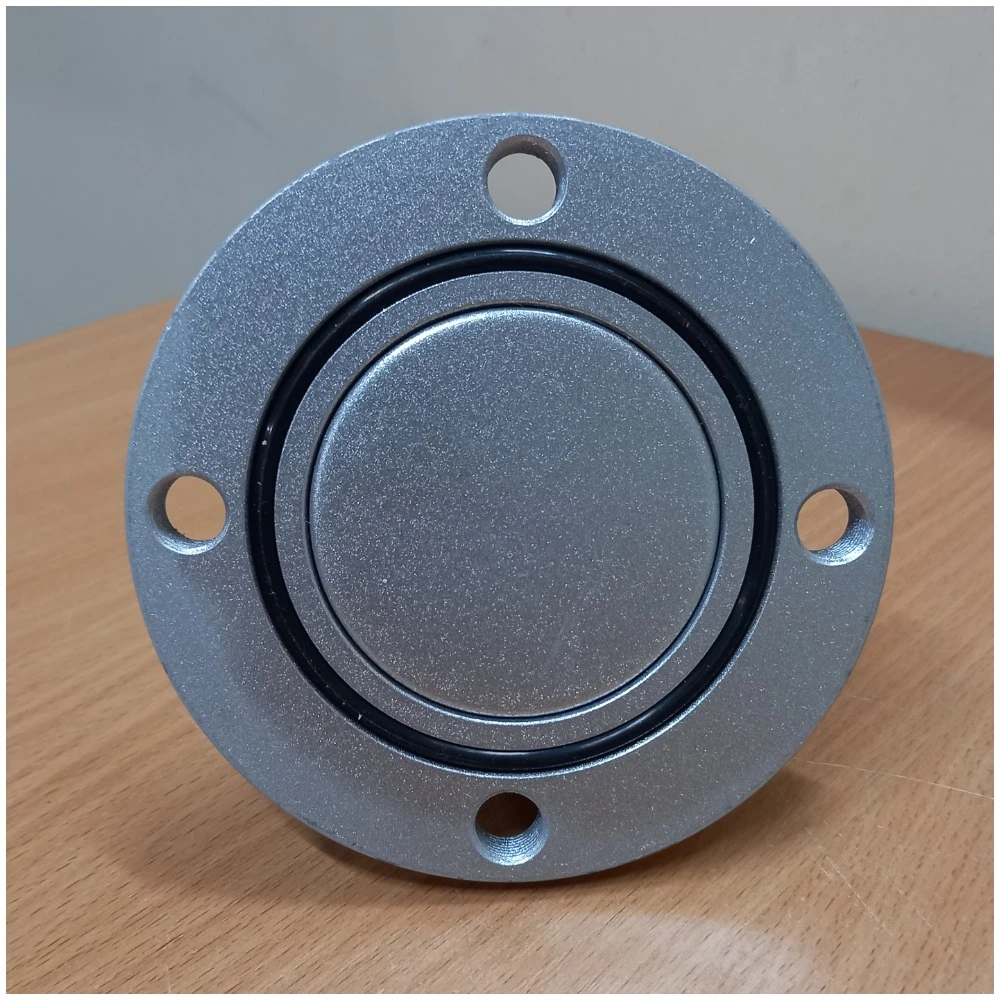

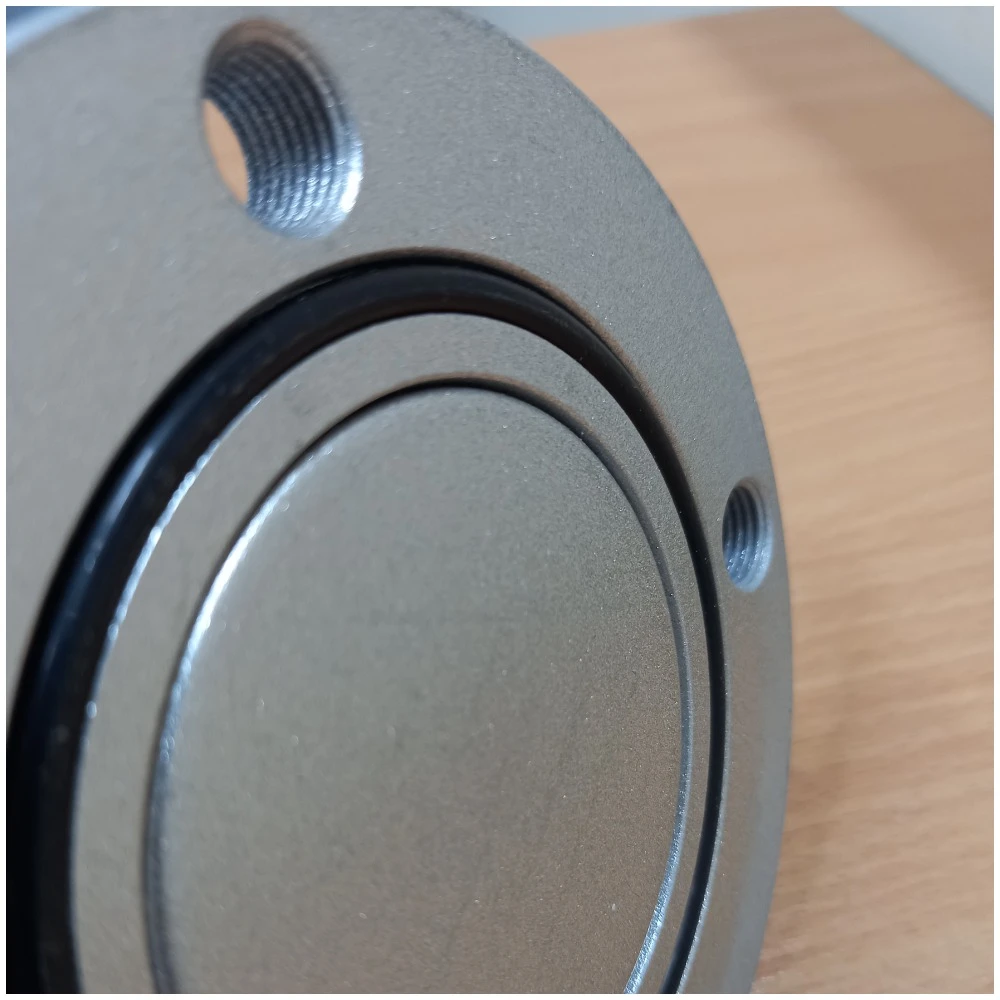

The hub of the IL50-98/4T-M22 cutting unit has a number of unique and undeniable competitive advantages: a longer service life of the bearing unit thanks to the use of a reliable sealing system, as well as a load capacity of 30% more than hubs of the same type/size, the lack of the need for maintenance of the unit increases the life of the unit and minimizes its operating costs, the galvanized surface of the flange, resistance to corrosion, ease of installation and replacement.
Conditions and recommendations for operation: ambient temperature from -20 to +50 C, tractor speed 5-20 km/h, disk diameter up to 610 mm, grease applied for the entire service life.

OEM: KM040110 Bednar, F06160015 Gaspardo, R1812511OR Gaspardo, m11308 Farmet, m19008 Farmet, 910974 Kockerling, 642668 Kockerling, RA133200 Vogel&Noot, 021224 Sulky, 021224 SKY.
Analogs: HUB-30MM-X-ASSY-A615 Peer, AHU28117A-01 NSK, BAA-0004 SKF, HUA11-4M12-S01 SNR, ZPK-001 RBF, KIT-HUB-30MM-ASSY-A221 Peer, AGHK3098X4D-7LC SKF, AHU28117A-01 NWG, PHA0004 PFI.

"Agromash-Kalyna" LLC, "Agro Prom Sfera" LLC, "Favorit" LLC are business partners of "TVK "FKL Ukraine" company, which complete their own agricultural machinery with IL50-98/4T-M22 FKL hubs.
