Hub IL50-98/4T-B30-F FKL, 152271, 484430, 440488, 152456, 424908, 441693, 208062, Dnipropetrovsk region.

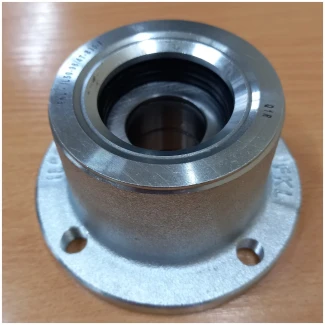

We offer the hub of the cutting unit IL50-98/4T-B30-F FKL (Serbia).

Field of application - Vaderstad tillage machinery.

The inner diameter of the bearing is 30, the total length of the flange is 61, the distance between the centers of the holes is 98, the diameter of the flange is 117, the size of the hole on the flange is 4хМ12х1.25, the weight is 1.87, the dynamic load is 60, the static load is 45.8.
(//tractor-service.com)
The hub of the IL50-98/4T-B30-F FKL cutting assembly is a maintenance-free bearing assembly that completely eliminates the influence of the human factor on the operational characteristics of the entire cutting assembly.
Competitive advantages of the hub of the IL50-98/4T-B30-F FKL cutting unit: an extremely large service life, high protection against personnel errors and irregular maintenance, the effects of the external adverse environment, work withdisks of any diameters and manufacturers, does not require additional protection against impacts on obstacles.
Operating conditions and recommendations: ambient temperature from -25 to +55 C,tractor speed 5-15 km/h, disk diameter 300-800mm, maximum number of disk revolutions up to 400 revolutions/min, rack thickness at the place of installation of the hub at least 18mm, grease applied for the entire service life.

OEM: 152271 Vaderstad, 484430 Vaderstad, 440488 Vaderstad, 152456 Vaderstad, 424908 Vaderstad, 441693 Vaderstad, 208062 Vaderstad.
Analogue: BAA-0003A SKF.
