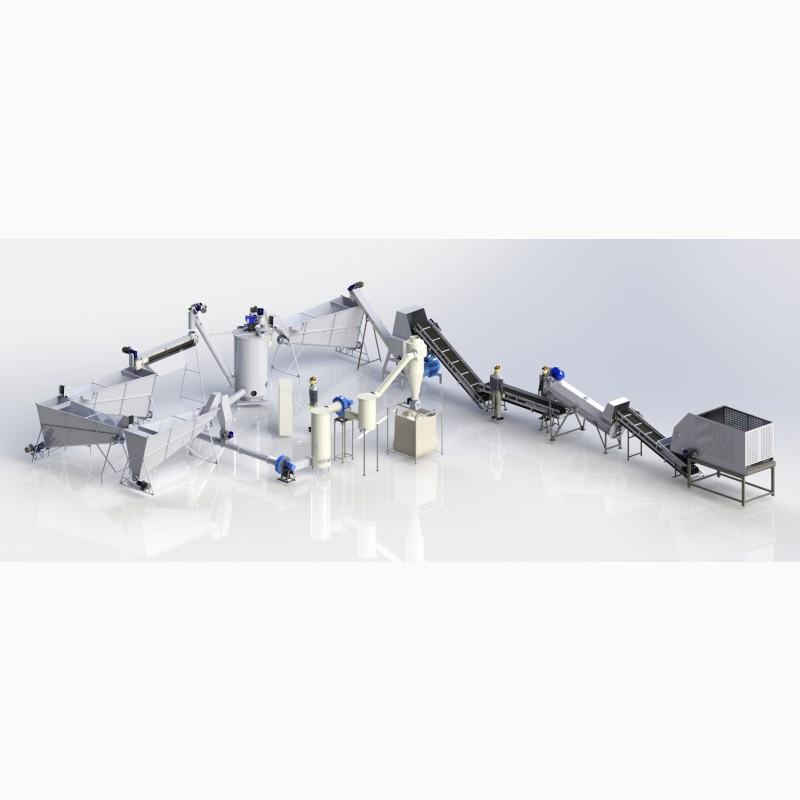

Complex for processing PET bottles 500 kg/h (by input raw materials), Khmelnytskyi region.

This technological line is intended for crushing, 3 stage washing, 4-stage cleaning from foreign included PET raw materials.
The belt conveyor feeds the raw material with the help of the translational movement of the belt into the PET label separator, where the label is mechanically removed from the PET bottle, as well as preliminary stripping of the raw material from sand, mud and washing. From the label separator, the raw material is fed to the belt sorting conveyor. After that,with a belt conveyor it is fed into the crusher. In the crusher, the raw material is crushed to a certain fraction size, depending on the cell of the separating sieve. Next, the crushed raw material undergoes several stages of cleaning (the first flotation bath with mechanical selection, a solid-fuel hot wash, a friction wash and three consecutive washing baths) and innovative vortex drying with the help of heated air streams. After drying, dust inclusions and the final label are cleaned in the air separator. Выгрузка is carried out by a pneumatic transport system through a cyclone-separator. High-quality and clean PET flex is shipped to the Big Bag.

Our company is a manufacturer of equipment and will not only provide the necessary equipment for your production, but also provide all necessary consultation.
Completing the pet processing line 500 kg/h
1) Feeding conveyor with receiving hopper - 1 piece. 149
2) Этикеткоотделитель - 1шт.
3) Sorting conveyor - 1 piece.
4) Inclined conveyor for feeding into the crusher - 1pc.
5) Crusher 500 kg/h - 1pc.
6)Screw conveyor – 2 pcs.
7) Flotation bath - 1pc.
8) Washing tub - 3 pieces. 158
9) Твердотопливная горячая мойка - 1шт.
10) Фрикционная мойка – 1шт.
11) Gateway feeder - 4 pcs.
12) VRP-4 fan - 2 pcs.
13) Fan VRP-3.15 – 1pc.
14) Vortex drying chamber - 2 pcs.
15) Separator cyclone - 3 pcs.
16) Air separator - 1 pc.(//tractor-service.com)
14) Control cabinet - 1 pc.
General indicators of the complex
• Raw materials at the entrance - PET bottles (poligonny collection; городской)
• The resulting raw material is PET flex.
• Productivity, kg/h – 500 (based on input raw materials)
• Nominal capacity of power equipment up to, kW/h -120
• Maximum working power, kW/h - 75
• Maximum water consumption up to, cubic meters/day - 22
• The number of service personnel, people-3-4
Advantages
The PET bottle processing equipment complex ordered from our company has a number of advantages:
1. The availability of various cast iron components for any production needs;
2. The possibility of increasing in the future from the minimum line to the maximum without replacing the existing equipment;
3. Processing and washing of raw materials is carried out in stages at various stages of the technological process;
4. Obtaining the highest quality raw materials at the output (without abrasions and scratches);
5. The mobility of the installation and the possibility of arranging complexes in various configurations;
6. Low level of energy consumption;
7. The possibility of ordering a start-up or installation chief;
8. Consultations of specialists on the operation of the equipment;
9. Consultations on new developments and the possibility of improving existing equipment;
10. The possibility of manufacturing the equipment taking into account the customer's wishes.
