Electronic bale counter, bale counter, Kyiv

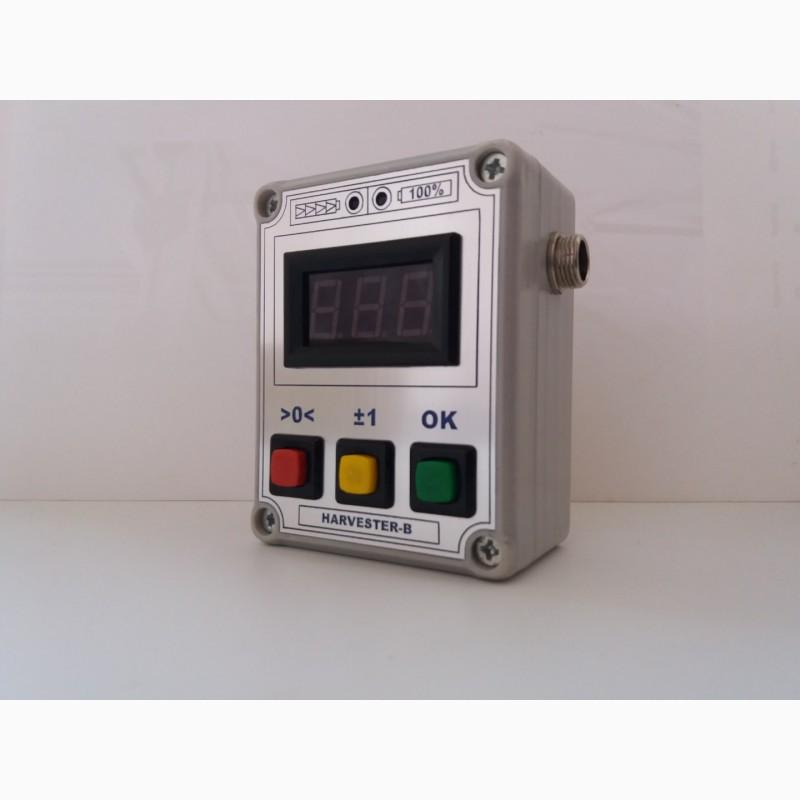

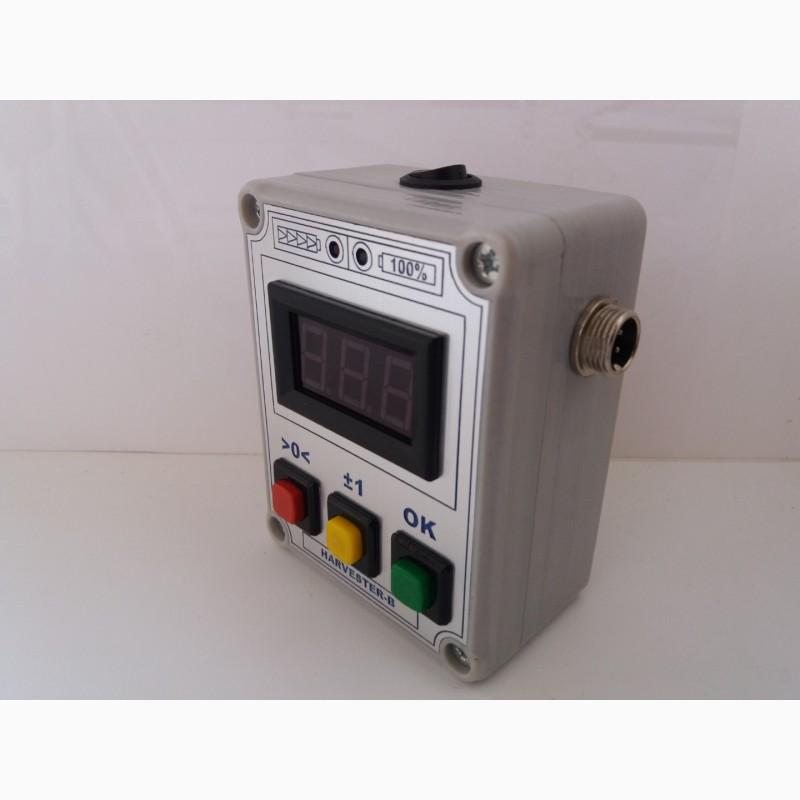

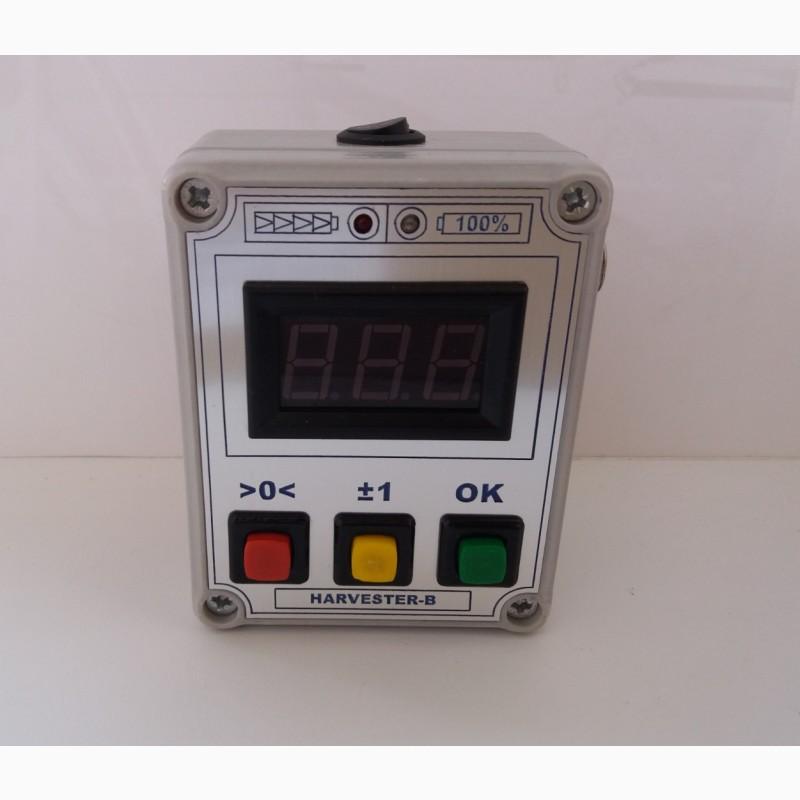

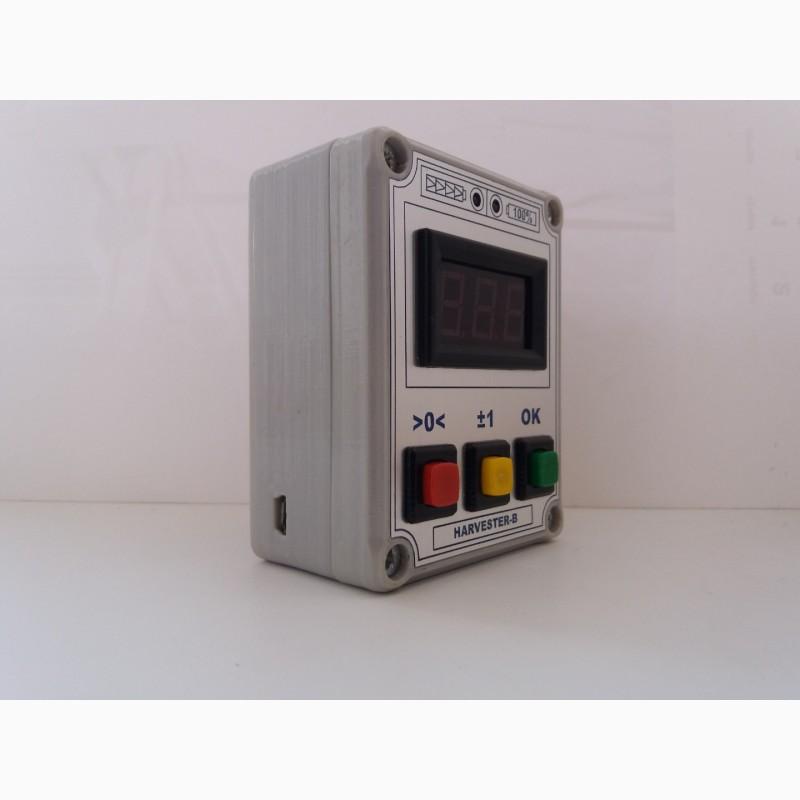

Bale counter for baler with built-in battery. The display unit and the sensor are connected by a cable. The display unit is installed in the cabtractor, and the sensor is installed on the press. To disconnect the pick-up press from the tractor, a plug and a socket are installed in the gap of the cable (hermetic connector - NOT INCLUDED IN THE STANDARD KIT)

https://www.youtube.com/watch?v=qR8SKflfQ9E&t=6s

THE PRICE IS INDICATED WITHOUT THE SENSOR.
THE PRICE IS INDICATED WITHOUT THE CHARGER. A charger with a microUSB connector is suitable, which is capable of delivering a current of 600mA or more, with a voltage of 5V. (This includes a phone, tablet, etc.)

Functions:
Energy-dependent storage of current and general accounts
Current quantity count
Total quantity count
Deduction of account units
Adding an account unit
Zeroing of the current account
Zeroing of the general account
Indication of the current voltage of the built-in battery
Notification about the low charge of the built-in battery
Indication of the battery charging process
On/off switch

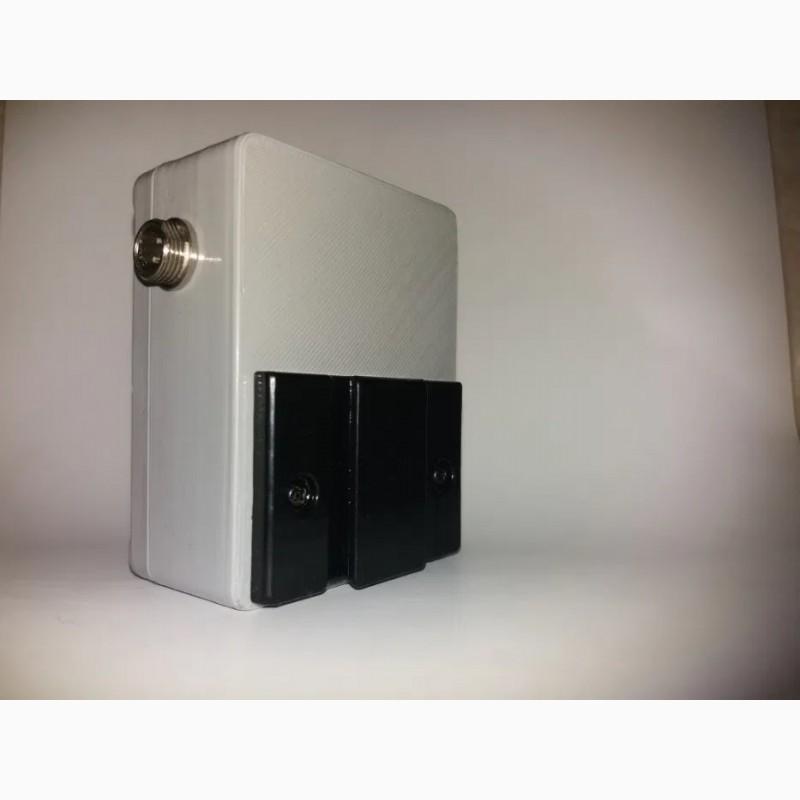

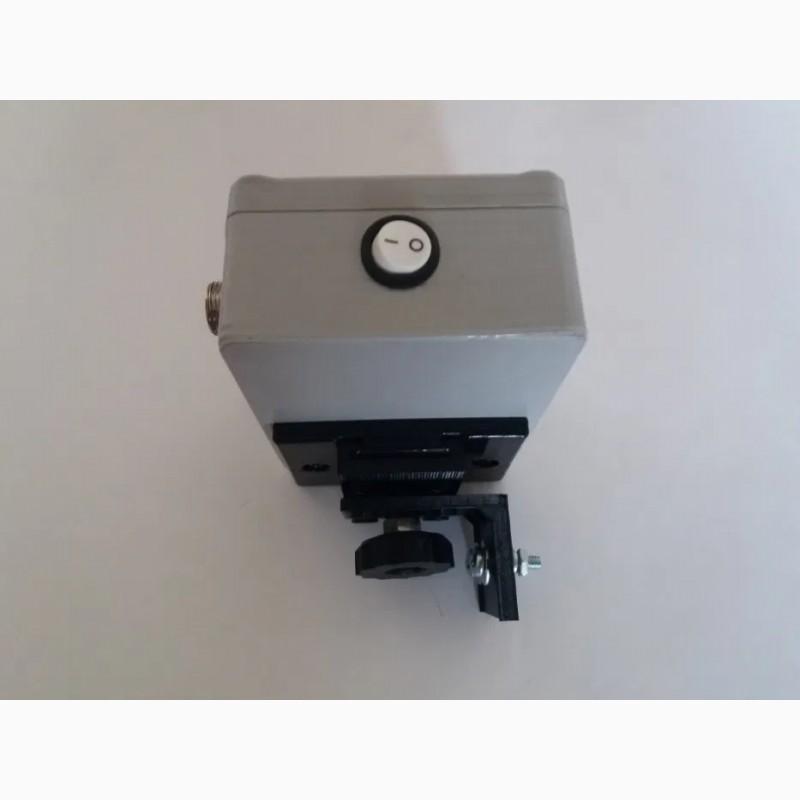

Bracket for fastening and quick disconnection of the counter from the tractor frame
(//tractor-service.com)

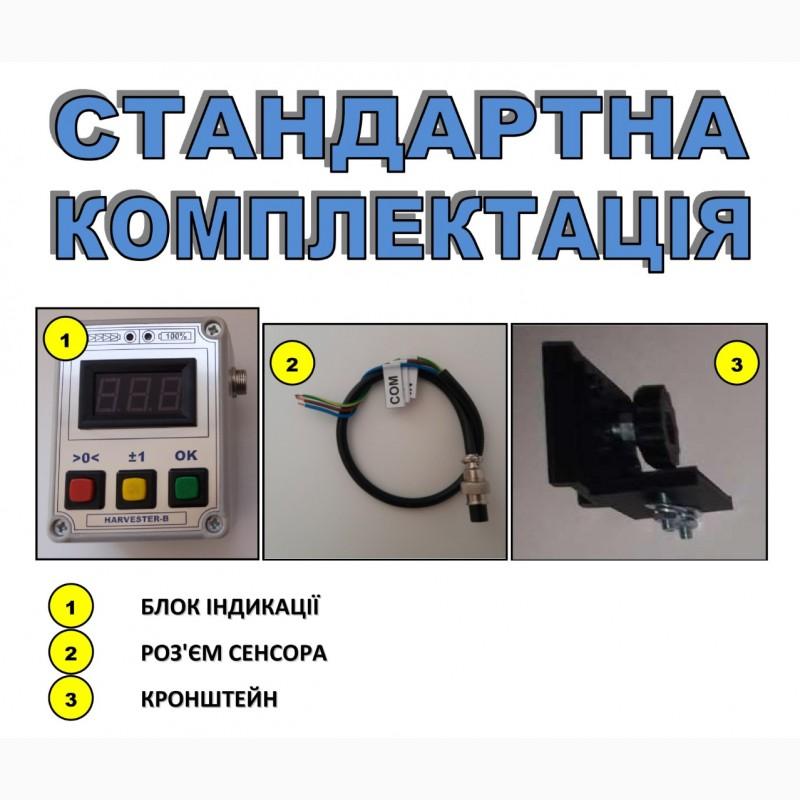

Standard equipment: 165
1. Блок индикации
2. Sensor connector with a wire 40 cm long.
3. Bracket for mounting and quick disconnection of the meter from the tractor frame.

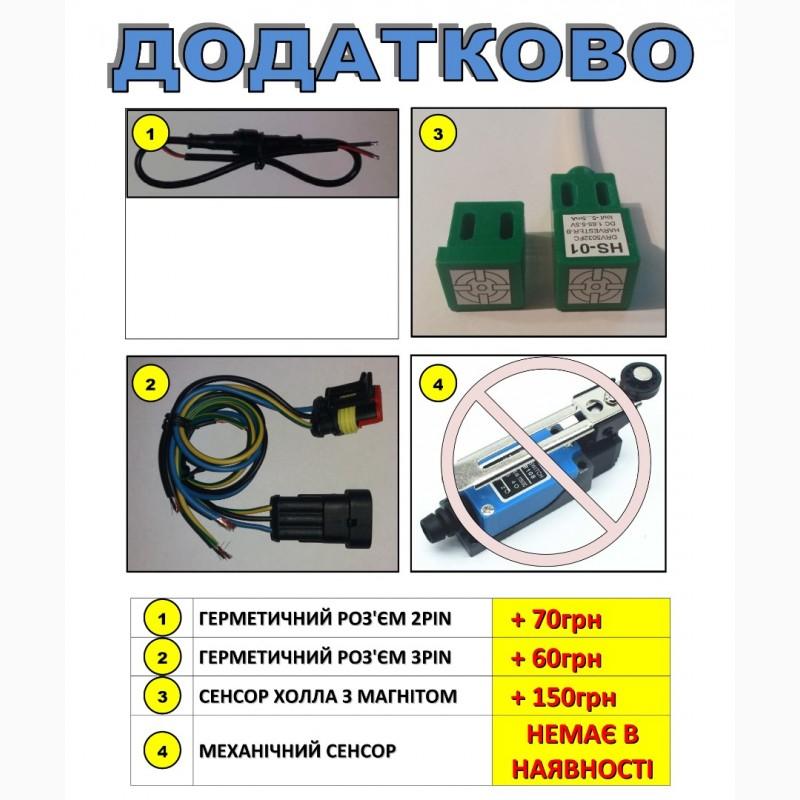

Additional equipment:

1. Hermetic connector 2 contacts (plug and socket) - UAH 70
2. Hermetic connector 3 contacts (plug and socket) - UAH 60
3. Hall sensor with a magnet - UAH 150
4. Mechanical sensor - not available

!!! Wires that are necessary for laying from the display unit to the sensor are NOT INCLUDED IN THE KIT

Technical characteristics:
The type of display is segmented LED
The height of the display digits is 14.2 mm.
The maximum amount of the current account: 0-999 pcs.
The maximum counting frequency is 1Hz (1 time per second)
Approximate operating time on one battery charge is 170 hours.
Approximate time of full battery charge - 4.0 hours
Storage and operating temperature - from +1°С to +40°С
