Electronic bale counter, 12V bale counter, Kyiv

PRICE SHOWN WITHOUT SENSOR

Bale counter for a pick-up press powered by the +12V on-board network. The display unit and the sensor are connected by a cable. The display unit is installed in the cabtractor, and the sensor is installed on the press. To disconnect the pick-up press from the tractor, a plug and a socket are installed in the gap of the cable (hermetic connector - NOT INCLUDED IN THE STANDARD KIT)

Supported sensor types:
1. Mechanical switch
2. Inductive - it works when metal approaches.
3. Hall sensor - it works when a magnet approaches.

Functions:
1. Energy-dependent memory of the current and general account
2. Current count of quantity
3. Total count of the quantity
4. Subtraction of the account unit
5. Adding an account unit
6. Zeroing the current account
7. Reset of the general account.
8. On/off switch
9. Bracket for mounting and quick disconnection of the counter from the tractor frame(//tractor-service.com)

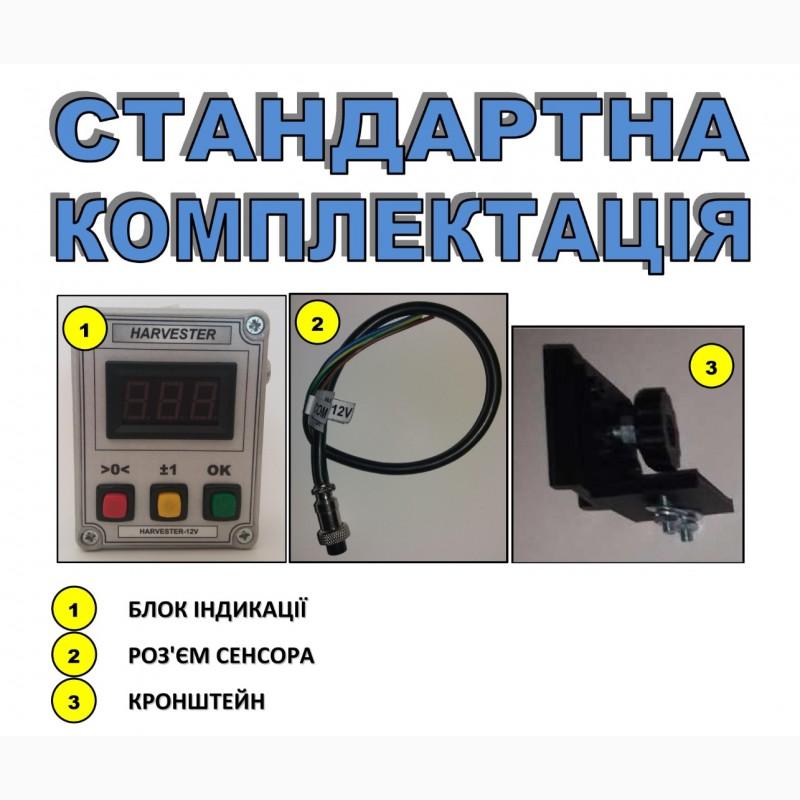

Standard equipment:
1. Display unit
2. Sensor connector with a wire 40 cm long.
3. Bracket for mounting and quick disconnection of the meter from the tractor frame.

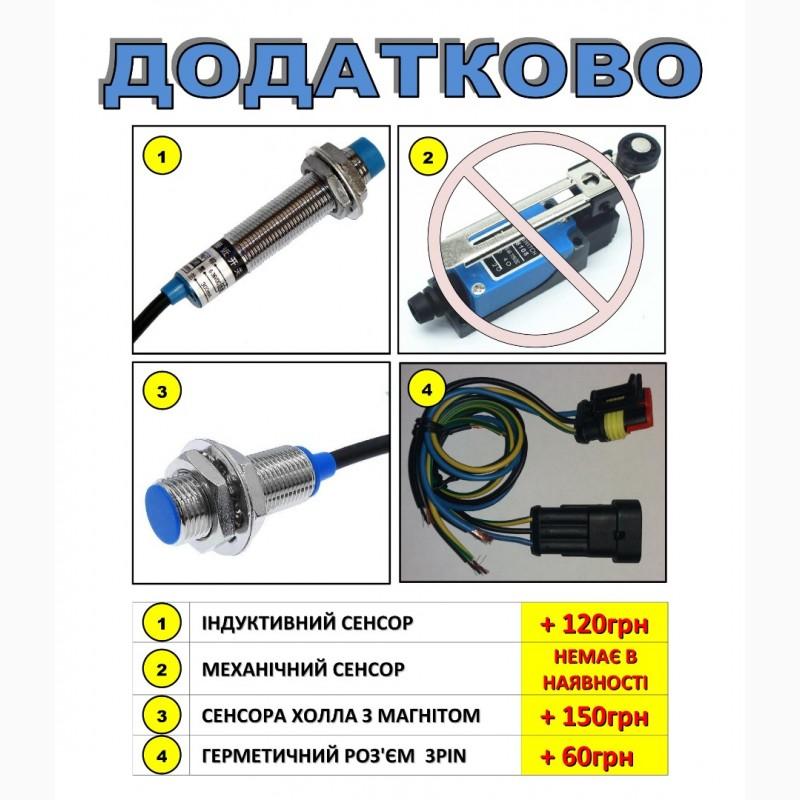

Additional equipment:

1. Inductive sensor (reacts on metal) - UAH 120
2. Mechanical sensor - not available
3. Hall sensor with a magnet - UAH 150
4. Hermetic connector 3 contacts with wires - UAH 60

!!! Wires that are necessary for laying from the display unit to the sensor are NOT INCLUDED IN THE KIT

Technical characteristics:
The type of display is segmented LED
The height of the display digits is 14.2 mm
The maximum amount of the current account: 0-999 pcs.
The maximum counting frequency is 1Hz (1 time per second)
